Connect the charging unit’s output terminal directly to the battery’s positive post. Eliminate unnecessary intermediate links–this bypasses factory fuse blocks, ignition switches, or relays that introduce voltage drop. A single 10-gauge cable, fused within 7 inches of the battery, carries both excitation current and full output, handling up to 140 amperes at 13.8 volts.
Route the cable along the engine’s rear valley to avoid moving belts and exhaust manifolds. Secure it with nylon ties every 8 inches; avoid metallic clamps that can chafe the insulation. A heat-resistant sleeve should cover the last 12 inches where it passes within 4 inches of the exhaust.
Voltage sensing occurs internally through the same cable, so no separate pickup lead is needed. The regulator triggers excitation at approximately 12.4 volts, cutting out around 14.5 volts. If the battery consistently reads below 13.0 volts key-on-engine-off, suspect a faulty unit or corroded connection–clean both terminals with a stainless-steel brush and apply dielectric paste.
Ground the housing to the engine block using a 6-gauge braided strap. Painted surfaces create high-resistance paths; grind a 1-inch-diameter spot down to bare metal. Torque the mounting bolt to 45 ft-lbs–loose grounds cause erratic voltage swings.
Start testing with a digital multimeter. Clip the red probe to the output stud, black to the case; cranking should yield an immediate 1-2 volt rise above battery voltage. If readings sag or flutter, replace the rectifier diode trio–aftermarket units rated at 250 amperes handle transient loads better than stock 180-amp assemblies.
Simplified Electrical Connection Guide for Late-Model Charging Systems
Start by connecting the single output terminal on the generator directly to the battery’s positive post using 10-gauge or thicker cable–ensure the path is uninterrupted, bypassing all ignition switches, fuses, or relays to prevent voltage drop. This terminal, often marked “BAT” or “S,” delivers the full charge output at engine idle (typically 13.8–14.4V) without requiring external excitation; modern internally regulated units self-energize once the rotor reaches 1,200–1,500 RPM. Measure resistance between the case and the output lug–values above 0.5 ohms indicate corroded mounting points or poor ground bonding, which can cause erratic charging cycles or premature failure.
Critical Safety Checks Before Installation
Inspect the pulley alignment: misalignment exceeding 0.5mm generates over 40% more bearing wear, reducing service life to under 50,000 miles. Verify belt tension with a tension gauge–deflection should not exceed 10mm for Poly-V belts or 12mm for serpentine variants at 10 lbs force. Attach a voltmeter across the battery terminals while cranking; a drop below 9.6V signals a weakened starter or undersized cables, forcing the charging system to compensate excessively during cold starts.
Label each connection with heat-shrink tubing or permanent marker: blue for voltage sense (if equipped), red for primary output, black for ground reference. Test for parasitic draw with a multimeter in ammeter mode–the acceptable current leakage for these setups is 0.02–0.05A; values above 0.1A indicate a shortcut in either the rectifier bridge or stator windings, requiring disassembly and bench-testing of diode continuity at 1kΩ range.
Locating the Single-Terminal Charging Unit Connector on a Motorcraft Model

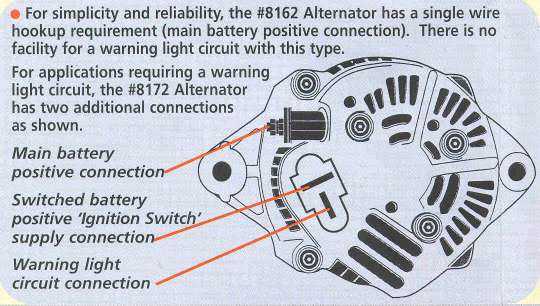

Inspect the rear casing of the voltage regulator for a solitary stud protruding from the housing–this is the primary excitation point. On most late-model powertrain generators, it measures 8-10 mm in diameter and is threaded for a 10- or 12-mm ring terminal. Verify the absence of a second smaller post adjacent to it; the presence of only this single lug confirms the single-conductor configuration.
Trace the heavy-gauge cable exiting the battery positive terminal–it typically routes directly to the same stud via a heat-resistant sheath. Follow this lead around engine accessories; interference with pulleys, coolant hoses, or exhaust manifolds often causes chafing. Ensure the connection is secure by torquing the nut to 12-15 Nm; overtightening risks thread stripping in aluminum housings.
Identify common failure signs at the terminal: corrosion forming white or green deposits indicates moisture ingress, often resolved by applying dielectric grease after cleaning with a wire brush and baking soda slurry. For aftermarket installations, confirm compatibility by checking the unit’s rated amperage–32-70 A models share the same connector layout, while high-output variants may require an external voltage sensor relay.
When replacing the fitting, select a seamless brass or copper lug to prevent galvanic corrosion. Crimp the joint using a hydraulic tool rather than pliers–ensures a cold-welded bond capable of withstanding 100+ A transient spikes. If conducting resistance tests, disconnect the battery ground first to avoid false readings from system capacitance.
For retrofits matching older vehicle harnesses–especially pre-1990s specimens–verify whether the stock harness employs a fused link or inline fuse between the excitation stud and ignition switch. Omission risks uncontrolled generator output, leading to premature voltage regulator failure or battery overcharging.
Step-by-Step Guide to Connecting a Single-Connector Charging System
Disconnect the vehicle’s battery negative terminal before touching any electrical connections to prevent short circuits or accidental engagement of the starter. Locate the power generation unit’s mounting point–typically adjacent to the engine’s serpentine belt path–and remove any factory-installed wiring if retrofitting an older model. Verify the new unit’s voltage regulator is set for the correct output (14.2V–14.5V for 12V systems) by consulting the manufacturer’s specifications.

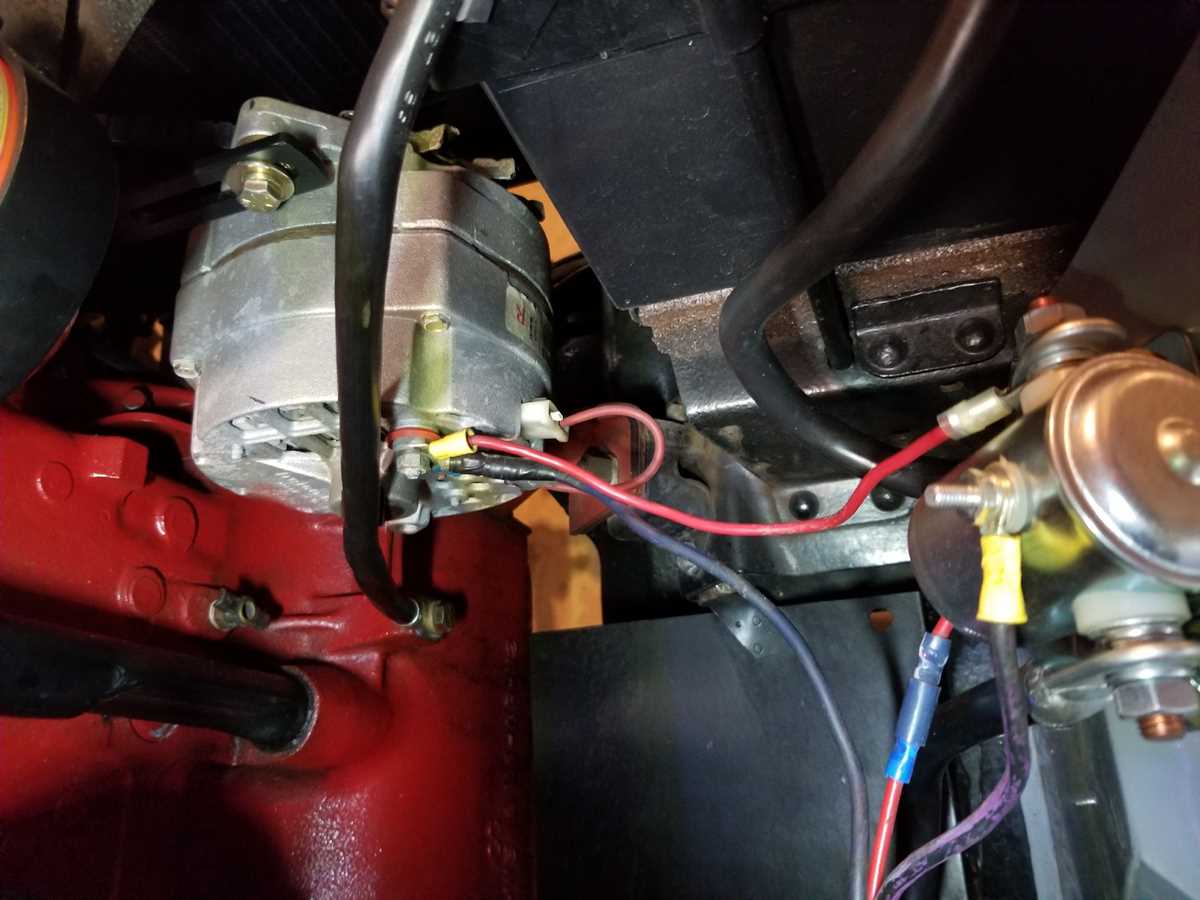

Attach the main electrical lead–a thick, insulated cable–to the charging system’s solitary post using a ring terminal crimped with at least 8 AWG wire for most V6 and V8 applications. Secure the connection with a stainless steel nut tightened to 10–12 Nm torque, ensuring no exposed copper remains to invite corrosion. Route the cable away from moving components, heat sources, and sharp edges, fastening it with nylon ties every 15 cm to prevent abrasion.
Grounding and Secondary Connections
- Trace the engine block’s clean, bare-metal surface within 30 cm of the charging unit for an optimal ground point. Sand away paint or coatings using 80-grit emery cloth to expose raw metal, then drill a 6 mm hole if no existing bolt is present.
- Install a dedicated ground strap (6 AWG minimum) from the charging unit’s case to the prepared engine surface, using a star washer to ensure low-resistance contact. Torque the bolt to 15 Nm.
- For vehicles with tachometer integration, splice a 16 AWG auxiliary lead from the charging unit’s indicator terminal (marked “R” or “S”) to the ignition coil’s negative post, cutting the original wire if necessary to isolate interference.
Reconnect the battery’s negative terminal and perform a voltage check at both the battery posts and the charging unit’s output terminal before starting the engine. With the engine off, battery voltage should read 12.4V–12.8V; at 2000 RPM, the charging system should deliver 13.8V–14.6V. If readings fall outside this range, adjust the voltage regulator or inspect for loose connections, corroded terminals, or incorrect belt tension (deflection should not exceed 1 cm under 5 kg finger pressure).
Post-Installation Verification
- Monitor the ammeter or dashboard warning lamp during a 10-minute idle period–flickering or dimming suggests poor grounding or insufficient cable gauge.
- Check for parasitic draw by disconnecting the battery negative terminal and measuring current across the open circuit with a multimeter; readings above 50 mA indicate an unintended drain requiring circuit tracing.
- Under load (headlights, blower motor at high), voltage should not drop below 13.5V; persistent drops mandate re-evaluation of the charging system’s output capacity or belt alignment.
Critical Errors to Sidestep in Self-Excited Charging System Installation
Never connect the excitation terminal directly to the battery positive without a fuse. A 10-amp inline fuse placed within 7 inches of the power source prevents voltage spikes from damaging the internal regulator. Skipping this step risks short-circuiting the stator coils, leading to irreversible failure within minutes of operation.
Misidentifying the excitation post as the main output terminal is a frequent blunder. The correct post is typically marked “A” or “I” on OEM units, while aftermarket models may label it “R” or “S.” Using a meter in diode-test mode confirms the right pin–it will show continuity when probed against the case ground.
Avoid relying on old battery cables for the excitation circuit, even if they appear intact. Copper oxide buildup inside corroded wires increases resistance, causing voltage drop as high as 1.2V under load. Replace any cable older than five years with 10-gauge tinned copper wire to maintain consistent charging.
Grounding mistakes rank among the most destructive errors. The regulator’s ground must connect to the engine block or chassis at a bare-metal point, not through painted surfaces or rubber-insulated mounts. A poor ground can force the regulator to overcompensate, generating excessive field current and burning out the rotor windings.
Omitting a voltage stabilizer for sensitive electronics when using a self-excited setup invites trouble. These charging systems lack the internal voltage stabilization of multi-connection variants, allowing spikes up to 16V during deceleration. Install a 15-amp transient voltage suppression diode across the battery terminals if the vehicle has ECUs, fuel injectors, or LED lighting.
Ignoring the warning signs of incorrect installation–such as dimming headlights at idle, whining noises from the drive belt area, or erratic gauge readings–can lead to catastrophic failures. A clamp-style ammeter should read between 10-25 amps at 2000 RPM; anything outside this range signals an underlying problem requiring immediate diagnosis.
