Start with the ignition feed and excitation terminal. Locate the 12-volt supply line running from the ignition switch to the charging component–typically marked as “I” or “R.” Verify continuity with a multimeter (expected: 11–13 volts when the engine is off, rising to 14–14.5 volts during operation). If readings deviate, inspect the fusible link or relay upstream; corrosion at the connector junction is a frequent failure point.
Ground path integrity determines stable output. Trace the negative circuit from the generator housing to the engine block or chassis ground. Rust, loose mounting bolts, or paint interference weaken conduction. Sand contact surfaces to bare metal; torque bolts to 25–30 Nm. A weak ground can mimic regulator failure, causing erratic voltage swings or intermittent charging.
Isolate the field coil and sensing circuits. The self-contained unit combines a brushless stator with an integrated voltage limiter, eliminating external adjustment points. Use a test light or low-amperage probe (max 5A) to confirm excitation current at the “I” terminal when the key is on. No light? The internal regulator may be open, or a broken diode trio could block current. Swap with a known-good unit to confirm.
Monitor line voltage at the battery posts during a 1,500 RPM test. Fluctuations above 15V suggest a leaking upper transistor in the regulator stage; replace the entire assembly. Below 13.8V indicates insufficient field current–check for dirty slip rings or worn brushes, which reduce resistance to 2–3 ohms when new and should never exceed 10 ohms.
Diode trio failure masquerades as battery drain. A shorted diode trio allows reverse current when the motor is off, draining the battery overnight. Test each diode by disconnecting the stator leads and measuring resistance in both directions with a multimeter. Forward bias should read 50–80 ohms; reverse must show infinity. Replace the trio if readings match in both directions.
Reassembly sequence: reattach stator leads first (torque to 8–10 Nm), then tighten the rear bearing retainer, ensuring alignment splines for the drive pulley match factory marks. Misalignment introduces harmonic vibration, prematurely wearing brushes. Finally, reconnect battery negative last–skipping this risks accidental shorting of exciter circuits, which destroys the regulator.

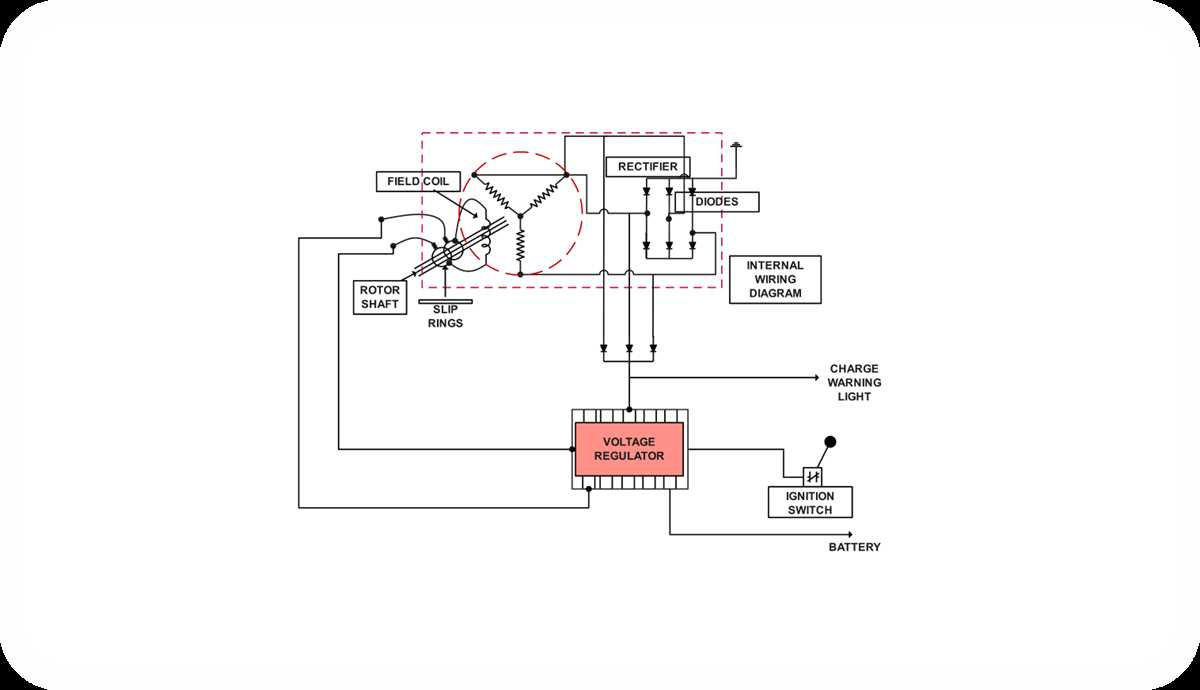

Understanding Generator Electrical Layouts for Built-In Voltage Controllers
Connect the battery-positive (B+) terminal directly to the primary power stud on the charging unit using 10-gauge or thicker wire. Avoid daisy-chaining through the starter solenoid–this creates voltage drop under load and overheats connections. The ignition-trigger (I) wire should route through a 5-amp fuse within 7 inches of the voltage source to prevent fire hazards if shorted. Verify polarity before energizing: reversing this lead can destroy the on-board control module instantly.
Critical Sensing Circuit Configuration
Attach the voltage sensing (S) lead to the battery side of the main fuse block, never to accessory circuits. This ensures accurate voltage readings under varying loads. Omit resistor packs or diodes in this path–even minor resistance skews regulation by 0.3V or more. For dual-battery setups, connect the S terminal to the primary battery’s positive post using 16-gauge wire, not thinner–voltage drop distorts feedback, causing overcharging or premature failure.
Ground the housing securely to the engine block using a dedicated 8-gauge strap. Paint, rust, or loose fasteners increase resistance, leading to erratic output and parasitic draw. Test ground integrity with a multimeter: clamp-to-engine block should read under 0.2 ohms. Corrosion inhibitors (like dielectric grease) applied to terminals extend service intervals by preventing oxidation that disrupts current flow.
For vehicles with electro-mechanical ignition systems, the field (F) lead must bypass the ignition switch if the built-in controller lacks start-cycle excitation. Use a relay triggered by the starter solenoid signal to supply full battery voltage during cranking. This prevents low-RPM voltage sag, which can stall the engine or damage sensitive electronics. Verify excitation voltage at the F terminal before startup–values below 10V indicate wiring faults or a failing control module.
After installation, load-test the system at 1,500 RPM with all accessories on (headlights, A/C, radio). Output should stabilize between 13.8–14.4V; deviations outside this range signal faulty regulation or improper wiring. Check for AC ripple exceeding 100mV with an oscilloscope–excessive ripple corrodes battery plates and disrupts ECU operation. Tighten all connections with a torque wrench to manufacturer specs (typically 12–15 lb-ft) to prevent vibration-induced failures.
Locating and Decoding Connections on Vehicle Charging System Units
Begin by isolating the generator’s three primary connection points: the battery-positive output, excitation input, and ground reference. The thickest cable with heavy insulation–often 10-gauge or larger–links directly to the starter battery terminal and carries the main charging current. Trace this wire back to its plug connector; it will typically terminate at a stud marked B+ or A (depending on the model year), secured with a ring terminal. Verify this connection visually since misalignment here can lead to insufficient voltage supply to the electrical system.
Recognizing Excitation and Sensing Circuits
Identify the thinner wire pair responsible for field control. One lead–usually a single-strand 16-gauge–connects to the ignition switch via a spade or bullet terminal and feeds initial excitation voltage at startup (often labeled I, F, or S). The second, a sensing line, is frequently bundled alongside and routes battery voltage back to the voltage control module to maintain consistent output levels. On pre-2000 models, this may integrate a diode trio within the housing; later variants separate sensing into a distinct S terminal. Check for continuity with a multimeter while the engine runs–open circuits here prevent activation.
Examine the rear connector housing for a small, unassuming terminal marked L or P. This feeds the indicator lamp circuit, grounding through the dashboard bulb to signal charging status. Discoloration or corrosion here causes false warning lights; clean contacts with a wire brush if signs of oxidation appear. Some harnesses include an additional G lead for grounding the internal stabilizer–ensure this attaches firmly to the engine block or chassis near the mounting point without relying on paint-coated surfaces.
Label each extracted cable immediately with masking tape to avoid confusion during reinstallation. Use a test lamp or oscilloscope to confirm waveforms match factory specifications: excitation input should show 12-14VDC on ignition, while the sensing line exhibits a slightly lower reading during load conditions. Missing or reversed wires compromise electronic stability, leading to overcharging or battery drain; cross-reference findings with service manual specifics for your powertrain configuration.
Step-by-Step Guide to Testing Voltage Output on a Generator Circuit
Begin by connecting a multimeter set to 20V DC range directly to the battery terminals while the engine is off. Record the baseline reading–healthy systems typically show 12.6V. Start the motor and recheck voltage; a functional charging system should register between 13.8V and 14.5V at idle with no electrical loads active. Deviations below 13.2V or above 15V indicate potential faults in either the voltage control module, stator windings, or field coil excitation. Ensure the test is performed with a fully charged battery–defective cells skew results.
Isolating Component Issues
Disable the voltage regulator by temporarily disconnecting its field wire (labeled “F” or “Field”) from the charging unit’s backplane while the engine runs at 1,500 RPM. Use a fused jumper wire to bridge the “B” (battery) terminal directly to the field connection–voltage should spike to 16V or higher if the rotor and stator are intact. If voltage remains unchanged, replace the control module. For further verification, measure AC voltage across the stator output wires (>0.5V AC at idle confirms output); absence suggests winding failure. Check brush wear if field current is confirmed but voltage stays low–excessive length below 5mm requires replacement.
Frequent Errors During Generator System Upgrades
Reverse the battery-to-generator cable polarity by connecting the positive lead to the negative terminal or vice versa, and the voltage control module will fail instantly. Verify the cable ends with a multimeter before securing them–red to output stud (typically marked “B+”), black to ground. Exceptions exist on 1992–1996 4.9L engines where the ground path runs through the mounting bracket; bypassing this by attaching directly to the chassis creates a 0.5V drop, reducing charging efficiency.
Route the sense wire (often labeled “S” or “I”) to the wrong ignition source. Connecting it to an unswitched circuit (e.g., fuse box tap) keeps the rotor energized 24/7, draining the battery in under 8 hours. Locate the correct ignition-switched terminal by testing with a noid light–it should illuminate only when the key is in the “run” position. Pre-1990 models may lack this wire entirely; verify against the vehicle-specific repair manual before splicing.
| Error | Consequence | Fix |
|---|---|---|
| Loose B+ nut | Intermittent 12V pulses, headlights flicker at 1500 RPM | Torque to 12 Nm, apply dielectric grease to threads |
| Skipping ground bolt | Voltage spikes up to 16V, ECU error code P0562 | Clean mating surfaces, use star washer |
| Incorrect stator taps | Y-configuration misread as delta, charging drops below 13.2V | Check resistance: Y = 0.2–0.5Ω between taps, delta = open |
Over-tightening the stator bolts crushes the insulation on the rectifier plates. Use a calibrated torque wrench set to 5 Nm–exceeding this cracks the ceramic substrate, leading to mutual shorting of phases. Replace the rectifier assembly if resistance between any phase terminal and ground measures below 1 MΩ. Avoid non-conductive coatings; these introduce 3–5Ω contact resistance, elevating operating temperatures by 18°C.
Disconnecting the voltage regulator connector while the engine runs sent 14V directly into the field coil, frying it in 400 ms. Always ground the field terminal (marked “F”) temporarily before removal. On twin-pulley systems (e.g., 7.3L diesel), the field wire shares a harness with oil pressure sender–misidentification disconnects both, triggering unintended cranking via starter relay.
