Begin by locating pin B+ on the rear of the unit–this is the primary power output terminal. Connect it directly to the battery’s positive post using 4-gauge cable or thicker to handle current loads up to 130 amps. Ensure the connection is secured with a ring terminal crimped and soldered for long-term reliability. Avoid daisy-chaining wires to other components; this terminal must deliver uninterrupted voltage to prevent voltage drops under heavy load.
Identify the voltage regulator plug next–this three-prong connector manages excitation current. The ignition-switched pin (typically marked “I”) requires a 12V signal from the ignition circuit to activate the rotor’s field. Route a 16-gauge wire from the ignition switch, fused at 10 amps, to this pin. A common mistake is tapping into accessory circuits, which may not provide sufficient voltage during cranking, leading to slow charging rates.
The charge indicator lamp pin (“L”) connects to the alternator warning light on the dashboard. Use a 18-gauge wire, linking it to the bulb’s positive side through a 1/4-watt resistor (470-ohm) if the factory wiring lacks this component. Without it, the field may not energize properly, causing erratic charging behavior. Ground the mounting bracket securely; inadequate grounding is a frequent cause of voltage fluctuations. Bolts should penetrate bare metal–paint or corrosion will disrupt conductivity.
For vehicles with additional electrical demands, consider a dual-output setup. The secondary “S” terminal, when present, taps into the battery sense circuit for precision voltage regulation. Wire this terminal directly to the battery’s positive terminal with 14-gauge cable, bypassing potential resistance from switches or relays. Failure to connect this can result in overcharging, particularly in high-idle scenarios.
Test connections with a multimeter before finalizing: battery voltage should read 13.8–14.4 volts at 2,000 RPM. If readings fluctuate, recheck the regulator plug and ground paths. Isolate circuits by disconnecting the battery and measuring resistance–values above 0.5 ohms indicate corrosion or loose connections. Address these before reassembly to prevent premature failure of sensitive electronics.
Understanding the 6G Electrical Generator Connection Layout
Begin by locating the primary output terminal on the 6G unit–typically marked “B+” or “Bat”–and secure it to the vehicle’s positive battery post using 8-gauge or thicker cable. This connection must include an in-line fuse rated between 80–120 amps, positioned within 7 inches of the battery to prevent short-circuit damage. Skip commonly suggested distributors like the ignition switch; instead, route power directly from the battery to ensure stable voltage delivery under heavy loads, especially in cold cranking conditions.
- Ground the generator’s metallic casing to the engine block or chassis using a minimum 6-gauge wire. Avoid daisy-chaining grounds or terminating at painted surfaces; corrosion-resistant star washers or dedicated grounding terminals improve conductivity.
- The voltage regulator connector (often a three-pin plug) requires specific pin assignments: pin A (voltage sense) connects to the battery positive via a dedicated 18-gauge wire; pin B (field excitation) pulls current from the ignition circuit through a 5-amp fuse; pin C (warning lamp) grounds through the dash indicator bulb, which should extinguish once the unit reaches 13.8V.
- For aftermarket tachometers or auxiliary equipment, tap the stator output wire (usually yellow) after verifying its compatibility with the accessory’s voltage range–typically 1–10V AC under no load.
Verify all connections with a multimeter prior to initial startup. Set the meter to DC volts and measure between the battery posts; readings should stabilize between 13.5–14.5V at 1,500+ RPM. If voltage exceeds 15V, inspect the regulator’s ground integrity or replace the internal voltage-sensing components. For dual-battery setups, isolate each bank using a 120-amp relay triggered by the main system voltage, ensuring no cross-drain occurs during engine-off conditions.
Pinpointing the 6G Power Generator Linkage Plugs

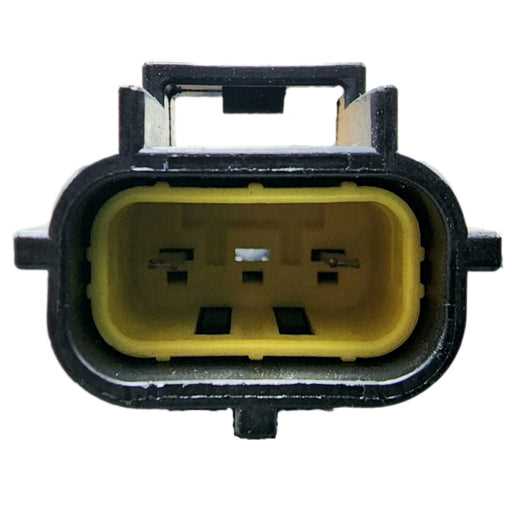

Trace the two primary plugs on the back of the 6G unit: the larger voltage regulator connector (typically a 3-pin rectangular plug with blade terminals) and the smaller excitation terminal (a single spade or bullet-style pin, often marked “I” or “IND”). The regulator plug houses the battery sense (usually labeled “S” or “A”), field output (“F” or “DF”), and ground (“-” or unlabeled black wire). Use a multimeter set to continuity mode to verify each pin’s function–probe the “S” terminal against the battery positive; it should read near-zero resistance, indicating a direct reference path. If readings exceed 0.5 ohms, inspect the wire for corrosion or fraying at crimp points.
Key Connector Characteristics
Examine the plastic housing for mold codes–6G variants often feature “DYR-A” or “F3TZ” embossed near the latching tab, a quick identifier for Ford’s OEM harness compatibility. The excitation pin’s insulation will be thicker (14-16 AWG) compared to the regulator wires (18-20 AWG), accommodating higher initial current draw during startup. Peel back the sheathing at the harness’s first junction (usually 6-8 inches from the plug) to check for green/white oxidation on copper strands–a common failure point in high-mileage vehicles. Replace the entire pigtail if oxidation penetrates beyond the first inch of exposed wire.
Label each wire with tape before disconnecting: “S” = red/blue stripe, “F” = white/black stripe, “ground” = solid black. Misrouting the “F” wire (intended for the ignition-on circuit) to the “S” terminal will trigger a false voltage reading, causing either overcharging or failure to excite. For aftermarket replacements, match the regulator plug’s pin pitch (Ford’s 6G uses a 2.54mm center-to-center spacing)–generic plugs with wider spacing will not seat properly and may melt under load.
Step-by-Step Guide to Connecting a 6G Electrical Generator for 12V Setups
Disconnect the battery’s negative terminal before handling any electrical connections to prevent short circuits. Locate the generator’s primary output stud–typically marked “B+”–and attach a 4-gauge or thicker cable directly to it. Route this cable to the battery’s positive terminal, ensuring no insulation damage along the path.
Identify the voltage regulator’s “S” terminal on the rear of the unit. Connect a 16- or 18-gauge wire from this point to the ignition switch’s “ON” circuit. This link ensures the regulator receives power only when the engine is active, preventing parasitic battery drain during idle periods.
Attach a 10-gauge wire from the generator’s “I” (indicator) terminal to the dashboard’s charge warning light. If the vehicle lacks this light, use a 12V LED bulb in series with a 50-ohm resistor to mimic the signal. Verify the light illuminates when the ignition is turned to “ACC” but extinguishes when the engine runs.
Ground the generator’s casing by securing an 8-gauge wire to a clean, unpainted chassis point near the mounting bracket. Avoid using the engine block as a ground unless absolutely necessary–paint, oil, or corrosion can impede conductivity. Test the connection with a multimeter (0 ohms between casing and battery negative).
For older models with an “A” terminal (armature), connect a 14-gauge wire from this point to the starter solenoid’s battery-side lug. This bypasses resistance-prone paths and ensures full voltage reaches the stator windings during cranking. Newer units omit this terminal; verify against the specific unit’s specification sheet before proceeding.
Install an inline fuse (80–100A) within six inches of the battery’s positive terminal on the output cable. Use a fusible link or ANL fuse holder, never a standard automotive fuse–these fail under sustained high-current loads. Label the fuse for future diagnostics.
Test the setup with the engine off. Turn the ignition to “ON” and confirm the charge light activates. Start the engine and monitor voltage at the battery terminals: idle should read 13.8–14.4V, with a gradual rise under electrical load (e.g., headlights, radio). Voltage below 13.5V indicates a weak stator or faulty regulator; above 14.8V suggests overcharging.
Seal all connections with heat-shrink tubing or dielectric grease to prevent oxidation. Route cables away from moving parts, exhaust manifolds, or sharp edges. Reconnect the battery’s negative terminal last, then recheck all voltages. Store a backup schematic under the hood for reference during future troubleshooting.
Common Errors in 6G Generator Circuit Hookups and Prevention
Connecting the ignition feed to the wrong terminal often causes voltage spikes that fry the voltage regulator. The correct terminal for ignition input is marked “I” or “S” on most 6G models–double-check with a multimeter set to continuity mode before attaching any wires. Misrouting this connection leads to erratic charging cycles, premature component failure, or excessive battery drain when the engine is off.
Ground Path Oversights
| Issue | Effect | Fix |
|---|---|---|
| Loose ground bolt | Voltage drop under load | Torque to 12 Nm with star washer |
| Painted chassis surface | Resistance > 0.5 ohms | Scrape clean to bare metal |
| Single-point grounding | Whine in audio systems | Add dedicated 8 AWG ground to battery |
Reversing the battery positive and field wires during installation creates a dead short, destroying internal diodes instantly. Label wires before removal using colored tape–red for battery, blue for field–and confirm with a schematic before reconnecting. A quick test: apply 12V to the field terminal with engine off; no current should flow; if the amp meter jumps, diodes are already damaged.
