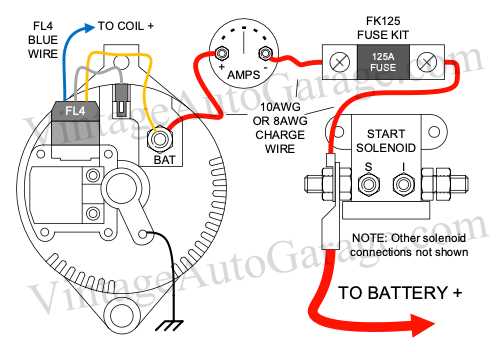

Connecting a self-exciting voltage regulator to a 12V electrical system requires precise routing. Start by identifying the battery-positive terminal on the generator–marked “BAT” or with a single threaded post. Route a 10-gauge insulated conductor directly from this post to the battery’s positive clamp, using a 40-amp fuse within 7 inches of the battery connection to prevent short-circuit damage. Avoid grounding through the engine block; use a dedicated 8-gauge ground cable between the generator’s housing and the battery’s negative terminal.
For vehicles with electronic ignition, terminate the exciter lead at the ignition switch’s “RUN” position using a 14-gauge wire. This eliminates voltage drain during engine-off periods. Install a 1N4001 diode inline on the exciter lead near the generator to block reverse current, preventing premature bearing wear. Polarized units require correct orientation–check the unit’s label for “GRD” or “POS” markings before securing the diode anode to the generator frame.
Test system output at 2,000 RPM with a multimeter: target 13.8–14.4V. If readings exceed 14.8V, replace the built-in regulator or add an external 14.2V Zener diode across the output terminal and ground. For undercharging (
Mount the generator bracket tightly, shimming any misalignment to prevent belt slippage. Use a Gates Micro-V belt for serpentine pulley compatibility or a matched V-belt set for dual-groove systems. Adjust tension to 1/4 inch deflection under 10 lbs pressure, checking every 500 miles for wear. Remove any paint from the mounting surface to ensure a low-resistance ground path.
Simplified Electrical Hookup for Single-Terminal Generators
Connect the charging unit’s primary post directly to the battery’s positive terminal using a 6-gauge cable or thicker to handle peak currents. Ensure the lead is as short as possible–excess length increases resistance and reduces efficiency. For most V8 engines, a 10-inch run is optimal; adjust slightly for inline configurations.
Eliminate unnecessary switches or relays between the regulator and power source. The internal voltage control mechanism is designed to operate without external intervention, reducing failure points. If auxiliary electronics require isolation, use a heavy-duty solenoid rated for 200+ amps rather than a standard relay.
Critical Terminal Treatments
- Clean both the generator’s stud and battery clamp with a wire brush to remove oxidation–even minor corrosion can drop voltage by 0.2V or more.
- Apply dielectric grease to the connection after tightening to prevent moisture ingress and corrosion over time.
- Avoid using fused links in this direct path; if fusing is required, place it at the battery, not in-line with the charging circuit.
Ground the generating system’s case to the engine block with a dedicated 4-gauge braided strap. Paint or powder coating prevents proper grounding, so scrape a small section of the mounting surface clean before securing. The strap should be no longer than 18 inches to maintain low resistance.
Performance Verification Steps
- With the engine off, verify battery voltage reads 12.6V (±0.1V).
- Start the motor and observe the voltage jump to 13.8–14.4V at 1500 RPM–readings outside this range indicate regulator or stator issues.
- Load test by activating high-beam headlights and a 100-amp draw via a carbon pile. Voltage should not dip below 13.5V at 2000 RPM.
- Check for excessive sparking at the positive connection during heavy load; persistent arcing suggests loose hardware or undersized cable.
Replace factory-supplied hardware with stainless steel equivalents if operating in humid or coastal environments. The original zinc-plated fasteners degrade rapidly under these conditions, leading to intermittent charging failures. A 3/8-inch stud with locking washers ensures consistent conductivity under vibration.
Identifying the Single-Connector Generator Terminals and Their Roles
Locate the solitary output stud on the rear housing–this is the primary charging post, recognizable by its thicker gauge conductor and protective heat-shrink sleeve. Test for voltage with a multimeter set to DC 20V range while the engine idles; expect 13.8–14.4V confirming proper excitation. Any reading below 13.5V indicates insufficient field current, often traced to a faulty internal regulator or corroded connector interface.
Ignore mislabeled “ground” markings–this unit eliminates the traditional case-ground requirement, relying instead on the single post to handle both output and field excitation via an internal shunt pathway. Verify the absence of auxiliary ground straps between the housing and chassis; their presence can disrupt voltage regulation, causing erratic charging cycles or premature diode failure.
Inspect the insulating bushing around the output stud; a cracked or melted component suggests excessive resistance or improper torque during installation–recommended clamping force is 12–15 ft-lbs. Use dielectric grease on the terminal interface to prevent oxidation; silicone-based variants outperform petroleum distillates in high-temperature environments. Replace the factory nut with a stainless-steel equivalent if galvanic corrosion appears between dissimilar metals.
Troubleshooting Silent Charging Issues
If the unit fails to generate voltage, probe the internal regulator using a 12V test lamp connected between the output stud and a temporary chassis ground. A lit lamp signals regulator integrity; darkness indicates a defective brush assembly or open windings. For deeper diagnostics, measure winding resistance with the multimeter’s ohms setting–values outside 2.5–4.0Ω between the output stud and housing suggest internal short or broken coil segments.
Check the harness pigtail for crimping defects; a single-strand break within the insulation can mimic regulator failure. Splice repairs should employ soldered joints encapsulated in adhesive-lined heat-shrink tubing, avoiding crimp connectors prone to vibration fatigue. Ensure the ignition feed circuit (typically 12–18AWG) carries unfused 12V during cranking–any voltage drop below 10V starves the regulator, preventing initial excitation.
Common Installation Pitfalls
Avoid routing the feed conductor parallel to spark plug leads; inductive coupling can introduce voltage spikes, degrading the regulator indefinitely. Maintain a minimum 6-inch separation from high-current cables like starter motor circuits. Secure the output conductor with non-conductive clamps spaced no farther than 18 inches apart–flexing under vibration accelerates fatigue failure at stress points. Confirm the voltage sense feedback loop by tapping the battery’s positive terminal directly to the unit’s output stud; voltage readings should stabilize within 0.2V of battery voltage under load.
Step-by-Step Installation Guide for Single-Pin Electrical Generators
Disconnect the battery’s negative terminal before handling any connections to prevent short circuits or accidental activation.
Locate the charging unit’s output post–typically a large stud marked with an engraved symbol (+) or a bold “B+” on the housing. Clean the surface with a wire brush to remove corrosion or oxidation for optimal current flow.
Attach the primary power lead directly to the output stud. Use a ring terminal sized to fit the stud’s diameter–common diameters include 8mm or 10mm. Secure it with a locking nut and apply thread-locking compound to prevent loosening from vibrations.
Sourcing Excitation Power
For self-exciting models, the regulator derives initial voltage from the ignition circuit. Connect a thin gauge lead–usually 14-16 AWG–to the ignition-switched 12V source. Avoid constant power sources to prevent battery drain during engine-off periods.
If the internal regulator requires additional ground stabilization, mount a dedicated chassis connection near the unit. Use a star washer to penetrate paint or rust for a low-resistance path. Verify continuity with a multimeter before finalizing the assembly.
Reconnect the battery’s negative terminal and start the engine. Monitor the charging system’s output with a voltmeter–idle voltage should read 13.8-14.4V for proper operation. Observe the battery gauge or test terminals during load changes (headlights, fans) to confirm stable performance.
Insulate all exposed connections with heat-shrink tubing or electrical tape. Route leads away from moving components, sharp edges, and excessive heat sources like exhaust manifolds. Secure loose runs with zip ties or clamps to prevent chafing or detachment.
Test all accessories post-installation–turn signals, lighting, and electronics–to ensure no interference or voltage drops. If dim lighting or erratic gauge behavior occurs, recheck all connections for correct polarity and secure attachment.
Common Mistakes When Hooking Up a Single-Terminal Charging System
Connecting the charging terminal directly to the positive battery post without an inline fuse is the most frequent error leading to electrical fires. A 10-amp fuse must be installed within 7 inches of the battery to prevent short circuits from igniting the wire insulation. Many overlook this step because the generator’s output seems low at idle, but current spikes during load demands can exceed 30 amps, melting unprotected wiring.
Ignoring Voltage Drop on Long Runs
Using undersized cable (smaller than 10 AWG) for installations over 6 feet introduces significant voltage drop, especially at high RPM. Measure voltage at the accessory terminal with the engine running–readings below 13.5 volts indicate excessive resistance. Upgrade to 8 AWG copper or 6 AWG aluminum if the run exceeds 10 feet, and ensure all grounding points are bare metal, free of paint or corrosion, with a minimum contact area of 0.5 square inches.
