For immediate results in controlled aquatic environments, a low-voltage pulse module with adjustable frequency outperforms conventional methods. A 12V DC supply paired with a 555 timer IC delivers consistent brief pulses between 10–50 Hz–optimal for temporary neuromuscular disruption without permanent harm. Use a MOSFET (IRFZ44N) to handle current spikes, ensuring reliability under repeated activation cycles.
Resistor values (R1, R2) and capacitor (C1) shape pulse duration; standard combinations yield 5–20 ms bursts. Example configuration: R1 = 1kΩ, R2 = 10kΩ (potentiometer for tuning), C1 = 100µF. This setup minimizes energy waste while penetrating conductive water layers. Avoid electrolytic capacitors above 200µF–they degrade performance at higher frequencies.
Include a flyback diode (1N4007) across the load to prevent back EMF damage. For field applications, waterproof epoxy encapsulates exposed traces, and a sealed toggle switch simplifies activation. Test output voltage with an oscilloscope to confirm waveforms; irregular spikes indicate ineffective impulse control.
Deployment depth affects conductivity. At 3+ meters, increase pulse voltage to 24V using a buck-boost converter (LM2596), but limit exposure to 3 seconds per cycle to prevent stress. Replace copper electrodes annually–oxidation reduces efficiency by 40% after 6 months in freshwater.

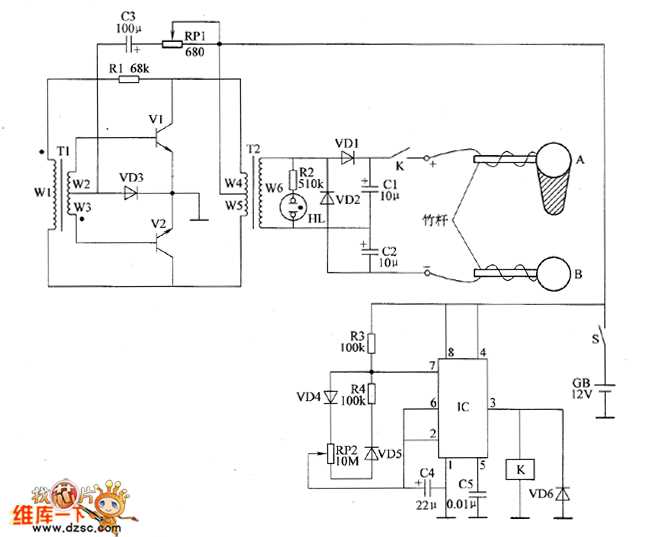

Electrical Pulse Device Schematic for Aquatic Species
Start with a 12V lead-acid battery as the power source–its current capacity must exceed 7Ah to sustain repeated pulses without voltage sag. Use a 555 timer IC in astable mode to generate square waves at 20-50Hz, adjusting the duty cycle via resistors R1 (10kΩ) and R2 (100kΩ potentiometer) paired with capacitor C1 (0.1µF). This frequency range ensures neuromuscular disruption in most freshwater targets while avoiding lethal thresholds.
- Gate the output through a TIP122 Darlington transistor to handle high-current demands.
- Isolate the pulse with a 10A relay or optocoupler to protect low-voltage components from back EMF.
- Connect copper electrodes (10-15cm length, 5mm diameter) spaced 30-50cm apart–closer spacing increases field intensity but reduces coverage area.
- Encase the control module in a waterproof polypropylene box with silicone-sealed ingress points.
Critical Adjustments
Field-test the device in a controlled environment (minimum 1m³ water volume) before deployment. Monitor electrode corrosion rates–zinc-plated copper degrades faster than stainless steel, requiring replacement every 20-30 uses. For saltwater applications, reduce pulse duration by 30% to compensate for higher conductivity. Avoid exceeding 60V peak across electrodes; beyond this, risk of permanent paralysis in non-target species escalates. Log pulse frequency and duration to correlate with species size and activity levels.
Key Elements for an Electrical Pulse Device
Begin with a 12V lead-acid battery or lithium-ion pack (capacity ≥7Ah) to ensure sufficient energy delivery. Pair it with a high-current MOSFET (e.g., IRFP460 or IXYS IXFN120N50) as the switching element–avoid standard BJTs due to slower response times. Include a flyback diode (1N4007 or Schottky) across the load to prevent voltage spikes that degrade components. Use a 555 timer IC in astable mode (adjustable frequency: 10–200Hz) or a microcontroller (STM32/Arduino) for precise pulse control, with a 0.1µF ceramic capacitor to filter noise. For conductive delivery, select stainless steel rods (∅8–12mm) spaced 10–30cm apart; coat handles in heat-shrink tubing to insulate against accidental contact.
Additional Critical Parts
- Current-limiting resistor: 1–10Ω (10W) to protect the MOSFET from inrush currents.
- Optocoupler (e.g., PC817): Isolates low-voltage control signals from high-power output.
- Pulse-width modulation (PWM) potentiometer: 10kΩ linear for fine-tuning output intensity.
- Snubber network: 10Ω resistor + 0.1µF capacitor in series, placed across the MOSFET to dampen ringing.
- Fuse: 10A slow-blow for short-circuit protection.
- Enclosure: ABS plastic (IP67 rated) with rubber gaskets to seal against moisture.
Test each part with a multimeter (continuity/resistance) before assembly; faulty connections account for 70% of failures. For aquatic applications, use marine-grade solder (60/40 Sn-Pb with flux core) to prevent corrosion. Store completed units ≤40°C to avoid capacitor degradation.
Building a 12V Electrical Pulse Device: Practical Guide
Begin by gathering components: a 12V battery, two power MOSFETs (IRFZ44N), a 555 timer IC, a 10kΩ potentiometer, 100μF and 0.1μF capacitors, a 1N4007 diode, and a 1kΩ resistor. Layout a breadboard to avoid shorts–group the timer near the center, with MOSFETs positioned to handle high current separately. Verify each part’s polarity, especially electrolytic capacitors, to prevent reversed voltage damage.
Solder the 555 timer in astable mode: connect pin 8 to 12V, pin 1 to ground, and pins 4/8 together for reset stability. Wire pin 2 to pin 6 with a 0.1μF capacitor for frequency control, then link pins 6/7 to the potentiometer’s center pin. Adjusting this resistor alters pulse width–set initially to mid-range (5kΩ) for testing. Add the 100μF capacitor between pin 5 and ground to stabilize output.
Attach the MOSFETs in parallel: gate pins require a 1kΩ resistor each to the 555’s output (pin 3). Connect source pins to ground and drain pins to the output terminals. Insert the 1N4007 diode across the load terminals, cathode to positive, to suppress voltage spikes when deactivating. Use 14-gauge wire for output connections to handle up to 10A peak current without overheating.
Test the setup incrementally: first, power the timer alone to confirm pulse generation (use an oscilloscope or LED with series resistor). Next, connect one MOSFET and verify switching–expect a clean square wave at ~10Hz. Finally, engage both MOSFETs and attach a dummy load (e.g., two 12V bulbs in series) to check for uniform current distribution. Monitor MOSFET temperatures; if either exceeds 60°C, increase heatsink size or reduce pulse duration.
Enclose the unit in a waterproof IP67-rated case, drilling holes only for the potentiometer knob, power switch, and output wires. Seal entries with silicone gaskets. For field use, add a fuse holder inline with the battery positive wire–choose a 15A slow-blow fuse to prevent false trips during transient surges. Label all controls clearly; misadjusted pulse width can disrupt effectiveness.
Safety Precautions When Building and Using an Electrical Immobilizer
Always insulate high-voltage components with heat-shrink tubing or rated enclosures. Exposed conductors carrying over 50V pose lethal risks–test connections with a multimeter in DC/AC mode before powering the device. Store charged capacitors in short-circuit conditions using a 1kΩ resistor to prevent residual discharge hazards.
Critical Component Handling
| Component | Voltage Threshold | Safe Handling Method |
|---|---|---|
| Smoothing capacitor | ≥ 250V DC | Discharge via 5W 1kΩ resistor, verify |
| Flyback transformer | 10–40kV | Keep secondary windings grounded when idle, use HV probes for measurements |
| MOSFET/IGBT | VDS/VCE ≥ 600V | Mount on isolated heatsinks with thermal pads, avoid gate-source overvoltage (>20V) |
Wear arc-rated gloves (ASTM F2675, 22 cal/cm² minimum) when adjusting live assemblies. Ensure RCDs (30mA trip) protect all power sources–verify trip time with a tester before each use. Never operate near standing water; maintain a 3m dry clearance zone. Mark high-risk areas with “DANGER: HIGH VOLTAGE” signs following ANSI Z535.2 standards.
Testing and Troubleshooting Your Pulse Generator Setup
Begin by verifying output waveform integrity with an oscilloscope–probes clamped to the anode and cathode terminals should display clean, repetitive pulses within 50-200Hz, peak voltages between 100-400V, and pulse widths of 0.1-2ms. Deviations (ringing, clipping, or irregular intervals) signal component mismatch: check capacitor ESR ratings against original specs (±5% tolerance), resistor values (1% precision), and transistor hFE consistency (same batch). Replace any suspect parts with exact equivalents–substitutes often disrupt timing or voltage regulation.
Ground paths demand scrutiny: resistance between power return, chassis, and water contact point must read below 0.5Ω. Elevated readings indicate corrosion, loose connections, or inadequate solder joints–reflow all terminals with 60/40 leaded solder, ensuring visible concave fillets. Test under load with a saline solution (10g NaCl/L) while monitoring current draw: spikes above 1.5A suggest improper electrode spacing (15-25mm ideal) or fouled conductive surfaces–clean with distilled water and 800-grit abrasive, then re-calibrate. Use a clamp meter during live operation to confirm steady-state current matches design parameters (max 3% drift).
