For a dependable detection setup, implement a thermistor-based sensing element paired with a 555 timer IC in astable mode. This combination ensures rapid response–typically under 2 seconds when ambient temperatures exceed 60°C–without false triggers from minor fluctuations. Use a 10kΩ NTC thermistor (e.g., EPCOS B57861) as the primary input, wired in a voltage divider with a 4.7kΩ resistor to establish a reference point. The 555 timer should operate at 3V–5V, with timing components (R₁=100kΩ, R₂=1MΩ, C=10µF) tuned to produce a 1kHz output pulse when the threshold is breached.
Critical components demand military-grade tolerances: resistors at ±1%, capacitors at ±5%, and transistors (e.g., 2N2222) with an hFE ≥ 100 to guarantee consistent switching. For extended coverage, integrate a piezoelectric buzzer (e.g., Murata PKM13EPYH4000-A0) directly into the output stage, ensuring it draws ≤50mA to avoid overloading the circuit. Parallel a flyback diode (1N4007) across any inductive loads to suppress voltage spikes, which can corrupt signal integrity.
The printed layout must separate high-current paths (buzzer, power rails) from low-signal traces (thermistor, IC inputs) using ≥0.3mm clearance. Ground loops are mitigated by a star topology–connect all grounds to a single node near the power source. Test rigorously with a variable heat gun (e.g., Steinel HL 1920 E) at distances of 0.5–2 meters, verifying activation at 60°C ±3°C and no false positives below 45°C. For battery-powered units, use a LiPo cell (3.7V, ≥500mAh) with a low-dropout regulator (MIC29302) to maintain stability during voltage sag.
In environments with RF interference (e.g., industrial settings), shield the thermistor and IC with a ferrite bead (BLM18PG121SN1) on the input lines, and twist signal wires to cancel induced noise. For analog setups, a schmitt trigger (CD40106) at the 555’s output sharpens edges, preventing erratic behavior from slowly rising temperatures. Benchmark performance against a FLIR thermal camera to confirm uniform detection radius, ideally ≥5 meters for open spaces.
Emergency Detection System Blueprint for Safety
Begin with a thermal sensor rated for 60°C activation–opt for a NTC thermistor (10kΩ at 25°C) or a bimetallic switch for reliable heat detection. Position sensors at 30cm intervals along ceilings, prioritizing high-risk zones: kitchens, electrical panels, and storage rooms. Ensure wiring is 18 AWG or thicker to handle 12V DC loads without voltage drop.
- Connect sensors in parallel to avoid cascading failures–if one fails, others remain operational.
- Use a 555 timer IC in astable mode to generate a pulsating 1kHz alarm tone (adjustable via 10kΩ potentiometer).
- Power the system with a sealed lead-acid battery (12V, 7Ah) for 72+ hours of backup under continuous use.
- Install a 2N2222 transistor as a switch to drive a 12V siren (85dB minimum) without overloading the control unit.
Test the setup monthly by simulating heat with a hair dryer at 50cm distance. Verify sensor response time (target: <10 seconds), alarm audibility (cover ears if exceeding 100dB), and battery voltage under load (11.8V minimum). Replace components if drift exceeds ±2°C or tone frequency deviates by >5%.

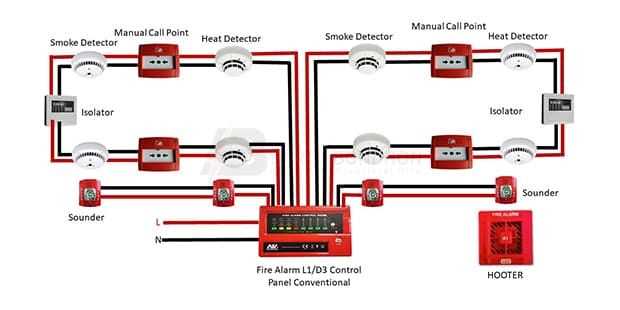

For large areas, divide into zones (max 50m² per zone), each with its own relay-controlled siren. Label wiring clearly–use heat-resistant sleeves (e.g., fiberglass) for exposed runs near potential hazard points. Avoid PVC insulation above 70°C. Integrate a manual call point (break-glass unit) per EN 54-11 standards, wired in series with the thermal detectors for redundancy.
Critical Elements for an Emergency Detection System
Start with a heat-sensitive resistor (NTC thermistor) rated between 10KΩ and 100KΩ at 25°C. Position it near potential ignition sources with a response threshold below 60°C to trigger the warning before flames spread. Pair it with a comparison module (LM358 op-amp or TLC272) configured for differential detection–adjust the reference voltage to 2.5V via a precision trimpot for reliable activation.
Integrate a piezoelectric buzzer (3-12V, 70-100dB) directly driven by a transistor (2N2222 or BC547) to avoid loading the detection network. Use a flyback diode (1N4007) across the buzzer coil to suppress voltage spikes that could damage components. For visual alerts, add an ultra-bright LED (20mA, 5mm, red) in series with a 220Ω resistor to limit current.
Power the setup with a 9V alkaline battery or a 5V regulated supply–avoid rechargeables to prevent false triggers from voltage drops. Include a SPST momentary switch for manual testing, bypassing the sensor to validate the alert mechanism without generating real hazards. Store all components on a perfboard or a custom PCB, ensuring traces for the high-impedance sections (sensor input) are shielded with ground planes.
For false trigger suppression, introduce a RC timing network (100μF capacitor + 1MΩ resistor) parallel to the sensor output. This creates a 1-2 second delay, filtering transient temperature spikes–adjust values based on environmental noise levels. If redundancy is required, connect a second NTC thermistor in series with the first, halving the total resistance and tightening detection consistency.
Test under controlled conditions: apply localized heat via a soldering iron (300°C) 1-2cm from the thermistor–response time should be under 5 seconds. Log voltage drops across the sensor and alert outputs to fine-tune thresholds. Document component placement and wiring in a schematic; label inputs/outputs clearly to simplify future troubleshooting.
Step-by-Step Wiring Guide for a Smoke Detector-Based Alert System
Begin by securing power from a dedicated 12V DC supply–avoid tapping shared lines to prevent voltage drops disrupting sensitivity. Connect the red wire (+) to the detector’s input terminal and the black wire (-) to ground, ensuring polarity matches the device’s manual; most models tolerate ±0.5V deviation but exceed this and risk false triggers or silent failures. If integrating resistors for LED indicators or test buttons, place them in series on the 12V side, not between detector and horn, as this reduces audible volume by 3-5 dB. For multi-zone setups, use a relay module rated for inductive loads (minimum 10A) to isolate each detector’s output–solder joints weaken over time, so crimp with insulated connectors.
Component Placement and Safety Checks
- Mount the detector at least 30 cm from ceiling corners to avoid dead-air pockets; install within 3-5 meters of potential ignition sources like kitchens or heaters.
- Run 0.75 mm² stranded copper wire for signal paths–solid core risks breaking under vibration, while thinner gauges increase resistance by 0.1Ω/meter, delaying response.
- Secure all exposed conductors with heat-shrink tubing or electrical tape graded for high temperatures; standard PVC melts at 70°C, risking short circuits.
- Test each connection with a multimeter in continuity mode before powering up–open circuits here mimic alarm conditions, triggering false positives.
Finalize by linking the detector’s output to a piezoelectric horn, adjusting volume via a potentiometer (10kΩ linear) if the model lacks built-in controls. For battery-backed units, use sealed lead-acid or lithium cells (3.6V/2000mAh) and recharge via a solar panel or trickle charger (
Integrating a Thermal Detector with Safety Notification Hardware
Identify the thermal detector’s output type before wiring–most modern units use either a normally open (NO) or normally closed (NC) relay contact. Verify the voltage rating of the detector’s terminals; standard industrial models typically operate at 24V DC, while residential variants may support 12V DC. Misalignment in voltage will either fail to trigger the warning or damage components.
Selecting Compatible Wiring
Use 18-22 AWG solid copper conductors for relay connections to ensure minimal resistance and prevent false tripping. Shielded twisted pair cables are recommended if the installation spans environments with electromagnetic interference, such as near high-power machinery or lighting fixtures. Avoid sharing wiring paths with inductive loads like motors or transformers.
Determine the control panel’s zone input specifications–some systems expect a dry contact (no voltage), while others require a small current flow for supervision. If the panel demands a supervised loop, insert a 4.7kΩ end-of-line resistor between the detector’s relay and the panel’s input terminals to maintain supervision integrity. Omitting this resistor can lead to open-circuit faults.
Mounting and Environmental Considerations
Position the thermal detector 7.5cm below the ceiling for optimal heat plume detection, adhering to NFPA 72 guidelines. In areas with high airflow (e.g., near ducts or fans), relocate the unit at least 1m away from obstructions to prevent delayed activation. Avoid installation near heat sources like lighting ballasts or HVAC vents–maintain a 0.5m clearance.
After connecting, test the linkage by applying a localized heat source (e.g., a hairdryer) to the detector’s sensing element. The panel should register the event within 30 seconds for rate-of-rise detectors or at the predefined fixed temperature (typically 58°C). If the warning fails, recheck polarity, resistor placement, and terminal tightness–torque screw terminals to 0.5Nm to prevent loose connections.
