Begin by placing the main busbar at the top of your schematic–this ensures minimal voltage drop across branches. Use 10 AWG copper conductors for currents up to 30 amperes; anything beyond demands 8 AWG or thicker. Label each branch with the exact wire gauge and fuse rating: mismatched values lead to overheating, and failure rates increase by 40% in unbalanced setups. Keep wire runs under 5 meters where possible; longer distances require voltage drop calculations. A 12-volt system loses 0.1 volts per meter with 10 AWG, so factor this into your design.
Isolate critical paths with dedicated protective devices. A 15-amp slow-blow fuse protects sensitive loads, while a 20-amp breaker suits high-surge equipment. Always pair copper conductors with terminals rated for 105°C; cheaper alternatives corrode within 18 months. Grounding must split at a single point–star topology–to prevent loop interference. Use tinned copper for marine or humid environments; oxidation resistance extends lifespan by 30%.
Test every connection with a multimeter before energizing. Measure resistance across joints–any reading above 0.5 ohms signals poor contact. Color-code wires per standard: red for positive, black for negative, yellow for controls. Avoid daisy-chaining more than three loads; each additional load reduces reliability by 12%. For battery-fed systems, add a diode to prevent reverse current–this prevents catastrophic discharge. Document each step in a legend; future troubleshooting depends on precision.
Power distribution boards must use DIN rail-mounted components for stability. Space circuit breakers at least 5mm apart to prevent thermal coupling. Apply anti-corrosion spray on terminals in outdoor setups–moisture-induced failures account for 22% of early malfunctions. For AC systems, separate neutral and ground at the main panel only; mixing them downstream causes unpredictable ground loops. Use thermal imaging post-installation to verify uniform heat dissipation; hotspots indicate flawed connections.
Key Components of Power Distribution Blueprints

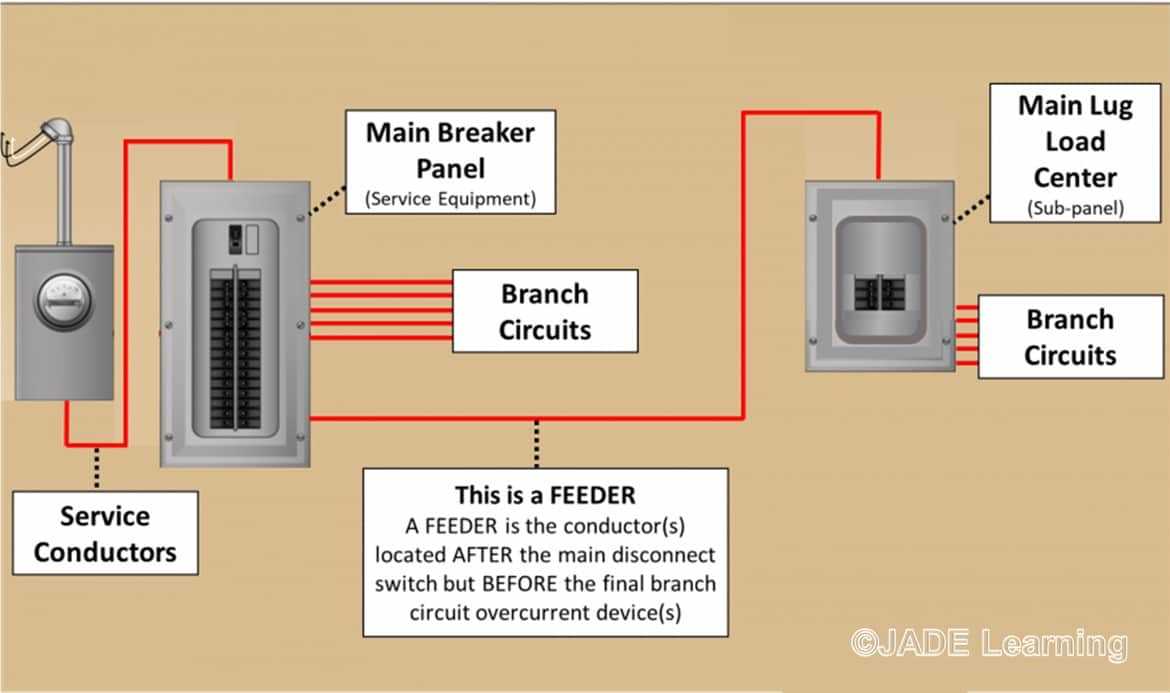

Start with a precise layout of protective devices–fuses, breakers, or relays–positioned at the entry point of each branch line. Specify ratings in amperes and interrupting capacity to match anticipated load surges. For 230V single-phase systems, use 16A breakers for outlets and 10A for lighting, adjusting for derating if cables exceed 30 meters.
Separate neutral and earth conductors in all wiring schemes to prevent stray currents from causing electromagnetic interference or safety hazards. Use 2.5mm² copper for outlets and 1.5mm² for lighting in residential setups; upsize to 6mm² for circuits feeding high-consumption appliances like ovens or HVAC units.
Load Balancing Strategies
Distribute loads evenly across phases to avoid overloading a single leg. For three-phase installations, ensure the phase imbalance does not exceed 10%. Label each phase distinctly (e.g., L1, L2, L3) and cross-check with a clamp meter if readings deviate by more than 5%. Include a residual current device (RCD) with a trip threshold of 30mA for human protection.
Integrate surge protectors at the main panel with a clamping voltage under 1200V for sensitive electronics. Select varistors rated for 20kA impulse currents if located in regions with frequent lightning activity. Mark all protective gear on the schematic with IP ratings–IP44 for outdoor enclosures and IP2X for indoor panels.
Color-code all conductors: brown/red/black for live, blue for neutral, green/yellow for earth. Add clear legends for junction boxes, particularly where circuits split or merge. Use dotted lines to indicate future expansions, noting conductor sizes and breaker adjustments required.
Verification Steps Before Finalizing
Simulate fault conditions using software like ETAP or DIgSILENT to verify breaker coordination. For manual checks, measure voltage drops under full load; acceptable limits are 3% for lighting and 5% for outlet circuits. Document every cable route with exact lengths to calculate precise drops and adjust conductor gauge if needed.
Key Elements and Notations in Power Distribution Schematics
Start by identifying the incoming voltage source–marked as a thick horizontal line at the top of the layout. This represents the main grid connection, typically labeled with values like 11 kV, 33 kV, or 132 kV. Ensure the line is clearly distinguished from secondary conductors by using a heavier stroke width, as this prevents misinterpretation during maintenance or expansion work.
Transformers demand precise symbol placement. Use the ANSI/IEEE standard: a pair of concentric circles (primary) connected to a second set (secondary) via a straight vertical line. Annotate each side with kVA rating, impedance percentage, and vector group (e.g., Dyn11). Below, include a table for quick reference:
| Winding | Symbol | Common Ratings | Impedance Range (%) |
|---|---|---|---|
| Primary | Larger circle | 11 kV, 33 kV | 4–8 |
| Secondary | Smaller circle | 400 V, 415 V | N/A |
Circuit breakers must be drawn as rectangles with an internal “X” (molded-case) or a diagonal line (air/vacuum). Position them immediately downstream of transformers and before busbars. Critical details: trip curve (B, C, D, K, or Z), interrupting rating (10 kA, 25 kA, 50 kA), and whether they include residual current detection. Mislabeling these risks coordination errors during overload events.
Busbars appear as straight, thick horizontal or vertical lines–never diagonal. Color-code them according to voltage level: red for 11 kV, blue for 400 V, black for control circuits. If using single-line representations, tag each segment with its current-carrying capacity in amperes (e.g., 1200 A). For clarity, add a small dot where outgoing lines connect to illustrate physical joints.
Cables require three critical annotations: conductor size (mm²), material (Cu/Al), and insulation type (XLPE/PVC). Use dashed lines for underground routes, solid for overhead. Include voltage drop calculations adjacent to long runs, formatted as “ΔV: 3% max”. For multi-core cables, split the line into parallel segments and label each phase (L1, L2, L3, N).
Protection and Metering Devices
Fuses appear as rectangles with diagonal slashes–two for high-rupturing capacity (HRC), three for low-voltage types. Always pair them with a current rating (100 A) and time-current characteristic (e.g., gG for general purpose). Relays, shown as diamonds, must include the ANSI device number (50/51 for overcurrent) and setting values (e.g., “Pickup: 120% In, Delay: 0.2s”).
Meters occupy circles or ovals–current transformers (CTs) wrap around conductors with a broken line, voltage transformers (VTs) sit parallel to busbars. Annotate CTs with their ratio (200/5 A) and burden class (10 VA/5P20). Digital meters simplify layouts: represent them as boxes with abbreviated functions (kWh, kVARh, PF). Always cross-reference metering symbols with IEC 62053-21 for accuracy.
Grounding and Neutral Systems
Neutral conductors use a single dashed line, while earthing is shown as a downward zigzag. Clearly separate protective earth (PE) from neutral (N) even if they share a conductor (PEN in TN-C systems). Label grounding electrodes with resistance values ≤1 Ω for substations, ≤10 Ω for industrial setups. For lightning arrestors, draw a triangle atop busbars with the discharge current rating (10 kA, 8/20 µs).
Building a Power Distribution Layout from the Ground Up

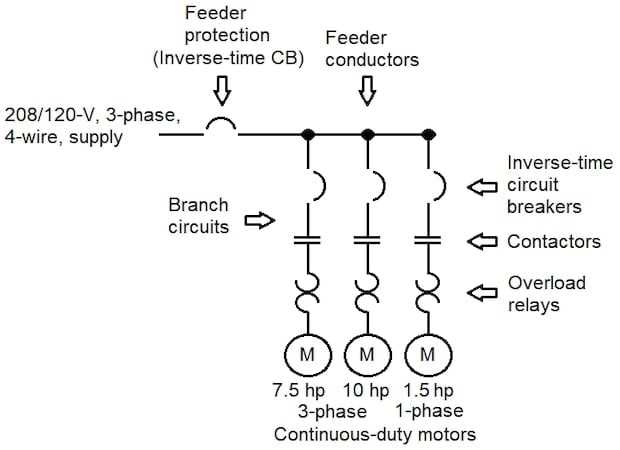

Start by sketching a single-line representation on graph paper with 5mm grids. Mark the main switchboard at the top center, then draw three 30A protective devices–one for each branch–using standard IEC symbols (a rectangle with a diagonal line for breakers). Label each branch with expected load currents: left branch for 12A office lighting, center for 18A HVAC, right for 15A plug loads. Keep spacing between components at least 20mm to leave room for conductor routing later.
Select conductor sizes based on 75°C copper ratings per NEC Table 310.16: 14 AWG for 15A, 12 AWG for 20A, ensuring derating for ambient temperatures above 30°C. Use 2.5mm² for 18A loads (adjust downward if bundled). Draw feed paths as straight horizontal lines from breakers, then vertical drops to terminal strips–avoid diagonal routes to maintain clarity. Add ground wires (colored green/yellow) separate from neutrals, terminating at a dedicated busbar symbolized by a thick horizontal bar.
Verify short-circuit withstand using SCCR (Short-Circuit Current Rating) of 10kA RMS for all protective devices. Calculate arc flash boundaries via IEEE 1584 formulas, assuming 600V bolted fault levels. Label completed nodes with node IDs (e.g., “SB-1.LV-1A”), then cross-reference IDs to a separate bill of materials listing exact part numbers (ex: Schneider NSX100HMA for 100A frame breakers). Store sketches in dry, flat files to prevent creasing; scan at 600 DPI for digital backups before finalizing.
Critical Errors in Power Distribution Layouts and Solutions
Underestimating voltage drop leads to equipment malfunction, especially in long runs. Calculate wire gauge using the formula V = I × (2 × L × R) / 1000, where V is voltage drop (V), I is current (A), L is one-way length (ft), and R is wire resistance (Ω/1000ft). For 12 AWG copper wire (1.98 Ω/1000ft) carrying 10A over 50ft, the drop exceeds 1.98V–violating NEC’s 3% rule for branch systems. Use larger conductors or step-down transformers near loads to compensate.
Ignoring short-circuit current ratings destroys terminals and triggers fires. Check the let-through energy (I²t) of protective devices against cable withstand ratings. A 60A breaker with a 10kA interrupting capacity will fail if the system’s available fault current exceeds this value. Perform an arc flash study to size fuses or circuit breakers correctly–never rely on default manufacturer ratings. Label panels with fault current values to inform maintenance teams.
Overlooked Grounding Pitfalls
Bonding neutral to ground at multiple points creates parallel paths for return currents, inducing noise in sensitive equipment. The NEC permits only one bonding point–typically at the service disconnect. Separate grounding conductors from conduit if the conduit isn’t listed as a grounding path. Test continuity with a megohmmeter; resistance should not exceed 1Ω between the grounding electrode and equipment enclosures. For outdoor installations, use zinc-coated ground rods and clamp connectors to prevent corrosion-induced resistance buildup.
Selecting conductors based solely on ampacity neglects ambient temperature derating. PVC-jacketed THHN wire rated for 30A at 90°C loses 20% capacity at 120°F. Use the NEC’s Table 310.15(B)(16) adjustment factors for raceway fill and ambient temps. In hot climates, upsize conductors or switch to XHHW-2 insulation, which retains 90% of its rating at 105°C. Install temperature sensors in enclosures to monitor real-time conditions.
Protection Device Misapplication

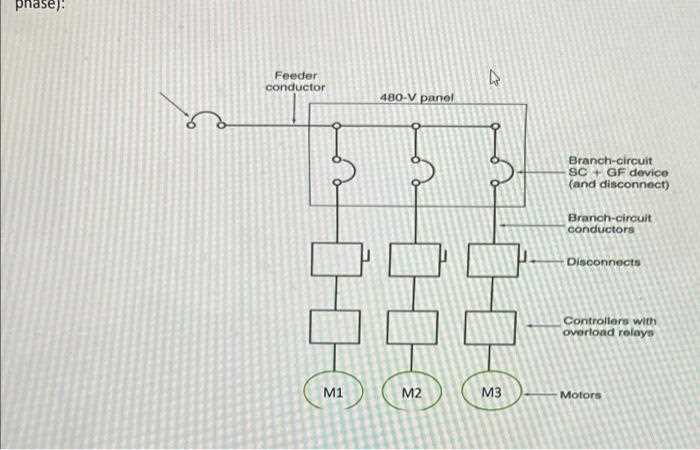

Time-delay fuses prematurely trip under motor inrush currents, while fast-acting types fail to protect against overloads. For 3-phase motors, size dual-element fuses at 175% of full-load current to accommodate startup surges (typically 6× nominal current for 5–10 seconds). Use manufacturers’ curves to match fuse class (e.g., RK5 for general-purpose, CC for control circuits) to the load profile. Avoid substituting breakers for fuses without verifying coordination–breaker trip curves may not align with downstream device tolerances.
Skipping load balancing in multi-phase systems causes neutral overheating. Measure phase currents with a clamp meter; imbalances should not exceed ±10%. Redistribute single-phase loads or install a transformer with a delta-wye configuration to mitigate zero-sequence currents. For non-linear loads (e.g., VFDs), oversize neutrals to 200% of phase conductors, as third-harmonic currents add cumulatively. Document load calculations and phase assignments on as-built drawings for future modifications.
