Begin by isolating power sources, ensuring no more than three voltage levels share a single path. Overlapping rails increase noise susceptibility and complicate troubleshooting–segment rails for analog, digital, and high-current components early. Label each segment with unique identifiers (e.g., VCC_ANA, VDD_DIG, VBAT) and color-code them in the documentation: red for high power, blue for intermediate, green for low-level signals.
Place decoupling capacitors within 2 mm of IC power pins, prioritizing ceramic types with values 100nF (general), 10nF (high-speed), and 1µF (bulk). Avoid electrolytic capacitors near sensitive analog nodes; their leakage currents distort readings. Ground planes must remain continuous beneath signal traces, partitioned only by 0.1mm isolation gaps to prevent coupling.
Trace routing demands precise width calculations: 0.25mm for 500mA, 0.5mm for 2A, 1mm for > 2A. Use 45° angles instead of 90° to reduce reflections, and maintain ≥0.3mm spacing between adjacent traces to comply with IPC-2221 standards. Reserve differential pairs for critical signals (USB, Ethernet, LVDS), keeping them tightly coupled with in length.
Test points require 1mm diameter pads with 0.5mm holes, positioned at every power net junction, I/O pin, and microcontroller reset line. Assign each a unique alphanumeric label (e.g., TP1_A, TP2_B) mapped in a separate test-procedure document. Include a fiducial marker near the board’s geometric center for automated assembly alignment–use a 1mm diameter bare copper circle without soldermask.
Silkscreen annotations must include: 1) Pin-1 indicator on all ICs (dot or notch), 2) Polarity symbols (+/-) for polarized components, 3) Component designators matching the BOM (e.g., R1, C3), 4) Board revision “REV 0.2” in the bottom-right corner. Font size ≥0.8mm ensures readability under magnification.
ESD protection follows a three-tier approach: 1) TVS diodes (SMBJ5.0A) at connectors, 2) Series resistors (10Ω–100Ω) on data lines, 3) Ferrite beads (BLM18PG121SN1) on power inputs. Place these within 5mm of entry points to minimize stub lengths.
Thermal management dictates thermal vias under high-power components (≥ 1W): 0.3mm drill, 0.6mm pad, spaced 1mm apart, filled with solder to improve conductivity. For TO-220 packages, allocate ≥2cm² copper pours on both top and bottom layers, stitched with vias.

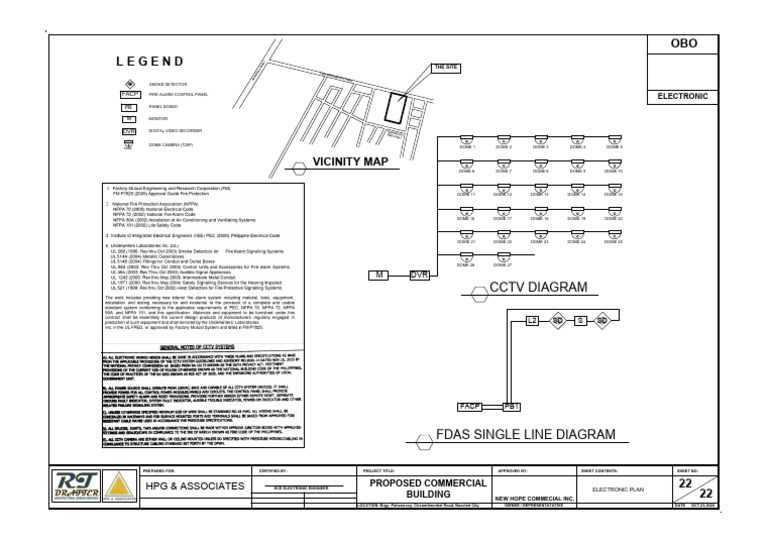

Understanding Fire Detection and Alarm System Blueprints
Begin by labeling each component with standardized identifiers–ISO 7240-1 or NFPA 72 compliant codes–to eliminate ambiguity. For instance, smoke detectors should follow the format SD-[Zone]-[Type], where Zone denotes the monitored area (e.g., SD-01-I for ionisation in Zone 1), while heat detectors and manual call points use HD and MCP prefixes respectively. Failure to adhere risks misinterpretation during installation or maintenance.
Route wiring through dedicated conduits–never mix with power or data lines–separating signal cables (18 AWG twisted pair, shielded) from power feeds (24 VDC, minimum 2.5 mm²). Below is a reference table for conductor specifications based on circuit length:
| Distance (m) | AWG | Nominal Resistance (Ω/km) | Voltage Drop (V/km, 24V system) |
|---|---|---|---|
| < 100 | 18 | 21.0 | 0.50 |
| 100–250 | 16 | 13.2 | 0.32 |
| 250–500 | 14 | 8.3 | 0.20 |
| > 500 | 12 | 5.2 | 0.12 |
Ground all metallic enclosures and conduit runs to a single earth point using 6 mm² copper bonding conductors; isolate floating circuits with opto-couplers (e.g., IL300) if interfacing with PLCs. Loop-powered devices (e.g., 4–20 mA transmitters) require end-of-line resistors–470 Ω for zone circuits, 1.2 kΩ for sounder loops–to validate circuit integrity. Connect these before the last device on the loop, not at the panel.
Annotate the layout with voltage levels at critical nodes–panel output (24 VDC nominal), detector input (16–22 VDC), and sounder demand (23–26 VDC)–to simplify troubleshooting. Use IEC 60617 symbols for consistency; for example, a semi-circle enclosing a dot represents a heat detector, while a rectangle with a downward arrow signifies a manual call point. Avoid manufacturer-specific icons unless the document explicitly supports future rebranding.
Validate the blueprint against EN 54-2 for European systems or UL 864 for North American compliance: verify audibility (minimum 65 dB at 1 m, or 75 dB in high-noise areas), detector spacing (max 100 m² coverage per device in open areas, reduced to 30 m² in obstructed zones), and battery backup capacity (minimum 72 hours standby plus 30 minutes alarm duration). Store digital copies in both PDF/A-3 (for archiving) and DWG (for revision control), with metadata including revision number, approver initials, and last calibration date.

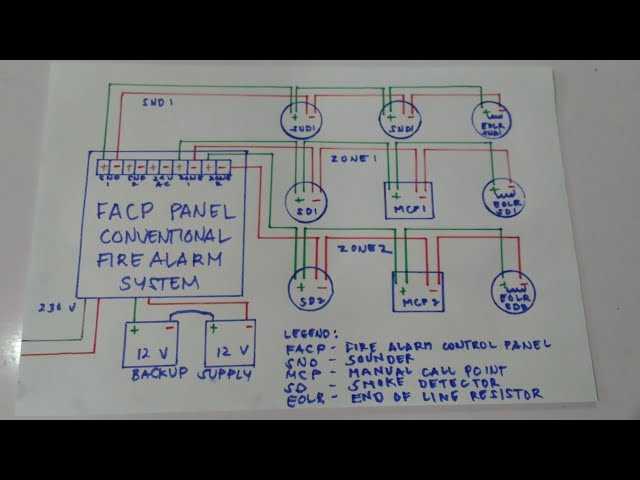

How to Interpret Connection Points in Fire Detection System Circuit Plans
Start by identifying terminal blocks in the wiring blueprint. Terminals are marked with alphanumeric labels (e.g., TB1-4, ZN-2) indicating their position in the control panel. Cross-reference these labels with the component list–each terminal corresponds to a specific device, such as smoke detectors, manual call points, or sounders. Missing or swapped connections disrupt supervision loops.

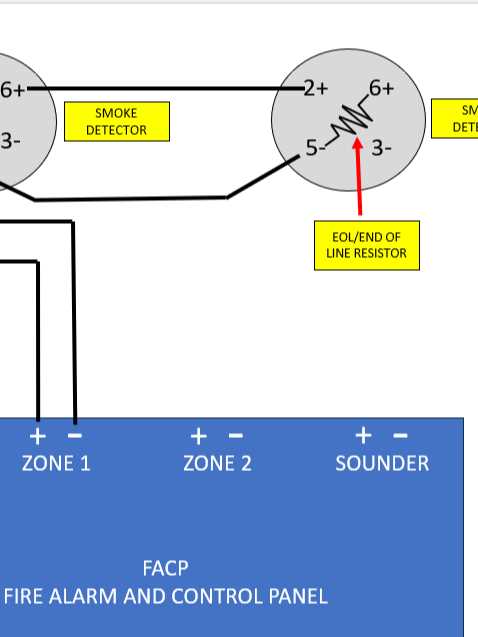

Trace supervision loops first. These loops–often drawn as continuous red or dashed lines–connect end-of-line resistors (EOLR) back to the control module. Measure resistance between terminals: 4.7kΩ indicates a healthy loop, while infinite resistance signals an open circuit. Short circuits read near 0Ω, requiring immediate isolation of the faulty segment.
Decoding Device Symbols Around Connection Nodes

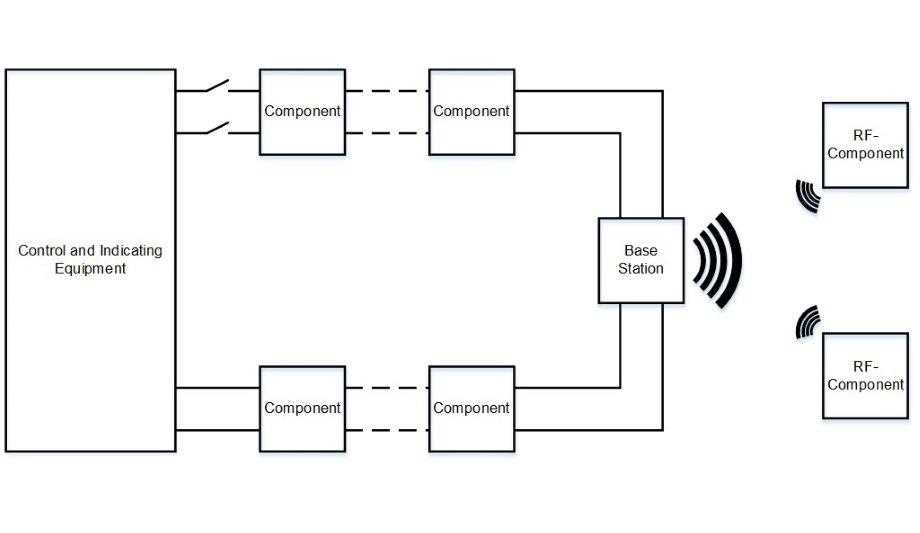

Isolate devices branching from main loops. Addressable systems use addressable modules (e.g., interface relays) that plug into designated ports. Non-addressable devices tie directly into the loop via terminals; ensure polarity matches the circuit diagram–swapping +IN/-IN on a heat detector will trigger false alarms.
Check for jumping connections. Terminals marked “COM” or “NC/NO” denote relay or switch contacts. Use a multimeter in continuity mode: COM→NO pairs should close when activated, while COM→NC must open. Replace any misconfigured relays to restore pathway integrity.
Map auxiliary power feeds. Standalone power terminals (labeled 24VDC or PWR) supply devices like strobes. Verify input voltage (22-28VDC) and current draw against device specs–overloaded circuits trip breakers, leaving critical zones unprotected. Fuse ratings must match the circuit’s amperage; standard fuses range from 1A (for detectors) to 3A (for notification appliances).
Document deviations between the printed plan and physical wiring. Temporary fixes (e.g., wire nuts, tape-wrapped splices) create failure points. Reconnect using crimped lugs or terminal blocks–never solder indoor circuits due to fire code violations. Update as-built diagrams to reflect changes; unrecorded modifications cause misdiagnosis during future troubleshooting.
Step-by-Step Assembly of Voltage Regulation Module
Begin with soldering the input rectification stage. Position the dual common-cathode diodes (MBR20100CT) on the PCB pads marked D1 and D2, ensuring correct polarity–cathode (banded end) faces the AC input side. Use a temperature-controlled soldering station at 350°C with 60/40 lead-based solder (0.7mm diameter) for joints; excessive heat risks damaging the Schottky barrier. Verify continuity with a multimeter in diode-test mode before proceeding–forward voltage drop should read 0.3V–0.5V.
Mount the bulk storage capacitors next. Install Nichicon PW series 220µF/450V electrolytic capacitors at C1 and C2, aligning the negative terminal (marked on the casing) with the silkscreen’s “-“. Secure capacitors with 10mm plastic standoffs to prevent mechanical stress; tighten screws to 0.5Nm torque. Parallel these with 1µF/630V X7R ceramics on the input rails to suppress high-frequency noise–place them within 1cm of the diodes to minimize loop inductance.
- Attach the switching regulator IC (LT3758) to the PCB’s U1 footprint. Apply a thin layer of thermal compound (e.g., Arctic MX-6) to the pad before securing the IC with a M2.5×6mm screw into the designated heatsink mount. Connect the IC’s ground pad to the PCB’s copper pour using three 1oz vias (minimum 0.8mm diameter) for heat dissipation.
- Populate the feedback network: solder 0.1% tolerance resistors (R3: 249kΩ, R4: 10kΩ) and a 2.5V precision reference (LT1004) at VR1. Route the feedback trace with 0.254mm width to avoid coupling with switching nodes–keep it >5mm away from L1 and Q1.
Wind the custom inductor (L1) using 14AWG magnet wire on a Kool Mu 77439 core. For 48V output, wrap 28 turns bifilar; for 24V, use 16 turns. Secure the winding with polyimide tape and impregnate with epoxy to prevent vibration-induced core buzz. Terminate the inductor’s leads to the PCB using M4 solder lugs–crimp before soldering to ensure mechanical integrity. Finalize assembly by applying a 100V isolation test between the primary and secondary sides using a hipot tester (1.5kV RMS for 60s).
Common Mistakes When Routing Sensor Wiring in Fire Detection Arrays
Ignore shielding requirements for analog signal lines, and noise from adjacent power cables will corrupt readings. Keep sensor wiring at least 15 cm from AC mains or switched circuits carrying 5 A or more. Cross interference spikes often exceed ±200 mV, enough to trigger false alarms in systems with thresholds below 1 V. Use twisted pair for differential signals–untwisted wires pick up common-mode noise that single-ended amplifiers cannot reject.
Route loops perpendicular to magnetic fields–parallel alignment captures flux changes, inducing currents proportional to cable length and field strength. Avoid sharp bends tighter than 3× cable diameter; microfractures in insulation reduce dielectric strength, risking leakage paths. Ground sensor shields at only one end to prevent ground loops–dual termination creates circulating currents that skew measurements. Label each conductor termination point with indelible ink; miswiring single-sensor circuits can invert polarity, masking actual fire events while reporting false negatives.
