Begin by verifying the electrical box’s load capacity. Most modern fan assemblies require a rated brace or reinforced support, especially if the weight exceeds 35 pounds. Check the manufacturer’s specifications–some units mandate a deep pancake box with a minimum 18-gauge steel bracket. Failure to comply risks sagging, noise, or detachment over time.
Identify the supply wires before disconnecting power. A standard setup includes black (hot), white (neutral), green/bare (ground), and often a blue (light kit lead). For dual-switch operation, a red conductor may control the fan motor separately. Label each wire with painter’s tape to avoid misconnection–the neutral must never carry voltage.
Match the fan’s color-coded harness to the circuit. Twist connectors clockwise until tight, then tug gently to confirm secure contact. For light kits, the blue wire typically pairs with a separate switch leg; omit it if using only wall controls. Cap unused conductors with wire nuts and wrap them with electrical tape to prevent accidental shorts.
Test functionality before securing the housing. Restore power and toggle switches in sequence. If the fan spins backward, reverse the motor lead connections at the receiver or switch. For remote-controlled models, ensure the receiver’s antenna wire isn’t coiled tightly–this disrupts signal transmission.
Finalize installation by anchoring the canopy. Align the mounting screws with the electrical box’s keyholes and rotate the assembly until locked. Tighten screws evenly to prevent wobble. If vibration persists, check for bent blades–even a 1/4-inch deviation can cause imbalance.
Understanding Ceiling Fan Electrical Connections
Begin by disconnecting power at the circuit breaker to avoid accidental shocks–this step is non-negotiable when working with electrical setups. Verify the absence of current using a non-contact voltage tester before handling any wires.
Identify the three primary conductor types in most fan installations: live (black or red), neutral (white), and ground (green or bare copper). Some models include a blue wire for light kits, which must be matched to the corresponding circuit in the junction box. Label each wire with masking tape if colors differ from standard conventions.
Matching Terminals to House Wiring

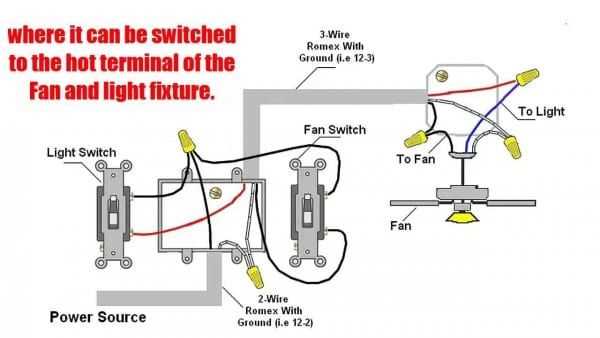

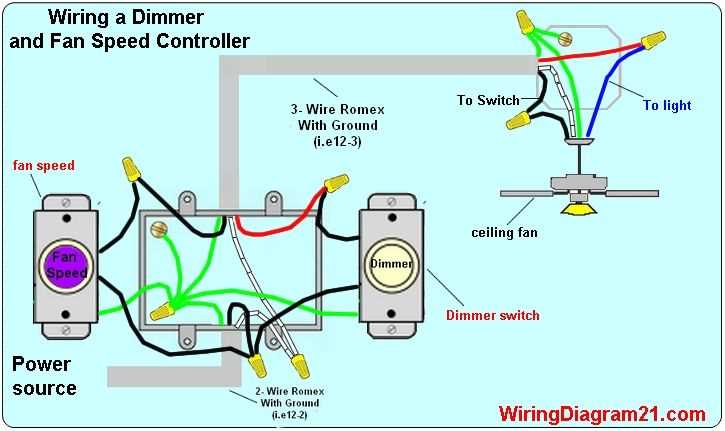

Secure connections by twisting wire nuts clockwise until tight, then tug gently on each wire to confirm stability–loose joins can overheat and fail. For dual-switch control (fan and light separately), connect the blue wire to a second live conductor in the wall switch, ensuring compatibility with dimmer or speed control modules if present. Avoid aluminum wiring; use only copper-to-copper connections with approved connectors.
Mount the fan bracket to an electrically rated outlet box, preferably one marked “fan-rated” to support dynamic loads. If the existing box is plastic, replace it with a metal model secured to a ceiling joist with locking screws–drywall anchors alone are insufficient for weight above 35 lbs.
Test speed settings before finalizing installation; inconsistent operation often indicates reversed neutral and live wires or a mismatched voltage selector (120V vs. 240V). For remote-controlled units, pair the transmitter to the receiver following the manufacturer’s sequence–typically holding the power button for 5-10 seconds until the LED flashes. Store extra wires coiled neatly inside the canopy to prevent interference with moving parts.
Troubleshooting Common Errors
Flickering lights or erratic operation usually signal a loose connection–recheck wire nuts and grounding. If the fan oscillates when turned off, the neutral wire may be incorrectly tied to a switch leg; reroute it directly to the service panel’s neutral bus. For units with integrated lighting, ensure bulbs comply with the max wattage rating (typically 190W for LED-compatible models) to prevent overheating.
Matching the Right Electrical Schematic to Your Ceiling Fan Model
Locate the product label on the motor housing–most units imprint the exact model number and serial codes near the downrod bracket or beneath the canopy. Cross-reference these identifiers with official manufacturer resources: the support portal lists schematics by year and revision, while printed manuals often include a fold-out chart with color-coded conductor paths. If the label proves unreadable, measure blade sweep (edge-to-edge) and count motor speeds; 52-inch, three-speed variants typically correspond to schematic subgroup B, though exceptions exist for models with integrated light kits.
Key Differentiators Between Schematics
- Wall controls vs. pull chains: Reversible single-pole switches require distinct terminal arrangements–look for a red conductor on remote-receiver-equipped units.
- Voltage: 120V schematics feature thicker gauge supply lines (usually stranded copper 14 AWG) compared to 220V international variants that mandate a separate grounding busbar.
- Accessory loads: Low-profile installations with built-in LED assemblies necessitate a dedicated neutral bus; verify compatibility before splicing additional circuits.
When discrepancies arise, photograph existing connections before disassembly–capture images from three angles to document capacitor type, switch plate configuration, and terminal block layout. Replace any corroded connectors with copper lug-and-crimp terminals rated for 1.5x the circuit breaker amperage. For models manufactured after 2020, consult embedded QR tags linking to revised interactive guides; earlier iterations rely on static PDF archives hosted on tertiary mirror sites maintained by vintage hardware collectors.
Step-by-Step Guide to Safely Installing Ceiling Fan Electrical Connections
Cut power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm absence of current–place the probe near each wire to ensure no residual charge remains. Failure to verify this step risks severe injury or equipment damage.
Identify matching conductors by color or labeling: black (hot), white (neutral), green or bare (ground), and blue (secondary hot for lighting kits). If colors deviate, refer to the fan’s manual or attached terminal legend–never assume standard assignments without confirmation.
- Twist corresponding wires together using lineman’s pliers, ensuring strands are fully interlocked with no loose ends.
- Slide a plastic wire nut over the connection, then rotate clockwise until snug–test for security by gently tugging each wire.
- Wrap electrical tape around the nut base for added moisture resistance in humid environments.
Secure grounded leads last. Connect green or bare wires to the fan’s mounting bracket or designated screw terminal. If the bracket lacks grounding, run a dedicated wire to the nearest grounded outlet box. Never omit this step in metal junction boxes.
Fold wires neatly into the outlet box, avoiding sharp edges that could pierce insulation. Check clearance–packing conductors too tightly causes overheating. Use a screwdriver to press wires back without bending or crimping them.
Attach the fan’s canopy or cover plate before restoring power. Inspect for exposed conductors or gaps where dust could enter. If gaps exist, adjust positioning or use a gasket seal. Turn the breaker back on and test operation with the fan’s pull chain or remote control.
Record findings in a maintenance log: note any non-standard connections, voltage anomalies, or adjustments made. Include the installation date and model specifics–this reference simplifies troubleshooting later.
Common Connection Errors and Preventive Measures
Reverse polarity ranks as the most frequent installation flaw, leading to premature motor failure in ceiling units. Verify lead colors against the manufacturer’s color-coding standard–black for hot, white for neutral, green or bare for ground–before securing any terminals. A multimeter set to AC voltage mode should show zero reading between neutral and ground; deviations above 0.5V indicate improper grounding requiring immediate correction.
Overlooking load calculations causes circuit overloads, particularly in systems handling multiple speed settings. Use this reference for safe conductor sizing:
| Motor Rating (Watts) | Minimum Copper Wire Gauge (AWG) | Maximum Circuit Breaker (Amps) |
|---|---|---|
| Up to 75 | 14 | 15 |
| 76–120 | 12 | 20 |
| 121–180 | 10 | 30 |
Loose terminal screws account for 40% of post-installation malfunctions. After connecting wires, tug firmly on each conductor–it should not slip. Torque all terminal screws to 12–14 lb-in using an insulated torque screwdriver; copper deforms under excessive force, reducing conductivity over time. Coat aluminum connectors with antioxidant compound if the building supply exceeds 15 years in age to prevent oxidation buildup.
Essential Equipment for Ceiling Fan Electrical Setup
Begin with a voltage tester rated for 120–240V AC to confirm circuits are dead before handling connections. For precision cuts on armored cable, use insulated lineman’s pliers with a 9-inch jaw length–models with ergonomic grips reduce hand fatigue during extended use. A fish tape made of tempered steel (0.125-inch diameter) ensures smooth navigation through conduit runs up to 50 feet without kinking.
Specialized Hardware for Secure Attachment
Select wire nuts with a torque-limiting design; sizes 22–10 AWG (red or yellow) prevent over-tightening, which can strip threads. For junction boxes, opt for weatherproof polycarbonate variants if installing in damp locations–verify NEMA 4X rating for corrosion resistance. Grounding clamps must accommodate the specific conductor gauge of your setup (e.g., #8 AWG copper requires 1/2-inch clamp width).
Isolate individual circuits with a miniature circuit breaker finder (sensitivity ≤10 mA) to map existing infrastructure without disrupting adjacent systems. A multimeter with true RMS capability ensures accurate readings for voltage drops–set the dial to AC mode and probe terminals with leads rated for 600V CAT III. Keep a roll of vinyl electrical tape rated for 600V at hand to insulate splices; wrap each connection with a half-lap for durability against flexing.
