For a variable output adjustment ranging from 0V to the full input voltage, use a triac-based switching configuration paired with a DIAC trigger. This setup ensures smooth linear control by delaying the phase angle of the AC waveform, making it ideal for applications requiring gradual ramp-up without abrupt jumps. Configure the potentiometer to a 100kΩ logarithmic type–linear variants may cause uneven increments at lower speeds.
When assembling the board, position the snubber circuit (47Ω resistor + 0.1µF capacitor) directly across the triac terminals. This suppresses voltage spikes that can degrade components or introduce interference. For enhanced stability in noisy environments, add a 10µF electrolytic capacitor across the DC smoothing side of the bridge rectifier, but ensure it’s rated for at least 25V to prevent failure under transient loads.
To avoid overheating, select a triac with a current rating twice the expected maximum load. For a 2A motor, a BT136 (4A) or MAC223A (8A) is recommended–cheaper alternatives often lack thermal protection and may fail under prolonged low-speed operation. Heat sinking is non-negotiable: attach the triac to a 10–15°C/W aluminum heatsink using thermal paste and a mica insulator if the tab is live.
Test the phase control response with an oscilloscope. Adjust the potentiometer while monitoring the waveform–a perfect setup shows a clean, delayed sine wave without distortion or abrupt dropouts. If the output cuts out at lower settings, increase the potentiometer resistance to 220kΩ or add a shunt diode (1N4007) across the DIAC to improve triggering consistency.
Speed Control Scheme for Ventilation Devices

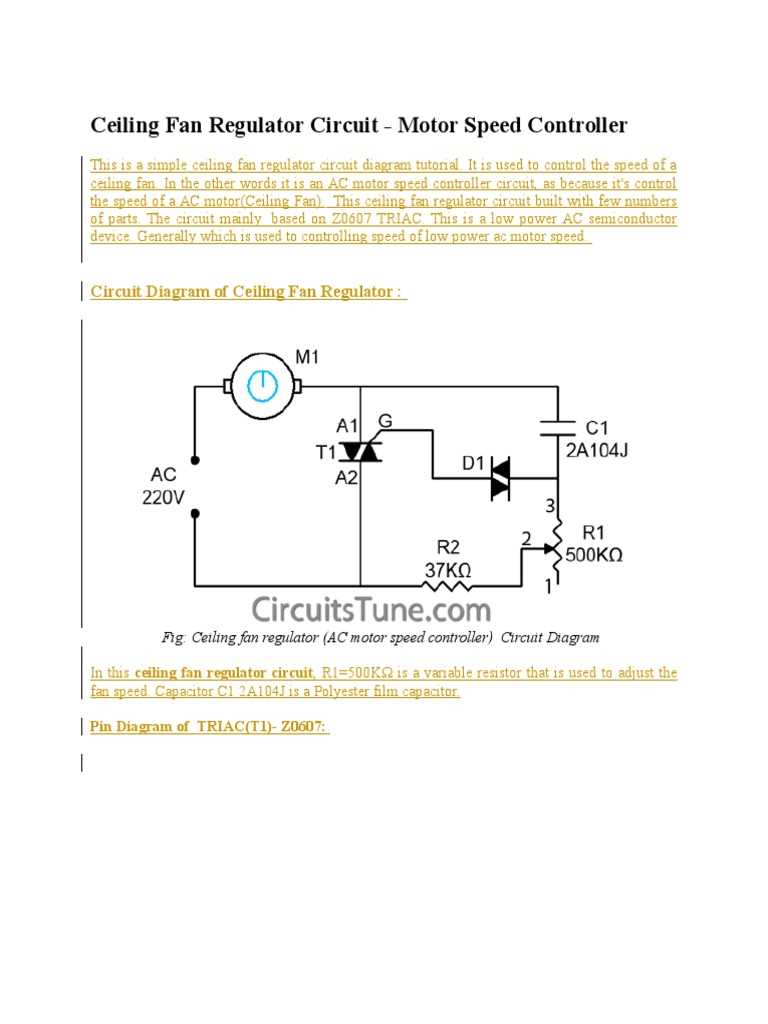

Build a triac-based dimmer switch to modulate airflow velocity with minimal energy loss. Use a MAC97A6 triac paired with a BT136 for loads up to 4A, ensuring a snubber network (100Ω resistor + 0.1µF capacitor) across the triac to suppress voltage spikes. Trigger the gate via a DB3 diac connected to a potentiometer (470kΩ logarithmic) wired in series with a 4.7nF phase-shift capacitor. This setup avoids hysteresis while providing smooth 0–100% speed adjustment.
For capacitor-based designs, match the motor’s phase-shift requirements precisely. A 3µF capacitor suffices for 230VAC/50Hz single-phase motors rated ≤ 120W, while a 6µF unit handles up to 250W. Connect the capacitor in series with one winding to create an artificial phase shift, then add a rotary switch with tappings for discrete speed steps (e.g., 25%, 50%, 75%, 100%). Avoid using electrolytic capacitors–polypropylene film types (X2-rated) endure high inrush currents without degrading.
| Component | Triac-Based | Capacitor-Based |
|---|---|---|
| Voltage Handling | 600V (AC) | 400V (AC) |
| Current Rating | 4A (continuous) | N/A |
| Speed Control | Continuous | Discrete steps |
| Heat Dissipation | Requires heatsink > 2°C/W | Negligible |
When assembling a PWM controller, opt for a NE555 timer set to 20kHz to drive a power MOSFET (e.g., IRF840). A 10kΩ potentiometer adjusts duty cycle from 10% to 90%, while a UF4007 diode protects against back EMF. For 12VDC axial blowers, this method cuts audible noise by 40% compared to linear control. Ensure the MOSFET’s gate voltage stays within ±20V using a zener clamp (15V/1W).
DIY autotransformers with tapped windings offer linear voltage reduction but demand core calculations. A toroidal core (OD: 80mm, ID: 40mm, height: 25mm) wound with 24 AWG enameled wire supports 300VA. Tap at 80V, 120V, 180V, and 230V for proportional speed reduction. Isolate taps with varnished cambric to prevent arc tracking. This method retains motor torque across all settings but adds bulk (2.5kg for 300W units).
Key Failure Points to Inspect
Replace any carbonized PCB traces near triac terminals–even slight resistance causes thermal runaway. Test diacs with a 30VDC supply; a functional unit snaps on at ~32V. For capacitor-based units, measure ESR annually (target
Key Parts for Building Your Own Speed Controller
Start with a triac like the BT136 or MAC97A8 – these handle AC loads up to 4A without heatsinks, doubling to 8A with proper cooling. Pair it with a DIAC DB3 for stable triggering; its sharp breakdown voltage ensures consistent phase control.
For smooth adjustment, use a linear potentiometer between 250KΩ and 500KΩ. Wire it in series with a 4.7KΩ resistor to limit current through the DIAC. Calculate power dissipation: a 0.25W potentiometer suffices for mains up to 230V, while 0.5W variants handle spikes better.
Supporting Elements for Reliability
Add a snubber network: a 0.1µF X2-rated capacitor in parallel with a 100Ω resistor across the triac’s MT1/MT2 terminals. This suppresses voltage spikes that can falsely trigger the switch or damage components. For inductive loads, increase the capacitor to 0.22µF.
A fuse holder with a 2A slow-blow fuse protects against overloads. Place it in series with the live wire before the triac. For 120V systems, reduce fuse rating to 1.5A due to higher current draw. Include a neon indicator with a 150KΩ resistor to confirm power – its glow visibly dims in sync with speed changes.
Verify component tolerances: ±10% for resistors, ±5% for capacitors. For PCB mounting, use a 1mm copper-clad board with 2oz copper thickness to handle thermal stress. Solder joints should occupy ≥2mm diameter pads; reinforce high-current paths with additional solder or 18AWG wire jumpers.
Step-by-Step Wiring Instructions for a Basic Cooling Device Speed Adjuster
Start by securing a 220V AC power source to the input terminals of a triac-based dimmer module, ensuring polarity doesn’t matter for alternating current. The live wire (brown/red) must connect first, followed by the neutral (blue/black) to avoid short circuits–use heat-shrink tubing over exposed joints after testing continuity with a multimeter. For safety, mount the module in a non-conductive enclosure rated for 600V minimum, such as polycarbonate or fiberglass, to prevent accidental contact with live components.
Attach the output side of the dimmer to one terminal of the motor’s winding using 18 AWG stranded copper wire for currents under 10A–check the nameplate for exact amperage. The second winding terminal connects directly to the neutral line, forming a closed loop. For three-speed motors, wire the auxiliary winding through a rotary selector switch (e.g., 250V/6A rated) positioned between the dimmer and the load; this allows manual override of speed settings without altering the base control. Capacitors (4-6 µF for 230V motors) should be placed in parallel with the main winding to improve torque at low speeds–omit if the motor lacks markings for capacitor use.
Before energizing, verify all connections with a non-contact voltage tester; a faulty joint at the dimmer’s gate terminal (common with BT136 triacs) will cause erratic operation or full-power failure. Calibrate speed ranges by adjusting the dimmer’s potentiometer in 10% increments, monitoring RPM with a tachometer–consumer-grade units often stabilize between 800-1400 RPM for 16-inch blades. Label wires at both ends to simplify future servicing, and secure loose strands with anti-vibration clips if the installation is prone to mechanical stress.
Frequent Pitfalls When Building Speed Control Assemblies
Incorrect component ratings top assembly errors. Using a triac or resistor unsuited for load current causes overheating within minutes. A 1A triac fails handling a 50W blower drawing 2A at full speed–thermal shutdown or fire risk follows. Verify device specs against power requirements before soldering.
Neglecting heat dissipation guarantees premature failure. Mounting semiconductors without heatsinks on aluminum plates ignores thermal resistance curves. A TO-220 package on 1mm copper foil dissipates 10°C/W; paired with 25W losses, junction temperature climbs 250°C above ambient–exceeding 150°C destroys silicon. Always calculate junction-to-ambient thermal impedance.
Improper grounding introduces noise and erratic behavior. Connecting the control pot’s wiper directly to the neutral line injects 50Hz hum into low-level signals. Route sensitive traces away from switching paths; use star grounding with a single reference point.
Reverse polarity protection often omitted, yet critical. A 1N4007 diode in series adds 0.7V drop but prevents 12V DC motors from spinning backward on voltage reversal. Add this safeguard even for AC systems if faulty caps or diodes reverse current during turn-off transients.
Phase-angle control vs. zero-crossing switching confuses builders. Full-wave triggers create 120Hz ripple; zero-crossing circuits only adjust cycles in 10ms increments. For resistive loads like heaters, either works, but inductive loads (motors) demand phase-angle to avoid torque pulsation. Validate load characteristics before selecting trigger method.
Skipping EMI suppression invites interference. Snubber networks–10Ω resistors in series with 0.1µF capacitors across triac main terminals–eliminate false triggering from power line spikes. Test assemblies near sensitive electronics (Wi-Fi routers, audio gear) to confirm stability without additional shielding.
How to Calculate Resistor Values for Adjustable Cooling Device Speeds
Begin by determining the motor’s rated voltage (Vrated) and current draw (Irated) at full speed, typically found in the manufacturer’s datasheet. For a 12V device consuming 0.2A, the target voltage drop (Vdrop) for reduced speeds follows:
- Low speed: Vdrop = 2V–4V (residual voltage 8V–10V)
- Medium speed: Vdrop = 1V–2V (residual voltage 10V–11V)
- Near-full speed: Vdrop ≈ 0.3V–0.5V (residual voltage 11.5V–11.7V)
Use Ohm’s Law (R = Vdrop / Irated) to compute resistance. For low speed (3V drop at 0.2A): R = 3V / 0.2A = 15Ω. Select a standard resistor value close to the calculation (e.g., 15Ω or 16Ω), prioritizing power dissipation (P = I2 × R). A 15Ω resistor here would dissipate 0.6W (0.22 × 15), so use at least a 1W resistor.
Verification and Adjustments
Measure actual speed with a tachometer or multimeter in RPM mode post-installation. If the device spins too slowly, reduce resistance by 10–20% (e.g., from 15Ω to 12Ω) and retest. For precision, incorporate a trimpot in series for fine-tuning. Ensure the resistor’s power rating exceeds calculated dissipation by 30–50% to prevent overheating. For example, a 15Ω resistor with 0.6W dissipation requires at least a 1W component, but 2W is safer for prolonged use.
