Start by locating the main solenoid on your vehicle’s electrical plan–it sits between the battery pack and the controller, identifiable by its heavy-duty terminals marked with thick red cables. Verify voltage at both large posts with a multimeter set to 48VDC; readings below 44 volts indicate corroded connections or a failing contactor requiring immediate cleaning or replacement. Bypass testing isn’t recommended–disconnect power first to avoid damaging sensitive relays.
Trace the ignition circuit from the key switch to the micro-switch beneath the pedal. A typical 36-volt system uses a 10-gauge red wire running parallel to a 12-gauge yellow feedback loop–swapping them causes intermittent sparking due to voltage mismatch. Check continuity between the pedal switch and the governor module; resistance exceeding 5 ohms signals a frayed conductor, often hidden beneath the floorboard.
For fuel-pump relays in models with carbureted engines, replace standard 30-amp fuses with slow-blow ceramic versions to prevent nuisance trips during cold starts. The wiring harness near the fuel line should be secured with heat-resistant loom to prevent chafing against the exhaust manifold–exposed strands here frequently lead to shorts and fuel starvation.
Inspect reverse warning beeper connections only after confirming the forward/reverse switch operates smoothly. Use dielectric grease on connector pins to prevent oxidation in high-humidity environments, especially around coastal areas where salt accelerates corrosion. Always label each terminal before disassembly–a small adhesive tag prevents miswiring during reassembly, which can fry the onboard computer.
Gas-powered utility vehicles often integrate alternator charging circuits distinct from electric counterparts. Measure output at the rectifier–expect 14.2–14.8VDC at 3,000 RPM; values outside this range signal a faulty stator or slipping drive belt. Replace drive belts every 200 operating hours regardless of visible wear, as stretched fibers reduce charging efficiency and cause voltage drops under load.
Guide to Electrical Schematics for EZGO Fuel-Powered Models
Start by locating the starter solenoid on your vehicle’s control panel–typically a cylindrical or rectangular component near the battery connections. Verify its terminals match the color codes in the service manual: red for positive input, black for ground, and smaller gauge wires for ignition signals. Incorrect pairing risks engine failure or electrical fires.
Check the voltage regulator’s connection before proceeding. A faulty regulator disrupts charging cycles, leading to battery drainage. Use a multimeter set to 20V DC range: probe the regulator’s output terminal while the engine runs at 2,000 RPM–readings should stabilize between 13.8V and 14.5V. Deviations indicate replacement needs.
Solenoid and Starter Integration

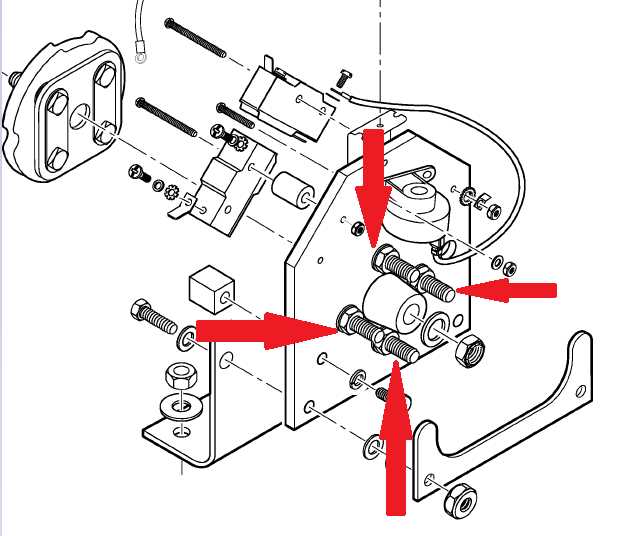

The solenoid triggers the starter motor via a momentary 30-amp circuit. Disconnect the main battery lead first to avoid sparks. Examine the large terminal posts for corrosion–clean with a wire brush and dielectric grease. Replace the solenoid if resistance exceeds 0.5 ohms across its coil terminals or if the plunger sticks.
Inspect the ignition switch harness for chafed insulation. Damaged wires cause intermittent starting or accessory malfunctions. Trace each wire from the switch to its destination using a continuity tester. The forward/reverse micro-switches must click audibly; silent operation signals internal breakage.
Fuel system schematics include a safety interlock relay preventing engine starts unless the brake is engaged. Test this by jumping the relay’s 87 and 30 terminals with the key in the “on” position–if the engine cranks, the relay is defective. Original equipment relays carry a Bosch part code; aftermarket substitutes must match the 40A rating.
Battery and Charging Circuit Checks
Newer models integrate a key-operated charging receptacle. Ensure the auxiliary battery charges only when the ignition is off and the vehicle is stationary. Measure voltage at the receptacle: 12.6V (battery idle), 14.2V (charging active). Overcharging (above 14.8V) damages sensitive onboard electronics.
Headlight circuits on premium models include a daytime running module. Locate the module behind the dashboard–it reduces bulb amperage by 30% during daylight. Bypass the module temporarily to test bulbs; if lights brighten, the module requires recalibration or replacement. Use only sealed beam units rated for 35W/65W to avoid melting connectors.
For troubleshooting, refer to the serial number decal on the frame rail–schematics differ between 1995-2000 TXT models and 2001+ PDS variants. Early models use mechanical relays; later versions incorporate solid-state controllers. Cross-reference the controller’s firmware revision if upgrading components to avoid incompatibility.
Finding Primary Electrical Link Points on a Fuel-Powered Cart
Start beneath the seat base–there’s a rectangular access panel secured by two Phillips screws. Remove it to reveal the central harness junction, where the main loom branches into four distinct bundles: ignition, lighting, charging, and accessory circuits. Label each connector with painter’s tape before disconnecting to prevent misrouting during reassembly.
Trace the red lead from the battery terminal toward the controller housing. At roughly 18 inches from the terminal, you’ll encounter a weatherproof splice block with three 10-gauge wires–this is the main power distribution point. Verify voltage here with a multimeter; readings should match battery voltage (±0.5V) for healthy connections.

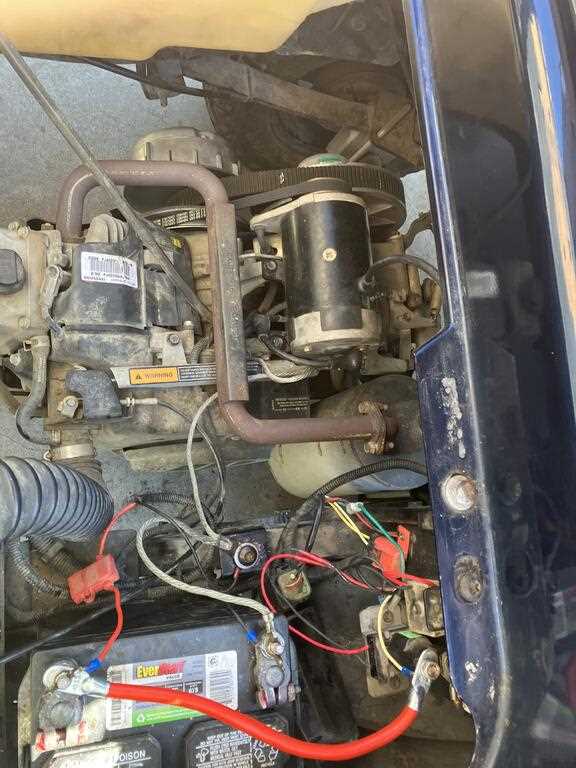

Locate the solenoid beneath the hood, mounted on the firewall near the fuel pump. Its two large terminals feed the starter and main electrical hub; a smaller trigger wire (blue, 18-gauge) connects to the ignition switch. Clean terminals with a wire brush if corrosion is visible–oxidation here causes intermittent starting failures.
Critical Connection Points Comparison
| Component | Wire Gauge | Color Code | Connector Type |
|---|---|---|---|
| Battery Starter Link | 6 | Red | Ring Terminal |
| Solenoid Trigger | 18 | Blue | Spade |
| Controller Input | 8 | Yellow/Black | Deutsch 2-pin |
| Lighting Circuit | 14 | White Strip | Bullet |
Check the gray rectangular connector near the right rear wheel well, which houses five pins for the speed sensor and reverse alarm. Pull the locking tab sideways to release–never yank wires. Pin 3 (green) carries ground; a break here causes erratic speedometer readings or no-start conditions.
The instrument cluster connector sits behind the dash’s lower trim piece. Press the release clip inward with a flathead screwdriver while wiggling the plug free. Examine the 9-pin male connector for bent pins–alignment issues here disrupt signal transmission between sensors and display modules. Apply dielectric grease before reconnecting.
Follow the black ground cable from the frame to the rear swing arm pivot bolt–this single point grounds half the cart’s electrical system. Scrape paint from the mounting surface and retighten the bolt to 25 ft-lbs. Loose grounds create phantom electrical gremlins across multiple circuits.
Step-by-Step Color Code Breakdown for Cart Engine Electrical Connections
Locate the red wire with a white stripe (R-W) at the solenoid’s “B+” terminal–this is the primary power feed from the battery. Verify voltage at 36V (or 48V for later models) with a multimeter before proceeding; discrepancies here indicate a faulty solenoid or corroded connections. Disconnect the battery negative terminal prior to testing to prevent accidental short circuits.
Key Circuit Pathways and Their Functions
The black wire (BLK) linked to the ignition switch ground must show zero resistance to the chassis–clean the mounting point with a wire brush if readings exceed 0.5 ohms. For the fuel pump, trace the purple wire (PUR) from the pump to the key switch; intermittent stalling often stems from chafed insulation here. Test continuity while wiggling the wire harness near the rear axle to isolate faults.
Orange (ORG) and yellow (YEL) wires handle forward/reverse solenoid activation–ensure these terminate at the correct microswitches under the pedal assembly. Misaligned switches cause erratic motion; adjust pedal linkage so contacts close fully in each direction. Gray (GRY) leads from the voltage regulator to the battery must maintain 13.8–14.2V at idle–values outside this range point to regulator failure.
Blue (BLU) wires carry signal inputs from safety interlocks (brake, seat, etc.). Bypass testing involves jumping the connector pins–if the engine starts, the interlock switch is defective. Replace switches rather than modifying circuits, as improper bypasses void safety certifications and risk runaway carts.
Diagnosing Ignition System Issues with Schematic Guidance
Start by verifying power delivery to the ignition coil. Locate the battery’s positive terminal on the electrical layout and trace its path through the key switch to the coil. Use a multimeter set to 12V DC; probe the coil’s input terminal while turning the key. A reading below 10.5V indicates a high-resistance circuit–inspect connections for corrosion, loose terminals, or damaged conductors. Replace any compromised connectors if voltage drop exceeds 0.5V between test points.
- Check the kill switch first. Many ignition faults stem from an open safety circuit. Reference the vehicle’s blueprint to identify the kill switch’s wiring path; bypass it temporarily by jumping the wires at the switch’s output. If the engine cranks, the switch is faulty.
- Test the ignition module with a spark tester. Disconnect the high-tension lead from the spark plug and attach the tester. Crank the engine; absence of spark points to a module failure or poor ground. Confirm ground integrity by probing the module’s mounting point–resistance should be near zero ohms.
- Inspect the flywheel sensor for debris or misalignment. Magnetic sensors generate a pulse signal when flywheel teeth pass; dirt or a bent tooth disrupts timing. Clean the sensor with contact cleaner, verify a 0.5mm air gap, and ensure teeth are undamaged.
Examine the fuse panel if the ignition system receives no power. Small engines often use fuse ratings between 10-20A; a blown fuse suggests a short in the primary circuit. Trace the feed line backward from the fuse holder, checking for chafed insulation or exposed wires contacting metal surfaces. Secure loose wiring with dielectric grease to prevent future shorts.
Evaluate spark plug condition as a secondary diagnostic step. Remove the plug and inspect the electrode: dry deposits indicate lean fuel mixture, oily fouling suggests oil leakage into the combustion chamber. Measure spark plug gap; adjust to manufacturer specifications (typically 0.028–0.032 inches). If the plug appears damaged, replace all plugs simultaneously to ensure uniform performance.
For intermittent starting issues, diagnose the key switch internally. A worn switch exhibits voltage drops under load; remove the switch assembly and test continuity across terminals while rotating the key. Replace if resistance exceeds 1 ohm in the “start” position. Lubricate moving contacts with contact enhancer to extend switch lifespan.
- Map the solenoid’s power path. A failed solenoid prevents cranking despite power reaching the coil. Test solenoid activation by bridging its terminals with a screwdriver while holding the key in start. If the engine cranks, the solenoid or its control circuit is defective.
- Measure battery voltage during cranking. Weak batteries deliver insufficient amperage, causing slow cranking and inconsistent spark. Load-test the battery; if voltage drops below 9.6V under load, replace it.
- Check for parasitic drains. Disconnect the negative battery terminal and insert a multimeter in series. Current draw should not exceed 50mA; higher values indicate a stuck relay or improperly wired accessory drawing excess power.
Review ignition timing if the engine backfires or runs rough. Mis-timed spark events alter combustion efficiency; use a timing light to verify spark advance matches specifications (usually 5–12 degrees BTDC). Adjust via the distributor or ignition module mounting brackets if equipped.
