To ensure precise troubleshooting or modifications, reference the series/parallel battery layout for EZ Go models produced between 1994 and 2004. Six 6-V deep-cycle cells connect in pairs (series), then link in tandem (parallel) to deliver 36 V nominal to the motor controller. Verify connections at the solenoid relay–terminals must match the schematic’s labeled polarity (A1/A2 for armature, S1/S2 for field coils). Misalignment here causes erratic acceleration or system failure.
Locate the DC-DC converter (mounted near the drive motor) on diagrams for 2005+ models. This component steps down power to 12 V for accessories–inspect fuse ratings (typically 20 A) and wire gauge (minimum 10 AWG for auxiliary circuits). Check ground connections at the chassis; corrosion here mimics battery drain. Use a multimeter set to continuity mode to confirm each path before energizing the system.
For regenerative braking systems, trace the controller’s brake resistor wiring–incorrect polarity risks overheating the resistor or damaging the speed sensor. Follow the thick red cable from the potentiometer to the controller’s B+ input; splice only with crimp connectors rated for 50 A. Replace frayed insulation immediately–exposed wiring in high-amperage circuits creates fire hazards.

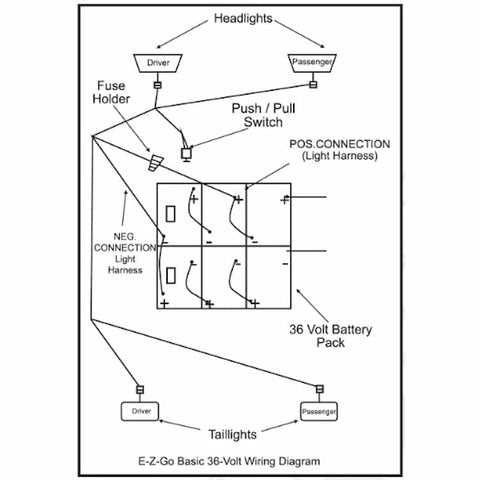

When rewiring lights or turn signals, consult the fuse block diagram specific to your model year. Early units use a single 15 A fuse for all accessories, while later models split circuits (e.g., 5 A for low-beam, 10 A for brake lights). Use dielectric grease on all connectors to prevent moisture ingress, especially in the charger port and key switch contacts.
For upgraded controllers (e.g., Alltrax or Navitas), adapt schematics by cross-referencing the throttle signal blue/yellow wire pair. Voltage should read 0.5–4.5 V DC at full throttle; deviations indicate a faulty potentiometer or loose ground. Isolate the controller’s KSI terminal (ignition feed)–disconnect this before any electrical work to prevent accidental activation of high-current circuits.
Understanding 36V Electrical Schematics for EZ Go Utility Vehicles
Begin by locating the primary power source–three 12V deep-cycle batteries connected in series–to verify proper voltage output before troubleshooting any component. Use a multimeter set to DC 50V to measure across the battery terminals; readings should stabilize between 38.2V and 39.6V for optimal performance. Voltages below 36V indicate sulfation, loose connections, or a failing cell, requiring immediate attention to prevent accelerated degradation of the traction system.

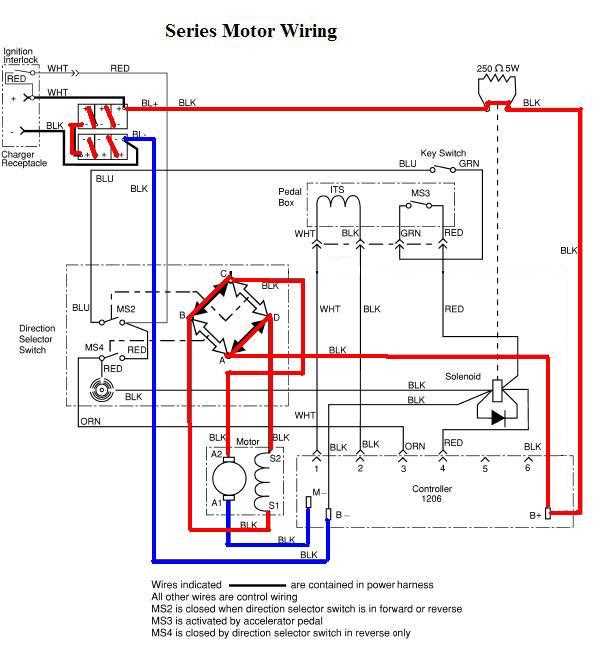

Trace the main power circuit from the batteries to the controller, identifying key junctions: solenoid, direction switch, and motor armature. The solenoid acts as a high-current relay, engaging only when the accelerator is pressed–listen for a distinct click during activation. If absent, inspect the micro-switch under the pedal or test solenoid resistance (typically 0.5–1.2 ohms). Corrosion at the battery terminals often mimics solenoid failure; clean with a wire brush and apply dielectric grease to prevent future resistance buildup.
Common Failure Points and Diagnostic Steps
- Battery Interconnects: Check for heat discoloration or melted insulation, signaling excessive resistance. Replace damaged 4 AWG cables with tinned copper equivalents for higher ampacity.
- Fuses and Circuit Breakers: EZ Go models use a 200A main fuse inline with the controller. Test for continuity; if blown, inspect the motor for shorted windings before replacement.
- Accelerator Potentiometer: A faulty pot causes erratic speed or failure to engage. Measure resistance across the potentiometer (should slide smoothly from ~0 to 5 ohms). Clean contacts with electronic cleaner if uneven.
For vehicles equipped with optional accessories (lights, winches, or chargers), isolate their circuits during diagnostics. Accessory loads draw 10–15 amps; exceeding this trips the circuit breaker. Separate wiring diagrams for accessories are labeled “Aux Power” in service manuals–cross-reference colors (red/black for 36V, orange for 12V) to avoid miswiring. When splicing, use marine-grade heat shrink tubing to seal connections against moisture ingress.
Reconstructing the schematic after repairs? Photograph each step to avoid misplacement of bolts, spacers, or insulators unique to the 36V model’s DC motor. Critical fasteners include:
- Brush holder screws (torque to 4–5 Nm; overtightening cracks ceramic insulators).
- Field coil terminals (secure with star washers to prevent vibration-induced breaks).
- Controller mounting bolts (ensure proper grounding; double-check with a continuity test).
Label all removed components with grease pencil on the chassis to expedite reassembly.
Identifying Core Elements in an Ez Go 36-Cell Electric Vehicle System
Begin by locating the battery pack–typically a trio of 12-cell units connected in series. Each module outputs approximately 12A per hour, with a combined nominal output of 432 watts under load. Label the positive terminal of the first battery and the negative of the last; these serve as main power entry points to the speed controller. Verify connections with a multimeter: readings should display 38-40A when fully charged, not 36, due to internal resistance losses.
Trace the cables from the controller to the motor–typically a DC series-wound unit rated at 5 horsepower. Check for a thick red wire (input) and a black wire (ground return) entering the motor housing. Between these two lies a thermal fuse, often overlooked, which trips at 180°C. If the vehicle stalls without warning, test this component with a continuity setting before proceeding elsewhere.
The solenoid sits adjacent to the controller, identifiable by its cylindrical shape and two large lugs for high-current pathways. Smaller auxiliary wires feed into its casing–one from the key switch (12A) and another from the accelerator pedal (variable resistance). A malfunctioning solenoid emits a faint clicking noise under load; if absent, replace it rather than bypassing, as it regulates inrush current spikes exceeding 300A during startup.
Examine the onboard charger–usually mounted beneath the seat or rear panel. Input voltage ranges from 100 to 240V AC, converted to 48V DC via a transformer. Output current stabilizes around 15A during bulk charging; deviations indicate failing capacitors or rectifiers. Never override the charger’s safety cutoff, as overcharging reduces battery lifespan by 30-50% due to electrolyte loss.
Inspect the accelerator assembly–comprising a potentiometer and microswitches. Resistance should sweep from 0Ω (fully released) to 5kΩ (fully depressed); inconsistent readings signal wear. Lubricate the pedal linkage joints annually to prevent binding, which leads to unintended acceleration. Replace the entire unit if the pedal sticks, as aftermarket parts often lack precise calibration, causing jerky motion.
Locate the directional switch–mechanical or solid-state–which reverses motor polarity. A faulty switch may arc internally, producing a burning odor. Test it by engaging forward and reverse while monitoring voltage at the motor terminals: each position should deliver full pack voltage with minimal drop (less than 2V). Voltage fluctuations suggest corroded contacts, requiring immediate cleaning or replacement.
Finally, assess the wiring harness integrity. Look for insulation cracks, especially at stress points near the frame or under the body panels. Damaged wires create intermittent shorts, measured as voltage drops under load. Replace sections showing more than 10% resistance increase compared to factory specifications. Label each reconnected terminal with heat-shrink tubing to avoid miswiring, which risks permanent controller damage from reversed polarity.
Step-by-Step Guide to Decoding Ez Go Electrical Schematics for 36-Cell Systems
Begin by locating the main power connector on the schematic–typically marked near the battery array icons. Trace the thickest lines first; these represent primary current paths carrying higher amperage. Thin lines indicate control circuits or auxiliary components. Each line’s color code corresponds to real-world cables, so cross-reference the legend if present; Ez Go often uses standard conventions like red for positive, black for negative, and blue or yellow for accessories.
Identify the solenoid symbol–a coil with switch contacts–central to the system’s operation. Verify its connections: one side links to the speed controller’s output, the other to the drive motor. Check for labels like “B+” or “M” adjacent to terminals; these confirm correct placement. Misalignment here disrupts power delivery, causing silent failures or erratic performance.
Examine the speed controller layout, often depicted as a rectangular block with multiple labeled pins. Compare pin assignments to the physical unit using this reference table:
| Pin Label | Function | Expected Voltage Range (Idle) |
|---|---|---|
| B+ | Main battery input | 36.0–37.5 |
| M | Motor output | Varies (0–36) |
| S1/S2 | Throttle signal | 0.5–4.5 |
| KSI | Key switch ignition | 36.0 (on), 0 (off) |
Measure voltages at these points with a multimeter to validate circuit integrity. Deviations suggest faulty components, corroded terminals, or incorrect wiring.
Follow the path from the controller to the directional switch–usually a double-pole, double-throw mechanism. Confirm both forward and reverse positions engage without shorting. Check for diodes across solenoid coils or switch contacts; their absence risks voltage spikes damaging sensitive electronics. Replace any missing or failed diodes with identical specs (typically 1N4004 or similar).
Test each battery interconnect sequentially. Use a hydrometer or load tester to assess individual cell health. Weak cells create resistance, reducing total system efficiency. Disconnect and clean terminals with a wire brush, then apply anti-corrosion compound. Reassemble ensuring torque specs (usually 10–12 ft-lbs) are met to prevent voltage drop under load.
Finally, simulate operation by engaging the accelerator while monitoring schematic-indicated test points. Verify micro-switches or potentiometers output expected values (e.g., 0–5V for throttle). If readings fluctuate abnormally, inspect sensors for dirt or mechanical failure. Replace worn parts before reassembling housing to prevent ingress-related faults.
