Begin with a ladder-type layout for industrial control systems–this format eliminates confusion by showing power sources on the left, load connections on the right, and control elements in vertical rungs. Use consistent labeling: line numbers in circles, terminal points with alphanumeric codes (e.g., “CR1-5” for control relay 1, terminal 5), and color-coded conductors matching local standards (black for phases, green/yellow for ground). For 3-phase motors, include a separate neutral line even if unused, to maintain clarity across all installations.
For residential installations, adopt a radial configuration with a central distribution panel. Draw branch circuits horizontally, grouping similar loads (lighting, outlets, high-power appliances) in distinct blocks. Label each circuit breaker with load type, amperage, and conductor gauge (e.g., “BR1 – Lighting – 15A – 14 AWG”). Include a grounding bus bar and bond it to the neutral bar only at the main service disconnect, as per NEC 250.24.
In automotive applications, use a modular schematic split into functional units: power distribution, ignition, lighting, and ECU. Color codes must follow SAE J1128 (red for battery positive, black for ground, yellow for switched circuits). Place fuse ratings directly on the conductor lines (e.g., “20A” next to the fuse symbol) to avoid cross-referencing errors. For CAN bus networks, show both twisted-pair wires with termination resistors at each end and label baud rates.
For PLC-controlled machinery, create a layered diagram: first layer showing physical I/O connections, second layer for ladder logic addressing (e.g., “I0.1 – Start Button,” “Q0.3 – Motor Contactor”). Include a legend with IP ratings of sensors/actuators and voltage levels (24 VDC, 120 VAC). Add a separate block for emergency stop circuitry, hardwired outside the PLC for safety compliance with ISO 13849.

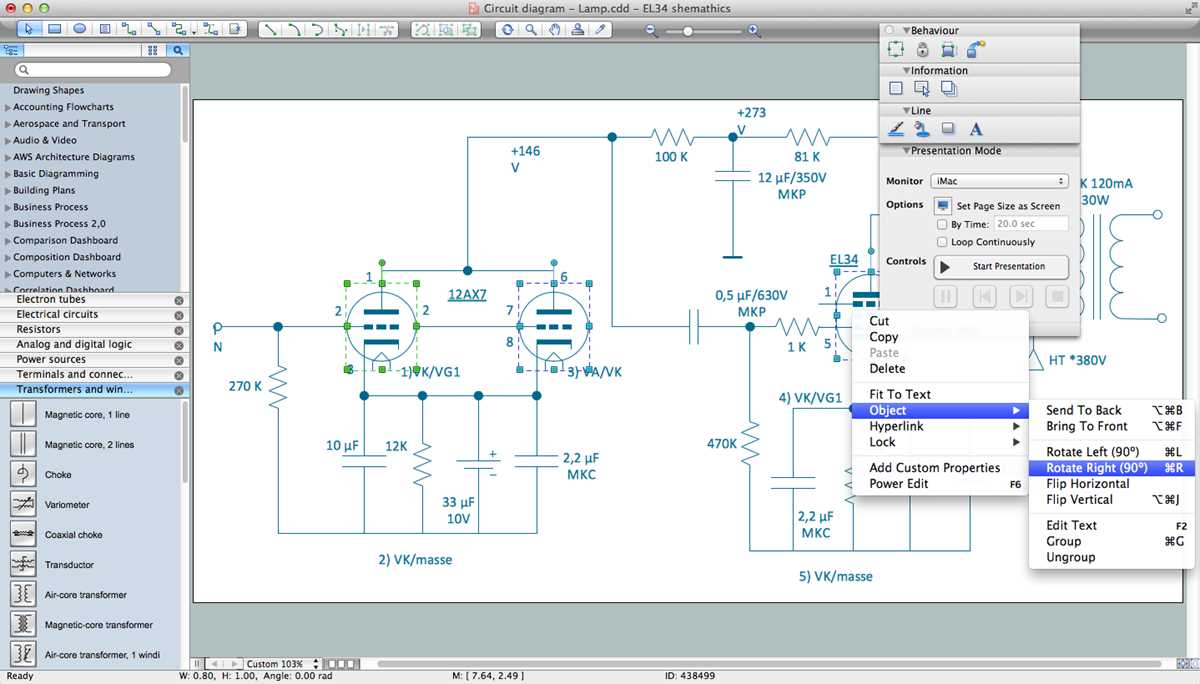

Document all schematics with revision history in the lower-right corner (date, author, changes) and a title block containing project name, scale, and reference standards (NFPA 70, IEC 60617). Use standard symbols for components (IEC or ANSI) but avoid mixing symbol sets within a single document. Validate diagrams by tracing current flow from source to load before finalizing–manual verification catches 80% of common errors like missing grounds or reversed polarities.

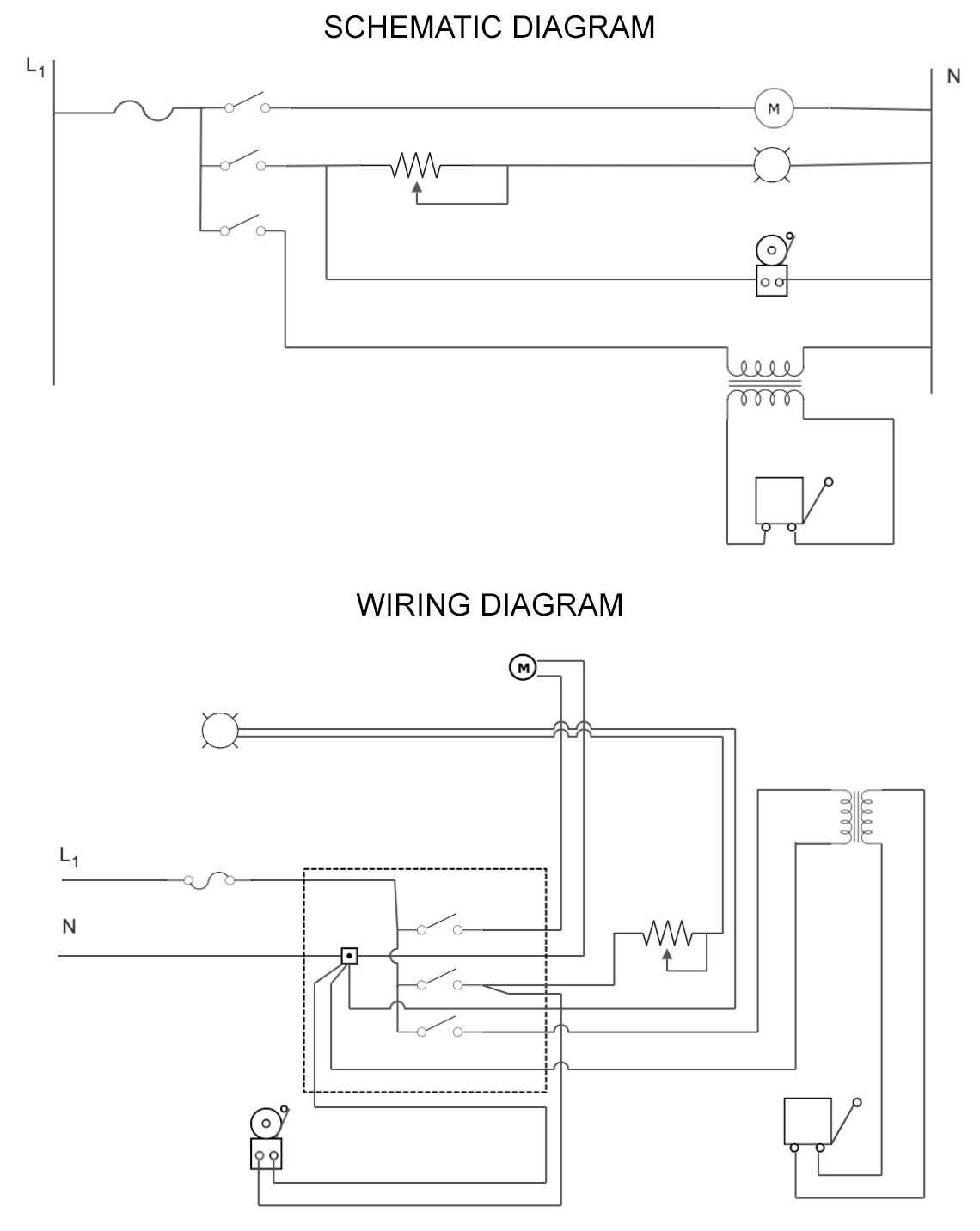

Practical Electrical Schematic Illustrations
Begin with a ladder schematic when documenting control circuits. Use standardized symbols for relay coils (rectangle), normally open contacts (parallel lines), and normally closed contacts (parallel lines with a diagonal slash). Label each component with clear alphanumeric identifiers–CR1 for control relay 1, M1 for motor starter, PB1 for push button–following NEMA or IEC conventions. Include a legend in the bottom-right corner explaining non-standard symbols. For power distribution, draw a one-line representation with transformers as coils, breakers as squares, and buses as thick horizontal lines. Specify voltage levels (480V, 208V, 120V) and current ratings (20A, 50A) at each segment.
For residential installations, separate lighting, outlets, and dedicated circuits. Draw circuit loops horizontally from left to right, starting at the panel. Use distinct colors (red for hot, black for neutral, green for ground) or hatching patterns if printing in black and white. Mark wire gauge (12 AWG, 14 AWG) and conduit type (EMT, Romex) near each run. Include a schedule table listing breaker numbers, circuit descriptions, and connected devices. In three-way switch configurations, trace the traveler wires between switches before continuing to the load.
Industrial motor circuits require detailed starter diagrams. Show the disconnect switch first, followed by fuses or circuit breaker. Draw the overload relay as three thermal elements beneath the contactor. Indicate control voltage (120VAC, 24VDC) with a separate transformer symbol upstream of the start/stop push buttons. Add auxiliary contacts for seal-in circuits and pilot lights. For variable frequency drives, include the drive symbol (rectangle with sinusoidal lines), DC bus capacitors, and braking resistor if applicable. Note torque constants (0.18 Nm/A) and maximum frequency (60 Hz) in the margin.
Telecommunication cabling schematics demand precision. Use TIA-568 standards for connector pinouts–orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Draw patch panels as vertical columns with numbered ports. Show backbone cabling between floors as dashed lines, specifying cable type (Cat 6, OM3 fiber) and pair count (24, 48). Include rack elevation diagrams with switch models (Cisco 2960, HP 5130), port utilization, and uplink connections to core switches. Label fiber strands by wavelength (850 nm, 1310 nm) and connector type (LC, SC).
Single-Phase Home Circuit Layout for Outlets and Switches
Install a 15-amp breaker for general-use receptacles and a 20-amp breaker for kitchen or utility circuits. Connect the circuit’s hot wire (typically black or red) to the breaker lug, neutrals (white) to the neutral bus bar, and grounds (bare/green) to the grounding bus. Use 14 AWG copper for 15-amp circuits and 12 AWG for 20-amp; never mix gauges on the same run. Label each breaker clearly with the room or circuit purpose on the panel door.
- Outlet loops: Run cable from the panel to the first receptacle, then daisy-chain to subsequent outlets using pigtails for connections–never splice inside boxes without a device as a junction point.
- Switch loops: For single-pole switches, feed power to the switch first, then extend the switched hot (red or black re-tasked) to the light fixture. Use 14/2 cable between the switch and the outlet it controls.
- Split receptacles: Break the connecting tab on the hot side to wire separate circuits (e.g., top outlet always-on, bottom outlet switched). Use 12/3 or 14/3 cable with red as the switched hot.
Keep neutral and ground conductors separate except at the main service panel, where they may bond. For GFCI protection, install receptacles at the first outlet of bathroom, kitchen, garage, and outdoor circuits–use the “LINE” terminals for incoming power and “LOAD” for downstream outlets. Avoid backstab connections; wrap wires clockwise around screws and torque to 12-14 in-lbs. Test every circuit with a meter before energizing: verify 120V hot-to-neutral and hot-to-ground, 0V neutral-to-ground.
Mount outlet boxes 12–18 inches above finished floor, switch boxes 48 inches AFF. Use shallow boxes for drywall installation (minimum 3.5-inch depth) and deep boxes for complex splices. For dedicated circuits, run separate feeds for refrigerators, microwaves, and bathroom heater-fans; these require individual breakers. In unfinished basements or garages, use weatherproof (WR) or extra-duty (ED) receptacles, and protect all circuits with AFCI breakers to meet NEC 210.12 requirements.

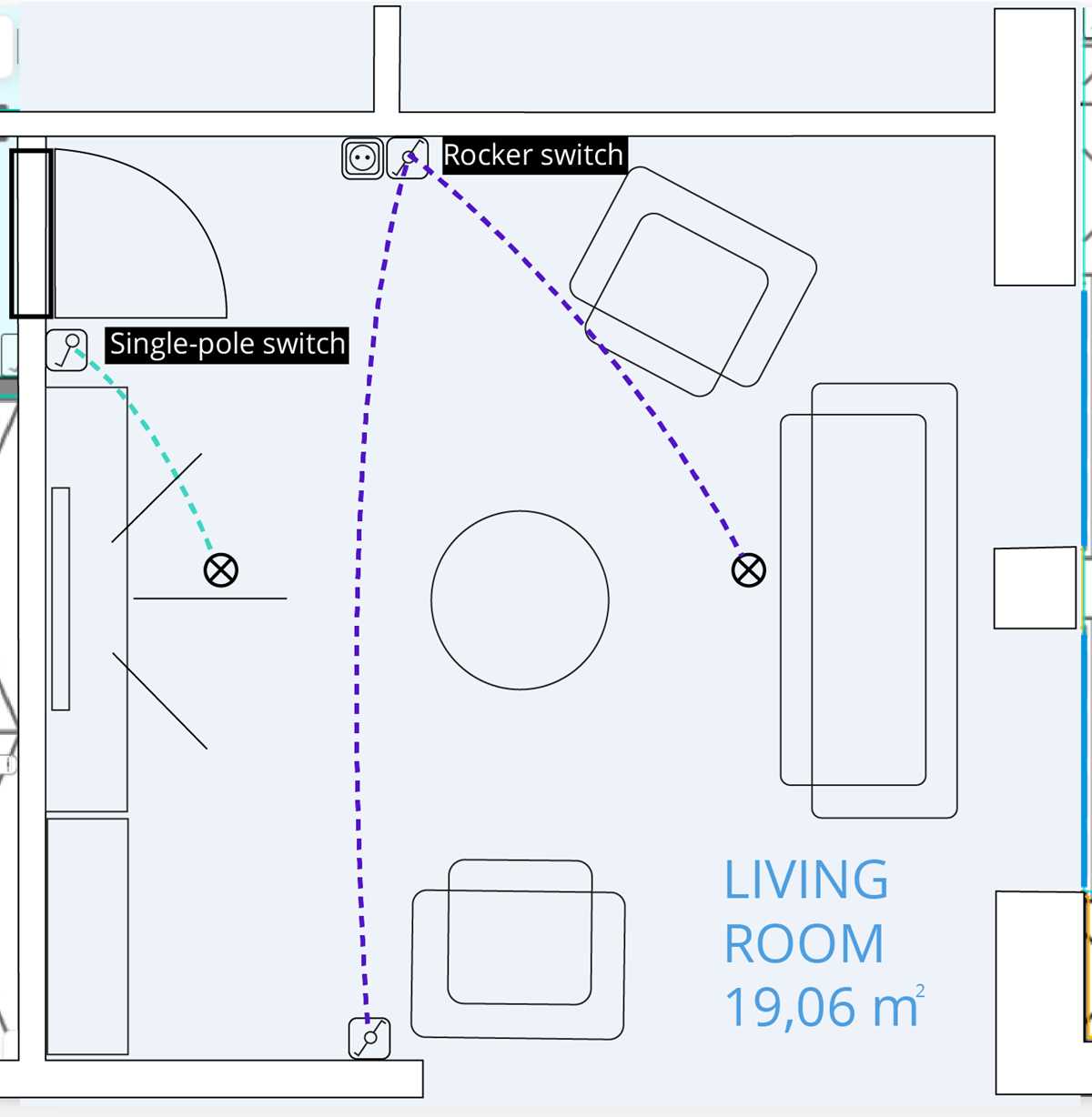

Three-Way Switch Setup for Dual Location Light Control
Start by identifying the power source and two switch locations. Use a 14/3 or 12/3 cable with black, red, white, and ground wires between switches. The white wire serves as a neutral carrier, while black and red act as travelers–never connect both travelers to the same terminal.
At the first switch box, connect the incoming hot wire (typically black) to the common terminal (usually darker or labeled “COM”). Attach the two traveler wires (black and red) to the remaining brass terminals. The neutral wire (white) should pass through unconnected unless powering a smart switch.
- First switch: Hot → COM, travelers → brass terminals
- Second switch: Travelers → brass terminals, switched hot → COM
- Light fixture: Switched hot → fixture terminal, neutral → white wire
At the second switch, leave the travelers connected to the brass terminals. The common terminal connects to the wire leading to the light fixture (switched hot). If the fixture requires a neutral, route the white wire directly to it.
For safety, verify all connections with a voltage tester before energizing. Miswired travelers will prevent one switch from controlling the circuit. Label all wires during installation to avoid confusion during future maintenance.
Common Errors to Avoid
- Reversing travelers and common wires–causes one switch to fail.
- Omitting ground connections–increases shock and fire hazards.
- Connecting both travelers to the same terminal–results in parallel paths and potential shorts.
- Using the white wire as a traveler (unless re-identified with colored tape)–violates code (NEC 200.7(C)).
For circuits with intermediate power draws (e.g., outlets between switches), use a 14/4 or 12/4 cable with an additional neutral. Extend the neutral to the fixture and any devices, ensuring all connections remain properly spliced and insulated with wire nuts.

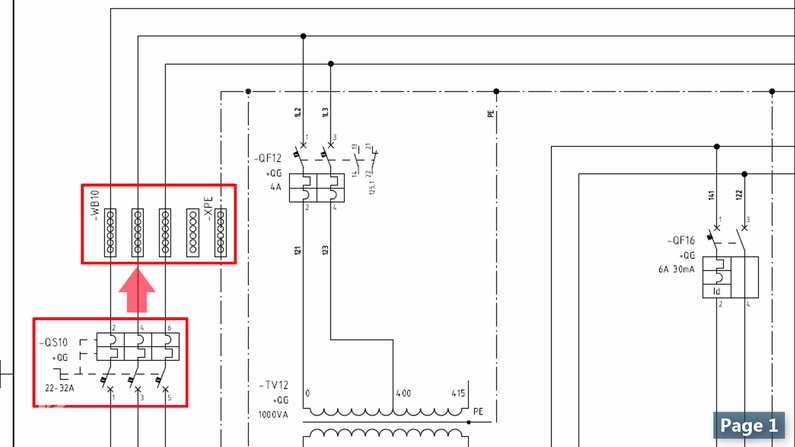

Industrial Motor Control Schematics with Magnetic Starters
Start by connecting the three-phase power supply directly to the main terminals of the magnetic starter’s contactor, labeled L1, L2, and L3. Ensure each line includes a properly rated circuit breaker or fuse–commonly 1.25 times the motor’s full-load current–to prevent damage from overloads. For a 40 HP motor at 460V, select a 60A fuse or breaker based on NEC Article 430.52. The control circuit, operating at 120V or 240V, must be isolated from the power circuit via a control transformer to minimize risk to operators.
Wire the “Start” pushbutton in series with the magnetic coil of the starter (typically labeled A1 and A2) and the “Stop” pushbutton. Add a normally open auxiliary contact from the starter in parallel with the “Start” button to maintain current flow after release–this is the sealing circuit. Use 14 AWG wire for the control circuit, but verify compatibility with the starter’s voltage and current ratings. For fail-safe operation, incorporate a thermal overload relay between the motor and the contactor, setting it to 115% of the motor’s nameplate current.
Key Safety and Performance Enhancements
Include a motor protective device such as a bi-metallic overload relay or electronic motor protection relay, calibrated to trip within 10 seconds at 600% of the motor’s full-load current. For high-inertia loads (e.g., fans or pumps), adjust the trip class to Class 10 or Class 20 to avoid nuisance tripping. Label all conductors per NFPA 79 standards–use black for line power, red for control circuits, and blue for neutral where applicable.
Ground the motor frame and starter enclosure with a minimum 8 AWG copper conductor connected to a dedicated grounding electrode system. Verify tightness of all terminals with a torque wrench–loose connections cause overheating and arc faults. When using a reversing starter, ensure mechanical and electrical interlocks between forward and reverse contactors to prevent phase-to-phase shorts. Test the interlocks with a multimeter before energizing the system.
For remote operation, extend the control circuit to a field-mounted start/stop station using shielded 18 AWG cable, grounded at one end to suppress noise. If the motor is installed in a hazardous location, replace standard components with those rated for the specific class and division (e.g., Class I, Division 2). Document the entire layout with a schematic showing wire numbers, component ratings, and color codes–use IEC 60617 symbols for consistency across international teams.
Maintenance and Troubleshooting Procedures
Inspect contactor contacts monthly for pitting or welding, replacing them if contact resistance exceeds 20% of rated value. Lubricate moving parts with silicone-based grease only–not petroleum-based–to avoid attracting dust. Test the overload relay functionality by simulating a locked-rotor condition with a clamp-on ammeter and verifying trip response within specified limits. Replace capacitors in electronic relays every 5 years as dielectric properties degrade over time.
