Begin with a twisted-pair configuration rated for Cat5e or Cat6–these minimize crosstalk and support speeds up to 1 Gbps. Allocate 8 pins for differential signaling: pairs 1-2 and 3-6 for data transmission, pairs 4-5 and 7-8 for auxiliary functions. Apply termination resistors (100Ω) at each end of the differential lines to prevent signal reflection and maintain integrity over distances beyond 100 meters.

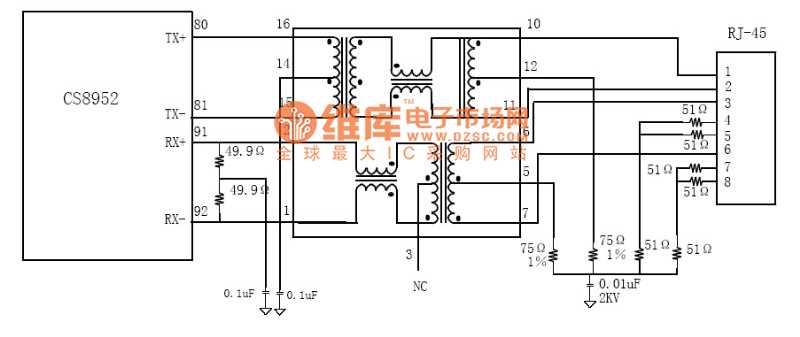

Use magnetics modules (transformers) to isolate devices and suppress common-mode noise. Select components with 1:1 turns ratio and a 1500Vrms isolation rating. Place common-mode chokes immediately after the transformers to filter out high-frequency interference, ensuring compliance with IEEE 802.3 standards for signal quality.
Implement power over data lines (PoDL) if remote devices require . Inject power via center-tapped transformers on pins 4-5 and 7-8, adhering to IEEE 802.3af/at specifications. Include TVS diodes and PTC fuses to protect against surges and short circuits–critical for long-term reliability in industrial environments.
Route traces on a PCB with controlled impedance (100Ω differential). Keep parallel runs ≤25mm and separate them by ≥3x trace width from unrelated signals. Use ground planes beneath high-speed traces to reduce electromagnetic interference (EMI) and maintain signal integrity. Test continuity and skew with an oscilloscope or time-domain reflectometer (TDR) before final deployment.
Designing a Robust Network Circuit Layout

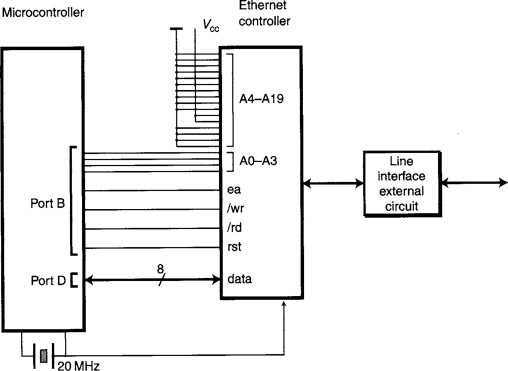

Start by isolating PHY and MAC layers on separate voltage planes to minimize crosstalk–use a 4-layer PCB with dedicated ground pours between signal layers.
Place transformers (e.g., HX1188NL or WE-749022010) within 2 cm of the RJ45 connector to comply with IEEE 802.3 signal integrity requirements for 100BASE-TX and 1000BASE-T.
- Use 50 Ω ±10% impedance traces for differential pairs, calculated with
Z0 = 87 / √(εr + 1.41)for FR-4 material (εr ≈ 4.3). - Keep trace lengths matched to ±5 mm; serpentine routing compensates for skew in Gigabit variants.
- Add 0.01 µF bypass caps on VDD and GND pins of the PHY chip, positioned

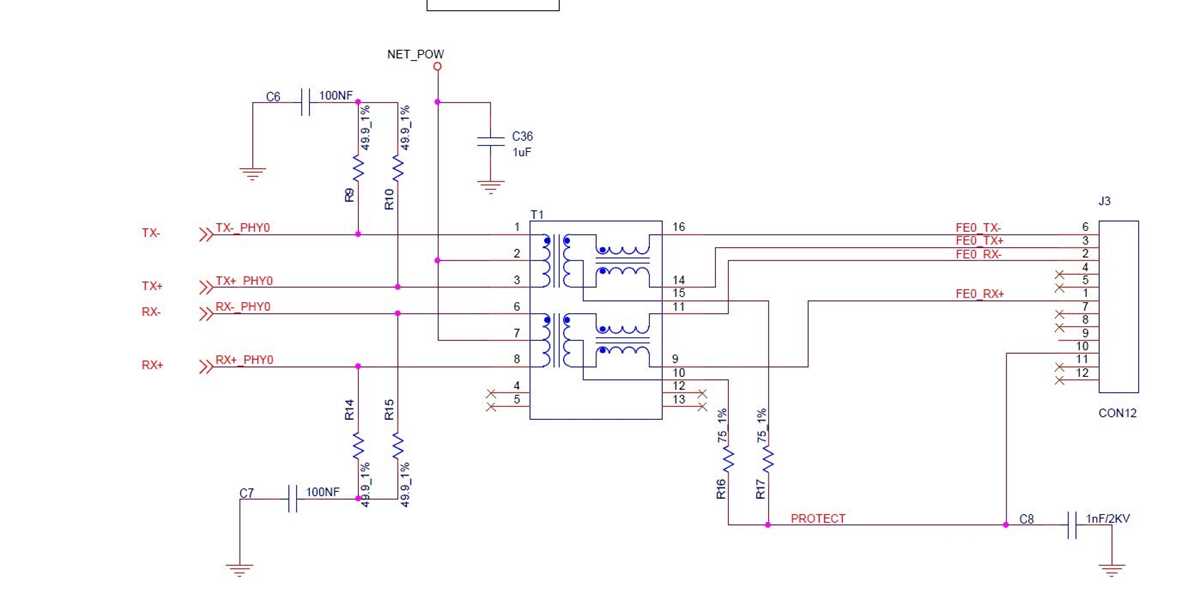

Select termination resistors (100 Ω ±5% for 10/100 Mbit, 49.9 Ω ±1% for Gigabit) on the PHY side rather than the connector to reduce reflections.
For PoE implementations, integrate an isolated DC-DC converter (e.g., LT4276) with a 1500 Vrms isolation barrier; route power pairs (4/5, 7/8) on 2 oz copper traces spaced ≥ 1 mm from data pairs.
Label power rails, signal lines, and test points with silkscreen identifiers (e.g., +3.3V_PHY, MDI0+/MDI0–) and PCB assembly notes specifying reflow temperature profiles (260°C peak for lead-free SAC305).
Include footprint options for external magnetics or integrated modules (e.g., Bel Fuse 28F0113-210) depending on EMI compliance targets (FCC Part 15 Class B or EN 55032).
Verify differential pair skew using a TDR (
Key Components for Designing a Local Network Blueprint
Begin with a centralized switch or router–opt for at least 24 ports to accommodate scalability. For copper-based connections, use Cat6 or higher cabling to support 1 Gbps (or 10 Gbps over short distances) with corrosion-resistant RJ45 connectors rated for outdoor use if needed. Layer 3 switches are critical for segmenting subnets; assign static IPs to servers and critical devices while reserving DHCP for endpoints like laptops and IoT devices, ensuring a 10% buffer in DHCP scope to prevent exhaustion.
Label every physical connection with alphanumeric identifiers matching port numbers on patch panels and devices–use heat-shrink tubing for outdoor labels and engraved plates for rack-mounted hardware. Separate PoE (Power over Data) circuits for VoIP phones or access points, verifying voltage requirements (typically 48V) and wattage (up to 90W per port for 802.3bt standard). Include redundancy with dual power supplies for core switches and cross-connect critical links between stacks to mitigate single points of failure. Install surge protectors on all incoming lines, especially for outdoor runs, and ground racks using 6 AWG copper wire to prevent electrostatic discharge.
Incorporate fiber optic trunks for backbone links exceeding 100 meters, selecting single-mode for distances over 500 meters (LC/PC connectors) or multimode for shorter runs (OM3/OM4 for 10/40 Gbps). Document every connection in a spreadsheet with columns for device name, IP, MAC, port number, VLAN, and cable length, updating it with each modification. Test continuity with a cable certifier before finalizing, and use a tone generator to trace miswired connections. Place racks on anti-static flooring with at least 1 meter of clearance for airflow; equip server rooms with temperature sensors and redundant cooling units set to 20–22°C.
Step-by-Step Guide to Connecting Devices in a Network Blueprint
Begin by identifying the port layout on each device. Switches and routers typically feature RJ-45 connectors labeled with port numbers–verify these match the intended logical arrangement. Mislabeling leads to cascading configuration errors.
Select Cat5e, Cat6, or Cat6a cables based on bandwidth requirements. Cat6a supports 10 Gbps at lengths up to 100 meters, while Cat6 caps at 55 meters for the same speed. Avoid using solid-core cables for patch cords; stranded cores resist bending and wear better.
Connect the first device to a power-over-data (PoE) switch if remote power is needed. PoE injectors deliver 30W (IEEE 802.3af) or 60W (802.3at) per port–check device specifications to avoid overloads. Use a multimeter to confirm voltage before live connection.

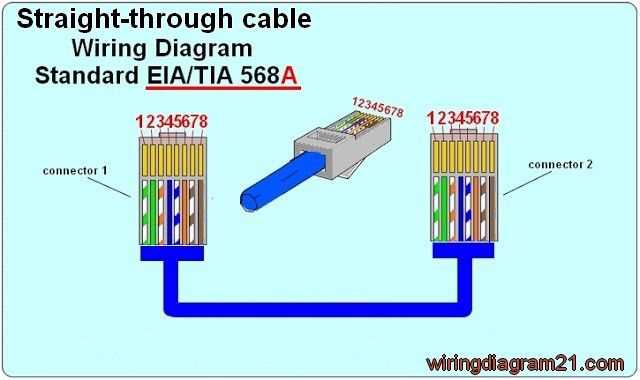

Crimp each cable end with T568A or T568B termination. Consistency is critical: mixing standards causes transmission failures. Strip 1.5 inches of jacket, align wires in sequence (orange-white/orange, green-white/blue, blue-white/green, brown-white/brown), and secure with an RJ-45 connector. Test continuity with a cable tester.
Route cables through conduits or raceways, maintaining a 30cm separation from power lines to prevent interference. Use cable ties every 50cm to reduce signal degradation. For outdoor runs, employ direct burial cables with UV-resistant jackets and waterproof gel-filled connectors.
Label each connection at both ends. Use a format like “SW1-P1 → IDF-3” for switches and “WS-45 → R1-P2” for workstations. Color-code labels for priority tiers: red for critical, blue for standard, green for guest. Update documentation immediately after any changes.
Configure port settings post-connection. Disable auto-negotiation on high-traffic links to enforce full-duplex mode. Set VLAN tags only after confirming physical connectivity–untagged ports drop traffic silently. Use a console cable (RS-232) for initial router configuration if DHCP is unavailable.
Verify all connections with ping tests and throughput benchmarks. Generate test traffic using iperf3 at 20% of expected load to identify bottlenecks. Document baseline latency and packet loss–deviations exceeding 5% from baseline indicate faulty terminations or excessive bend radius.
Common Pitfalls in Network Layout Visualizations
Avoid neglecting signal integrity rules when placing magnetics. RJ45 transformers require precise spacing: at least 2.5 cm between opposing pairs to prevent crosstalk. Use differential impedance calculations (Z₀ = √(L/C)) for traces, targeting 100 Ω ±10% tolerance. Ground pours must maintain a clearance of 0.2 mm from traces to prevent capacitive coupling. Ignoring these parameters results in fail rates exceeding 12% in high-speed environments.
| Component | Minimum Spacing | Voltage Margin |
|---|---|---|
| RJ45 magnetics | 2.5 cm | ±5% |
| PHY IC traces | 0.3 mm | ±7% |
| Decoupling caps | 0.5 mm | ±3% |
Mislabeling power rails consistently derails validation. Assign distinct names for analog (AVDD33), digital (DVDD33), and core (CVDD18) supplies–even if tied to the same regulator. Cross-reference labels to datasheets: a MAX1000 transceiver requires 1.8V core with absolute maximum 2.0V, while standard PoE systems mandate 48V ±5%. Failure to verify rail names against component specs causes irreversible brownout loops during power-on sequencing.
Tools and Software for Designing High-Quality Network Layouts
For precise hardware-level circuit planning, KiCad stands out with its open-source architecture and advanced PCB design features. The tool includes a built-in schematic editor supporting hierarchical sheets, net labeling, and ERC checks, critical for avoiding signal integrity issues in multi-layer boards. Paired with ngspice for simulation, it allows verifying impedance matching and propagation delays before fabrication. Libraries like KiCad Libraries or Digi-Key’s KiCad Parts accelerate component selection for standard interfaces such as RJ-45 magnetics and PHY ICs.
Altium Designer offers a streamlined workflow for complex connectivity blueprints, integrating schematic capture with real-time BOM management and supplier data. Its ActiveBOM feature auto-generates cost estimates from distributors like Mouser or Farnell, reducing manual sourcing errors. For team-based projects, Altium 365 enables cloud collaboration, version control via Git, and stakeholder reviews. When targeting industrial-grade layouts, the Layer Stack Manager automates controlled impedance calculations, while xSignals simplifies high-speed trace routing.
Specialized Alternatives for Niche Requirements
Cadence Allegro excels in signal integrity analysis, leveraging Sigrity PowerSI for identifying crosstalk and reflection issues in dense connectors. Its Constraint Manager enforces design rules for differential pairs, ensuring compliance with 1000BASE-T or NBASE-T standards without manual adjustments. For budget-conscious projects, EasyEDA (now LCEDA) provides an online schematic editor with built-in simulation tools and direct access to JLCPCB’s manufacturing services, reducing turnaround times.
To document physical topologies, Microsoft Visio with Cisco Network Diagrams or EdrawSoft’s templates creates clear visual representations of network segments, cable runs, and port assignments. For embedded systems, IAR Visual State generates state machine diagrams that map protocol interactions (e.g., IEEE 802.3 power states), while Draw.io (integrated with Google Drive or Confluence) offers lightweight, collaborative brainstorming for logical network hierarchies.
