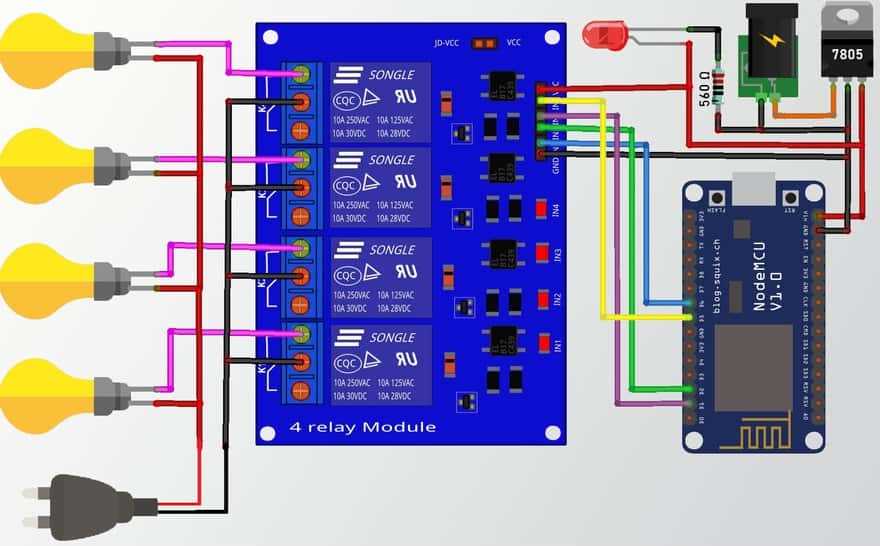

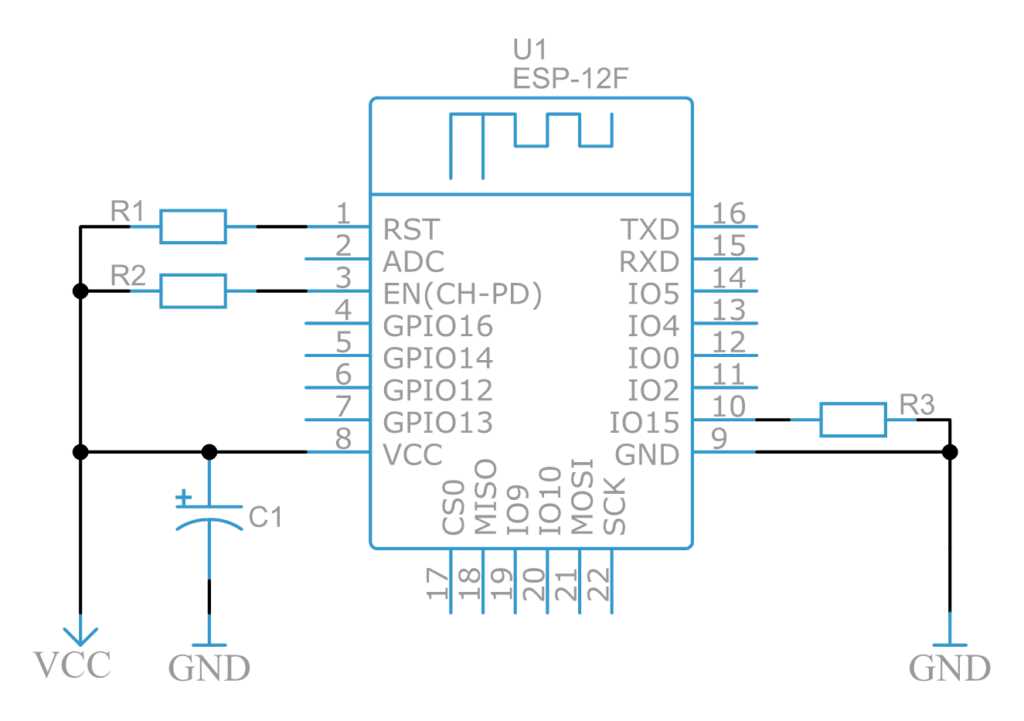

Begin with a minimal configuration: connect the chip’s VCC pin to a stable 3.3V power source and ground the GND pin directly to your power supply’s negative terminal. Any deviation below 3.0V risks inconsistent boot behavior, while exceeding 3.6V may permanently damage the silicon. For stable operation, integrate a 10µF electrolytic capacitor between VCC and GND, positioned as close to the module’s power pins as physically possible–this filters transient voltage spikes during wireless transmission bursts.
Avoid jumper wires longer than 15cm on high-frequency signals like GPIO0, GPIO2, and Reset. Parasitic capacitance on extended traces introduces signal integrity errors, causing false triggers or failed firmware uploads. Route these lines with dedicated 0.1-inch pitch pin headers instead, soldered directly onto a prototype board–no breadboard should carry these signals unless absolutely necessary for rapid testing.
For UART communication during flashing, wire the TX and RX pins to a USB-to-serial converter through 330Ω resistors. This impedance matching prevents signal reflections that corrupt bootloader handshakes. Flashing pins (GPIO0 pulled low, GPIO15 pulled high) must toggle simultaneously with the Reset pin; timing mismatches garble the initial boot sequence. Use pushbuttons with hardware debouncing–soft pull-ups alone induce metastability.
Regulated power delivery demands a low dropout (LDO) linear regulator, such as the AMS1117-3.3, fed by a 5V USB input or LiPo battery via a buck converter. Calculate power dissipation: at 250mA load, the LDO wastes 425mW, mandating a small heatsink for sustained operation. Dropout voltage should never exceed 1.7V–input voltages above 5V risk thermal shutdown.
Wi-Fi antenna routing requires a copper pour ground plane beneath the RF trace to maintain -50dBm sensitivity. Maintain a minimum 0.5mm clearance from other traces to avoid crosstalk. For PCB layouts under 2-layer designs, route the antenna trace on the top layer with unbroken ground returns on the bottom layer. External 2.4GHz ceramic chip antennas (e.g., Johanson 2450AT18A100) outperform PCB traces beyond 20mm length–simulated vswr degrades exponentially.
Critical peripherals–flash memory, I²C sensors, or PWM-driven servos–require decoupling capacitors placed within 3mm of each IC’s power pins. Values: 0.1µF for high-frequency noise rejection, 1µF for low-frequency stability, and 10µF bulk storage. Ground loops form when digital return paths merge with analog–isolate grounds with a ferrite bead (e.g., BLM18PG121SN1) between domains.
Boot configuration strapping resistors (10kΩ for pull-ups, 4.7kΩ for pull-downs) must reside on the same net as the target pin–vias or traces longer than 10mm introduce stray capacitance that alters voltage thresholds. To validate the circuit before deploying code, probe GPIO16 during a power-on reset: a clean 3.3V → 0V transition within 50ms confirms correct strapping.
Building a Reliable Wi-Fi Module Circuit: Key Connections
Start with a 3.3V power supply–any deviation risks instability or permanent damage. Linear regulators like AMS1117-3.3 work reliably, handling input voltages up to 15V while stabilizing output. Bypass capacitors (10µF and 0.1µF) must sit adjacent to power pins to suppress noise.
Flash mode requires GPIO0 pulled low during boot, while normal operation needs it high or floating. Use a 10kΩ resistor to VCC for default high state. GPIO15 demands a pull-down resistor (10kΩ) to ground; omitting this causes boot failures.
Serial communication relies on GPIO1 (TX) and GPIO3 (RX). For debugging, connect these to a USB-to-serial converter (CP2102 or FT232), ensuring 3.3V logic levels–No 5V signals ever. If using external antennas, the RF switch (usually SP3T) must route to the correct pin (typically labeled “ANT”).
Crystal oscillator circuits (26MHz) need two load capacitors (6–12pF) grounded on each side. Incorrect values shift frequency, degrading Wi-Fi performance. Keep traces short–longer than 10mm introduces parasitic inductance.
Reset circuitry benefits from a pushbutton with a 4.7kΩ pull-up resistor. Pressing the button grounds RESET, forcing a reboot. Bootloader behavior hinges on GPIO16; tie it high for deep sleep wake-up, or leave it disconnected for standard operation.
Power consumption peaks at 170mA during transmission–ensure your regulator can handle transient spikes. Decouple analog and digital grounds at a single point near the module to prevent ground loops. For battery-powered designs, add a 1Ω series resistor before the regulator to limit inrush current.
Diodes (Schottky) on the power input protect against reverse polarity. Cheap alternatives like 1N4007 work, but increase forward voltage drop, reducing efficiency. For low-power applications, use a MOSFET (e.g., AO3400) as an ideal diode, minimizing losses.
Pull-up resistors (4.7kΩ) on I2C lines (GPIO4 and GPIO5) prevent floating inputs when no slave device is attached. SPI interfaces require similar treatment on CS, MOSI, and MISO pins–omitting pull-ups risks unpredictable states. Test connections with a multimeter: continuity checks verify solder bridges; diode mode confirms polarity.

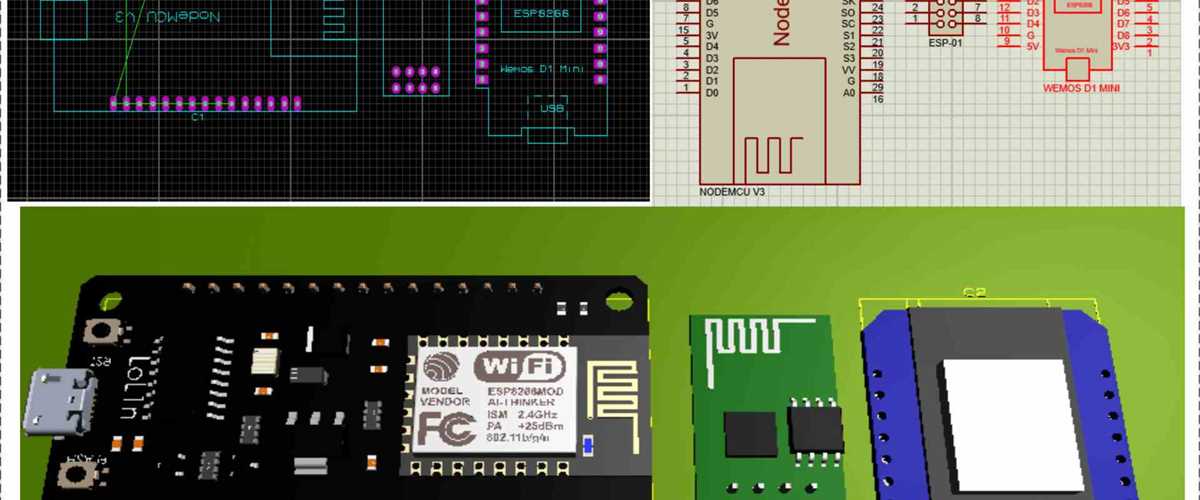

Key Components for a Minimum Viable Wi-Fi Microcontroller Board
Start with a 3.3V linear regulator (AMS1117 or ME6211) capable of delivering ≥500mA, paired with input capacitors (10µF tantalum or 22µF ceramic) and an output capacitor (22µF). Place a 10kΩ pull-up resistor on the CH_PD pin and 10kΩ pull-down resistors on GPIO0 and GPIO15 for stable boot modes. Include a 0.1µF decoupling capacitor directly between the module’s VCC and GND pins, as close to the package as possible–trace inductance above 2nH risks brown-outs during RF spikes.
- Reset circuit: 10kΩ pull-up on
RSTplus a tactile switch for manual resets; omit if using deep-sleep. - Crystal: 26MHz ±10ppm with 6pF load capacitors; swapping to 40MHz violates RF specs and forces flash remapping.
- Flash: 4MB SPI NOR (
Winbond W25Q32orGigaDevice GD25Q32); overprovision 15–20% for OTA updates. - LED indicators: Single 2mA SMD LED on
GPIO2(boot-success indicator) with 470Ω series resistor.
Keep ground pours on both top and bottom layers with vias stitching every ≤5mm. Route RF trace (antenna path) as 50Ω microstrip, impedance-matched via a PI-network (2.2pF–0.5pF–1.5pF) for PCB antennas or a π-match balun (Johanson 2450BL15B050) for external antennas. Skip voltage dividers on ADC unless >1.0V inputs are expected–scale firmware readings instead. For battery-powered designs, add a Schottky diode (BAT54) on VIN to prevent backflow into LiPo cells during charging.
Step-by-Step Power Supply Design for Wireless MCU Boards
Start with a 3.3V linear regulator like the AMS1117-3.3 or MIC5205 for low-noise applications. Input voltage must stay within 4.5–12V to avoid thermal overload; derate current by 5% per degree above 60°C ambient. Add a 10µF tantalum capacitor on the output and a 1µF ceramic on the input to suppress transients. Calculate power dissipation: (VIN − 3.3V) × ILOAD ≤ 0.8W for SO-8 packages. Exceeding this necessitates a switch-mode buck converter (e.g., MP2307DN) with 22µH inductor and 2×22µF caps for stability.
For battery-operated designs, select a low-dropout (LDO) regulator with quiescent current under 50µA. Pair the TLV70033 with a 220mAh LiPo; it delivers 90% efficiency at 20mA load. Include a Schottky diode (BAT54) in series with the battery to prevent backflow into the regulator. Below is a component comparison for typical 3.3V regulators:
| Regulator | Input Range | Dropout (mV@100mA) | Quiescent (µA) | Max Current | Noise (µVRMS) |
|---|---|---|---|---|---|
| AMS1117 | 4.5–12V | 1000 | 5000 | 800mA | 40 |
| MIC5205 | 2.5–16V | 160 | 75 | 150mA | 30 |
| TLV70033 | 3.0–5.5V | 17 | 37 | 200mA | 12 |
Always route the ground plane directly beneath the regulator’s thermal pad to dissipate heat; a 1oz copper pour improves thermal resistance by 30%. For noisy environments, add a π-filter (10Ω resistor + 10µF cap) between the regulator and load. Avoid using electrolytic caps near the regulator; their ESR degrades regulation at frequencies above 1kHz. For USB-powered designs, insert a 2.2A PTC fuse to comply with IEC 60950-1.
Layout Considerations
Place input and output caps within 2mm of the regulator pins. Keep switching nodes (for buck converters) as short as possible; a 1mm trace lowers radiated emissions by 10dB. Separate analog and digital grounds at the regulator’s ground pin, then tie them together at a single point beneath the MCU. For high-current designs (>500mA), use 2oz copper and thermal vias (1.2mm diameter, 0.3mm pitch) under the pad.
GPIO Pin Configuration and Critical Safety Protocols
Label every I/O port with distinct voltage thresholds (e.g., 3.3V max for logic pins, 5V tolerance only for SPI/SCL) directly on the board outline. Exceeding 3.6V on any general-purpose pin triggers irreversible gate oxide breakdown–add a bidirectional TVS diode with a 5.6V clamping voltage (e.g., SMAJ5.0A) between the pin and ground, bypassing any series resistor for low-impedance paths. For ADC inputs, insert a 2.2kΩ series resistor to limit fault currents below 2mA; pair it with a 0.1µF ceramic capacitor to ground to filter high-frequency noise without distorting DC measurements.
Proven Hardening Checklist
- Isolate power rails: Dedicate separate traces for analog (ADC) and digital domains, merging only at a single-star ground point beneath the MCU.
- Pull-up/pull-down resistors: Use 10kΩ for I²C (SDA/SCL) and 4.7kΩ for boot-mode strapping pins (GPIO0, GPIO2, GPIO15) to prevent metastability.
- Current-limiting resistors: Place 220Ω–470Ω resistors on all LED-driving outputs to stay below 12mA per pin.
- ESD protection: Route high-risk pins (reset, UART0) adjacent to grounded copper pours and add 10pF feedthrough capacitors at connector edges.
- Fuse selection: Insert a 500mA polymeric fuse on the VCC trace if powering from USB; verify trip curve matches worst-case startup surge.
- Thermal relief: Apply 0.2mm-wide spokes on ground vias for pins dissipating >100mW (e.g., Wi-Fi antenna feed).
- Silkscreen warnings: Print “MAX 3.3V” on every logic pin and “NO 5V” on ADC inputs.
Test each connection with a calibrated multimeter in diode mode before applying power; reverse-polarity damage to internal diodes is instantaneous and undetectable until failure propagates.
