For reliable Wi-Fi microcontroller integration, begin with a 3.3V linear regulator like the AMS1117 or ME6211. Input voltage ranges from 5V–12V, but ensure stable capacitance–10µF on input, 22µF on output–to prevent noise-induced resets. Bypass capacitors (0.1µF) near the regulator and chip VCC pins are non-negotiable, especially if powering inductive loads like relays.
Flash memory interfacing demands precise signal routing. Use a quad SPI configuration (CLK, MISO, MOSI, CS) with pull-up resistors (10kΩ) on data lines. Avoid daisy-chaining long traces; keep connections under 80mm to prevent signal degradation. For external antennas, a π-network (two capacitors ~33pF and an inductor ~1.5nH) matches impedance to 50Ω traces, critical for consistent RF performance.
GPIO pins require careful conditioning. Inputs benefit from debounce circuits: a 10kΩ resistor pull-up/down paired with a 100nF capacitor eliminates switch noise. For outputs driving LEDs, limit current to 6–8mA with 220Ω series resistors. High-load outputs (transistors, relays) need flyback diodes and optocoupler isolation if exceeding 10mA.
Reset circuitry should include a momentary switch to ground, bypassed by a 10kΩ pull-up resistor to VCC. For deep-sleep modes, connect a 100nF capacitor between reset and ground to stabilize wake-up transitions. Debugging interfaces (UART) need 1kΩ series resistors on TX/RX to prevent bus contention during programming.
Thermal management: ground planes dissipate heat, but via stitching (0.3mm diameter, 1mm pitch) improves conductivity. For high-power applications, add a thermal pad beneath the module, connected to a heatsink or copper pour. Avoid placing capacitors near high-frequency traces–crosstalk degrades signal integrity.

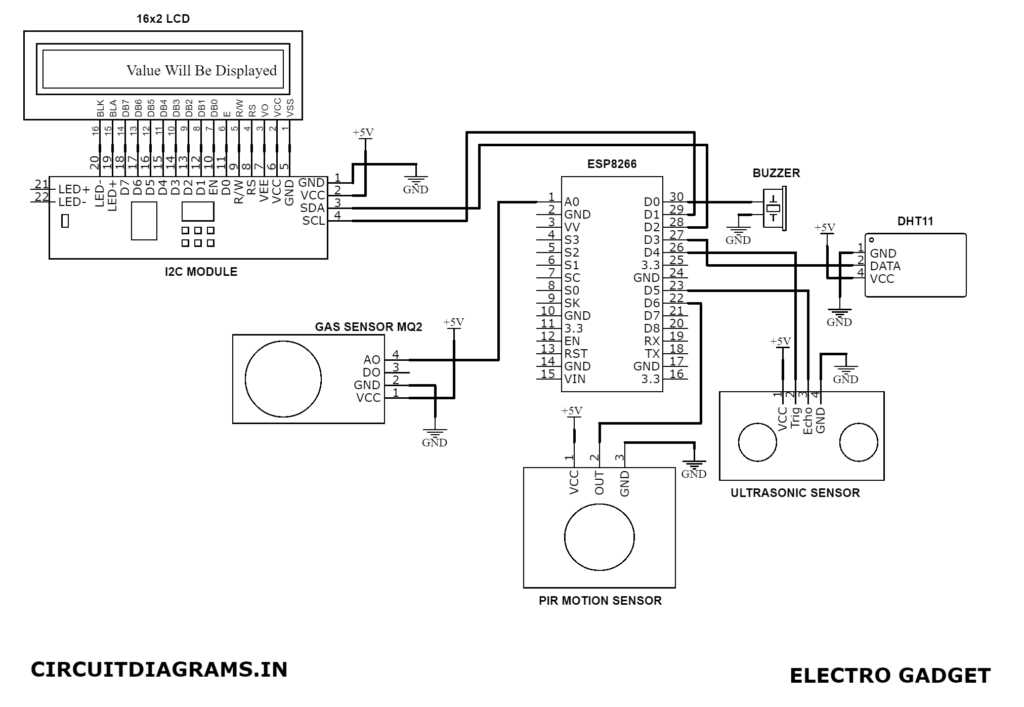

Designing a WiFi Module Schematic for Embedded Projects
Connect the microcontroller’s TX pin to the wireless chip’s RX via a 1 kΩ resistor to prevent voltage mismatch and ensure stable UART communication at 115200 baud. Ground the module’s enable pin through a 10 kΩ pull-down resistor and tie it to VCC using a 1 µF capacitor to suppress start-up glitches. Power the board with a 3.3 V LDO regulator capable of delivering at least 500 mA, placing a 10 µF electrolytic and a 0.1 µF ceramic capacitor within 2 mm of the input and output pins. Route antenna traces as 50 Ω impedance-controlled paths, keeping them 15 mm clear of any copper pours, vias, or sharp bends to maintain signal integrity.
Critical Components Placement
Keep decoupling caps–values 0.1 µF, 1 µF, and 10 µF–directly adjacent to the power pins on the same PCB layer without vias in between. Position the flash memory IC no farther than 3 cm from the main chip to minimize trace inductance and synchronize clock signals within 5 ns skew. Use a dual-diode TVS array rated at 6 V on the USB data lines if exposing the interface to external connectors. Include solder jumpers to bypass the LDO during battery-powered operation, letting the module run directly from 3.6 V with less than 1% ripple.

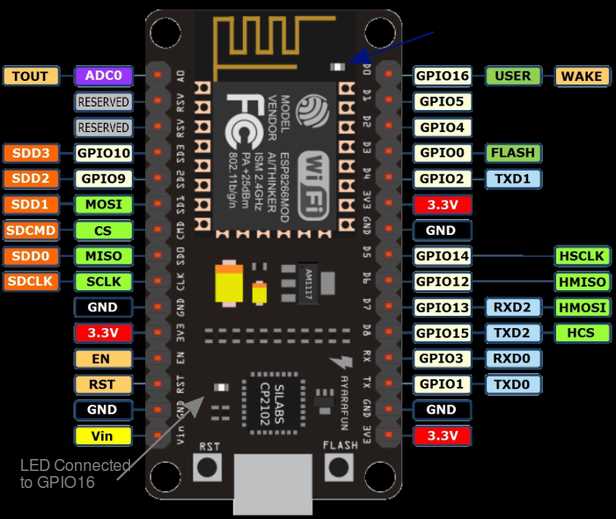

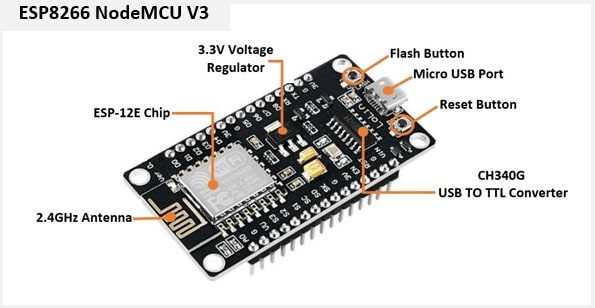

Basic Wi-Fi Module Pinout and Minimal Configuration
Connect VCC (3.3V) to a stable power source–linear regulators like AMS1117 work best. Avoid USB adapters with noisy switching regulators, as they cause erratic behavior. Decouple with a 10µF capacitor close to the module’s power pins to filter voltage spikes. Ground (GND) must be common with your microcontroller; floating grounds lead to communication failures.
| Pin | Function | Critical Notes |
|---|---|---|
| GPIO0 | Boot mode selection | Pull HIGH for normal operation; LOW enters flashing mode |
| GPIO2 | Default HIGH at boot | Connect to 3.3V via 10kΩ resistor if unused |
| GPIO15 | Boot mode strap | Must pull LOW for SDIO mode; tie HIGH for UART boot |
| RX, TX | UART interface | Use 3.3V logic levels–5V will damage the pins |
For flashing firmware, wire GPIO0 to ground temporarily and reset the module. This triggers download mode. After programming, disconnect GPIO0 from ground to resume normal operation. Skipping this step causes the module to ignore new firmware.
Minimal viable setup requires only VCC, GND, TX, RX, and CH_PD (enable pin–keep HIGH). Leave unused GPIOs floating unless driven by external components, but never exceed 3.3V. Internal pull-ups are weak and unreliable for long traces.
For I2C sensors, use GPIO4 (SDA) and GPIO5 (SCL). These tolerate 3.3V logic without additional level shifters. For SPI, prioritize GPIO12 (MISO), GPIO13 (MOSI), GPIO14 (SCK), and GPIO15 (CS)–they retain state during boot. Avoid GPIO16 if deep sleep is needed; it connects to reset.
Always verify pin configurations against the module variant–NodeMCU and Wemos D1 have slight deviations. Test continuity with a multimeter before powering up to prevent shorts. Power draw peaks at 300mA during Wi-Fi transmission; underrated supplies cause brownouts.
Power Supply Options for Wi-Fi Microcontroller: 3.3V vs 5V
Always power the Wi-Fi module at 3.3V–exceeding this voltage by even 0.1V risks permanent damage to the voltage regulator, RF front-end, or flash memory. The onboard LDO tolerates a maximum input of 3.6V under transient conditions, yet sustained operation above 3.4V accelerates degradation. For battery-powered designs, lithium-ion cells (3.7–4.2V) require a low-dropout regulator (e.g., AMS1117-3.3) with a minimum 500mA capacity to handle peak currents during Wi-Fi transmission (up to 320mA). Bypass capacitors (10μF ceramic + 0.1μF) placed within 10mm of the power pins suppress noise, critical for RF stability.
USB-based projects (5V) demand a buck converter or linear regulator–never connect 5V directly. A 5V-to-3.3V buck converter (e.g., MP2307DN) achieves 90% efficiency at 500mA, reducing heat dissipation compared to linear regulators (≤60% efficiency). Calculate power budget: 100mA for active mode, 80mA per core task (Wi-Fi stack + peripherals), and 170mA for TX bursts. Exceeding these loads without proper decoupling triggers brownouts, corrupting firmware. For debugging, attach a 2.2Ω series resistor on the 3.3V rail to measure current without disrupting RF performance.
Solar-powered setups must pair a 3.6V LiFePO4 battery with a low-quiescent-current LDO (e.g., TLV70033, 500nA Iq). Charge controllers (e.g., MCP73831) should limit input to 4.5V to prevent overvoltage. For coin-cell applications (CR2032), add a Schottky diode (e.g., 1N5817, 0.3V forward drop) to avoid backflow, extending runtime beyond the cell’s 220mAh capacity. Deep-sleep current (20μA) becomes irrelevant if the diode or regulator adds 5μA–opt for components with sub-μA leakage.
Fixed-voltage DC adapters (e.g., 12V) require a two-stage conversion: first to 5V (buck regulator), then to 3.3V. Efficiency losses compound–85% × 85% = 72%–wasting 4.3W per 15W input. Instead, use a single-stage buck (e.g., LM2596) configured for 3.3V output, halving the losses. AC-DC modules (Hi-Link HLK-PM01) simplify design but inject 100kHz–1MHz noise; add a pi filter (LC network, 10μH + 10μF) on the output to meet Wi-Fi sensitivity thresholds (~-82dBm @ 6Mbps).
For prototyping, a lab bench PSU with current-limiting (400mA) prevents accidental overcurrent. USB power banks often fail under TX loads–select models with 2.1A ports and verify stable 3.3V under transient conditions. Test ripple with an oscilloscope: >50mVpp degrades ADC accuracy. For industrial deployments, combine a supercapacitor (1F, 5.5V) with a buck converter to absorb voltage sag during relay activation or motor startup, ensuring transient immunity.
Wi-Fi Module GPIO0 Pull-Up: Critical Setup for Reliable Boot
Use a 10kΩ pull-up resistor on GPIO0 to VCC (3.3V) to prevent unintended flash mode activation during power cycles. Omitting this or using lower values (e.g., 4.7kΩ) may cause sporadic boot failures, especially in noisy environments.
Connect the resistor directly between GPIO0 and the 3.3V rail without intermediate traces longer than 10mm. Longer paths act as antennas, picking up interference that can override the pull-up’s effect. Test stability by toggling power 100 times–successful boots each time confirm proper configuration.
GPIO0’s dual role as boot mode selector requires precise voltage levels: >0.8V for normal operation,
For battery-powered setups, replace the physical resistor with software pull-ups via code: pinMode(0, INPUT_PULLUP); This reduces current draw to ~20µA but demands stable power–voltage drops below 2.8V may still cause boot failures. Verify with an oscilloscope during startup.
When using a pushbutton for manual flash mode entry, place a 0.1µF capacitor between GPIO0 and ground to debounce. Omitting this causes rapid voltage spikes that toggle boot modes unpredictably. Ensure the button connects to ground, not VCC, to avoid backfeeding.
For modules sharing GPIO0 with other peripherals (e.g., LEDs or sensors), add a 100Ω series resistor to isolate signals. Parallel loads below 1kΩ can sink enough current to override the pull-up, forcing flash mode. Measure GPIO0 voltage under all operational states–consistent 3.3V ensures stability.
Modules with built-in pull-ups (e.g., some development boards) may still need external reinforcement if trace resistance exceeds 0.5Ω. Factory pull-ups often use higher values (40kΩ+) and degrade over time. Validate by reheating solder joints–temperature fluctuations can expose latent weaknesses.
Avoid tying GPIO0 to VCC via a direct trace; this bypasses the resistor’s protection. If a pull-up is necessary for multiple GPIOs, use a single 10kΩ resistor per pin–shared resistors create voltage division risks. Test each configuration with a multimeter under worst-case conditions (e.g., 2.7V supply).
