Begin by isolating the drive unit layout–the heart of any moving stairway installation. Locate the motor housing adjacent to the upper landing, where a 3-phase AC induction model rated at 400V/50Hz delivers torque through a helical gear reducer. Verify the gearbox output flange connects directly to the main step chain sprocket via a torsion-resistant coupling, ensuring ≥25,000 hours MTBF under continuous load. Skirt clearance on both sides must stay within 4.5mm ± 0.5mm to prevent passenger entrapment risks.
Trace the step assembly logic next. Each aluminum extruded platform interlocks with dual articulated links, forming a rigid loop guided by truss-mounted roller tracks. Confirm track spacing at 840mm ± 3mm centerline to maintain lateral stability at max rated speed (0.5 m/s standard, 0.65 m/s for heavy-duty). Brush seals along lower curved segments must be positioned ≤1mm above tread gap to eliminate debris ingress, a primary cause of premature chain wear.
Inspect the handrail circuit separately. A closed-loop polyurethane belt driven by a secondary friction wheel synchronizes with step movement (±1% tolerance). Ensure tensioning pulleys apply 300N–500N force measured at mid-span to prevent slippage without overloading linear bearings. Thermal cutouts embedded in rail returns must trip at 75°C ± 5°C to isolate overheating faults before structural damage occurs.
Prioritize control circuitry validation. A PLC-driven safety relay monitors step chains via redundant Hall-effect sensors, halting operation if phase lag exceeds 20° electrical. Emergency stop buttons–positioned at both landings within ≤1200mm reach of each other–must bypass software logic, directly interrupting main contactor coils. Document all wiring gauges: 6mm² for primary power, 1.5mm² for signaling, with color-coded conduit per IEC 60446.
Conduct insulation resistance tests post-installation. Megger all motor windings and step chain circuits to >100MΩ at 500VDC. Lubricate roller tracks every 2,000 cycles using lithium-based grease with to avoid particle-induced wear. For retrofit projects, replace step chains if elongation exceeds 1.5% of original length, measured between the first and last link under 10kN load.
Understanding Vertical Transport System Blueprints

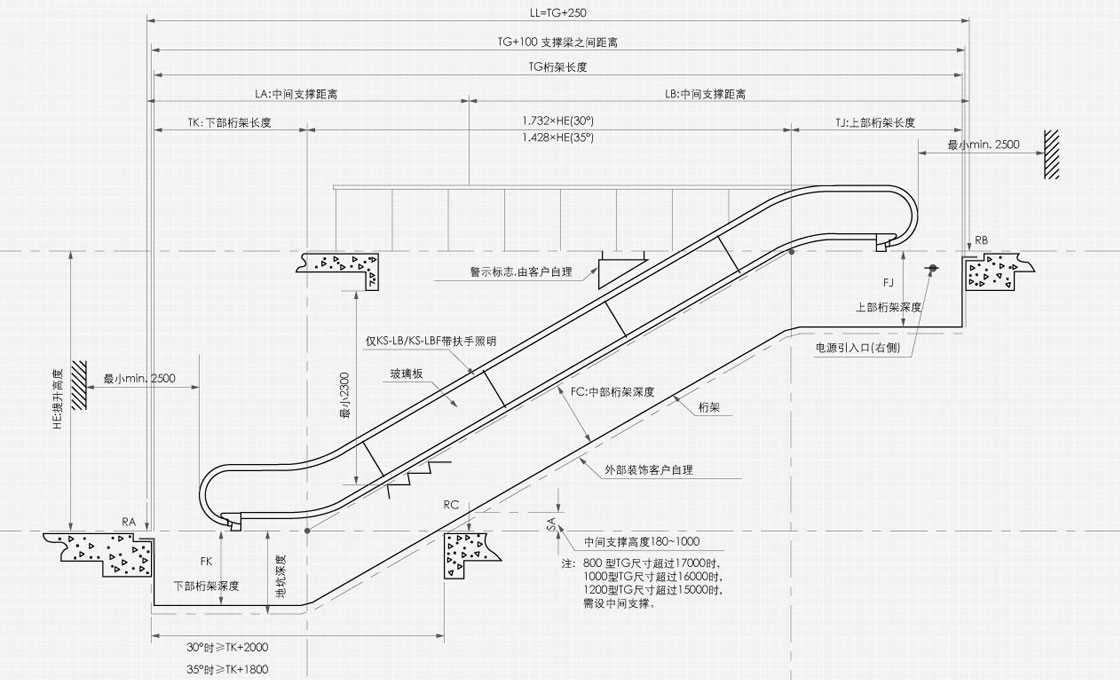

Begin by identifying the core components in the illustrated layout: the step chain, drive unit, and control panel. The step chain typically appears as a continuous loop with evenly spaced notches–verify its alignment with the drive sprocket at the top and bottom landings to prevent misalignment.
Locate the motor and gearbox assembly in the upper section of the technical drawing. Ensure the motor’s rated power matches the system’s load requirements, commonly 7.5–15 kW for standard models, and cross-reference the gear ratio (often 1:20 or 1:30) with operational speed specifications, usually 0.5–0.75 m/s.
Trace the handrail drive path separately from the step mechanism. The handrail should operate at 2–5% faster speed than the steps to maintain passenger safety–check for synchronization markers on the blueprint. Overlooking this detail risks handrail slippage or excessive wear on the friction wheels.
Inspect the safety circuit illustration for key fail-safes: step gap detectors, comb plate sensors, and emergency stop buttons. Modern layouts integrate redundant braking systems–one mechanical (electromagnetic) and one dynamic (motor regenerative braking). Confirm their placement and activation thresholds, typically triggered at 120% of rated speed.
Examine the power distribution segment. High-capacity systems use three-phase 400V AC input, split into low-voltage circuits (24V or 48V) for controls. Look for surge protection devices and isolation transformers, especially in installations with fluctuating power grids. Undersized wiring leads to voltage drops–a common oversight in initial designs.
Note the truss structure’s load-bearing annotations. Standard designs support 5,000–8,000 kg per meter of width. For public transit applications, verify reinforced truss beams at intervals of 1.5–2 meters, often indicated by thicker line weights on the layout. Ignoring these annotations compromises structural integrity under peak loads.
Compare the theoretical layout with real-world installation constraints. Most blueprints omit local code adjustments, such as fire-resistant enclosures for controllers or additional non-slip surfaces on the steps. Include a 10% margin for these modifications in project planning to avoid costly revisions during assembly.
Critical Elements Visualized in Vertical Transit Blueprints
Begin by identifying the step chain assembly at the core of any moving stairway illustration. This component consists of interlocking links, typically fabricated from hardened steel alloys like AISI 4140, with pin joints treated for corrosion resistance (e.g., zinc plating). The chain’s pitch–commonly 135 mm for public installations–directly influences step spacing and must align with the drive sprocket teeth count, calculated as sprocket diameter = (chain pitch × teeth count) / π. Misalignment causes accelerated wear, reducing operational lifespan by up to 40%.
Examine the truss structure next, as it bears static and dynamic loads–passenger weight (design load: 5,000 N/m²) plus tension from the step chain (12 kN minimum). Materials for trusses vary: commercial models use structural steel (yield strength: 250 MPa), while high-traffic variants employ A572 Grade 50 (min. 345 MPa). Blueprints should annotate weld points with AWS D1.1 compliance symbols, particularly at joints transferring shear stress. Overlooking this risks structural fatigue, evident in fatigue cracks initiating at weld toes (visible under magnetic particle inspection).
| Load Class | Chain Pitch (mm) | Min. Breaking Load (kN) | Material Standard |
|---|---|---|---|
| Light (Residential) | 100 | 8 | EN 10025-2 (S235JR) |
| Standard (Commercial) | 135 | 12 | AISI 4140 |
| Heavy (Transit) | 160 | 20 | ASTM A29 (4140H) |
The handrail system’s path, illustrated via side-view profiles, reveals critical constraints: its belt must maintain consistent tension (±5%) to prevent slippage, regulated by spring-loaded tensioners (adjustment range: 15–25 mm). Blueprints should mark the handrail’s entry/exit radii (min. 50 mm) to avoid pinch points, a hazard exacerbated by worn polyurethane coatings (durability: 5–7 years under UV exposure). Verify the handrail drive sprocket’s alignment with the step chain drive; angular deviation >0.5° induces uneven wear, detectable via thermal imaging (hot spots indicate friction).
Control and Safety Circuits
Safety circuits require explicit notation of contactors, relays, and fail-safe redundancies. For instance, the step chain’s missing-step detector (a proximity sensor, e.g., IFM SM9000) must be wired in series with the motor brake circuit, ensuring immediate stop if gaps >4 mm form between steps. Diagrams should denote the emergency stop loop–typically a normally closed (NC) latching circuit–with test points for periodic verification (IEC 62061 SIL 2 compliance). Omitting this risks brake release delays, measured via oscilloscope: target response time
Power distribution panels demand detailed labeling of fuses (time-delay type for motor inrush currents) and inverters (VFDs). For a 15 kW motor, the inverter’s switching frequency (4–16 kHz) affects harmonic distortion, requiring line reactors if THD >5%. Blueprints must specify cable gauges (e.g., 6 AWG for 40 A circuits) and routing paths to avoid electromagnetic interference (EMI) with nearby signal cables. Grounding diagrams are non-negotiable: bonding straps (cupronickel, 10 mm² cross-section) must connect the truss to earth, with resistance
Finally, document the lubrication system–semiautomatic or centralized–with flow rates (0.1–0.3 L/min for mist systems) and pressure thresholds (1.5–2.5 bar). Blueprints should annotate grease points (NLGI Grade 2 for ambient temperatures >0°C) and filter micron ratings (10 μm absolute for recirculating systems). Neglecting this accelerates bearing wear (L10 life reduction of 60% with improper lubrication), detectable via vibration analysis (Schaeffler ARPANET thresholds). Include maintenance access panels in the illustration, ensuring 300 mm clearance for inspection tools.
Step Chain Assembly and Drive Mechanism Layout
Position the step chain drive sprockets at a minimum center distance of 1.2 meters for models handling loads above 3,000 passengers per hour to prevent excessive wear on roller pins. Ensure the upper sprocket aligns within ±2 mm of the theoretical vertical axis relative to the lower sprocket to avoid misalignment-induced chain skipping. Use double-row roller chains with a pitch of 135 mm for heavy-duty applications–this reduces elongation under load by 18% compared to single-row variants.
Install guide rails for step rollers at a consistent 3° incline deviation from the horizontal plane; deviations beyond 0.5° cause uneven step spacing and accelerated tread wear. Apply modular nylon inserts with a static friction coefficient of 0.12–0.15 at the rail-step interface–this extends rail lifespan by 30% while maintaining smooth articulation. For outdoor units, specify corrosion-resistant zinc-plated rails with a 25 µm coating thickness to prevent pitting from chloride exposure.
Mount the main drive motor on a vibration-dampening base plate, isolating it from the truss with elastomeric pads (Shore A hardness 40–50). Direct drive systems require a helical gear reducer with a gear ratio between 22:1 and 28:1–this balances torque delivery and operational noise below 65 dB(A) at full load. For variable-speed applications, integrate a VFD with a ramp acceleration time of 10–15 seconds to prevent chain jerk on startup.
Critical chain tension is set via a threaded turnbuckle adjustment mechanism; target a deflection of 15–20 mm under a 50 kg load applied mid-span. Over-tensioning beyond 25 mm reduces chain fatigue life by 40%, while under-tensioning causes step sagging and misalignment. Lubricate chain pins with synthetic ester-based grease (NLGI Grade 2) every 500 operating hours to maintain a film thickness of 0.05–0.08 mm–this minimizes wear by 50% compared to mineral oil-based lubricants.
Step pallets attach via four-point securing brackets, each rated for a dynamic load of 600 kg–avoid bolt grades below 8.8 to prevent shearing under impact. The return side guide rail should incorporate a self-cleaning polyurethane wiper strip angled at 45° to clear debris without binding. For installations in dust-prone environments, add a sealed bellows cover over the step chain path to block particulate ingress, reducing abrasive wear by 60%.
Emergency braking systems must engage within 0.3 seconds of power loss–specify a fail-safe electromagnetic brake with a holding torque of 1.5× the nominal load. The brake disc should dissipate heat at a rate of 5 kW/m² to prevent fade during repeated stop cycles. Replace friction pads when thickness falls below 8 mm to maintain a minimum braking force of 3,000 N.
Step treads require a textured surface with an Rz value of 50–70 µm to achieve a slip resistance of ≥0.45 (measured via pendulum test method). For public transport applications, use aluminum treads with a 3 mm raised diamond pattern–this improves traction by 22% compared to flat surfaces while reducing weight by 12%. Embed RFID tags in every 50th step for predictive maintenance tracking of individual tread deformation.
Inspect sprocket teeth for wear exceeding 1 mm on the flank–replace sprockets when the chordal thickness at the pitch line diminishes by 5%. Step chain links should be rejected if elongation surpasses 0.7% of original length. Replace step rollers showing flat spots deeper than 0.3 mm to prevent chain derailment under load. Document all adjustments with torque values and tension readings to establish a performance baseline for future maintenance cycles.
