The Seymour Duncan SH-4 or Gibson Burstbucker Pro retrofit requires precise connections to avoid signal loss or hum. Begin by soldering the black wire from the neck sensor to the back of the volume pot lug closest to the cavity edge–this grounds the coil and eliminates unwanted noise. The red lead from the bridge unit connects to the opposite lug on the same potentiometer, establishing the hot path. If retaining the factory push-pull phase switch, route the green/white striped wire from both coils to the switch’s center lugs; failure here creates dead spots when engaging the out-of-phase setting.
Use 22-gauge shielded cable for the output jack link–any thinner gauge increases resistance, softening high frequencies. The bare grounding conductor should terminate at the control plate’s rear screw, not the potentiometer itself, to prevent intermittent grounding. When bridging both sensors in series, connect the bridge’s red wire to the neck’s white wire; parallel wiring demands joining both white leads. Verify these paths with a multimeter set to continuity before reassembly; a single missed connection induces 60-cycle hum regardless of pickup height adjustments.
Replace the stock 500k pots with CTS 300k audio taper units if clarity suffers–this adjustment tightens bass response without sacrificing midrange definition. Secure connections with rosin-core solder rated for electrical work; acidic flux variants corrode traces over time. Maintain a minimum 5mm gap between solder joints on adjacent lugs to prevent shorting during string bends. For four-conductor wiring, consult the color code: red (hot), white (coil split), green (coil split ground), black (ground), and bare (shield)–swapping any leads inverts phase polarity.
Test signal path integrity by engaging each pickup selector position while tapping the sensor poles with a screwdriver–muted output indicates incorrect wiring or cold solder joints. Isolate issues using a probe connected to the jack’s sleeve lug; touching each component should yield a clear pop through the amplifier. If hum persists after grounding checks, revisit the shield connection to the bridge–oxidized plating demands fresh conductive paint or copper tape.
Custom Humbucker Pickup Installation Guide
For single-coil mode on a dual-coil Alnico V set, connect the south coil’s negative lead to the volume potentiometer’s middle lug while grounding the north coil’s positive via a 0.022µF capacitor. Solder the pickup selector’s common terminal to the volume pot’s input lug–this preserves high-frequency clarity when splitting. Use braided shield wire for ground paths to minimize 60-cycle hum interference, especially in vintage-style circuits with 500k logarithmic pots.
Test phase coherence before final soldering: bridge the south coil’s positive and north coil’s negative leads temporarily; output should drop near silence if polarity aligns. Reverse one coil’s leads if residual signal persists–this indicates a 180° phase misalignment. For push-pull potentiometer split wiring, route the switch’s center contact to the coil-tap lug and the outer contacts to ground and the volume pot’s output respectively; use a DPDT on-on switch for Series/Parallel options without additional components.
Identifying Humbucker Pickup Models and Their Circuit Variations
Begin by inspecting the pickup’s construction: open-frame Alnico-II magnets typically denote early reissue series (e.g., ’59 Les Paul Standard pickups), while ceramic-based models often signal modern high-output variants like those found in the Custom or Plus lines. Check for serial numbers etched on the coil bobbins–prefixes “PB-1” or “PB-2” indicate neck or bridge positions, respectively, while “PB-3” marks a rare zebra-coil configuration. Measure DC resistance: 7.5–8.5kΩ suggests vintage-style windings, whereas 12–14kΩ points to high-gain models. Note the baseplate material–nickel-silver for authentic reissues, blackened steel for mid-range models, and gold-plated for premium editions. Verify solder points: four-conductor wiring with a bare shield wire confirms coil-splitting capability, while two-conductor setups are non-split.
Decoding Circuit Variations
Active circuits often integrate a 9V preamp (visible by a small PCB beneath the pickup cover) and require four wires: hot, ground, positive voltage (+9V), and a resistor-linked output. Passive split-coil designs use a push-pull pot for hum/single-coil switching–look for a resistor (typically 500kΩ) soldered between the switch lugs. Parallel wiring (for series/parallel switching) needs a DPDT switch and two resistors (470kΩ each) bridging the coil connections. Dual-volume setups with independent tone controls indicate individual wiring, while a master tone circuit suggests a shared ground. Observe capacitor types: vintage models favor orange drop polyesters (.022µF), while modern builds use ceramic discs (.047µF) for brighter high-frequency roll-off.
Step-by-Step Guide to Interpreting Guitar Humbucker Schematics
Locate the pickup selector switch on the schematic first. Most dual-coil configurations use a 3-way toggle, though some high-end setups include a 5-way blade for coil-splitting. Identify the common lug–typically the center position–and trace its connection to the volume pot. Key detail: the switch’s orientation on the diagram mirrors its physical placement when viewed from the guitar’s rear.
Volume and tone controls appear as stacked potentiometers with resistance values standardized at 500K for humbuckers (metal genres) or 250K (blues/jazz). Check the wiper arm–marked by an arrow–on each pot. Misaligned arrows indicate incorrect assembly. The tone cap (usually 0.022µF for clarity or 0.047µF for warmer tones) connects between the pot’s wiper and ground. Wire color codes matter: black (ground), red (hot), white/green (coil wires).
- Neck pickup: Uses inner coil lugs for full hum-canceling mode; outer lugs enable split-coil via push/pull pot.
- Bridge pickup: Often wired for higher output; verify phase alignment if mixed with single-coils (out-of-phase = thin, nasally tone).
- 4-conductor cables: Braided shield (ground) plus 4 wires–identify the “start” and “finish” of each coil via multimeter continuity test.

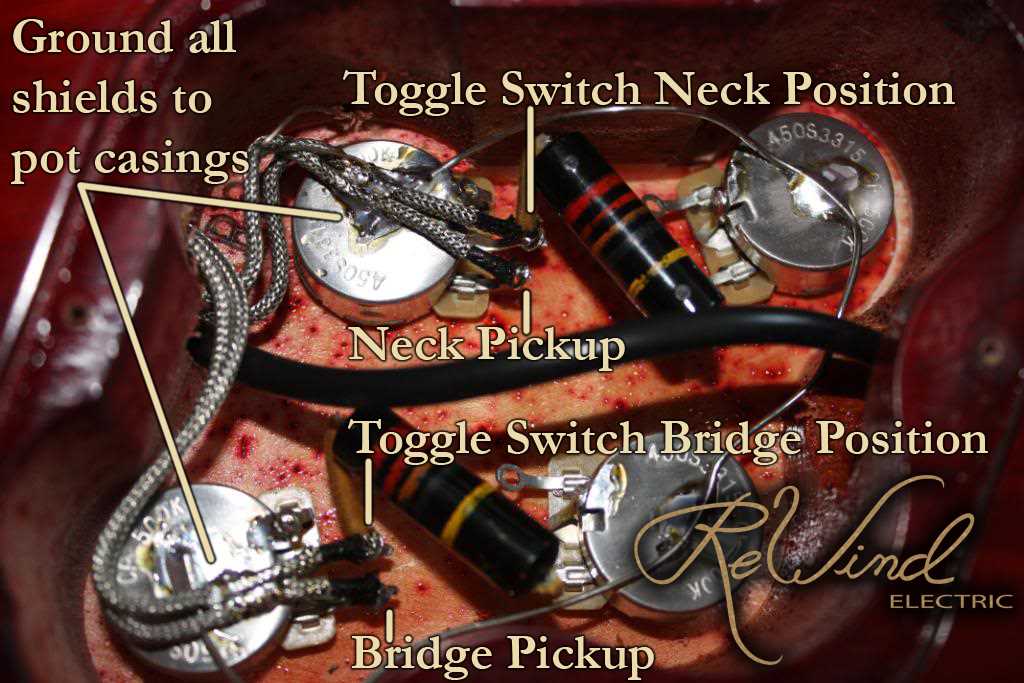

Grounding paths demand scrutiny. Connect all pots’ casings to a single star ground point, typically the input jack’s sleeve. Loose grounds manifest as buzz or radio interference–diagnose with a probe to chassis screws. For coil-tapping, a 250K resistor between split wire and push/pull switch prevents volume drop. Diagram labels like “CT” (coil-tap) or “NS” (no-signal) clarify tap points.
Phase issues require reversing one coil’s polarity. Swap the white and green wires on one humbucker if the out-of-phase sound persists when both are active. Test by engaging only neck and bridge positions–properly phased pairs produce a full, resonant tone. For advanced splits, add a DPDT mini-switch: wire one side to the coil’s split lug and the other to ground, creating an on/off tap without lifting the push/pull pot.
Final checks:
- Confirm all solder joints lack cold connections (dull finish = reflow with rosin core).
- Gauge wire gauge: 22AWG for signal paths (flexible), 18AWG for ground buses (stiffer).
- Insulate exposed leads with heat-shrink tubing–bare ends near metal cavities cause shorts.
- Use a schematic-specific legend: arrows pointing downward denote ground; diagonal lines mark physical components (switches, jacks).
Essential Instruments and Supplies for Custom Humbucker Circuit Adjustments
Begin with a temperature-controlled soldering station (30-40W) featuring adjustable heat and a fine conical tip–preferably one with digital calibration. A unit like the Hakko FX-888D allows precision work on miniature potentiometer lugs without damaging delicate traces.
Stock at least three gauge sizes of rosin-core solder: 0.020″ for tight spaces like pickup selector switches, 0.032″ for volume and tone controls, and 0.050″ for grounding wires. Lead-free variants (Sn96.5/Ag3.5) require higher temps (350°C+) but reduce oxidation risks.
| Tool | Specification | Use Case |
|---|---|---|
| Digital multimeter | 600V CAT III, 200MΩ impedance | Verify continuity, measure DC resistance |
| Wire strippers | Self-adjusting, 20-28 AWG | Clip insulation cleanly without nicking conductors |
| Needle-nose pliers | ESD-safe, 4.5″ length | Bend wire leads, crimp solderless connectors |
Use tinned copper braid (2mm width) alongside a desoldering pump: the braid wicks away excess alloy without scorching PCB pads, while the pump handles components with stubborn attachments. Opt for braid with flux core for faster capillary action.
Gather heat-shrink tubing in 1.5mm, 2mm, and 3mm diameters–polyolefin variant with 2:1 ratio resists abrasion better than PVC and insulates connections down to -55°C. A butane torch or heat gun (120W, 500°C) ensures even shrinkage without overheating adjacent wires.
Choose wire from two categories: 22 AWG stranded for audio paths (OFC copper, 99.99% purity) and 24 AWG solid for grounding (silver-plated copper reduces skin-effect loss). Color-code consistently: white/cream for hot leads, black for ground, red for out-of-phase mods.
Label every wire and component with polyester tape (3mm width) and fine-point permanent marker–smear-resistant ink like Uni POSCA holds up against flux residues and rubbing alcohol swabs. Document each step with a macro-focused camera (minimum 12MP) mounted on a flexible arm.
Keep antistatic measures in place: wrist strap with 1MΩ resistor, dissipative surface mat (10^7–10^9 Ω/sq), and ionizing fan to neutralize charge build-up near sensitive magnetics. Store finished assemblies in conductive foam or Faraday bags to prevent EF induction.
