Begin by selecting a NTC thermistor with a resistance of 10kΩ at 25°C–this component serves as the sensing element for accurate temperature readings. Pair it with an operational amplifier (op-amp) like the LM358 to condition the signal, ensuring stability and minimal noise interference. The op-amp should be configured in a non-inverting mode with a gain of 1.5 to 2, depending on the voltage range of your microcontroller’s ADC.
Use a voltage divider between the thermistor and a 10kΩ reference resistor to linearize the response. For temperatures between 0°C and 50°C, this setup delivers a near-linear output. Connect the divider’s midpoint to the op-amp’s input and add a 100nF decoupling capacitor to the op-amp’s power pins to filter out high-frequency noise.
The processed signal should feed into an 8-bit or 12-bit ADC of a microcontroller such as the ATmega328P or ESP32. Calibrate the system by placing the thermistor in a controlled environment (e.g., ice-water mix at 0°C and boiling water at 100°C) and adjusting the ADC reference voltage. For real-time display, wire a 16×2 LCD module or use serial output (UART) to a PC for debugging.
Power the circuit with a regulated 5V supply, ensuring the op-amp’s input voltage doesn’t exceed its rail-to-rail limits. For portable applications, a 3.3V supply with a rail-to-rail op-amp like the MCP6002 is recommended. Avoid soldering thermistors directly; use a 3-pin connector for easy replacement and testing.

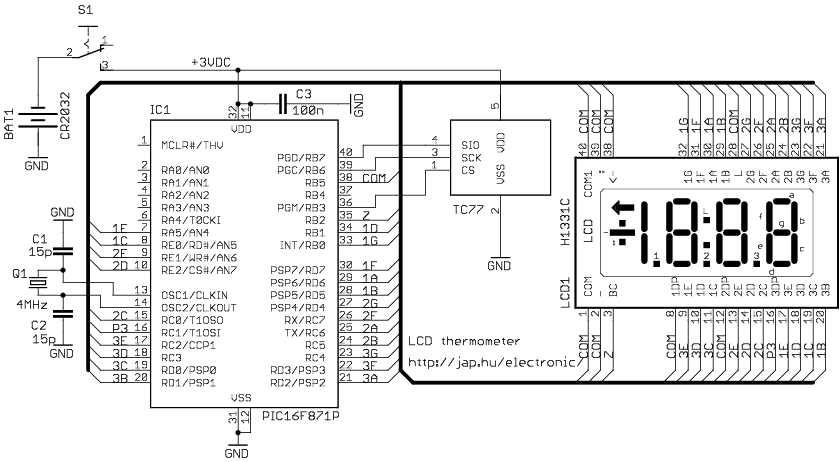

Building a Precision Temperature Sensor Circuit
Select a low-cost yet accurate temperature sensor like the LM35 or DS18B20 for core readings. The LM35 outputs 10 mV per degree Celsius, directly proportional to ambient temperature, while the DS18B20 uses a one-wire interface requiring a pull-up resistor (4.7 kΩ) between the data line and VCC. Avoid thermistors for precise measurements–nonlinear resistance curves demand complex calibration.
Power stability is critical. Use a regulated 5V supply (7805 voltage regulator) to prevent fluctuations from skewing readings. Decouple the sensor’s power pin with a 0.1 µF capacitor to ground to filter high-frequency noise. For battery-powered designs, ensure the supply voltage remains above the sensor’s minimum threshold (DS18B20: 3.0V) or readings fail.
Signal conditioning circuits demand attention. If using an analog sensor (LM35), amplify the output with an op-amp (e.g., LM358) in non-inverting configuration with a gain of 2 for 0–50°C ranges. For digital sensors (DS18B20), ensure the microcontroller samples data every 750 ms–the sensor’s minimum conversion time. Avoid floating data lines; use parasitic power mode only if absolutely necessary due to added complexity.
Key Component Specifications
| Component | Model | Critical Parameters | Tolerance |
|---|---|---|---|
| Sensor | LM35 | 0°C to 150°C, 10 mV/°C | ±0.5°C |
| Microcontroller | ATmega328P | 10-bit ADC, 1.1V ref | ±2 LSB |
| Op-Amp | LM358 | Single-supply, unity gain stable | ±3% offset voltage |
| Resistor | 4.7 kΩ | Pull-up for DS18B20 | ±1% |
Microcontroller selection impacts resolution. Use a 10-bit ADC (e.g., ATmega328P) for analog sensors–this divides 5V into 1024 steps, yielding ~4.88 mV per step. For wider ranges, switch to a 1.1V internal reference to improve resolution. Avoid long ADC traces; route them away from PWM lines to prevent interference. Digital sensors bypass this step entirely, transmitting pre-calibrated data.
Display integration requires trade-offs. Four-digit 7-segment displays (e.g., TM1637) need minimal pins but lack decimal precision below 0.1°C. Alternatively, OLED screens (SSD1306) show full-scale graphs but draw 10–20 mA. For remote monitoring, add an ESP8266 to send readings via Wi-Fi–packet loss becomes an issue below –10°C unless using an external antenna. Always debounce buttons if adding calibration modes; a 100 nF capacitor across the switch prevents false triggers.
Critical Parts for a Simple Temperature Measurement Device
Select a sensor with a linear output to simplify calibration and ensure accuracy. The LM35 (TO-92 package) delivers 10 mV per °C with an operating range of -55°C to 150°C, requiring no external components. For tighter precision, the TMP36 offers similar characteristics but includes an offset voltage of 500 mV at 0°C, eliminating negative voltage handling. Avoid thermistors unless compensating circuits are implemented–their nonlinear response demands lookup tables or curve-fitting algorithms.
Signal Processing Requirements
Use an operational amplifier (op-amp) to buffer and amplify the sensor’s low-level signal before analog-to-digital conversion. The MCP6002 (rail-to-rail output) works well with single-supply circuits (2.7V–5.5V), providing 100x gain to match ADC input ranges. Configure the op-amp in non-inverting mode with resistors R1 = 1 kΩ (feedback) and R2 = 100 kΩ (input), ensuring minimal drift. For battery-operated designs, prioritize low-power op-amps like the TLV2371 (0.9 µA quiescent current).
- ADC Selection: Choose an ADC with at least 10-bit resolution to resolve 0.1°C increments in a 0–100°C range. The ADS1115 (16-bit, I²C) eliminates need for precision resistors, but for cost-sensitive builds, the Microchip MCP3008 (8-channel, SPI) suffices at 10 bits.
- Reference Voltage: Pair the ADC with a stable reference. The LM4040 (precision shunt) offers 0.1% accuracy at 2.5V or 4.096V, critical for rejecting supply noise. Bypass capacitors (0.1 µF ceramic) must be placed within 1 mm of the reference pin.
- Filtering: Add a 10 µF tantalum capacitor at the op-amp output to suppress high-frequency noise, followed by a 100 nF ceramic nearer the ADC input to filter remaining transients.
A microcontroller with built-in ADC streamlines integration. The ATmega328P (Arduino-compatible) provides 10-bit ADC, but for lower power, the STM32L031 (32 kHz internal oscillator) draws only 2 µA in sleep mode. Ensure the MCU’s ADC clock remains below 1 MHz to avoid degradation of effective resolution. For real-time updates, use interrupts triggered by timer overflows rather than continuous polling to conserve energy.
Display choices impact power budgets and readability. 7-segment LEDs (e.g., TM1637) are simple but consume 5–20 mA per segment. For daylight visibility, a transflective LCD (e.g., Newhaven NHD-C0216CZ) with SPI interface draws nRF24L01 (2.4 GHz) rather than Wi-Fi (e.g., ESP8266) to reduce power draw by 90%.
How to Select and Connect a Temperature Sensor (NTC, PTC, or DS18B20)

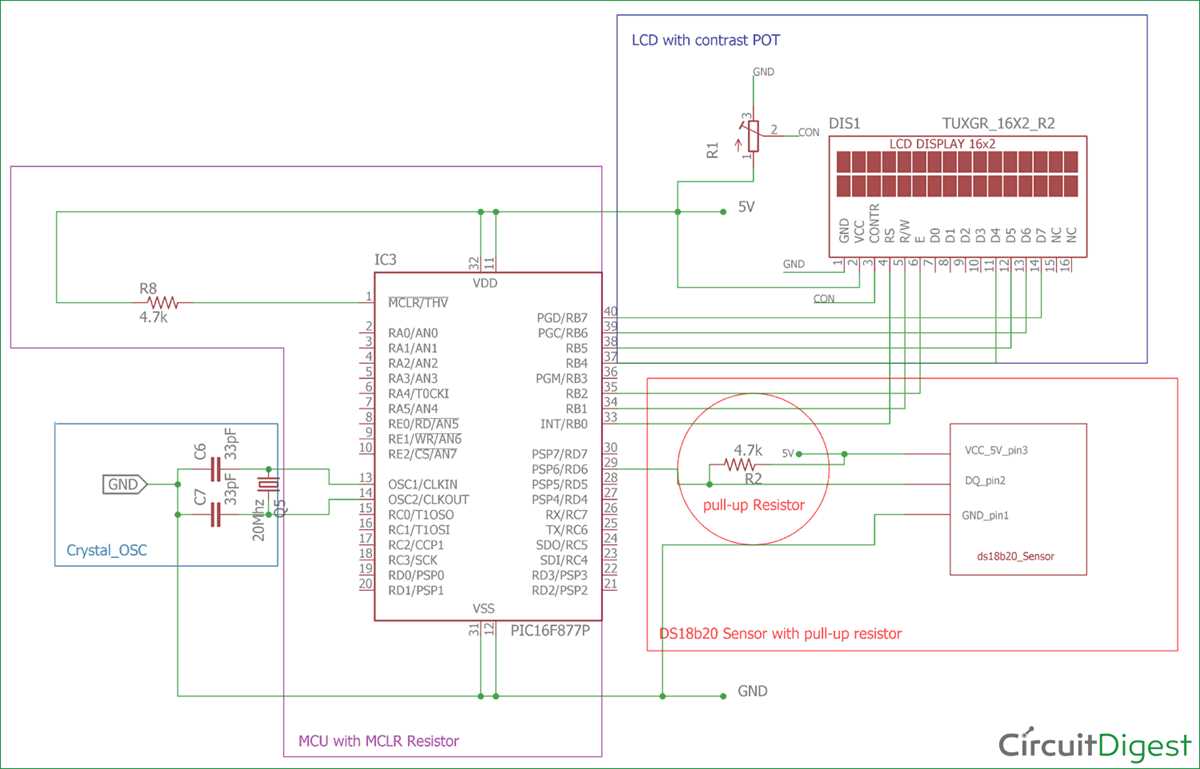

For precise ambient monitoring, a DS18B20 sensor outperforms thermistors with its ±0.5°C accuracy between -10°C and +85°C and 1-Wire interface requiring only a single GPIO pin and a 4.7 kΩ pull-up resistor. Connect the data line to any digital pin (e.g., GPIO4) and power (3V–5V) to VDD, then use libraries like OneWire and DallasTemperature in Arduino IDE or PlatformIO for instant readings without calibration. Avoid parasitic power mode unless wiring complexity is acceptable, as it reduces reliability in noisy environments.
If budget constraints dictate thermistors, NTC (10kΩ) offers better linearity than PTC for general purposes, but requires a voltage divider circuit (e.g., 10kΩ NTC + 10kΩ fixed resistor to VCC) and ADC channel (10-bit resolution suffices). Calculate resistance using RNTC = (VCC × Rfixed / Vout) – Rfixed, then apply the Steinhart-Hart equation for temperature conversion. For PTC types, ensure the switching threshold (e.g., 3–5kΩ jump) aligns with your overheat protection needs–common in motor windings or power supplies where hysteresis matters more than absolute accuracy.
Critical Selection Criteria
Match the sensor’s temperature range to your application: DS18B20 covers -55°C to +125°C, while NTC/PTC thermistors typically span -40°C to +150°C but degrade at extremes. For liquid measurements, DS18B20’s waterproof probes (e.g., stainless steel-encased variants) resist corrosion; thermistors require encapsulation (e.g., epoxy or heat-shrink tubing) to prevent moisture ingress. Response time varies–glass-bead NTC reacts in 1°C/year, while high-end models (e.g., Vishay NTCLE100E3) maintain ±0.1°C stability over 1k hours.
Noise immunity differs starkly: DS18B20’s digital protocol ignores EMI, but analog thermistors demand low-pass filtering (0.1µF capacitor between ADC input and ground) and twisted-pair wiring if cables exceed 10cm. For industrial setups, isolate thermistors with instrumentation amplifiers (e.g., AD8221) to reject common-mode noise from pumps or relays. Avoid sharing GND with high-current loads (>500mA)–dedicated star grounding prevents voltage sag-induced errors. When prototyping, breadboard capacitance can skew thermistor readings; solder or use shielded cables early.
DS18B20’s parasitic mode eliminates the need for a dedicated power wire but risks data corruption if VCC drops below 3V–the sensor’s internal capacitor (OneWire::search()) to avoid bus conflicts; power each sensor separately or use a MOSFET switch if parasitic mode is unavoidable. Thermistors, conversely, scale poorly–each sensor requires a dedicated ADC channel or multiplexer (e.g., CD4051), adding cost. For PCB-mounted designs, place thermistors away from heat-generating components (e.g., voltage regulators) and use thermal vias to improve response time in still-air applications.

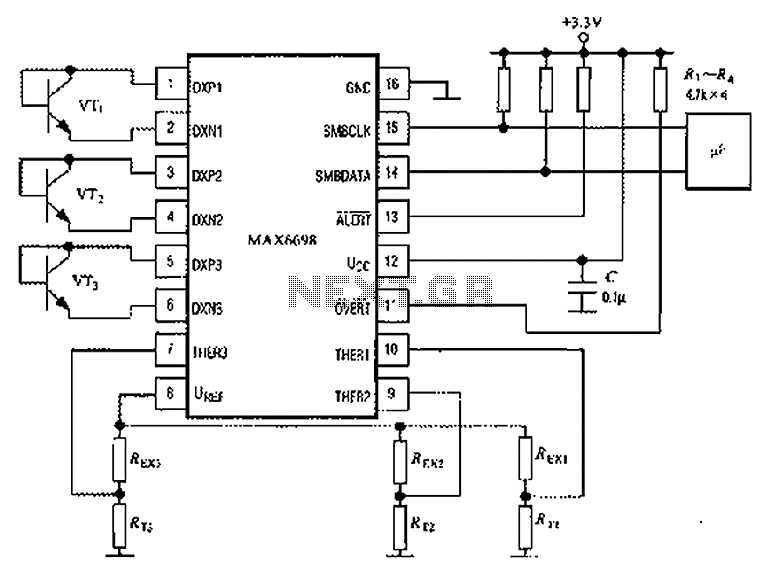

Optimizing Signal Processing for Precision Temperature Measurement
Select an instrumentation amplifier with a common-mode rejection ratio (CMRR) above 100 dB and a noise density below 5 nV/√Hz to filter interference from power lines and RF sources. AD8421 or INA333 suit most low-voltage sensor setups, requiring less than 1 mA supply current while preserving signal integrity.
Implement a low-pass RC filter with a cutoff frequency between 0.1 Hz and 10 Hz, tailored to the sensor’s response time. A 10 kΩ resistor paired with a 1 µF capacitor yields a 1.6 Hz cutoff, sufficient for reducing high-frequency noise without distorting thermal transients.
Bias the sensor output to mid-supply voltage if operating from a single-ended power source. For a 3.3 V system, use a 1.65 V reference derived from a precision voltage divider or an LDO like the TLV431, ensuring the amplifier’s output swing remains within rail limits.
Gain settings should map sensor output range directly to ADC input span. A 1 mV/°C sensor spanning 0–50 °C paired with a 0–3.3 V ADC requires a gain of 66. Configure resistor values to achieve this while keeping input impedance above 10 kΩ to avoid loading the sensor.
Add a 100 nF ceramic capacitor directly across the amplifier’s power pins to decouple high-frequency transients. Place it as close as possible to the IC, using a via for ground connection to minimize parasitic inductance.
Thermal drift in amplification stages can be minimized by selecting resistors with a temperature coefficient of 10 ppm/°C or better. Thin-film resistors outperform carbon or metal film types, reducing gain errors below 0.1% over a –40 °C to 125 °C operating range.
For battery-powered devices, optimize power sequencing to prevent latch-up. Enable the amplifier only after the sensor has stabilized, using a microcontroller GPIO to toggle the enable pin of parts like the MCP6V01, which consumes less than 1 µA in shutdown mode.
Validate signal conditioning performance by injecting a known DC voltage through a precision resistor divider at the amplifier input. Measure output stability over 24 hours; drift exceeding ±0.5 mV indicates inadequate thermal compensation or component drift.
