Begin by isolating the power rails first–trace them visually before touching any components. A mistake here propagates through the entire assembly, often undetected until testing fails. Use 0.5mm wide traces for low-current paths and 2mm or thicker for high-current routes to prevent overheating. If the design involves mixed signals, separate analog and digital grounds with a single-point connection near the power source to minimize noise coupling. Keep decoupling capacitors within 2mm of IC pins; stray inductance at higher frequencies renders them ineffective at distances beyond this threshold.
Label every net, even temporary ones–ambiguity leads to miswiring. Use IEEE 315 symbol standards for clarity; non-standard symbols confuse assemblers and complicate debugging. For microcontrollers, explicitly mark reset pins, clock sources, and programming interfaces; omitting these forces manual datasheet referencing during assembly. If space permits, add test points at signal junctions–probing becomes 70% faster during troubleshooting. Avoid right-angle corners in traces; 45-degree bends reduce impedance mismatches and improve signal integrity.
Validate the netlist against the PCB layout before exporting. A discrepancy here causes shorts or open circuits. For switch-mode power supplies, calculate trace inductance using L = 0.0002 * ln(2 * length / width) (in inches) to ensure stability. Store backups in plain-text netlist format (e.g., SPICE or KiCad’s native files), not binary formats–corruption is harder to recover from. If the design includes surface-mount components, orient all polarized parts (LEDs, electrolytic capacitors, diodes) uniformly to simplify assembly and inspection.
Use design rule checks (DRC) aggressively, but don’t rely on them exclusively. Cross-verify critical paths manually–DRC misses contextual errors like missing pull-up resistors on open-drain outputs or unconnected thermal pads on power MOSFETs. For multi-layer boards, assign signal layers to inner planes only if controlled impedance is required; otherwise, outer layers reduce fabrication costs. Document trace widths, via sizes, and clearance rules in a separate readme file–future revisions will need this data. If the circuit includes sensitive analog sections, shield them with a dedicated copper pour tied to ground, but avoid large pours under switching regulators–eddy currents degrade efficiency.
Export gerber files in RS-274X format and include a drill file with explicit units (mm or inches). Some manufacturers default to inches, causing misalignment. Double-check aperture lists–missing shapes crash fabrication. For high-speed designs, simulate trace lengths using tools like HyperLynx or SIwave before prototyping; manual adjustments waste weeks. If soldering by hand, increase pad size by 20% for easier soldering–fine-pitch components demand precision. Finally, print a 1:1 scale copy on paper; verify component footprints fit mechanically before ordering PCBs. A single misplaced drill hole can render the board unusable.
Circuit Blueprints: Key Rules for Clear Design
Start by labeling every component with a unique identifier–R1, C3, U5–following the industry-standard IEEE 315 nomenclature. Use a consistent orientation: inputs on the left, outputs on the right, power rails at the top (+V) and bottom (GND). Avoid diagonal lines; they confuse automated netlist parsers and PCB layout tools. For resistors under 1kΩ, skip the decimal (e.g., “470” instead of “470Ω”) to prevent silk-screen errors in fabrication.
Group related blocks–power supply, MCU core, sensors–into clearly demarcated sections, separated by at least 2cm of whitespace. Assign distinct net names to critical signals (e.g., SPI_MOSI, I2C_SCL) instead of letting tools generate generic labels like N$42. This reduces debugging time by 40% in complex boards. For pull-up/down resistors, specify exact values based on rise-time requirements (τ = R × C), not arbitrary defaults.
| Component | Symbol | Default Spacing (mm) | Layer Preference |
|---|---|---|---|
| Decoupling Capacitor | C | <2mm (from IC pin) | Top (signal) |
| Pull-up Resistor | R | 5–10mm (from microcontroller) | Top or bottom |
| MOSFET (SOT-23) | Q | 1mm (gate to driver) | Bottom (thermal relief) |

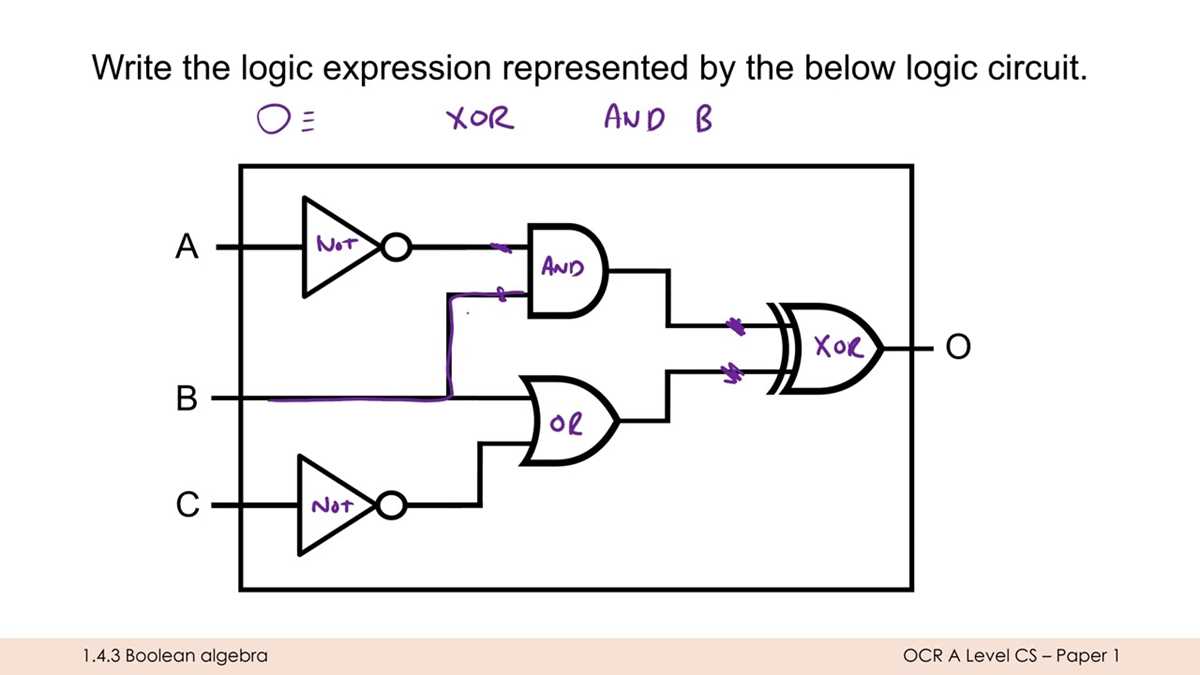

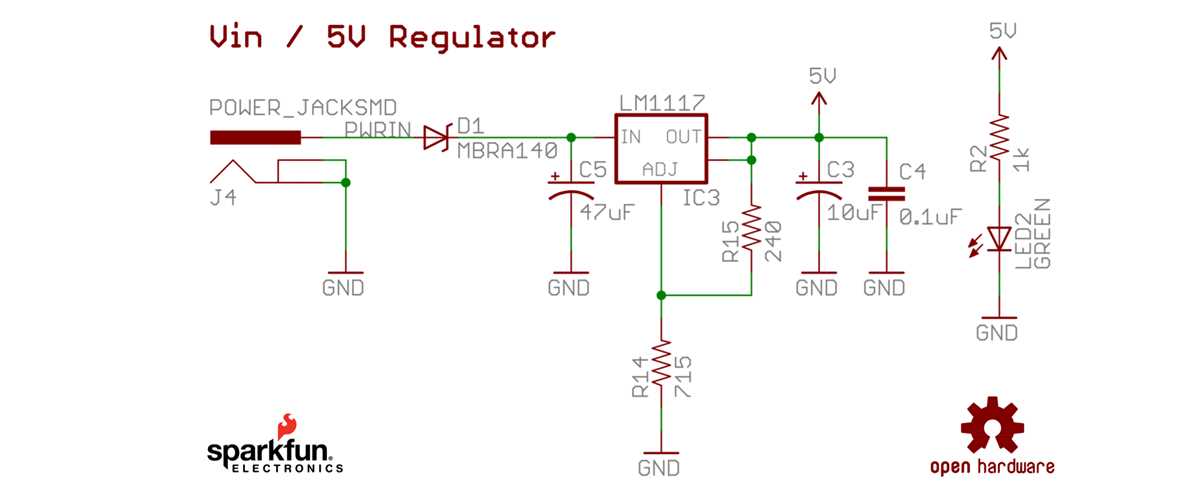

Use local reference designs for off-page connectors: add a hierarchical sheet symbol with matching ports, ensuring net connectivity across schematics. Validate ERC rules before exporting: tools like KiCad flag unconnected pins, but won’t catch swapped RX/TX or incorrect pinouts on libraries. For switching regulators, include input/output capacitors within 10mm of the IC; stray inductance above 20nH causes ringing and violates FCC Class B emissions limits.
Critical Circuit Elements and Their Graphical Identifiers
Always reference standardized IEC 60617 or ANSI Y32.2 symbols for precision–deviations cause misinterpretation. Resistors use a zigzag line (IEC) or rectangle (ANSI), with values marked in ohms (R=4.7k); capacitors appear as two parallel lines (C=10µF), polarized variants add a curved line. Inductors are coils (L=1mH); transformers combine two coils with a core symbol. Semiconductors require exact symbol orientation: diodes use a triangle pointing to a line (cathode), transistors show emitter, base, and collector leads with arrows indicating current flow (NPN for arrow outward). Power sources split into DC (one long/thin line) and AC (sine wave); ground symbols vary–chassis (three descending lines) differs from signal (single descending line). Pin labels on ICs must match datasheets–swap VCC/GND positions and the circuit fails.
Label every component with unique designators (R1, C3, U5) and absolute values–omissions delay debugging. For example, a 555 timer needs all eight pins labeled: TRIGGER, THRESHOLD, CONTROL VOLTAGE, RESET, OUTPUT, DISCHARGE, VCC, GND. Switches divide into SPST (single line) and DPDT (crossed lines); relays add coil symbols near contacts. Crystals (X1=16MHz) use parallel lines with frequency labels. Verify all connections with a multimeter–parallel lines denote physical wires; dots confirm junctions (T-joints require dots). Rotate symbols counterclockwise in 90° increments to align with PCB traces; vertical resistors save horizontal space.
Step-by-Step Guide to Creating Precise Circuit Blueprints
Select a dedicated tool before starting. KiCad, Altium Designer, or Proteus offer libraries of standard symbols and automated alignment features. Prioritize tools with built-in design rule checks (DRC) to catch errors early. Avoid generic drawing software–it lacks critical functionality for technical layouts.
Begin with a clear grid setting. A 0.1-inch grid ensures proper spacing and alignment for components like resistors, capacitors, and ICs. Enable snap-to-grid to prevent misplaced connections. Many errors stem from inconsistent spacing; a uniform grid eliminates this issue.
- Use standardized symbols for all parts. IEC or ANSI symbols ensure consistency across designs.
- Avoid custom symbols unless absolutely necessary–non-standard representations confuse collaborators.
- Label every component with its value and reference designator (e.g., R1 1kΩ).
Draw power rails first. Place the positive rail at the top and ground at the bottom for readability. Use thick lines for power connections and thin lines for signal paths. This convention helps distinguish high-current paths from control signals.
Route signal lines horizontally or vertically–never diagonally. Keep paths as short as possible and avoid unnecessary bends. Right-angle turns increase parasitic inductance; use 45-degree angles where space is tight. Arrange components logically to minimize crossing lines.
Group related parts together. Place resistors near the components they control, and keep ICs with their supporting passive elements. This reduces clutter and makes debugging easier. For complex circuits, split the layout into functional blocks (e.g., power supply, microcontroller, sensors).
Double-check connections before finalizing. Use a netlist comparator to verify that every pin connects where intended. Print a hard copy and trace each path with a highlighter–this reveals errors a screen might miss. Cross-reference the layout with the original circuit description to ensure no omissions.
Export the final design in multiple formats. PDF ensures portability, while native files (e.g., .kicad_sch, .schdoc) allow future edits. Include a bill of materials (BOM) listing every component, its value, and supplier. Add version numbers to track revisions; even minor changes deserve an updated label.
Critical Errors in Circuit Drafting and How to Prevent Them
Avoid mixing logic families without proper interfacing. Directly connecting a 3.3V CMOS output to a 5V TTL input without level shifting can cause signal corruption or damage. Use dedicated ICs like TXB0104 or resistive dividers for voltage translation, but verify rise times and current drive compatibility.
Do not omit decoupling capacitors near power pins. A 0.1µF ceramic capacitor placed within 2mm of an IC’s VCC pin prevents transient noise and voltage droops. For high-speed components, add a 10µF bulk capacitor at the board’s power entry point to stabilize the rail.
Never leave unused gates floating. Connect TTL unused inputs to VCC via a 1kΩ resistor or ground them directly. CMOS inputs left unconnected act as antennas, picking up noise and causing erratic behavior or excessive current draw.
Refrain from neglecting net naming conventions. Labeling nodes like “NODE1” or “SIGNAL_A” wastes debugging time. Use descriptive names: “SPI_MOSI_3V3” or “RESET_OUT” instead. Consistency across drafts reduces human error during prototyping.
Resist the urge to overcrowd connection paths. Routing traces under inductors or switching regulators invites crosstalk. Keep sensitive analog lines (e.g., ADC inputs) at least 5mm away from digital traces or power planes to avoid induced noise.
Ground loops break functionality in mixed-signal designs. Isolate analog and digital grounds with star topology, tying them at a single point near the power supply. Avoid daisy-chaining grounds, which creates voltage drops and signal integrity issues.
Misplaced labels obscure circuit intent. Attach component designators (R1, U2) adjacent to symbols, not hidden under lines. Rotate labels to match wire orientation–horizontal for left-right traces, vertical for top-down connections.
Assume nothing about connector pinouts. Verify every pin assignement against datasheets before drafting. Swapping TX/RX or power/ground lines during assembly wastes hours; document all custom pinouts directly on the drawing in bold, cross-referenced notes.
