Start with a 5V relay module as the core switching element–this isolates the low-voltage control signal from the high-current solenoid or strike plate. Select a relay with a coil resistance above 70Ω to avoid excessive current draw from microcontrollers like Arduino or ESP8266. Pair it with a flyback diode (1N4007) across the coil terminals to suppress voltage spikes that can damage sensitive components.

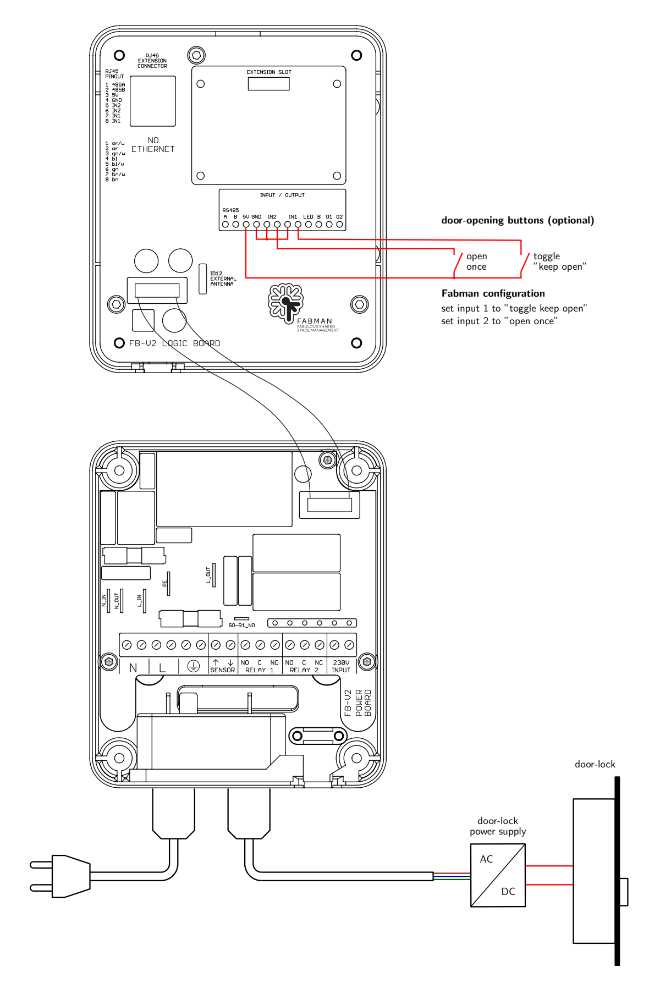

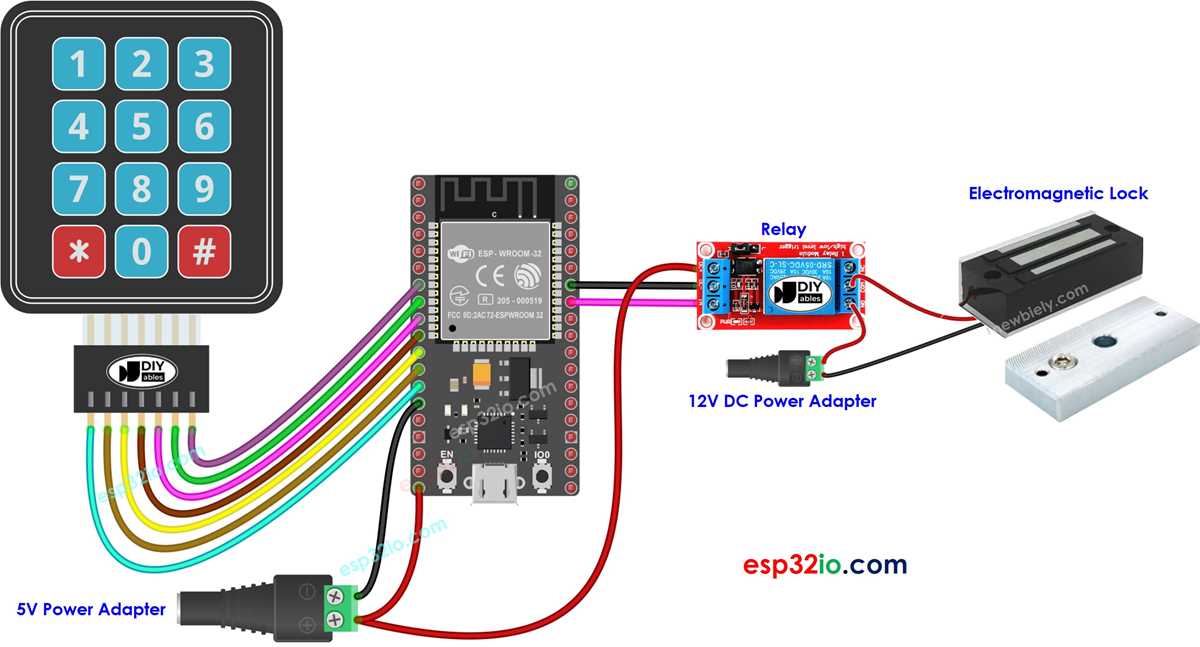

For authentication, use a keypad matrix (4×4) with debounce circuitry or an RFID reader (MFRC522) depending on security needs. Wire the keypad columns to pull-down resistors (10kΩ) and rows to digital pins configured as outputs. When using RFID, ensure proper SPI wiring: MOSI (GPIO 13), MISO (GPIO 12), SCK (GPIO 14), and SS (GPIO 4) for ESP-based designs. Power the reader with 3.3V; mixing voltage levels will cause intermittent failures.
Power management is critical. A linear regulator (LM7805) with input caps (1000µF) and output caps (10µF) stabilizes voltage for the microcontroller and logic signals. For solenoid activation, a 2N2222 transistor or IRFZ44N MOSFET serves as a driver–base/gate current must exceed 20mA to ensure saturation. Include a 1kΩ resistor between microcontroller pin and transistor base to limit current.
Add a status LED (green for unlocked, red for locked) with a 220Ω series resistor to prevent burnout. For auditing, interface a real-time clock (DS3231) via I2C to log access times–connect SDA (GPIO 21) and SCL (GPIO 22) on ESP32. Use 1.8mm stranded copper wire for solenoid connections to handle current spikes (solenoids draw 500mA–1A at 12V).
Avoid breadboards for final builds–solder connections on a perfboard or design a custom PCB with wide traces (≥2mm) for high-current paths. Test each component individually: verify relay clicks with a multimeter, check keypad row/column scanning with a serial monitor, and confirm solenoid operation by measuring voltage across its terminals (12V expected). Failure to isolate sections during testing will risk shorts that can brick microcontrollers or damage power supplies.
Key Circuit Design for Secure Access Systems
Opt for a microcontroller like the ATmega328P with at least 16 MHz clock speed and 32 KB flash memory to handle real-time authentication and solenoid actuation without latency. Connect a 12V bistable solenoid via an L298N H-bridge module–this ensures bidirectional current control for precise locking/unlocking while preventing overheating. For power, use a 7805 regulator to step down voltage from a 12V lead-acid battery to 5V, supplementing with a 1000µF capacitor to smooth transient spikes during solenoid operation. Inputs should include a 4×4 membrane keypad wired to pull-down resistors (10kΩ) and an RFID reader (MFRC522) for dual-factor validation. Secure data transmission between the RFID module and controller using SPI at 10 Mbps; disable unused UART/I2C pins to reduce attack vectors.
Isolate critical traces with a ground plane on the PCB’s bottom layer, keeping high-current solenoid paths (≥2mm width) away from logic lines to avoid interference. Add a P-channel MOSFET (IRF9540N) for emergency manual override, triggered by a debounced tactile switch. For fail-safe operation, integrate a DS3231 RTC module to log access attempts with timestamps–store logs in the microcontroller’s EEPROM and mirror them to an external 24LC256 I2C EEPROM for redundancy. Test voltage drop across the solenoid with a multimeter post-assembly; aim for
Core Elements for a Keyless Access System

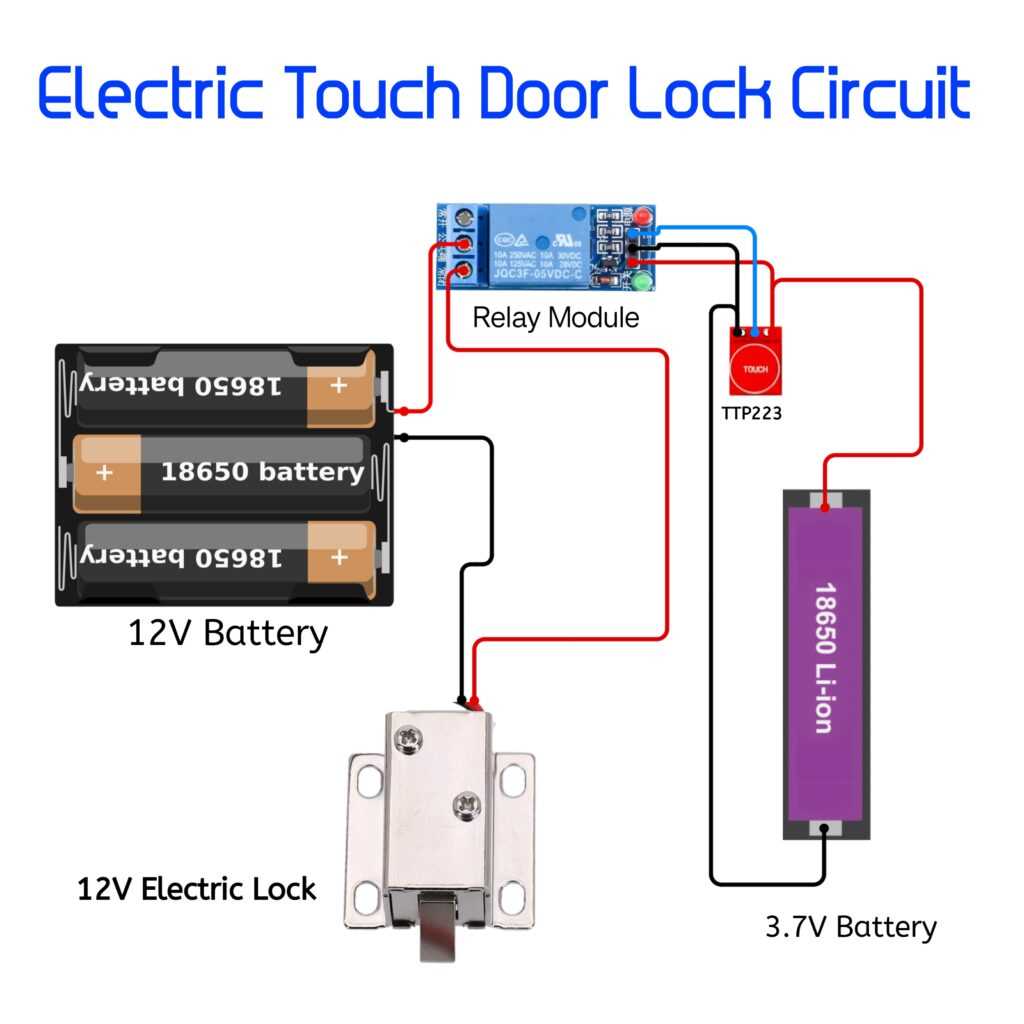

Opt for a solenoid actuator with a pull-force of at least 15N and 12V DC operation to ensure reliable bolt movement under mechanical resistance. Pair it with a dual-coil latching mechanism to reduce power consumption–energy flows only during activation/deactivation. A microcontroller unit (MCU) like STM32F030 (48MHz, 16KB Flash) handles authentication and timing; its low-power modes extend battery life to 2+ years. For input, integrate a capacitive touchpad (e.g., TTP223) or a RFID module (MFRC522) supporting ISO 14443-A at 13.56MHz–both require minimal power and resist moisture interference. Include a buzzer (3V active) for feedback, but limit pulse duration to 50ms to conserve energy.
Add a voltage regulator (LD1117V33) to stabilize input from 5–12V sources, reducing ripple to ≤20mV. Protect circuits with a bidirectional TVS diode (e.g., SMF5.0A) clamping surges at 7V. For backup power, use a supercapacitor (1F, 5.5V) or a lithium cell (CR2032) with a Schottky diode (1N5817) to prevent reverse discharge. Sensor redundancy: combine a hall-effect sensor (AH331) with a force-sensitive resistor (FSR 400) to detect both magnetic field shifts and physical pressure–this enables tamper detection without false positives. Keep traces under 1Ω resistance; use 2oz copper for high-current paths.
Step-by-Step Wiring Guide for a Basic Solenoid Bolt
Begin by securing a 12V solenoid with a pull-type mechanism and a current rating below 1A. Connect the solenoid’s positive terminal to a 1A diode (1N4007) in reverse bias to prevent back EMF–cathode to power, anode to solenoid. Attach the diode’s anode to a relay’s common (COM) contact, then wire the relay’s normally open (NO) terminal to a 12V DC supply. Use a switch or microcontroller output to trigger the relay coil with a 5V signal via a transistor (2N2222), adding a base resistor (1kΩ) to limit current. Ground the solenoid’s remaining terminal to complete the circuit.
- Verify connections with a multimeter before powering on–measure continuity between NO and COM contacts on the relay in its inactive state.
- Test solenoid activation manually by applying 12V briefly; listen for a distinct *click* indicating proper function.
- For fail-safe operation, integrate a 10kΩ pull-down resistor on the transistor base to prevent false triggers.
- Use 22-gauge wire for signal paths and 18-gauge for power lines to handle current spikes.
Integrating a MCU with Security Bolt Mechanisms
Select a microcontroller (MCU) with low-power modes and sufficient GPIO pins–ATmega328P or ESP32 for prototyping. Connect the solenoid actuator to a MOSFET (IRFZ44N) via a designated pin, ensuring the MCU supplies a pulse signal (100-200ms) to engage the bolt without overheating. Use a flyback diode (1N4007) across the solenoid to protect the MOSFET from voltage spikes. Power the system with a 12V supply, stepped down to 5V or 3.3V via an AMS1117 regulator for stable MCU operation.
Signal Conditioning and Feedback
Implement a debounce circuit for tactile switches or reed sensors using an RC network (10kΩ resistor + 100nF capacitor) to avoid false triggers. For keypad input, multiplex rows/columns with pull-up resistors (10kΩ) and scan keys via interrupts to minimize MCU load. Add a secondary feedback loop–an optocoupler (PC817) paired with an LED strip–to signal access status. Route critical traces wider (24 mils) to handle solenoid current spikes and separate analog/digital grounds at the power source.
Program the MCU to enter deep sleep after 30 seconds of inactivity, reducing standby current to
Testing and Firmware Structure
Validate the solenoid’s response time with an oscilloscope–target
Deploy a failsafe: connect a hardware reset button to the MCU’s reset pin, pull it high via a 10kΩ resistor, and route it through a normally closed switch. In case of firmware corruption, this allows manual override. For wireless modules (RFID/NFC), add a 125kHz or 13.56MHz antenna tuned to λ/4 length, using a matching network (e.g., 33pF capacitor) to minimize signal loss. Document GPIO pin mappings in the schematic header as comments, ensuring future updates don’t disrupt existing wiring.
Power Supply Options and Voltage Requirements
For keypad-based security mechanisms, a steady 12V DC input is the most common starting point, balancing performance with component longevity. Linear regulators like the LM7812 can step down higher voltages, but they waste excess energy as heat–calculating power dissipation is critical if the input exceeds 18V. For battery-operated setups, a 6-cell AA alkaline battery pack (9V) provides sufficient headroom, though voltage sag under load may require boost converters like the MT3608 to maintain stability.
Switched-mode power supplies (SMPS) offer superior efficiency for AC-powered units. A 24V AC input paired with a bridge rectifier and LM2596 buck converter ensures clean 12V output while minimizing thermal losses. For installations with inconsistent mains power, a 1000µF capacitor on the output stage smooths ripple to under 100mV, preventing erratic behavior in solenoid actuators. Always fuse the primary circuit at 1.5× the maximum expected current–for example, a 500mA fuse for a 300mA draw.
| Component | Input Range | Output Voltage | Typical Current Draw | Efficiency |
|---|---|---|---|---|
| LM7812 (Linear) | 14–35V DC | 12V ±0.5V | 1A (max) | 40–60% |
| LM2596 (Buck) | 5–40V DC | 3–37V (adj) | 3A | 85–92% |
| MT3608 (Boost) | 2–24V DC | 5–28V | 2A | 90%+ |
LiPo batteries demand careful handling–use a MCP73831 charge controller for single-cell packs (3.7V) and limit charging current to 500mA to avoid thermal runaway. For standby operations, a supercapacitor (1–10F) can bridge power gaps during brief interruptions, but calculate discharge time based on the system’s quiescent current (typically 20–50µA). Avoid alkaline batteries for high-current applications; their internal resistance increases under >100mA loads, causing voltage drops.
Solar-powered units require a different approach: a 6V 1W solar panel paired with a TP4056 charge module can trickle-charge a 18650 Li-ion cell, but the system must include a low-voltage cutoff (3.0V) to prevent battery degradation. For outdoor installations, seal the power supply behind a conformal coating to resist humidity. Use ferrite beads on input lines to suppress EMI from switching regulators–high-frequency noise can disrupt microcontroller timing by ±5%.
High-voltage AC inputs (110–240V) need isolation. A 2W isolated DC-DC converter (e.g., MEV1S1212SC) provides 1.5kV isolation while delivering 12V. Always follow creepage distance guidelines (minimum 8mm for 250V AC) between primary and secondary windings. For fail-safe designs, add a watchdog timer to reset the system if the power supply exceeds ±10% of nominal voltage for more than 200ms.
Test voltage stability under worst-case conditions–attach a 10Ω load to simulate a solenoid’s surge current (typically 1–2A for 50ms). Measure ripple with an oscilloscope; >200mV peak-to-peak may require additional filtering (e.g., a 10µH inductor + 470µF capacitor). For PCB-mounted supplies, use 2oz copper traces for input/output lines to handle peak currents without temperature rise.
