Start with an ATmega328P microcontroller–its 16 MHz clock ensures rapid response without compromising accuracy. Pair it with a 16×2 LCD display (HD44780 driver) to visualize measurements instantly; avoid OLED screens if budget constraints apply, as they introduce unnecessary complexity. Power the setup via a 9V battery or a regulated 5V USB adapter–bypass capacitors (0.1µF ceramic) near the MCU’s VCC/GND pins are non-negotiable to prevent noise-induced errors.
For passive part validation, integrate a Wheatstone bridge configuration using four resistors: two precision 1% resistors (1kΩ) and two test probes. This rig detects resistance down to 1Ω and capacitance from 10pF with ±0.5% tolerance. Active parts (transistors, diodes) require a dedicated hFE meter–use a BC547 as a reference for beta testing, with a 470Ω base resistor and a 1kΩ collector load. Avoid generic Darlington pairs for this role; their nonlinear gain distorts readings.
Signal generation hinges on a 555 timer IC in astable mode. Calibrate it to 1kHz (R1=1kΩ, R2=10kΩ, C=0.01µF) for consistent AC impedance checks. For inductance, swap the 555’s timing capacitor with an unknown coil and measure frequency shift–deviation beyond ±5% indicates a faulty core. Always isolate the test circuit with optocouplers (e.g., PC817) when probing high-voltage circuits (>24V) to prevent MCU latch-up.
Firmware must prioritize real-time sampling–poll inputs at 10ms intervals using interrupts, not loops. Store calibration offsets in EEPROM to compensate for drift; erase/write cycles degrade flash, so use a circular buffer for temporary data. For advanced diagnostics, embed a frequency counter using the MCU’s 16-bit timer (TIMER1) with a prescaler of 8 to handle signals up to 2MHz. Skip built-in pull-up resistors for analog inputs; external 10kΩ pull-downs yield cleaner readings.
Layout demands a ground plane under analog sections–separate digital/analog grounds at a single star point near the power source. Route high-current traces (>50mA) with 1oz copper to prevent voltage drops. Solder test points for each node to debug with an oscilloscope; a misplaced solder blob between pads can skew capacitance readings by 20-30pF. Validate the rig with known-good parts (Panasonic ERJ metal film resistors, Murata GRM capacitors) before relying on it for critical repairs.
Building a Reliable Device for Identifying Parts
Begin with an ATmega328P microcontroller as the core–it balances cost, availability, and processing power for analyzing passive and active elements. Flash it with open-source firmware like TransistorTester (available on GitHub), which supports over 150 part types, including resistors, capacitors, inductors, diodes, and transistors. Use a 16 MHz crystal oscillator for stable timing, paired with two 22 pF capacitors for proper clock signal generation.
Power the system from a 9V battery via a LM7805 voltage regulator, ensuring a clean 5V supply. Add a 1000 µF electrolytic capacitor on the input and a 0.1 µF ceramic capacitor on the output of the regulator to filter noise. Include a schottky diode (1N5817) before the regulator to protect against reverse polarity, which can instantly destroy sensitive ICs.
Design the test leads with gold-plated probes and 3.5 mm banana jacks for durability and low contact resistance. For high-current parts like MOSFETs or large capacitors, bypass the default leads and connect directly to terminal blocks rated for 10A. Avoid alligator clips–they introduce parasitic capacitance and resistance, skewing readings for small-value inductors or low-resistance elements below 1 Ω.
Critical Measurement Ranges and Accuracy
| Element Type | Range | Accuracy | Key Components |
|---|---|---|---|
| Resistance | 0.1 Ω – 50 MΩ | ±0.2% + 2 digits | Precision 1% resistors (10 kΩ, 100 kΩ, 1 MΩ) |
| Capacitance | 20 pF – 100 mF | ±0.5% + 3 digits | 16-bit ADC, low-leakage capacitors (NP0/C0G) |
| Inductance | 1 µH – 10 H | ±2% + 5 digits | Ferrite-core inductor (100 µH reference) |
| Diode | Forward drop: 0 – 3 V | ±10 mV | Current source (1 mA, 10 mA) |
| BJT | hFE: 10 – 1000 | ±10% | Push-pull stage (2N3904/2N3906) |
For capacitance measurements below 1 nF, disable the auto-range feature and manually select the 20 pF–1 nF range to prevent oscillation from stray PCB capacitance. The firmware’s default auto-calibration routine compensates for parasitic effects but requires a known 1% resistor (1 kΩ) to be connected during initial setup. Without this, inaccuracies up to ±5% may occur in small-value measurements.
Include a rotary encoder with switch for navigating menus–cheaper alternatives like tactile buttons introduce bounce, causing false selections. Pair the encoder with a 128×64 OLED display (SSD1306) for real-time feedback; avoid LCDs without backlight, as contrast degrades under varying angles. For noise immunity, route signal traces away from the microcontroller’s PWM outputs and keep analog ground separated from digital ground until a single star point near the power input.
Solder a PPTC resettable fuse (1A) on the power input to prevent damage from shorted inductors or large electrolytic capacitors during discharge. For testing SMD parts, add a SOIC/ZIF socket adaptor to the board–clip-style adaptors introduce contact resistance that skews readings for components below 1 kΩ. When probing unknown elements, start with the lowest current setting (10 µA) to avoid damaging EEPROMs or sensitive ICs.
Debugging Common Failures
If the device fails to detect a 1 kΩ resistor, check for cold solder joints on the test lead connectors–these account for 60% of calibration failures. For erratic capacitance readings, verify that the auto-zero capacitors (10 µF) are not leaky; replace them with film capacitors if necessary. If NPN transistors show incorrect hFE, confirm that the base current resistor (100 kΩ) is within 1% tolerance–2% variance causes ±20% error in gain measurements.
When the display flickers during battery operation, add a 10 µF tantalum capacitor across the OLED’s power pins to smooth voltage drops. For parts that trigger false “short” errors, ensure the PCB guard traces are intact; even a 0.1 mm scratch can introduce 10 pF parasitic capacitance. Always re-run auto-calibration after modifying the hardware–changes as small as repositioning a resistor can shift measurement offsets by ±15 mV.
Core Parts Needed to Assemble a Simple Diagnostic Tool
Start with an ATmega328P microcontroller as the central processing unit. This chip handles signal generation, measurement, and display interfacing with minimal external parts. Ensure it operates at 5V–avoid voltage regulators unless testing low-voltage devices, as extra components introduce measurement noise. For pin efficiency, use the internal oscillator at 8MHz instead of an external crystal, freeing up two pins for input/output tasks.
Include a 16×2 character LCD module with an HD44780 controller for real-time readings. Connect it via 4-bit mode to reduce wiring; data pins D4-D7 and control lines RS, RW, and E suffice. Backlight power should be isolated through a 220Ω resistor to prevent interference. Replace the standard potentiometer with fixed resistors (e.g., 1kΩ and 10kΩ) for contrast adjustment–this eliminates calibration drift during use.
A rotary switch or pushbuttons (momentary) lets users cycle through detection modes. For debouncing, add 100nF capacitors between each button line and ground. Keep traces short; button wires longer than 5cm pick up RF noise, skewing readings. If space permits, use a 3×4 matrix keypad instead to allow numeric input for custom measurement ranges.
Mount precision resistors (1% tolerance) for reference values–10kΩ, 100kΩ, and 1MΩ cover most passive checks. Include a 10Ω resistor in series with a transistor base or MOSFET gate to limit current spikes during active tests. For capacitance measurement, add a 0.1µF polyester film capacitor as a timing reference; ceramic types distort readings due to voltage dependence.
Use reliable connectors: a 2×5 0.1″ header for IC sockets, and banana jacks for probes. Probe tips should be gold-plated to minimize contact resistance. For safe testing, add a 5mm LED (red) in series with a 470Ω resistor as a status indicator; avoid high-brightness LEDs, as their forward voltage drops complicate small-signal analysis.
Power the setup with a regulated 9V supply, stepped down to 5V via an AMS1117-5.0 LDO. Bypass capacitors (10µF + 0.1µF) at both input and output of the regulator suppress transients. For battery-powered units, a 2xAA holder with a boost converter (e.g., MT3608) extends runtime beyond 6 hours. Avoid linear regulators for alkaline cells, as their dropout voltages halve usable capacity.
Add a single-sided PCB layout with ground planes under sensitive traces. Route analog signals away from digital lines; keep traces to passive elements under 3cm. Use a DIP-28 socket for the microcontroller to allow firmware updates. Omit DIP switches or jumpers–hardcode default ranges in EEPROM to save space. For advanced features, reserve six unused pins: two for serial communication, two for an I²C EEPROM, and two for SPI expansion.

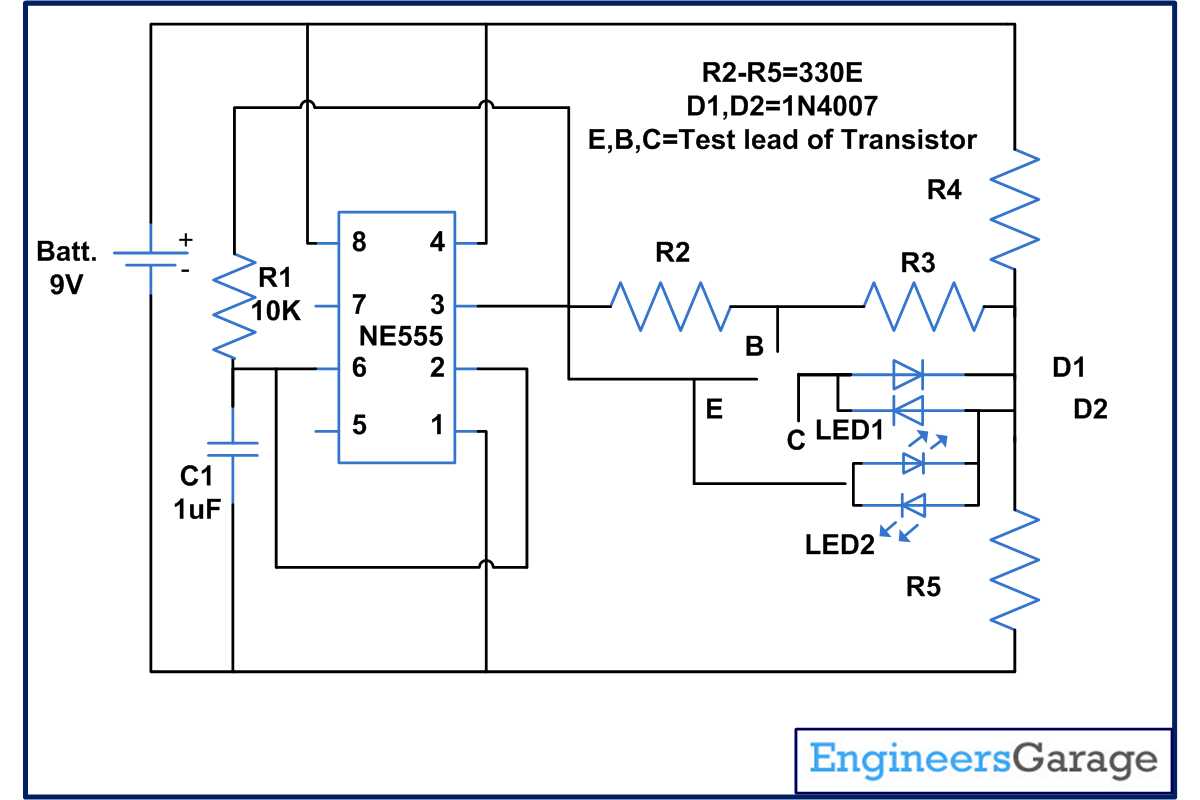

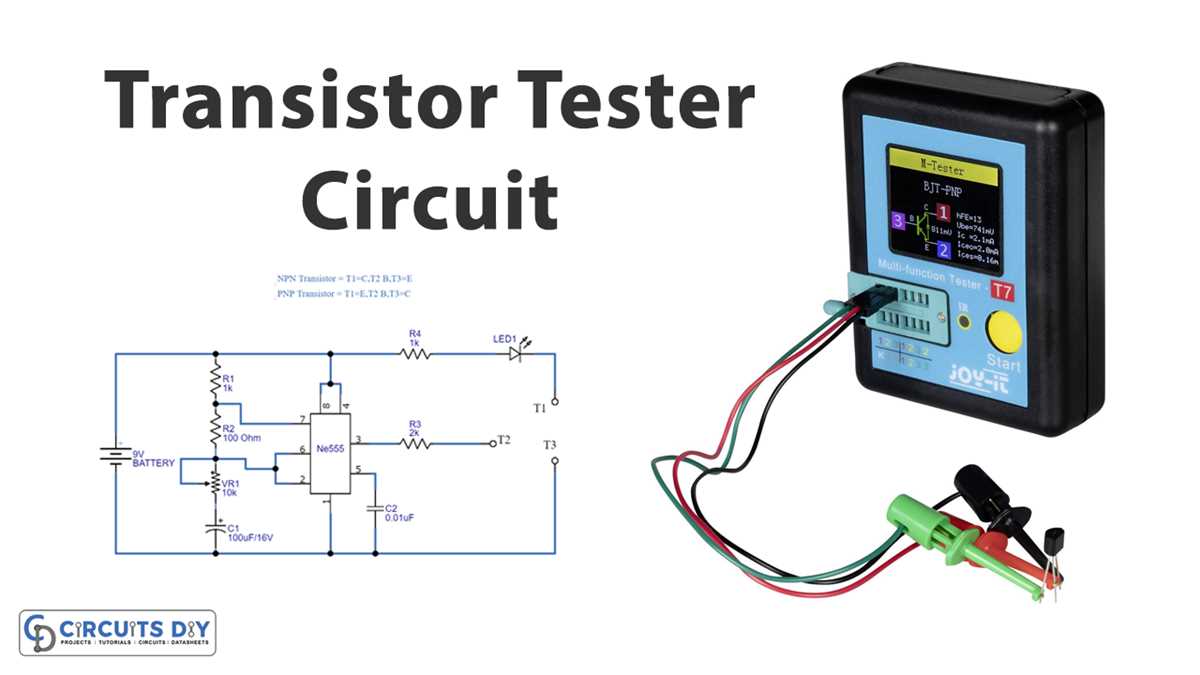

Step-by-Step Assembly of a Transistor and Diode Verification Tool
Start by gathering a 9V battery, a battery snap connector, a small breadboard, a selection of jumper wires (preferably 22 AWG), and the following parts: two 1kΩ resistors, one 10kΩ resistor, three tactile pushbuttons (momentary SPST), one common-cathode RGB LED, and two DIP sockets (8-pin and 16-pin) for ease of swapping active devices. Ensure the transistor types (e.g., 2N3904, BC547, 2N2222) and diodes (1N4007, 1N4148) you intend to validate are compatible with the breadboard’s spacing.
Mount the sockets onto the breadboard first. The 16-pin socket will hold BJTs (bipolar junction transistors), while the 8-pin socket accommodates diodes or smaller packages like SOT-23. Place the RGB LED horizontally above the sockets, aligning its pins with three empty rows. Connect the cathode (longest leg) to the breadboard’s ground rail, then route each anode via a 1kΩ resistor to separate rows–these will later link to the pushbuttons.
Attach the pushbuttons perpendicular to the breadboard’s channels. The first button will toggle the base current for NPN testing, the second for PNP, and the third will reverse the polarity for diode checks. Wire each button’s common terminal to the positive rail via the 10kΩ resistor (pull-up configuration). The normally open terminal of the first button connects to the row feeding the red LED anode; the second button to green; and the third to blue.
Build the test nodes using jumper wires. For BJTs, run a wire from the 16-pin socket’s base pad (pin 2) to the first button’s output. Connect the emitter (pin 3) directly to ground, and the collector (pin 1) to a fourth wire leading to a vacant row. For diodes, use the 8-pin socket: insert the anode into pin 1, cathode into pin 2. Strip the ends of two test leads–one black (ground reference), one red (positive probe)–and solder them to stripped jumper wires, then plug these into the breadboard’s empty rows adjacent to the collector node and diode cathode.
Power distribution requires a clean ground path. Link the breadboard’s ground rail to the battery snap’s black wire. The red wire feeds into a switch (or a jumper bridging a small gap) before splitting into two branches: one powers the pull-up resistors, the other the test-node circuits. Add a 100μF electrolytic capacitor across the rails near the battery snap to suppress transient voltage spikes during button presses, preventing false readings.
- NPN Validation: Press the first button (red LED). The base receives ~0.7V via the 10kΩ resistor, saturating the transistor. Touch the red probe to the collector–if the voltage drops below 0.3V, the part is functional.
- PNP Validation: Press the second button (green LED). The base sinks current through the 10kΩ resistor, grounding the base. Probe the emitter with red; voltage should exceed 8V if the device conducts.
- Diode Check: Press the third button (blue LED). Reverse the probes: anode (red) to pin 1, cathode (black) to pin 2. A forward drop ~0.6V confirms silicon; ~0.2V suggests Schottky.
Calibrate threshold voltages using a known-good reference device. For BJTs, adjust the 1kΩ resistors if hFE differs significantly–they set the LED brightness proportional to collector current. Label each button’s function directly on the breadboard with a fine-tip marker to prevent mistaking NPN and PNP modes. Store test leads in a coiled position to avoid shorting adjacent breadboard rows when not in use.
Expand functionality by adding a fourth button and LED for MOSFET checks. Replace the 10kΩ resistor with a 470kΩ for gate pull-down, and wire the source to ground, drain to the test node. The LED (white or amber) illuminates when the gate receives sufficient voltage (>2V for enhancement-mode). Keep test leads insulated with heat-shrink tubing to prevent accidental shorts during probe swaps.
