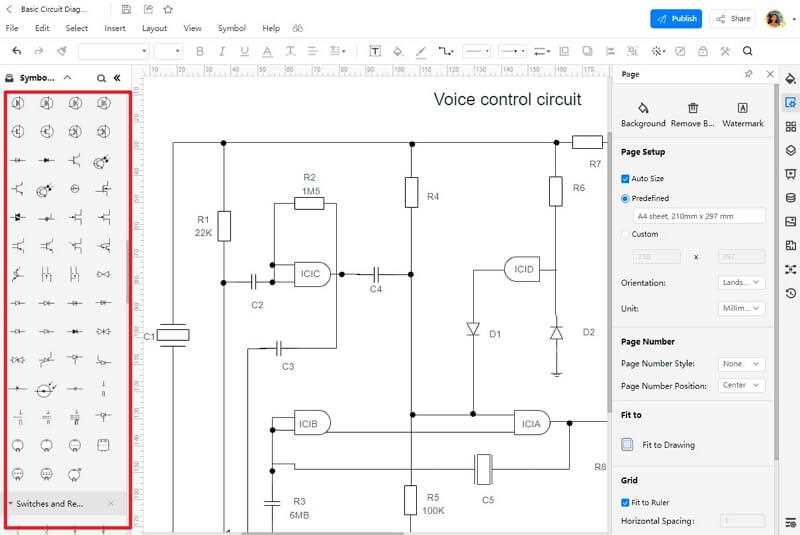

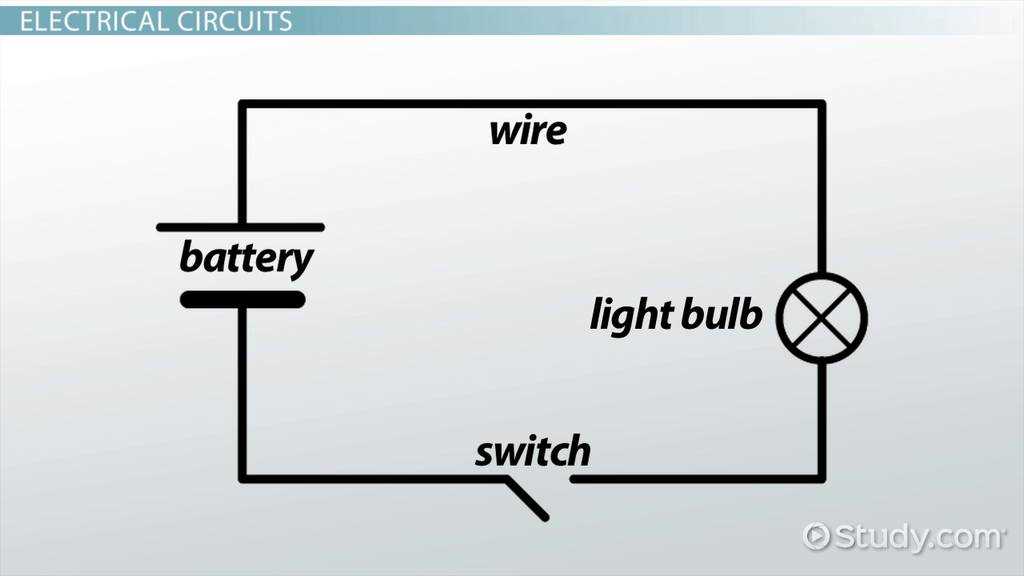

Begin by selecting a trusted software tool tailored for PCB layouts. KiCad, Altium Designer, and Eagle offer robust features for both beginners and experts. Prioritize platforms with built-in libraries to accelerate component placement. Avoid generic drawing tools like Visio–they lack critical validation checks for signal integrity and power paths.
Structure your layout logically: place power sources at the top, ground planes at the bottom, and signal traces in-between. Use wide traces (minimum 0.5mm) for high-current paths to reduce resistance. For sensitive analog signals, keep traces short and route them away from digital switching lines to minimize noise interference. Always include decoupling capacitors (0.1µF) near IC power pins.
Label every component with clear, unique identifiers. Use industry-standard naming conventions (e.g., R1, C2, U3) and include values (10kΩ, 22pF) directly on the schematic. Add notes for unusual configurations–like pull-up resistors on open-drain outputs–to prevent assembly errors. Verify pin assignments against datasheets; a single mismatch can render a board non-functional.
Simulate critical sections before prototyping. Tools like LTspice or Proteus can model transient responses, voltage drops, and thermal behavior. For microcontroller designs, test power-on sequences with a logic analyzer to confirm reset timing. Document any deviations from vendor reference designs–custom modifications often require additional testing.
Include a bill of materials (BOM) in your schematic file. Specify component footprints (e.g., 0805, SOIC-8) and sourcing details (manufacturer part numbers). For production, export Gerber files with separate layers for silkscreen, solder mask, and copper. Always generate a drill file–omitting it will delay fabrication.
Use net labels to simplify complex connections. Group related signals (e.g., SPI_CLK, I2C_SDA) with consistent naming. Avoid relying solely on net colors in software–print a black-and-white copy to check readability. For multilayer boards, assign ground planes to dedicated layers and stitch them with vias every 10mm to reduce electromagnetic interference.
Mastering Schematic Designs for Hardware Development

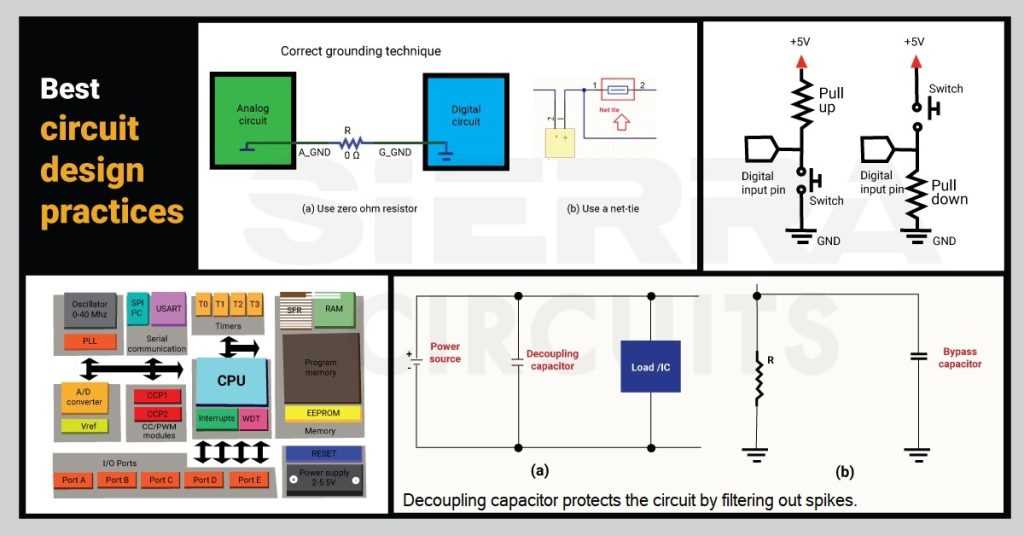

Start with precise component placement: arrange ICs, resistors, and capacitors in logical functional blocks before connecting any traces. Group power-related elements (regulators, capacitors) near their load to minimize noise and voltage drops. Use hierarchical sheets for complex projects–break down subsystems like MCU cores, analog front-ends, and communication interfaces into separate files to improve readability and maintenance.
Adopt net naming conventions that reflect signal purpose:
VCC_3V3,GND_ANALOG,SDA_I2Cfor clarity- Append
_NCto unused pins,_TPfor test points - Avoid generic labels like
Net1–they obscure debugging later
Wrong labels create hours of reverse-engineering; correct ones cut troubleshooting time by 60%.
Apply design rules at the schematic stage to prevent layout errors:
- Set voltage ratings for components (e.g., 16V for capacitors, 20V for MOSFETs) before exporting to PCB software
- Flag critical traces (e.g., clock signals) with “do not route” directives
- Add tolerance margins (e.g., 10% for resistors, 5% for capacitors) in component values
Skipping this step leads to 40% higher board re-spins due to layout conflicts.
Validate schematics with electrical rules checks (ERC):
- Check for floating inputs–unused MCU pins tied to high-Z, pull-ups/pull-downs applied
- Verify power sequencing–regulators must initialize before MCUs
- Confirm connector pinouts match datasheets (e.g., Molex 70543 pin 1 as GND)
A single undetected ERC violation can destroy prototypes; run checks after every major revision.
Document power dissipation early. Calculate:
- Linear regulators:
(Vin - Vout) * Ioutin watts - Switching converters: use manufacturer efficiency curves at expected load
- Surface-mounted resistors: maximum 0.25W without heatsinks, 1W with copper pours ≥ 25mm²
Overlooking this risks thermal runaway on first power-up–measure with infrared thermometer at ±3°C accuracy.

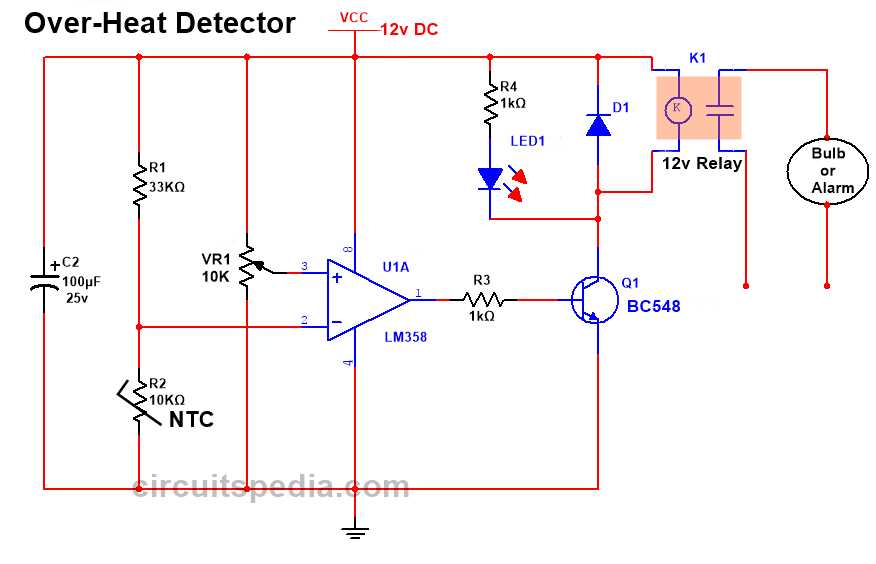

How to Read Resistor, Capacitor, and Inductor Values in Schematics
Locate resistor labels first–standard notation uses “R” followed by a number (e.g., R1, R42). Values appear as numeric codes with metric prefixes or color bands in older designs. For instance, 4.7k means 4,700 ohms, while 1M equals 1,000,000 ohms. Variants like 4K7 (European style) or 4700 (explicit) are equally valid. Tolerance follows the value in schematics: ±5% or 1%, often omitted if unspecified.
Capacitors use “C” plus a number (e.g., C3, C12). Values split into two groups: ceramic/tantalum (picofarads) and electrolytic (microfarads). A label like 100n means 100 nanofarads (0.1μF), while 22p is 22 picofarads. Electrolytic capacitors show 10μF or 470μF directly. Voltage ratings appear as 16V or 50V alongside values, critical for reliability.
- Prefix μ (micro) = 10⁻⁶
- Prefix n (nano) = 10⁻⁹
- Prefix p (pico) = 10⁻¹²
- Use μF for large caps, nF/pF for small ones
Inductors follow “L” notation (e.g., L5, L8), with values in microhenries (μH) or millihenries (mH). A label 10μH means 10 microhenries, while 1mH equals 1,000μH. Core materials influence labeling–ferrite cores often omit details, while air cores may specify air or toroid. High-frequency inductors show Q-factor or self-resonant frequency in datasheets, not symbols.
Decode ambiguous markings with these rules:
- Numbers under 1000 without units default to pF (capacitors) or Ω (resistors).
- A trailing R means ohms (e.g., 4R7 = 4.7Ω).
- K/M without decimal indicate thousands/millions (e.g., 47K = 47kΩ).
- Letters J, K, M after values show tolerance (±5%, ±10%, ±20%), though schematics rarely include this.
Cross-reference ambiguous labels with part lists or datasheets. Schematics sometimes use shorthand like 2p2 (2.2pF) or 0.1 (0.1μF), requiring context. For surface-mount devices (SMDs), three-digit codes map to values: 103 = 10 × 10³ pF = 10nF, 471 = 470pF. Test unknown components with a multimeter; resistors give direct readings, while capacitors need a capacitance meter at the correct range.
Step-by-Step Guide to Sketching a Power Supply Schematic
Begin with a blank sheet or design tool, placing the transformer at the left edge. Select a standardized symbol–typically a pair of overlapping coils with input and output terminals. Label primary and secondary windings with exact voltage ratings, such as 220V AC for mains input and 12V AC for secondary output.
Connect the transformer’s output to a bridge rectifier. Use four diodes arranged in a diamond shape, marking each with its part number (e.g., 1N4007). Ensure correct polarity: anode to transformer, cathode converging at the positive rail. Add filter capacitors next–minimum 1000µF for 12V output–placing one immediately after the rectifier to smooth voltage ripples.
Add a voltage regulator IC like LM7805 for fixed outputs or LM317 for adjustable supplies. Draw three pins: input, output, and ground. Include bypass capacitors (0.1µF ceramic) on both input and output terminals within 1cm of the IC to prevent oscillation. For LM317, add a resistor divider (e.g., 240Ω and 1kΩ pots) to set voltage.
| Component | Symbol | Value/Part No. | Placement Rule |
|---|---|---|---|
| Transformer | 12V secondary | Left edge, input side | |
| Diode | | | 1N4007 | Cathode toward + rail |
| Capacitor | || | 1000µF, 25V | After rectifier, near load |
| Regulator | ▭ | LM7805/LM317 | Between filter cap and load |
Avoid ground loops by using a single ground node at the schematic’s bottom. Route all return paths–regulator, capacitors, load–to this point. For high-current paths, widen traces or denote them with bold lines. Indicate test points with circular pads, labeling each (e.g., TP1: +12V, TP2: GND).
For multi-rail supplies, replicate sections horizontally. Separate grounds for analog and digital sections if necessary, connecting them at one star point to minimize noise. Use ferrite beads or inductors (10µH) on sensitive rails to block high-frequency interference.
Finalize by annotating current limits (e.g., 5A max), voltage tolerances (±5%), and fuse ratings (1A slow-blow). Cross-check every connection against the component datasheet to confirm pin assignments–regulator inputs must not exceed absolute maximum ratings (typically 35V for LM7805). Save versions incrementally to track revisions.

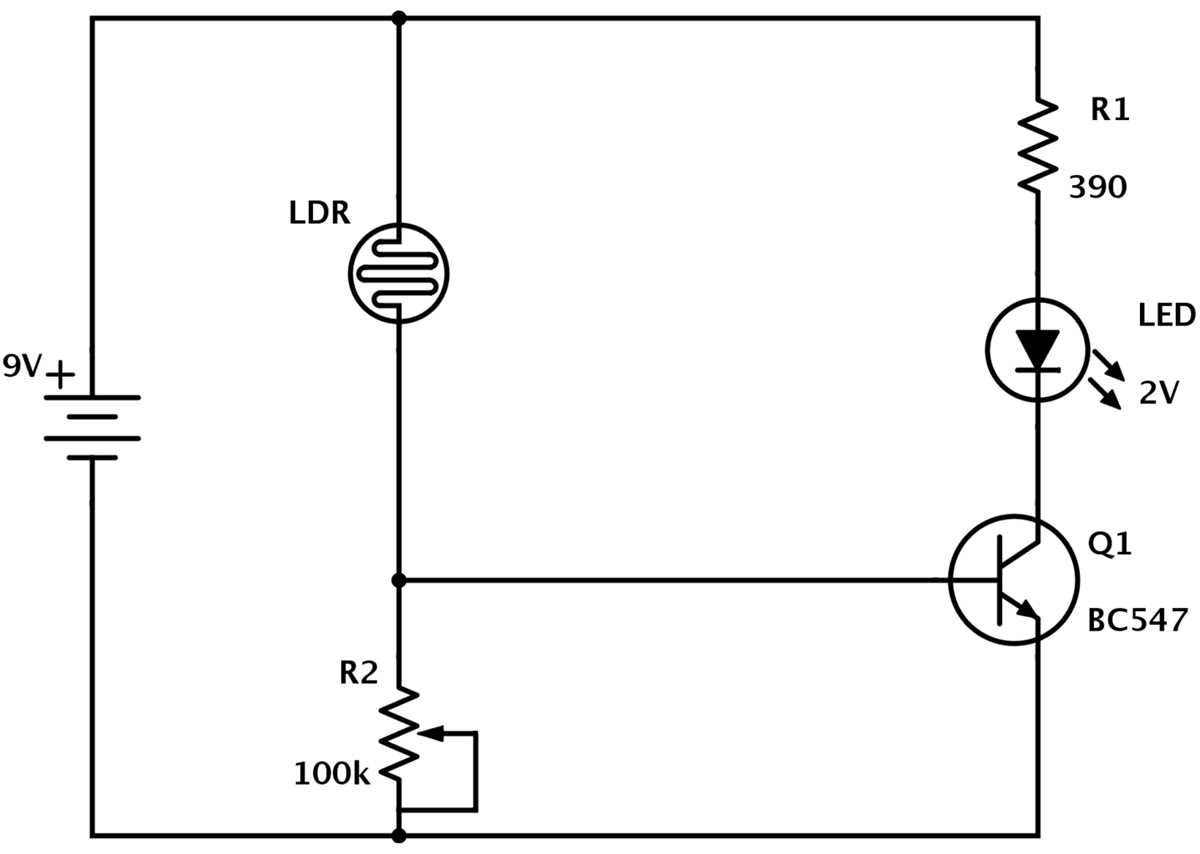

Common Mistakes When Labeling Components in Schematic Layouts
Avoid inconsistent naming conventions–mixing underscores (_), hyphens (-), and camelCase creates confusion. For resistors, stick to *R1*, *R2* without symbols like *R_1* or *R-1*. Capacitors should follow *Cx* (e.g., *C3*), inductors *Lx*, and ICs *Ux* with pin numbers excluded from labels. Non-compliance forces manual cross-checking, increasing error risk. Use uppercase for fixed values (*VCC*, *GND*) and lowercase for variables (*v_in*, *i_out*). Include units (*10k*, *4.7uF*) but omit redundant terms like “resistor” or “cap” to save space and improve clarity.
Overcrowding annotations near high-density areas (e.g., microcontrollers) obscures critical connections. Place labels *outside* component outlines, aligned horizontally for left-right traces and vertically for top-bottom flows. For multi-part symbols (e.g., op-amps), append suffixes (*U1A*, *U1B*) rather than numbering separately. Omitting reference designators for standardized parts (*crystal XTAL1*) or repeating values (*10k R5*) wastes space–omit values if already specified in a BOM. Ensure polarity markers (*+*, *-*) face consistent directions (e.g., always pointing downward for diodes) to prevent misinterpretation.
