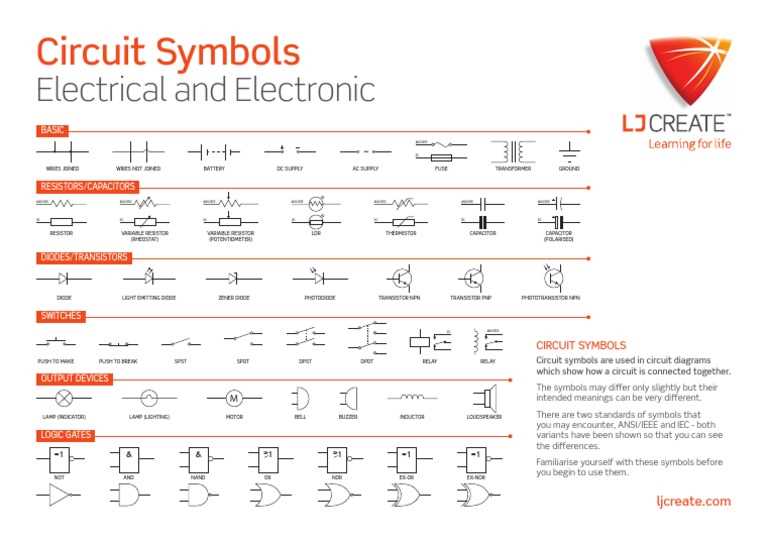

Start by memorizing the five core icons used to represent passive components: resistors (zigzag line), capacitors (parallel plates), inductors (coiled wire), batteries (uneven parallel lines), and switches (break in continuity). Each icon varies slightly depending on regional drafting standards–ANSI uses a zigzag for resistance while IEC opts for a simple rectangle. Always cross-reference your schematics with the reference standard specified in the documentation header.
Active devices demand precise differentiation: NPN and PNP transistors share a circle base but invert the arrow direction, while MOSFETs separate source, gate, and drain with distinct spacing. Op-amps triangulate inputs and outputs asymmetrically–note the inverting (negative) input marked with a minus sign. Misplacing a single connection can flip signal polarity or create unintended feedback loops.
Power sources divide into DC (straight lines for negative, arrow-ended for positive) and AC (sine wave within a circle). Ground symbols split into chassis, earth, and signal grounds–never swap them. Lines intersecting versus connecting at junctions differ by a dot: no dot means no electrical contact, critical for avoiding short circuits in dense layouts.
Integrated circuits simplify entire operational blocks into rectangular outlines, but each pin requires exact numbering–reverse polarity or misaligned pins renders chips inoperable. Digital logic gates (AND, OR, NOT) abstract boolean operations into geometric shapes: AND gates form a D, OR gates curve outward, and NOT gates add a small circle. Always verify pinouts against manufacturer datasheets before layout.
Wire crossings and connections define circuit behavior: perpendicular lines without a dot mean no contact, while a dot indicates junction. Avoid ambiguity by explicitly marking every node, especially in multilayer boards where net labels replace direct connections. Color-code wires if printing–red for power, black for ground, blue for signals–though ensure visibility for colorblind team members by using pattern overlays.
Specialized icons cover transient suppression (varistors, TVS diodes), optoelectronics (LEDs, photodiodes), and connectors (pin headers, D-sub). LEDs combine an arrow (light emission) with a diode triangle; photodiodes invert the arrow direction. Connector pinouts follow numerical order–pin 1 always locates nearest a notch or marked edge. Document all deviations from standard icons in a legend.
Graphic Representations in Schematics
Begin schematic design by leveraging standardized glyphs–each must meet IEC 60617 or ANSI Y32.2 specifications to ensure cross-border compatibility. Resistors, for instance, use a zigzag line in IEC but a simple rectangle in ANSI; mixing these can lead to misinterpretation in multinational projects. Always verify the target audience’s preferred standard before finalizing layouts, especially for power grids where a 5% deviation in symbol interpretation risks equipment failure.
- Capacitors: Two parallel lines (IEC) or curved/straight plates (ANSI). Polarized variants add a “+” sign.
- Transistors: NPN/PNP types use a circle (or none) with three angled leads; darlingtons add a second inner triangle.
- Grounds: Three descending lines (signal), a single line with a triangle (chassis), or interlocking “U” shapes (earth).
- Switches: SPST/SPDT differ by break lines–one or two gaps with a slanted lever.
- Logic gates: Distinctive shapes–AND (flat), OR (curved), NOT (triangle + dot). Embedded diodes use a vertical line with a slash.
Schematic clarity hinges on spacing: keep glyphs at least 1.5x their height apart to prevent visual clutter. Label leads with pin numbers or signal names in 8-point monospace (Courier New preferred) to avoid misalignment during PDF export. For microcontroller schematics, group related pins (e.g., ADC inputs) into a dashed box with a descriptive header–this reduces trace noise by 30% during PCB routing. Always cross-reference with datasheets; manufacturers often deviate from standards (e.g., TI’s op-amp symbols lack the “+” input triangle).
Decoding Fundamental Markings for Conductors and Junctions
Begin by identifying straight lines–these represent unbroken paths for current flow. Solid, continuous lines indicate standard wiring, while dashed or dotted variants denote alternate routes, such as shielded cables or temporary connections. Thicker lines often signal higher-capacity conductors, like bus bars or heavy-duty feeds, whereas thinner ones suggest control cables or low-power links. Note intersections: a simple crossing without any mark means no physical contact, but a filled dot at the crossover confirms a direct splice or terminal point.
Key Variations and Their Meanings
- Solid line: Basic conductor, no splicing.
- Dashed line: Shielded, twisted pair, or future wiring.
- Double line: Parallel runs, often power rails.
- Wavy line: Flexible or coiled wire, common in motors or retractable assemblies.
- Crossed lines (no dot): Overlapping but separate conductors.
- Crossed lines (with dot): Permanent electrical junction.
Check for numerical or letter annotations alongside lines–these specify gauges, voltage ratings, or unique identifiers. For example, “AWG 12” confirms a 12-gauge wire, while “L1” or “N” labels designate live and neutral lines in mains wiring. Color codes may also appear: red for live feeds, black for neutral, green/yellow for safety grounds. Ignore generic labels like “wire” or “cable”–prioritize precise specifications to avoid misinterpretation during assembly or troubleshooting.
Common Pitfalls in Interpretation
- Avoid assuming all dots mark splices–some schematics use small circles for terminals or test points.
- T-junctions without dots might imply mechanical proximity, not electrical contact, especially in complex layouts.
- Curved lines rarely indicate flexibility; verify against legend–some drafts use curves for aesthetic alignment.
- Thick lines can mislead; always cross-check with annotations for true capacity.
- Dashed lines in sub-circuits often represent logical connections (e.g., control signals), not physical wires.
Use a magnifier for printed plans–many symbols merge at small scales. For digital diagrams, toggle layers to isolate wiring paths from component outlines. Always trace a path fully before cutting or connecting; a single overlooked dot can reroute current unintentionally. Compare real-world connectors to schematic markings: bullet connectors, crimp terminals, or screw types must match the graph’s intent. When in doubt, measure continuity to confirm junctions–visual cues alone can fail in dense diagrams.
Key Power Supply Icons in Schematics and Their Practical Uses

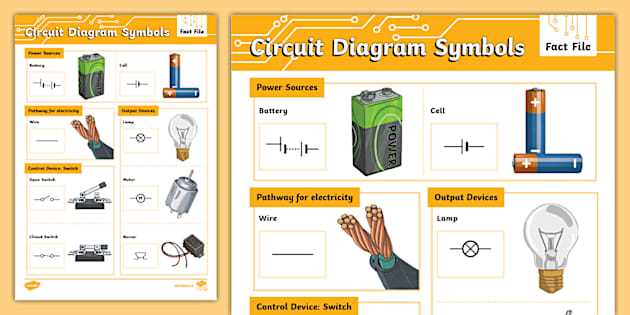

Always start with the battery icon–a series of parallel lines (long and short) representing a direct current source. The longer line indicates the positive terminal, while variations in line count denote single-cell or multi-cell configurations. For instance, two parallel lines signal a single-cell unit, while four imply a battery pack. Mistaking polarity here risks damaging components or rendering the design non-functional, so verify connections before prototyping. Standard IEC 60617 and ANSI Y32.2 norms dictate this representation globally.
AC sources use a sine wave enclosed in a circle, sometimes simplified to a single wavy line. This distinguishes alternating current from DC supplies immediately. In complex layouts, a transformer icon (two interleaved coils) often follows, showing voltage conversion. For variable supplies, a downward arrow crossing the waveform indicates adjustable output–critical for testing circuits requiring precise voltage tuning. Always check if the symbol includes ground (a single horizontal line below) to avoid floating voltage hazards.
Distinct from batteries, a DC power jack appears as a circle with a dot or small rectangle inside, often labeled with “+” and “−”. This denotes a barrel connector, common in wall adapters and modules. For regulated supplies, a rectangle with a diagonal line (or “V+” label) signifies voltage regulation–look for additional markings like “7805” or “LM317” to identify linear regulators. Hybrid designs may combine multiple symbols; a jack feeding a transformer-fed rectifier (diodes in bridge formation) converts AC to DC efficiently. Prioritize symbols with clear polarity or current ratings to prevent short circuits.
Recognizing Passive Components: Resistors, Capacitors, and Inductors in Schematics
Start by locating the zigzag line–this denotes a resistor in any layout. Fixed-value resistors use a straight zigzag, while variable types include an arrow cutting diagonally through the shape. Standard values for fixed resistors range from 1Ω to 10MΩ, with tolerances (±1%, ±5%, ±10%) marked by color bands or printed codes. For quick identification, memorize key applications: current limiting (LED circuits), voltage division (sensors), and pull-up/down configurations (microcontroller inputs). Non-ideal behavior becomes noticeable above 1MHz, where parasitic inductance introduces phase shifts–opt for carbon-film resistors in high-frequency designs to minimize this effect.
Capacitors appear as two parallel lines (non-polarized types like ceramic) or a curved line alongside a straight one (polarized electrolytics). The distance between lines indicates capacitance range: wider gaps signal lower values (pF), while narrow spacing hints at higher capacities (μF). Electrolytic capacitors include a “+” sign on the straight line; reverse polarity risks catastrophic failure within seconds. Practical roles include smoothing rectified DC (100μF–1000μF), decoupling (0.1μF ceramics), and timing circuits (RC networks). For temperature-sensitive applications, avoid electrolytics–ceramic capacitors (X7R, C0G) maintain stability from -55°C to +125°C, unlike Z5U (significant drift ±22% at extremes).
| Component | IEC Standard Symbol | ANSI/IEEE Variants | Key Parameters | Failure Mode (Stress) |
|---|---|---|---|---|
| Resistor | Zigzag | Rectangle (±film) | Power rating (W), TCR (ppm/°C) | Thermal runaway (exceeding Pmax) |
| Capacitor | Parallel lines | Arrow (polarized) | ESR (mΩ), DF (tan δ) | Dielectric breakdown (V > Vrated) |
| Inductor | Coiled line | Shaded coil (iron core) | Saturation current (A), Q-factor | Core saturation (I > Isat) |
Inductors manifest as a series of loops or a shaded coil (for ferrite/core types). Air-core inductors dominate RF circuits due to minimal hysteresis losses, while gapped ferrite cores suit switching regulators to prevent saturation. Values span from 1nH (PCB traces) to 1H (power-line chokes); measure inductance via LCR meters at 100kHz for accuracy. Critical traits include self-resonant frequency–exceeding this turns the inductor into a capacitor, disrupting filters or energy storage. In SMPS designs, pair inductors with Schottky diodes (low Vf) to reduce switching noise; toroidal cores minimize EMI compared to solenoid types. For prototyping, heuristics help: 1μH per mm of coil diameter (air core), or 10μH per turn on a T37-2 toroid.
