Begin by verifying the circuit’s amperage rating–15A for standard residential sockets, 20A for dedicated high-load connections. Use a multimeter to confirm zero voltage before touching any conductors. If the breaker doesn’t trip when tested, replace it immediately; faulty protection is a primary fire risk.
Identify the conductor colors: hot (black or red), neutral (white), ground (green or bare). Miswiring neutral to ground can energize the chassis of appliances, creating lethal shock hazards. For split-phase 240V setups, ensure the neutral is isolated–no current should return through ground.
Strip 12–14mm of insulation from each wire, then twist the strands clockwise before inserting into the terminal. Loose strands cause arcing; tighten terminal screws to 12–15 inch-pounds of torque. For back-wired sockets, press the conductor fully into the clamp and verify with a pull test–wiggling wires indicates improper connection.
Route conductors so they maintain 6mm of clearance from box edges to prevent abrasion. Secure cables every 30cm with staples or clamps; loosely secured wires sag and chafe against screws or sharp metal. In metal boxes, use non-metallic bushings to protect cables where they enter knockouts.
Connect the ground wire first–a disconnected ground renders overcurrent protection ineffective. For GFCI-protected circuits, attach the line-side hot and neutral to the top terminals, load-side to the bottom; reversing these disables fault detection.
Use a torque screwdriver for terminal connections–under-tightening causes overheating, over-tightening strips threads. Check continuity between the socket’s brass screw and plug’s hot slot with a multimeter; absence of continuity signals an open circuit.
Label every circuit at the breaker panel with its corresponding socket location. Test each with a plug-in analyzer: hot-neutral reversed indicates crossed wires, open ground means no safety path for faults. Replace any device showing internal arcing or scorch marks–these are pre-failure indicators.
For smart sockets or USB-integrated units, verify the electronics’ power rating matches the circuit–most draw 1–2W continuously, but cheap variants exceed their specified load, causing slow overheating. Remove the insulator flaps from unused slots; they impede cooling airflow.
Wall Socket Connection Guide
Always verify circuit polarity before installation–ground (bare/green), live (brass screw), and neutral (silver screw) terminals must match standard color codes. In North America, use 12-gauge wire for 20-amp circuits and 14-gauge for 15-amp setups. For UK BS 1363 plugs, ensure brown (live), blue (neutral), and green/yellow (earth) wires align with socket slots marked L, N, and ⏚. Misalignment risks short circuits or device damage–test with a multimeter at 120V/240V tolerance before securing cover plates.

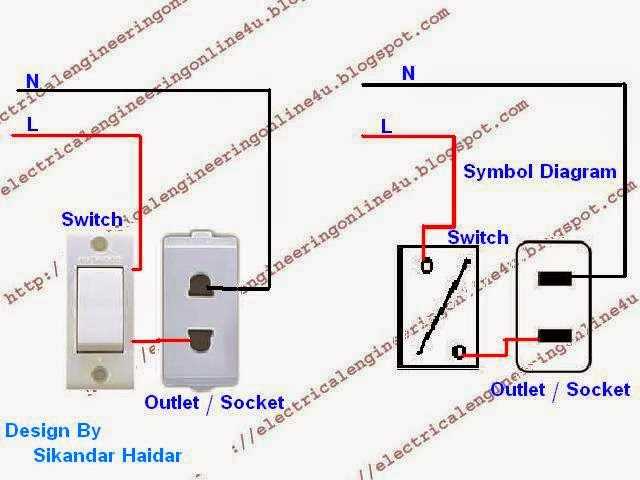

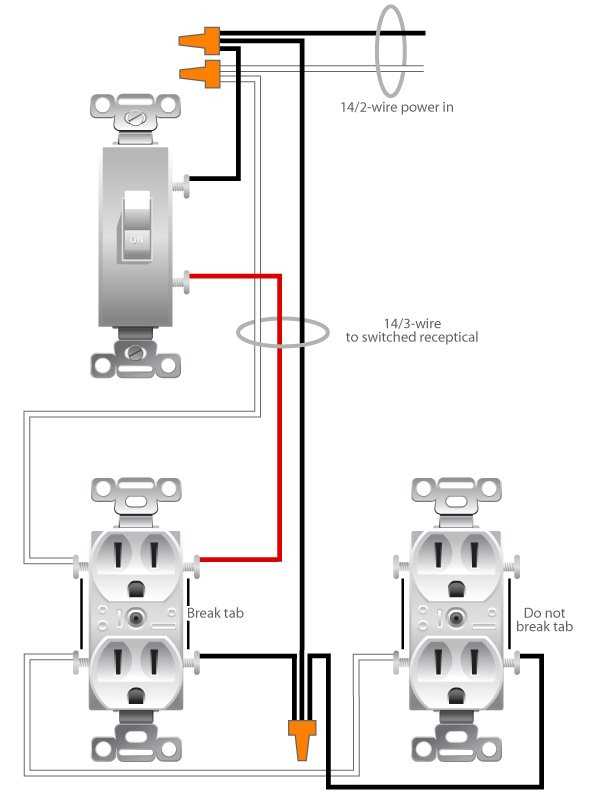

Split receptacles require bridging tabs: remove the brass tab for independent live feeds, keep the silver intact unless isolating neutrals. For GFCI protection, connect load terminals only if downstream sockets need coverage–improper wiring cancels fault detection. In damp areas (kitchens, bathrooms), use weather-resistant models rated IP44 or higher, backed by a 30mA RCD. Never daisy-chain more than four standard sockets on a 15-amp breaker; calculate 180VA per fixture to prevent overload.
Modular Wiring Variations
Schuko (Type F) sockets demand a rear-mounted earth clip–no exceptions–or appliances may pose shock hazards. In Australia’s AS/NZS 3112 system, active (red), neutral (black), and earth (green/yellow) must follow strict torque specs: 0.8Nm for 1.5mm² wire. For smart sockets, maintain a dedicated neutral line; shared neutrals cause “phantom loads” and interfere with Zigbee/Z-Wave signals. Industrial NEMA L6-30R receptacles (250V, 30A) need 10-gauge wire and an appropriate double-pole breaker–ignoring this risks melting insulation at 24A continuous draw.
For temporary setups (workshops, events), use twist-lock plugs to prevent accidental disconnections. In Canada, CSA C22.2 No. 22.2 dictates that unused knockouts must remain sealed; exposed openings violate code. When retrofitting old installations, replace brittle cloth-insulated wire immediately–exposed conductors corrode at 1.2% annually in humid climates. Always label circuits at the panel; undefined feeds complicate troubleshooting and violate NEC/CEC Article 408.4.
Installing a 120V Receptacle: Precise Steps
Turn off the breaker marked for the circuit at the main panel before touching any conductors. Use a non-contact voltage tester to confirm power is fully disconnected–probing both screw terminals and the metal box. No audible or visual signals should appear.
For a grounded setup, strip 5/8″ of insulation from the end of each hot (black), neutral (white), and ground (bare or green) conductor. Loop the stripped portion clockwise around its terminal screw–tighten with an insulated screwdriver to 12 in-lbs torque. Avoid overtightening, which can shear the copper wire.
- Black conductor: Secure under brass-colored screw.
- White conductor: Secure under silver-colored screw.
- Ground conductor: Secure under green hexagonal screw.
Fold excess conductor neatly into the junction box, ensuring no bare copper touches adjacent screws or the box itself.
Align the receptacle’s mounting straps with the box’s screw holes. Use provided 6-32 machine screws–snug them until the device sits flush against the wall, but don’t over-torque; drywall can fracture.
Restore power at the breaker, then verify correct polarity and grounding with a plug-in circuit analyzer. Three illuminated LEDs in the “correct wiring” pattern confirm proper installation. If the middle LED (hot/neutral reversed) lights, revisit the black and white connections immediately.
Standard Wire Colors and Their Purpose in Socket Connections
Always connect the black or red conductor to the brass-colored screw–this carries the active current and must never be mistaken for other terminals. In 120-volt circuits, neutral (white) attaches to the silver screw, completing the circuit with minimal voltage drop; reverse pairing risks shock or fire. For 240-volt setups, the second active conductor (often red) joins the opposite brass terminal, while neutral may be omitted entirely if the device doesn’t require it. Verify local codes: some European and Asian systems label active wires brown or gray, neutral as blue, and earth green-yellow striped.
Green, bare copper, or green-yellow wires ground the system–secure them to the green hexagonal screw or metal junction box. Never substitute neutral for ground even in temporary fixes; miswiring can energize appliance chassis, creating lethal shock hazards. Test polarity with a multimeter after installation: active-to-ground should read line voltage, neutral-to-ground near zero. Non-standard colors (pink, orange) often indicate isolated circuits–check schematics before altering.
Proper GFI Socket Installation with Input and Output Contacts
Ensure power is cut at the circuit breaker before handling any connections. Use a non-contact voltage tester to confirm no current remains in the box. Misidentifying live conductors can cause severe injury or damage.
Identify the input (line) terminals on the GFI device–these are marked with “Line” and accept power from the source. The output (load) terminals, labeled “Load,” protect downstream connections. Mixing them can disable fault protection for attached sockets.
Securing Connections
Strip 1/2 inch of insulation from each conductor using wire strippers. Insert stripped ends into the appropriate terminals, tightening screws firmly. Loose connections create resistance, leading to overheating. Wrap wires clockwise around terminal screws to ensure a solid grip when tightened.
For multiple protected outlets, connect the first GFI’s load terminals to additional sockets’ line terminals. This extends protection to the entire chain. Avoid exceeding manufacturer load ratings–typically 15 or 20 amps–to prevent tripping or failure.
Fold wires neatly into the box before securing the GFI device. Leave enough slack for adjustments but avoid excess length, which can cause heat buildup. Attach the device with mounting tabs, ensuring it sits flush against the wall without gaps.
Restore power and test by pressing the “Test” button–the device should trip, cutting power. Reset it to confirm proper function. If it fails to trip, disconnect power immediately and recheck connections. Never bypass a faulty GFI device–replace it if testing fails.
Fixing Frequent Plug Configuration Errors
Verify the color coding of conductors before energizing any circuit. Hot (live) wires must always terminate on brass screws, neutral conductors attach to silver screws, and ground connections require green or bare copper. Swapping hot and neutral reverses polarity–detected with a non-contact tester or plug-in polarity checker–creating shock hazards even when devices appear functional. Replace mismatched terminals immediately; never rely on insulation tape as a permanent fix.
Key Troubleshooting Checks
| Issue | Symptom | Correction |
|---|---|---|
| Loose terminal screws | Flickering lights, warm faceplate | Strip ¾” of insulation, loop wire clockwise under screw, torque to 12 in-lbs |
| Backstab connections | Intermittent power, burning smell | Cut damaged wires, reattach to screw terminals or use push-in connectors rated for 20A |
| Missing ground | No power to GFCI-protected devices | Run 12 AWG bare copper from ground screw to metal box or circuit grounding bus |
Test continuity between the grounding screw and metal junction box using a multimeter set to ohms. Readings above 1 Ohm indicate corrosion–clean contacts with a wire brush or replace the box. For receptacles in wet areas, confirm GFCI status by pressing the “Test” button; if the receptacle trips but doesn’t reset, swap the device and inspect upstream connections for moisture intrusion. Always cap unused wire nuts with listed twist-on connectors and secure them inside the box with approved cable clamps.
