Complete Guide to Building an Electrical Inverter Circuit Step by Step

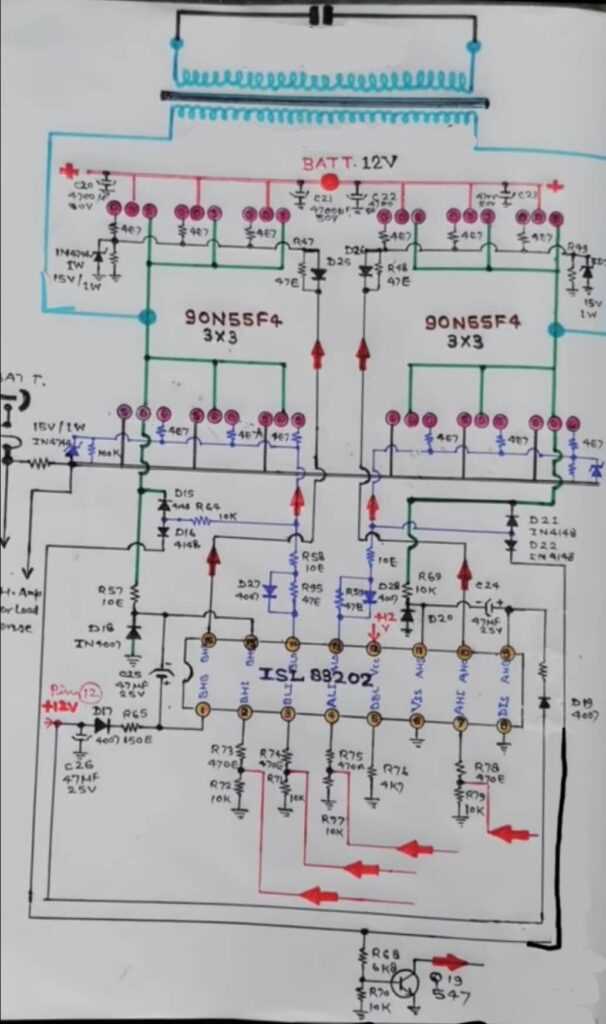

electrical inverter circuit diagram

Use a push-pull transformer core configuration for optimal efficiency when converting 12V DC to 230V AC. Ferrite cores outperform iron-based alternatives at frequencies above 20 kHz, reducing heat loss by up to 30%. Select MOSFETs like IRF3205 or IGBT modules such as IXYS IXGN60N60 for switching–these handle currents exceeding 20A with minimal voltage drop.

Begin layout with a PWM controller like SG3525 or TL494, operating at 40-100 kHz to balance size and performance. Add feedback via an optocoupler (PC817) to isolate high-voltage sections. Place snubber capacitors (0.1µF polyester) across switching components to suppress transients over 50V. Ground planes reduce EMI; keep traces under 1 ohm impedance for high-current paths.

Test waveforms with an oscilloscope before final assembly. Square waves should show rise times under 500ns; deviations indicate improper gate resistor values (typically 10-100Ω). For pure sine output, pair the core conversion stage with an LC filter (1mH + 10µF) to smooth harmonics below 1%. Overcurrent protection requires a 5A fuse and a comparator circuit (LM393) triggering at 70% nominal load.

Thermal management dictates reliability. Mount semiconductors on heatsinks with thermal paste (≤0.5°C/W). Active cooling (12V fan) extends lifespan during continuous operation at loads above 300W. PCB traces for high currents need 2oz copper thickness for currents over 10A to prevent overheating.

Designing a Power Conversion Schematic: Practical Guidelines

Begin by selecting a push-pull configuration for low-power applications under 500W, as it simplifies component count compared to full-bridge setups. Use IRF3205 MOSFETs for their 55V breakdown voltage and 110A current rating–ideal for 12V to 230V conversions. Pair each with a UF4007 diode to handle reverse recovery currents up to 1A.

For the transformer core, opt for a toroidal design with a 26mm outer diameter and 16mm inner diameter, wound with 0.5mm enameled copper wire. Primary should have 8 turns (center-tapped), while the secondary requires 200 turns for a 230V output. Verify core saturation limits by ensuring the volt-second product stays below 60μVs at 50Hz.

Critical Component Pairings

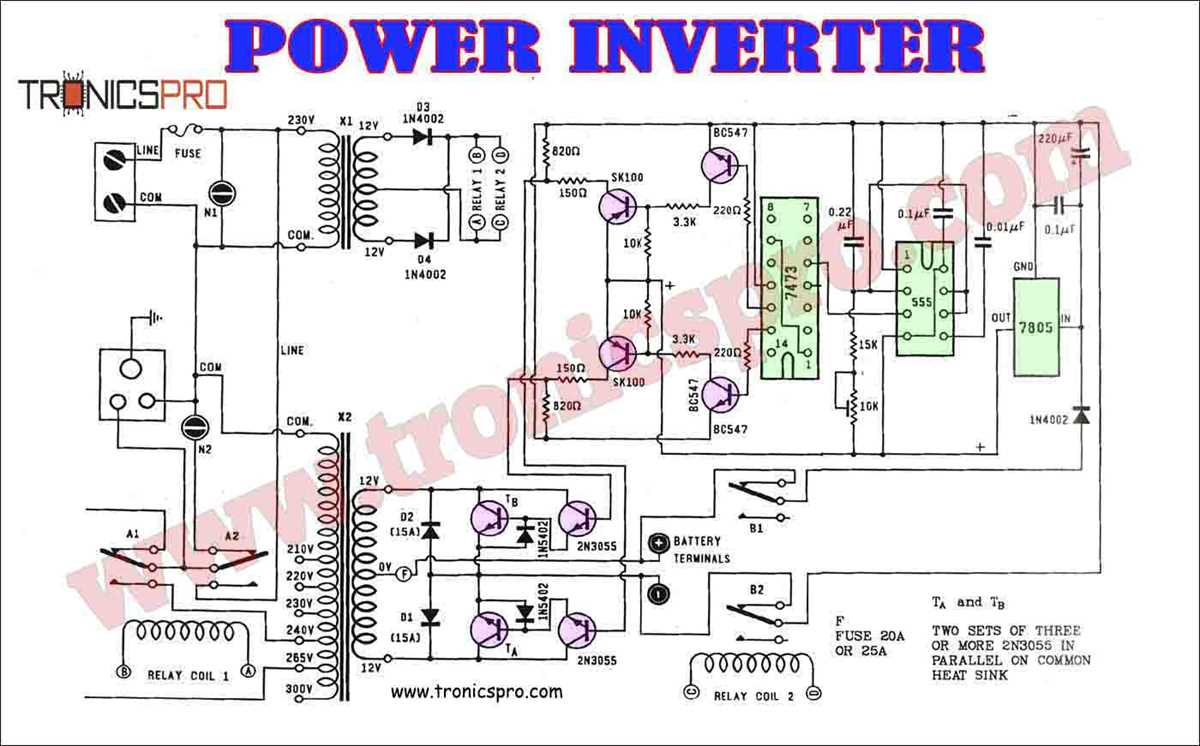

electrical inverter circuit diagram

Component Recommended Model Key Specifications
Switching Element IRF540N 100V, 33A, 44mΩ RDS(on)
Gate Driver IR2110 500ns propagation delay, 600V isolation
Feedback Diode MUR1560 15A, 600V, 50ns reverse recovery
Control IC SG3525 0-50% duty cycle range, 400kHz max frequency

Layout PCB traces with at least 3mm width for high-current paths, using 2oz copper thickness to prevent overheating. Place snubber capacitors (0.1μF X7R) directly across each MOSFET’s drain-source terminals to suppress voltage spikes exceeding 20% of the input voltage.

For frequency control, set the SG3525’s oscillator to 40kHz using a 10kΩ resistor and 1nF capacitor–this balances switching losses and magnetic component size. Adjust the dead-time resistor to 20kΩ to prevent shoot-through, especially critical when driving inductive loads.

Load-Specific Adjustments

When designing for resistive loads (e.g., incandescent bulbs), reduce the secondary winding gauge to 0.3mm to save space. For inductive loads (e.g., motors), add a 10μF electrolytic capacitor across the output to dampen back-EMF, and increase the MOSFET’s heatsink surface area by 30% to handle prolonged 4A currents.

Test prototype efficiency by measuring input current at full load (e.g., 300W) and comparing it to output power. Aim for a minimum 85% conversion ratio; if below, recheck transformer turns ratio or replace diodes with lower forward-voltage models like the STTH15L06 (0.7V drop).

For thermal management, attach MOSFETs to an aluminum heatsink with a thermal resistance ≤1°C/W. Use Arctic MX-6 thermal paste for reliable contact–this prevents junction temperatures from exceeding 125°C under continuous operation.

Final validation requires an oscilloscope to verify output waveform purity. Probe the secondary winding: a clean 50Hz sinusoid confirms proper feedback loop tuning via the SG3525’s error amplifier. Add a 100Ω resistor in series with the feedback path to fine-tune stability margins.

Core Parts for Building a Simple Power Conversion Setup

Start with a DC source–a 12V or 24V battery is standard. Ensure it delivers steady voltage under load; deep-cycle types withstand repeated discharge better than starter variants. Capacity matters: for a 500W load, a 7Ah battery suffices for short bursts, while a 30Ah unit extends runtime to 2+ hours.

Select power switches–MOSFETs (e.g., IRF3205) or IGBTs based on output needs. MOSFETs dominate below 1kW; their low RDS(on) (4-8mΩ) minimizes heat. For higher wattage, IGBTs handle switching losses better but require heatsinks. Match specs: drain-source voltage should exceed input voltage by at least 30%.

  • Driver IC: Isolate gate signals with optocouplers (e.g., TLP250) or dedicated drivers (IR2110). Avoid direct microcontroller connection–backflow can fry logic pins. IR2110’s 500ns propagation delay suits most home builds.
  • Gate resistors: Use 10-100Ω resistors to limit inrush current. Too low risks oscillations; too high slows switching. Pair with 10kΩ pull-down resistors to prevent floating gates.

Oscillator: Generate pulses via NE555 timers (cheap, 0.1-10kHz) or microcontrollers (precise, configurable). For pure sine output, PWM modulation needs 20kHz+ to push harmonics beyond audible range. Attenuate noise with a 100nF decoupling capacitor near the IC.

Transformer: Choose a toroidal core for efficiency (90-95%)–its compact size reduces flux leakage. Wire gauge depends on current: 18AWG handles 2A, 12AWG up to 10A. For 220V output, a 12V primary with 20 turns to 220V secondary (360 turns) works. Verify polarity to avoid phase cancellation.

Add protection elements:

  1. Fuse: 10A slow-blow for a 300W system–prevents catastrophic failure.
  2. Snubber network: 10Ω resistor + 0.1µF capacitor across switches to dampen spikes.
  3. MOV: 275V varistor clamps surges; replace if it conducts after an event.

Filtering: Smooth output with a 100µF electrolytic capacitor post-transformer. For cleaner sine waves, add an LC filter: 100µH inductor + 470nF polyester capacitor. Measure THD–target

Test with a dummy load: a 60W bulb verifies functionality; an oscilloscope checks for square edges or sine integrity. Adjust PWM duty cycle if output voltage swings– ±5% tolerance is safe for most devices. Log continuously: track heat buildup in switches (max 85°C) and transformer (max 60°C core).

Building a Single-Phase Power Converter with MOSFETs: A Practical Guide

Select 4 N-channel MOSFETs rated for at least 1.5× your expected load current and 2× the DC bus voltage. For a 24V system with 5A output, IRFZ44N (55V, 49A) or IRLB8743 (30V, 200A for lower-voltage setups) work reliably. Avoid cheaper models with high RDS(on) above 20mΩ–these waste energy as heat.

  • Mount MOSFETs on a 3mm-thick aluminum heatsink, ensuring thermal paste between each device and the sink.
  • Drill holes matching TO-220/TO-247 package spacing; use M3 screws torqued to 0.5Nm.
  • Space components at least 15mm apart to prevent arcing when switching high voltages.

Arrange components on a perforated board or custom PCB with 2oz copper traces for the high-current paths. Start with the DC input terminals: solder a 1000μF, 50V electrolytic capacitor directly across the terminals, followed by a 0.1μF ceramic capacitor in parallel to suppress noise. Keep leads under 5mm to minimize inductance.

  1. Connect the MOSFET gates to a dedicated gate driver IC like IR2110 or UCC27424, using 10Ω series resistors on each gate to prevent ringing.
  2. Wire the driver’s logic inputs to a microcontroller generating complementary 50% duty-cycle PWM at 20–50kHz.
  3. Attach a 10μF bootstrap capacitor between the driver’s VB and VS pins; refresh it every 10ms by briefly pulling the low-side MOSFET ON.

For the output filter, wind two 100μH inductors on toroidal cores (e.g., T100-26). Use 16AWG magnet wire, ensuring equal turns on each coil to balance current. Place the inductors in series with the load, followed by a 1μF polypropylene film capacitor across the output terminals. Measure ESR–values above 20mΩ require a second capacitor in parallel.

Add protection: solder a 1A fuse in the DC input line, and place a bidirectional TVS diode (e.g., SMAJ24A) across the MOSFET drains to clamp voltage spikes. For soft-start, insert a 1kΩ resistor in series with the bootstrap capacitor, bypassed with a MOSFET turned ON after 100ms by the microcontroller.

Test with a dummy load before connecting sensitive devices. Start at 5V DC input, monitoring MOSFET temperatures with a thermal probe–temperatures above 60°C indicate inadequate cooling or excessive switching losses. Check output waveform on an oscilloscope; distortion greater than 5% suggests improper gate resistor values or inadequate filter capacitance. For reliability, run at 80% rated power for 2 hours; failure points often surface during this burn-in.

Diagnosing Faults in Power Conversion Assembly Wiring

Check for overheating at MOSFET terminals by using a thermal camera or infrared thermometer. Ideal operating temps should not exceed 60°C under load. If a component reads above 75°C, verify heatsink attachment–thermal paste may be dried or unevenly applied. Reapply with 0.1mm layer thickness. Loose mounting screws increase thermal resistance; torque to 0.8Nm with a calibrated driver.

Verify input voltage at the DC bus with an oscilloscope–not a multimeter–as ripple exceeding 50mVpp indicates capacitor degradation or poor ground bonding. Replace electrolytic caps if ESR rises above 0.5Ω; mark them with installation date to track lifespan. Inspect solder joints under magnification; reflow cold-soldered connections with lead-free paste at 300°C for 3 seconds. Strand breakage in fine-gauge wiring (

If the waveform shows distortion or missing pulses, probe the gate driver outputs with a logic analyzer. A 1μs delay between command and response suggests corrupted optocoupler isolation; replace UCC21520 pairs with matched impedance. For intermittent switching, stress-test by cycling loads 0–100% at 0.5Hz while monitoring gate signals. Faulty drivers typically fail within 10–15 cycles under this regime. Recheck shunt resistor values if efficiency drops below 92%; ±1% tolerance resistors drift over time–replace with metal-film 0.1% rated parts.
