Start by isolating the power sources before tracing any connections. Use a multimeter to verify zero voltage across all live conductors–this prevents accidental activation of downstream components. Label each wire at both ends with indelible tags (e.g., “L1-400V,” “M3-Coil”) to eliminate guessing during troubleshooting. For industrial setups, prioritize redundant fail-safe mechanisms: incorporate dual-channel relays with cross-verification, ensuring immediate shutdown if discrepancies exceed 50ms.
Grounding is non-negotiable. Connect all metallic enclosures to a dedicated earth bar with conductors sized per IEC 60364 (minimum 4mm² for 25A circuits). Avoid daisy-chaining grounds–each device must have a direct path to the earth bar to prevent stray currents from compromising safety. In high-noise environments, use shielded cables with the shield grounded at one end only to prevent ground loops.
For sequential control, implement a hardwired permissive chain. Example: A motor starter (KM1) should only energize if pressure switch (PS1), temperature sensor (TS1), and emergency stop (E-Stop) all signal “ready.” Wire these in series, with KM1’s auxiliary contact self-latching only after all conditions are met. Test this setup by forcing one condition to fail–KM1 must refuse to close. Document the sequence in a truth table for clarity.
Arc suppression is critical for inductive loads. Install snubber circuits (RC networks, 100Ω + 0.1µF) across relay coils and contactor coils to quench voltage spikes exceeding 600V. For DC circuits, add freewheeling diodes (reverse polarity) across solenoids to absorb back-EMF. Without these, coil insulation will degrade rapidly, leading to premature failure.
Color-coding must follow regional standards rigidly. In North America: red (L1), black (L2), blue (L3), white (neutral), green/yellow (ground). In EU: brown (L1), black (L2), grey (L3), blue (neutral), green/yellow (ground). Deviations create hazards–enforce consistency.
Final validation requires a two-person review. The first technician traces the wiring per the schematic while the second verifies each connection against the physical layout. Use a 5V continuity tester with audible feedback for large panels–visual checks alone miss 30% of errors. Record all test results in a log with timestamps, including voltage readings, resistance measurements, and relay actuation states.

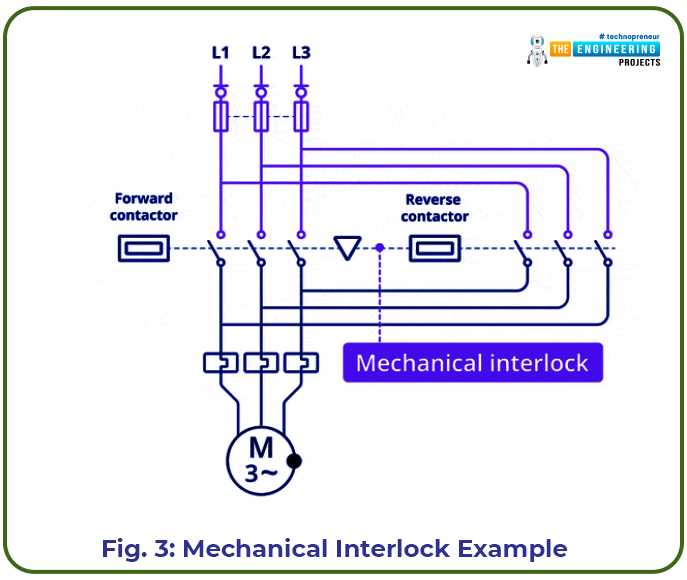

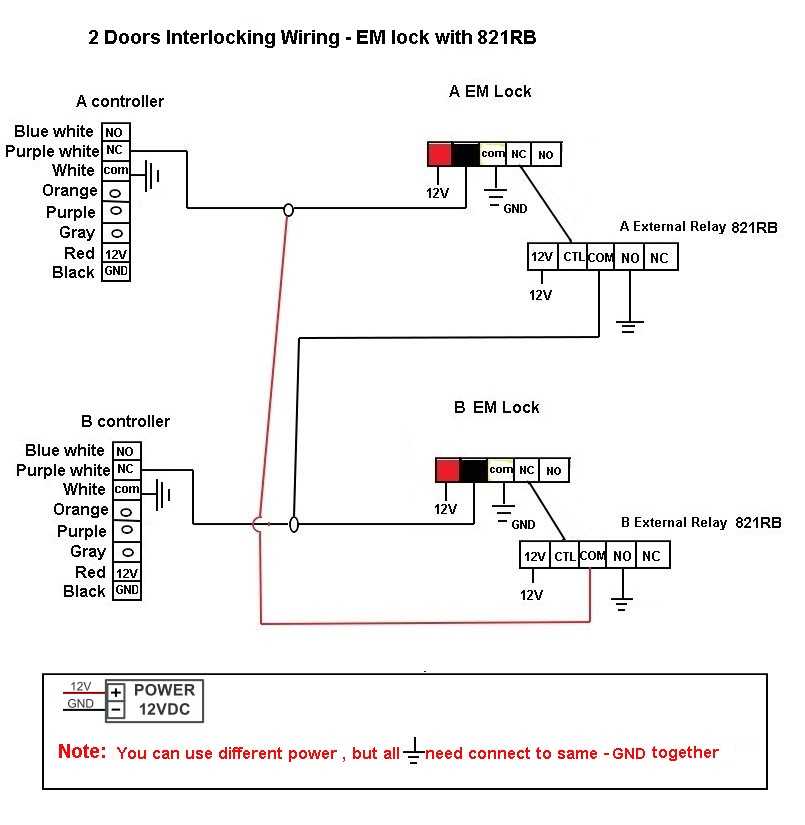

Designing Safe Control Schemes with Mechanical and Relay Coordination
Start by mapping power flow dependencies between critical machinery. Identify primary and secondary devices requiring forced sequencing, such as motor starters and solenoid valves operating in opposite states. Document these relationships in a matrix, noting which components must never energize simultaneously–this prevents hazardous conditions like short circuits or mechanical collisions during operation.

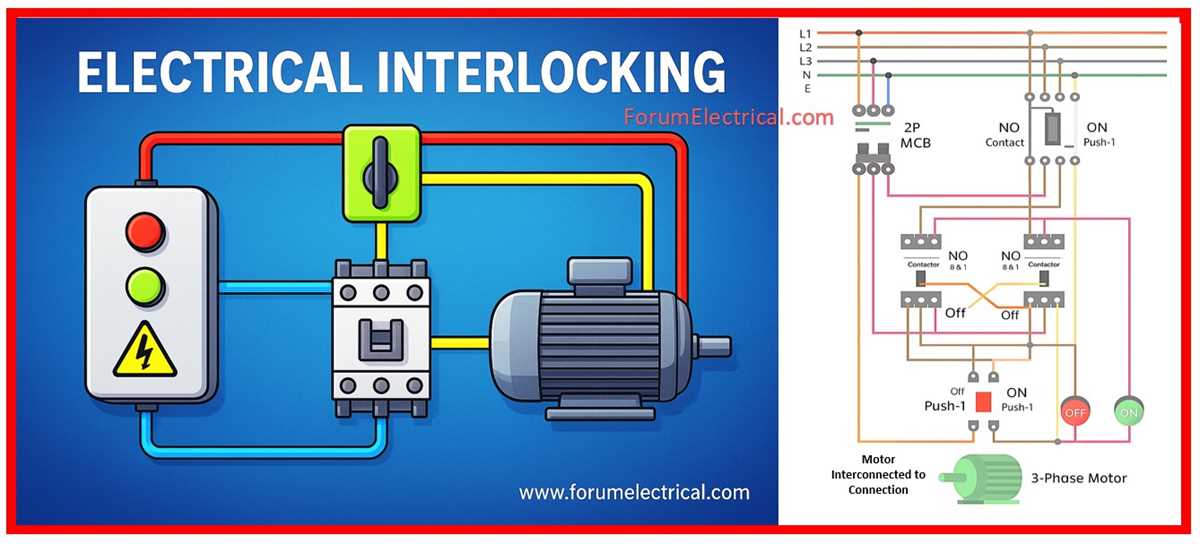

For relay-based coordination, use at least two sets of contacts for each safety check: one normally open (NO) and one normally closed (NC). The NO contact should be wired in series with the holding coil of the opposing device, while the NC contact interrupts its own control voltage when activated. This dual redundancy ensures that if a relay sticks or a contact welds, the entire sequence halts immediately. Example: a motor forward relay’s NC contact opens the reverse relay’s supply, guaranteeing mutual deactivation.
Key Components and Wiring Practices
- Auxiliary relays: Use industrial-grade relays with gold-plated contacts rated for 10A at 250VAC, such as Omron MY4N or Siemens 3RH2911, to minimize arcing and contact degradation over cycles.
- Pilot devices: Limit switches, pressure sensors, or door interlocks must be wired in series with the control path. For instance, a gate sensor should break the circuit if opened mid-operation, cutting power to all downstream actuators within 50ms.
- Emergency stops: Hardwire E-stops as direct breaks in the main supply line, bypassing all control logic. Use mushroom-head pushbuttons with self-latching mechanisms (e.g., Schneider XB5AS8445) to require manual reset after activation.
- Power distribution: Separate control and load circuits via dedicated transformers to isolate faults. A 24VAC control transformer (e.g., Hammond 171E) reduces shock hazards while maintaining compatibility with standard relay coils.
Test coordination under simulated fault conditions. Introduce single-point failures–such as a stuck relay, broken wire, or shorted contact–and verify the system responds by shutting down all affected components. Use a multimeter to confirm voltage levels at each relay coil (e.g., 20–28VAC for 24V relays) and trace the NC/NO paths to ensure proper interruption. Log the results, including reaction times, and compare against safety standards like ISO 13849-1 (PL c or higher) or ANSI B11.19.
For programmable logic, supplement relay logic with a safety-rated PLC (e.g., Siemens S7-1500F or Rockwell GuardLogix) using certified function blocks. Configure the PLC to mirror the relay coordination: if a limit switch trips, the PLC must not only de-energize the output but also inhibit re-start until all conditions are cleared. Avoid relying solely on software–hardware interlocks must remain the primary safety net. Document the entire scheme in a single-line schematic with color-coded conductors (red for power, blue for neutral, yellow for safety circuits) and terminal numbers matching the physical panel labeling.
Key Components for Secure Safety Systems
Start with high-quality relays rated for industrial use, ensuring contact durability under frequent switching. Opt for models with forced-guided contacts–these prevent simultaneous failure of normally open and closed paths, a critical safeguard in fail-safe designs. Verify their coil voltage matches your control system (e.g., 24VDC for PLC-driven setups) to avoid misoperation.
Integrate limit switches with redundant contacts where mechanical position confirmation is required. Select sealed, IP67-rated variants for environments prone to dust or moisture, and prioritize those with adjustable levers for precise alignment. For high-cycle applications, choose switches with gold-plated contacts to minimize oxidation-related failures over time.
Auxiliary Elements for Robust Operation
Include fuses or circuit breakers sized 125% above the maximum current draw of connected loads to prevent overheating. For dynamic loads, use slow-blow fuses to accommodate inrush currents during motor starts. Pair these with auxiliary contact blocks on contactors to provide feedback for self-monitoring systems–this ensures the integrity of the safety chain before permitting equipment restart.
Step-by-Step Wiring of a Basic Safety Lockout System
Begin by identifying the power source and control elements. Use a 24V DC supply for low-voltage safety mechanisms to minimize risks. Connect the positive terminal of the power source to a normally open (NO) pushbutton labeled “Start.” This ensures the system activates only when intentionally triggered.
Wire the “Start” pushbutton in series with a normally closed (NC) emergency stop switch. If the emergency stop is pressed, the line breaks, halting all downstream operations. Attach a relay coil (e.g., a 10A SPDT relay) immediately after the emergency stop. The relay’s contacts will manage high-current loads without exposing the control switches to excessive amperage.
| Component | Terminal Pair | Wire Gauge (AWG) | Max Current (A) |
|---|---|---|---|
| Start Button (NO) | Common to NO | 18 | 5 |
| Emergency Stop (NC) | Common to NC | 16 | 10 |
| Relay Coil | A1 to A2 | 20 | 0.5 |
| Load Contacts (NO) | 13 to 14 | 14 | 15 |
Link the relay’s normally open contacts to the load–typically a motor, solenoid valve, or other critical machinery. Ensure the load’s power rating aligns with the relay’s contact capacity. For inductive loads, add a flyback diode (e.g., 1N4007) across the relay coil to suppress voltage spikes. Connect the load’s return wire to the negative terminal of the power source, completing the loop.
Integrate a safety gate or guard switch in series with the relay coil. Use a magnetic or mechanical limit switch mounted on access doors. When the gate opens, the switch opens, de-energizing the relay and stopping the load. Test the assembly by pressing the emergency stop and verifying the load cuts off instantly. For fail-safe redundancy, wire a second NC switch in parallel with the gate switch to ensure dual-circuit interruption.
Validation Checks
Verify continuity with a multimeter before applying power. Measure 24V across the relay coil when the “Start” button is pressed and the emergency stop is released. Confirm zero voltage across the coil when either the emergency stop or gate switch is engaged. Label all wires with heat-shrink tubing for clarity and maintenance. Document the configuration in a schematic with color-coded lines for future troubleshooting.
Frequent Failures in Safety Control Systems and Diagnostics
Measure continuity across contact points with a multimeter if the control fails to engage. A voltage drop below 90% of nominal across closed contacts signals pitting or oxidation–clean surfaces with 400-grit sandpaper or replace contactors rated for the load.
Check wire termination torque using a calibrated torque screwdriver; secure connections require 1.2 Nm for 1.5 mm² conductors. Loose strands or improper crimping generate heat cycles that degrade insulation–strip wires to 8 mm, twist strands tightly, and use DIN-rail terminals with funnel entries to prevent conductor damage.
Inspect auxiliary switches for discrepancy between NO and NC states. Misalignment by even 0.5 mm can cause intermittent signaling; re-calibrate actuator position using a feeler gauge or replace microswitches with snap-action mechanisms rated for 10 million operations.
Verify protection relay settings against motor or actuator specs. A stall current of 6x rated value triggers shutdown within 10 seconds–adjust thermal overload curves via relay potentiometers or digital interfaces like SIEMENS 3UG46 or ABB E250.
Test emergency stop buttons under load to confirm mechanical latching. Depress the button while monitoring the control path–if the LED indicator remains lit or the contactor fails to drop out, disassemble and clean the pushbutton assembly or swap with a unit featuring a mushroom head for force concentration.
Look for voltage leaks between live conductors and chassis ground at isolated nodes. Insulation resistance below 1 MΩ at 500 VDC indicates degradation–temporarily disconnect sensitive devices and apply a megohmmeter to pinpoint compromised wiring or moisture ingress.
Audible buzzing from relays or contactors during operation points to AC hum or DC chatter. Replace units with modules designed for 24 VDC coils if noise persists–filter capacitance should match 100 μF per ampere of inductive load to suppress transients.
Use an oscilloscope to capture transient events on control lines if random trips occur. Voltage spikes above 1.5x nominal suggest back EMF from inductive loads–install varistors or snubber circuits with RC values of 0.1 μF and 100 Ω across the coil to clamp spikes to safe levels.
