Start by isolating system components on your draft before connecting them–this prevents clutter in later stages. Label every valve, actuator, and sensor with alphanumeric codes matching the bill of materials. Use ANSI Y32.10 or ISO 1219-1 standards for consistency; deviations cause miscommunication during assembly. For fluid circuits, differentiate flow paths with distinct line weights: 0.5mm for pilot lines, 0.7mm for supply, and 1.0mm for return. Pressure values must be annotated at 5% tolerance intervals along critical branches.
Power layouts require separate layers for high-voltage, low-voltage, and signal wiring. Trace each wire from source to load without overlaps–overlap errors add 12-18% troubleshooting time. Use terminal blocks to break long runs; label both sides with identical IDs. For automation, integrate DIN 40719-6 symbols for PLC inputs/outputs, ensuring all relay logic matches the ladder logic diagram. Test continuity with a multimeter set to 1kΩ range before energizing.
Reservoirs in fluid systems should be scaled to 3x the maximum flow rate to prevent cavitation. Place filters upstream of pumps with a 10-micron rating for hydraulic oil; finer mesh increases pressure drop. For gaseous systems, include moisture traps at intake points–condensation accelerates corrosion. Always cross-reference symbols with manufacturer datasheets to confirm port sizes and operating pressures.
Color-code your draft: red for power, blue for neutral, green for ground, and gray for signal. Fluid circuits use: orange (high-pressure), green (return), purple (pilot), and black (drain). Maintain a legend in the top-right corner, updated with each revision. Digital tools like EPLAN or AutoCAD Electrical auto-check compliance, but manual verification remains critical–software misses 7% of common errors, particularly in cross-references.
Include an emergency shutdown sequence in all blueprints. For power circuits, this means a master disconnect switch with a red handle, accessible within 3 meters of the main panel. Fluid/gas setups require a normally closed dump valve positioned before the main pressure regulator. Document reset procedures adjacent to each safety device–omitting this step voids compliance in most jurisdictions.
Blueprint Interpretation for Fluid Power and Control Circuits
Begin by isolating the power source symbol–typically a battery for direct current or a generator for alternating current in motor-driven systems. Verify voltage and frequency ratings against the legend; mismatches here propagate errors through every downstream component. For instance, a 24V solenoid valve powered by a 12V supply will underperform, while a 480V pump paired with 230V wiring risks insulation failure.

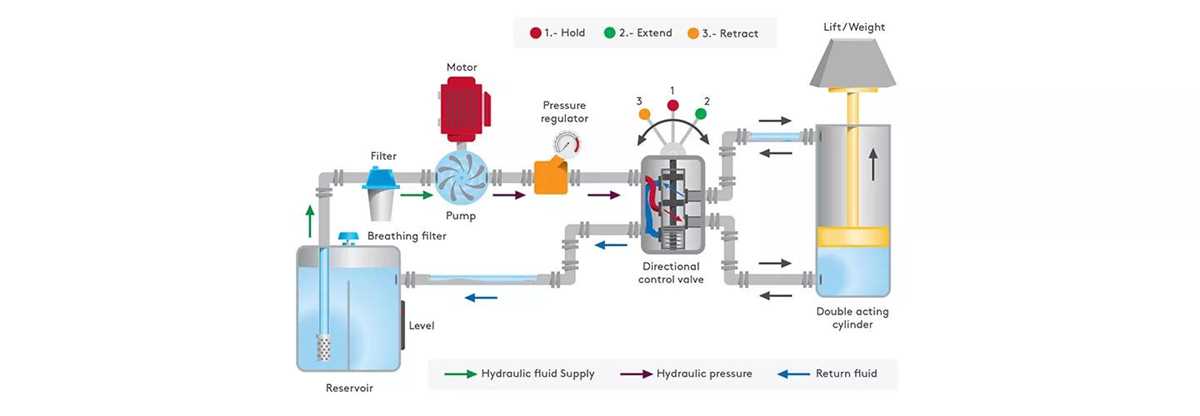

Trace fluid lines from the reservoir to actuators, noting pressure relief valves and pressure gauges. A bypass line should include a manual shutoff valve for servicing. Check accumulator pre-charge pressure with a nitrogen tester–ideally 80-90% of minimum system pressure. If pre-charge drops below 60%, bladder rupture becomes likely, disrupting cycle stability. Label each line with flow direction using ISO 1219-1 symbols; arrows misplaced by even 180 degrees can reverse intended operation.
Decode ladder logic for PLC-controlled sequences. Each rung must terminate in a coil or function block; floating inputs indicate incomplete circuit logic. Cross-reference PLC tags with wiring diagrams–pin 3 on terminal block TB4, for example, must match I/O address %Q2.3. For proportional valves, confirm command signal ranges match valve amplifier specifications–typically 0-10V or 4-20mA–before calibration. A 1V offset here can reduce actuator speed by 12%.
Validate pneumatic circuit air preparation units. Filter regulators must reduce inlet pressure to 6-8 bar for tooling, with coalescing filters achieving 0.01 micron particle removal. Check lubricator oil delivery–1-2 drops per minute maximum–to avoid contaminating instruments downstream. Dryers should maintain -40°C dew point; any higher invites condensation at valve seats, causing sticking bellows or diaphragm seals. Label all pneumatic tubing color-coded per ISO 3601: blue for supply, white for exhaust, red for actuators.
Use thermal imaging to verify heat dissipation in high-current switching components. Relay contacts exceeding 70°C under load indicate pending failure; replace with solid-state or mercury-wetted relays for currents above 10A. For servo valves, measure null shift drift quarterly–typically under ±2%–using an oscilloscope with differential probe. Exceeding ±3% drift induces position error in closed-loop systems, requiring recalibration via spool adjustment screws calibrated to 0.02 mm tolerance.

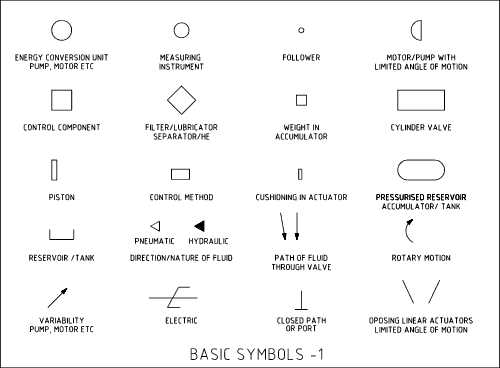

How to Decode Symbols in Fluid Power Blueprints
Begin by isolating basic shapes–circles, squares, and triangles–since they form the foundation of most graphical notations. A circle typically marks a pump or motor; note the arrow inside–if solid, it indicates fixed displacement, while a slashed arrow signals variable flow. Lines branching from these shapes reveal primary pathways: solid lines represent working conduits, dashed lines denote pilot controls, and dotted lines signify leaks or drains. Cross-reference each symbol with the legend immediately, as inconsistencies between standards (ISO 1219, ANSI Y32.10) can distort interpretation.
| Shape | Common Representation | Key Variations |
|---|---|---|
| Circle | Pump, motor | Arrow: fixed (solid), variable (slashed) |
| Rectangle | Valve, cylinder | Dashed outline: pilot-operated |
| Triangle | Check valve, spring | Filled: hydraulic, open: pneumatic |
Trace directional flow arrows next–these dictate operational logic. Inlets and outlets often include numerical labels (e.g., P for pressure, T for tank), but diverging conventions exist: some schematics use A/B for cylinder ports, others label them 1/2. Diagonal lines intersecting conduits usually indicate restrictions; wavy lines signal adjustable orifices. For valves, count the number of boxes–each box correlates to a discrete position, and symbols inside (e.g., T-lines, arrows) disclose port behavior in that state.
Resolve composite symbols last–these combine multiple functions into compact notations. A solenoid-driven valve, for instance, merges a rectangle (valve body), jagged line (electrical actuation), and internal arrows (flow paths). Overlapping triangles or rectangles stacked vertically often denote proportional or servo components. Validate ambiguities by locating measurable ports (pressure gauges, test points) labeled in the schematic–actual physical ports rarely deviate from their graphical counterparts.

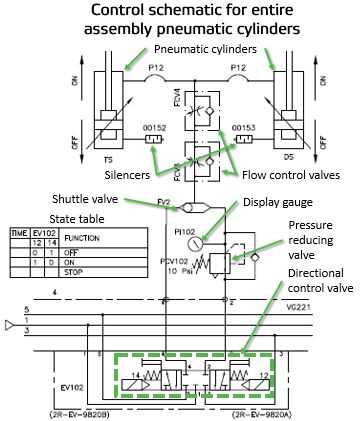

Step-by-Step Guide to Creating Compressed Air Circuit Blueprints for Machinery
Begin by isolating the key actuators–cylinders, rotary drives, or grippers–on graph paper or specialized diagramming software. Assign each a unique identifier (e.g., C-1, R-2) and note its bore, stroke, and required pressure range (typically 6–8 bar for industrial applications). Avoid generic symbols; use ISO 1219-2 standards for consistency. If working digitally, set grid snap to 5mm for precise alignment of lines and components.
Sketch the air supply with a compressor symbol at the top of the layout, followed by a filter-regulator-lubricator (FRL) unit. Label input/output ports (e.g., P for pressure, A/B for actuator ports). For multi-stage systems, add pressure gauges at critical junctions, marked with target values (±0.2 bar). Ensure all directional control valves–5/2, 3/2, or 2/2–are drawn with clear port connections (e.g., 1→P, 2→A, 3→R).
Component Placement and Flow Logic
Position valves directly above or beside their corresponding actuators, minimizing crossovers. Use solid lines for working air and dashed lines for exhaust/control signals. For interlocks, draw shuttle valves with explicit flow paths–label pilot ports (X, Y) and specify if they’re normally open/closed. Include silencer symbols for exhaust ports, especially near sensitive areas (e.g., food processing). If the system includes rapid exhaust valves, mark them with a speed requirement (e.g., “Exhaust >50 m/s”).
Add time-delay elements if sequencing is required: use symbols for pneumatic timers with a note on delay range (e.g., 0.5–10 s). For logic functions, combine OR/AND valves; highlight restricted flow paths with arrows. Verify every branch terminates at an actuator or silencer–never leave open lines. For complex circuits, split the diagram into functional zones (e.g., clamping, indexing) with dashed boxes and zone labels.
Finalizing with Annotations and Validation
Overlay pressure values at key points (
Export the final draft in DXF or PDF format, ensuring layers for each component type (supply, actuators, controls). For approval, attach a simplified one-page process flow showing only critical paths–omit silencers and secondary gauges. Store original files in a version-controlled repository with revision notes (e.g., “Rev 2: Added quick-exhaust at C-3”).
Critical Errors in Reading Machine Control Blueprints
Avoid treating power rails as interchangeable–mistaking a neutral line for ground in a 400V three-phase system causes immediate equipment failure. Verify voltage levels first: L1, L2, L3 may carry 230V each while a seemingly identical return line could be 0V referenced to ground. Cross-referencing every conductor against the legend prevents costly misconnections that bypass protective devices and void insulation ratings.
Neglecting contactor auxiliary contacts misleads fault tracing. A NO block labeled “K1-13/14” appearing identical to “K1-53/54” often controls separate circuits–confusing them disables interlocks, bypassing emergency stops. Mark differences with highlighters: red for power contacts, blue for signaling. Trace each path back to its control element before assuming parallel operation.
Common pitfalls when analyzing symbols:
- Assuming all switch symbols toggle the same way–momentary pushbuttons differ from maintained selector switches.
- Ignoring numeric labels on proximity sensors–”B1″ might trigger “K2,” while “B2” latches “K3.”
- Overlooking relay coil suppression–flyback diodes prevent arcing but degrade switching speed, affecting timing sequences.
- Misreading dashed lines as mechanical links–these often denote shielded conductors, not physical movement.
Sequence misinterpretation creates operational hazards. A motor start circuit relying on “K1” energizing before “K3” may fail if wiring reverses–resulting in overload before cooling pumps activate. Use a spreadsheet to map energization order: note coil designations, enable conditions, and interlock dependencies. Validate with a clamp meter during commissioning.
Color coding inconsistencies between international standards provoke confusion. IEC standards often show brown as phase, blue as neutral, green/yellow as ground, while North American schematics may inverse. Cross-check against terminal markings on junction boxes–electromechanical relays terminating at “T1” typically expect phase, not neutral, regardless of hue.
Power Distribution Missteps
Distributed loads require careful partitioning. A 16A breaker feeding both a processor (6A) and solenoid valves (4A each) may trip if actuators fire simultaneously, exceeding 9A–instead partition with separate fusing. Track ampacity per branch: copper conductors rated 1.5 mm² typically handle 15A in standard conduit, but 20°C ambient reduces capacity to 12A. Verify voltage drop calculations–3% loss over 50m with 2.5 mm² wire quickly erodes motor performance.
Hidden Assumptions in Safety Loops
- Omitting feedback signals from safety gates fools PLC logic–simultaneously opening two interlocked gates may bypass a neutral relay, leaving de-energized but hazardous circuits live.
- Presuming “E-stop” always cuts power globally–some loops isolate only control voltage, leaving main drives spinning.
- Ignoring pneumatic pressure switches in hybrid systems–a loss of 6 bar disables clamping actuators, yet the diagram may not flag this as a safety condition.
Audit every safety path twice: once for electrical continuity, again for mechanical redundancy.
