Begin with a phase-control silicon switch (SCR or triac) rated for at least 400 V and twice the expected current–typical 60 W bulbs draw ~0.5 A, so a 2 A device is ideal. Pair it directly to a RC timing network consisting of a 220 kΩ potentiometer and a 0.1 µF polyester capacitor; this sets the conduction angle and eliminates flicker. Place a 10 kΩ gate resistor between the timing node and the switch to prevent false triggering.
Add a snubber circuit–a 100 Ω resistor in series with a 0.047 µF capacitor–across the switch terminals to suppress voltage spikes; without it, you risk damaging both the switch and the bulb filament. Include a diode bridge (1N4007 ×4) ahead of the entire setup if the input is AC, ensuring bidirectional current flow regardless of polarity.
Ground the timing capacitor to a separate trace that bypasses the load path; otherwise, leakage current through the bulb can shift the firing point unpredictably. Verify operation with an oscilloscope–expect smooth, adjustable pulses between 30° and 150° conduction angle when rotating the potentiometer. If noise persists, reduce the capacitor to 0.068 µF; this sharpens the trigger edge without sacrificing dimming range.
Designing a Triac-Controlled Brightness Regulator
Start with a 220V AC mains input fed directly to the load (incandescent lamp) in series with a DB3 diac and a BT136 triac. Place a 10kΩ potentiometer in parallel with a 0.1µF polyester capacitor to form the timing network–this pair determines the conduction angle. Position a 4.7kΩ resistor between the potentiometer’s wiper and the diac’s anode to limit gate current; omit this component only if dimming range suffers at maximum brightness.
Key Component Alternatives
- Capacitor: Replace the 0.1µF polyester capacitor with a metallized polypropylene (MKP) rated ≥275VAC if flicker occurs under 20% power.
- Triac: For loads >300W, substitute the BT136 with a BTA16-600BW–ensure thermal pad is electrically isolated.
- Diac: Use a ST2 diac (breakover voltage ~32V) instead of DB3 if phase jitter is observed at low settings.
- Safety: Insert a 10nF X2-rated capacitor across the triac terminals to suppress transients >1kV.
Match the potentiometer’s taper to the load: logarithmic for tungsten filaments, linear for resistive heaters. Terminate unshielded control leads >15cm from AC conductors to prevent erratic triggering; twist them with a 100Ω series resistor if interference persists. Test the assembled regulator with an oscilloscope: verify the triac’s conduction period widens smoothly from 2ms (10% brightness) to 8ms (100%) without abrupt jumps near 50°C ambient temperature.
Core Elements Needed in a Thyristor-Controlled Illumination Regulator

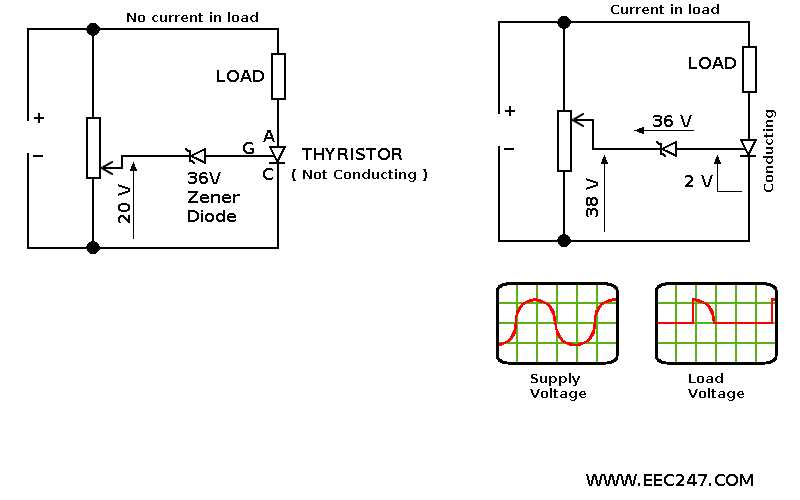

Begin with a phase-control thyristor–a silicon-controlled rectifier (SCR) rated for at least 400V Peak Reverse Voltage and 6A forward current to handle household AC loads. Pair it with a trigger diode (DIAC)–such as the DB3–to generate precise gate pulses when the voltage across the timing capacitor surpasses its breakover threshold, typically 32V. Ensure the SCR’s gate sensitivity matches the DIAC’s output; mismatches cause erratic firing or flickering.
Install a variable resistor (potentiometer, 250kΩ linear taper) and a fixed capacitor (0.1µF, 250V AC-rated polyester or MKT type) to form the RC network. This combination sets the charging time constant, dictating the conduction angle: lower resistance shortens the delay, increasing brightness. Use a snubber network (100Ω resistor + 0.01µF capacitor in series) across the thyristor’s anode-cathode to suppress voltage spikes, preventing false triggering or component damage.
Add a fast-acting fuse (2A) in series with the load to protect against short circuits. Include a filter choke (0.1H, 2A) if operating inductive loads like transformers–this reduces EMI and prevents misfiring. Verify all connections with a multimeter in diode-test mode before powering; a faulty DIAC or SCR often mimics an open circuit.
Assembling a Thyristor-Controlled Brightness Adjuster on a Prototyping Board
Begin by placing a DB3 diac (or equivalent trigger device) between the gate of the TRIAC (e.g., BT136) and the midpoint of a 220 kΩ potentiometer. Connect the potentiometer’s outer pins to the AC line via a 10 kΩ current-limiting resistor on one side and directly to the neutral on the other. Insert a 0.1 µF capacitor in parallel with the diac to smooth the firing pulses–this prevents erratic flickering at low intensity settings. Ensure the TRIAC’s anode and cathode are routed to the load (bulb) and neutral, respectively, with a non-polarized 47 nF snubber capacitor across them to suppress voltage spikes during switching.
Verify connections with a multimeter in continuity mode before applying power–pay special attention to the phase rotation of the TRIAC, as reversing it will disable adjustment. Test incrementally: start with the potentiometer at minimum resistance, then gradually increase it while monitoring output with an oscilloscope (if available) or by observing the bulb’s luminosity curve. For stability, add a 100 Ω resistor in series with the TRIAC’s gate; this dampens false triggers from line noise without impacting performance.
Triac and Diac Assembly for AC Waveform Modulation
Connect the triac’s main terminals (MT1 and MT2) in series with the load–e.g., an incandescent filament or halogen bulb–ensuring polarity does not matter since AC alternates direction. The gate terminal must be driven by the diac, which triggers at a fixed breakover voltage (typically 30–36 V). Select a triac with a current rating at least 1.5× the load’s maximum RMS current to prevent thermal damage during prolonged conduction.
A snubber network–consisting of a 100 nF capacitor in series with a 100 Ω resistor–should be wired directly across MT1 and MT2 to suppress voltage spikes exceeding the triac’s blocking capability (often 400–600 V). Without it, transient surges from inductive loads or switching can prematurely trigger the diac or degrade the triac’s junction. For 230 V mains, choose a 630 V triac; for 120 V, a 400 V model suffices.
Gate Drive Optimization
- Position the diac between the triac gate and a potentiometer (50–500 kΩ) forming a voltage divider with a fixed 15 kΩ resistor tied to MT2. This divider sets the phase angle delay, controlling conduction onset.
- Avoid exceeding 1 mA gate current; higher values reduce triac sensitivity and increase power dissipation. Use a 10 kΩ gate resistor if gate current exceeds 0.8 mA.
- For noise immunity, place a 0.1 µF ceramic capacitor from gate to MT1, shunting high-frequency interference that could falsely trigger the diac.
Thermal management dictates reliability: mount the triac on a heatsink with thermal resistance ≤ 10 K/W for loads ≥ 200 W. Apply a thin layer of thermal compound between the triac’s tab and the heatsink, then secure with an M3 screw torqued to 0.5 Nm. Verify isolation: some triacs (e.g., BTA16) have a live tab requiring an insulating kit; others (e.g., TIC226) are insulated.
- After assembly, test phase control with an oscilloscope: probe across MT1-MT2–waveform should show a clean chop of the AC sinewave, not distorted or bifurcated segments.
- If conduction begins asymmetrically (earlier/later in half-cycles), reverse the diac polarity; breakover voltage is often asymmetrical.
- For dimming ranges below 20% brightness, substitute the potentiometer with a microcontroller-driven optocoupler (e.g., MOC3021) to achieve smoother low-end control without flicker.
Component selection anomalies can derail performance: diacs with tight tolerance (±2 V) ensure consistent dimming across units. Triacs with 4–6 µs turn-off time (e.g., BT136) minimize audible buzz in lamps. Always fuse the line side with a slow-blow fuse rated 1.25× the triac’s current limit to protect against short circuits without nuisance trips.
Configuring the RC Stage for Consistent Brightness Control
Select a resistor between 4.7kΩ and 10kΩ for the charging path–values below 4.7kΩ accelerate trigger timing, reducing the effective dimming range, while those above 10kΩ introduce noticeable flicker at low brightness levels. Pair this with a capacitor rated 0.1µF to 0.47µF; smaller values (0.047µF) yield abrupt transitions, whereas larger ones (1µF) smooth adjustments but delay response time beyond practical limits.
Use polyester or polypropylene capacitors for stability–electrolytic types drift with temperature swings, skewing trigger consistency. Ensure the resistor’s power rating exceeds 0.25W; carbon-film resistors dissipate heat evenly, preventing premature failure under pulsed loads.
| Resistor (kΩ) | Capacitor (µF) | Dimming Range (%) | Flicker at Low Settings |
|---|---|---|---|
| 4.7 | 0.1 | 85–98 | Moderate |
| 6.8 | 0.22 | 70–95 | Minimal |
| 10 | 0.33 | 50–90 | None |
Connect the resistor directly to the triac’s gate via the capacitor–avoid solder joints longer than 8mm, as stray inductance introduces phase shifts, distorting trigger timing. For 230VAC systems, maintain a 400V minimum rating on the capacitor to prevent breakdown during voltage spikes. Polarity doesn’t apply here, but orientation impacts stray capacitance; align leads perpendicular to the PCB traces to minimize interference.
Test the RC combination with an oscilloscope: the ramp waveform should rise smoothly without abrupt inflections. A jagged slope indicates excessive resistance or capacitor leakage–replace components if the deviation exceeds 5% of the expected charge curve. For 50Hz mains, the time constant (τ = RC) should fall between 2ms and 5ms; shorter τ values compress the adjustment window, while longer ones risk triac misfiring.
Add a 220Ω shunt resistor across the capacitor terminals to discharge residual voltage between cycles; without this, lingering charge causes hysteresis, making the dimmer unresponsive to small knob adjustments. For precision control, substitute a potentiometer (5kΩ–20kΩ) for the fixed resistor–linear taper models provide uniform sensitivity across the rotation range.
Isolate the RC network from the load path using a ceramic disc capacitor (0.01µF/1kV) in series with the gate; this blocks DC offsets that could latch the triac prematurely. Verify component tolerance: resistors should be ±5%, capacitors ±10%–wider tolerances skew the dimming curve unpredictably.
Calibrate the dimmer by measuring the trigger angle with a phase meter. At full brightness, the triac should fire at 170°–175°; below 160°, the lamp may extinguish or pulse erratically. If adjustments feel nonlinear, reduce the capacitor value incrementally until control smoothness aligns with the mechanical rotation of the potentiometer.
Seal the RC components in a conformal coating if operating in humid environments–moisture bridging across the capacitor plates alters capacitance, creating drift. For dimmers controlling filament loads under 40W, add a snubber network (100Ω resistor + 0.01µF capacitor) across the triac terminals to suppress voltage transients that disrupt timing.
