Examine the power inlet first–most household variants operate at 220-240V AC, with dedicated lines requiring 30-50A breakers. Trace the live (hot) wire from the terminal block to the control module; it’s typically color-coded red or brown. Neutral (blue or white) grounds through the chassis, while the ground wire (green/yellow) connects directly to the metal frame. Verify continuity between the neutral and ground–resistance should read <0.5 ohms for safety compliance.
Locate the thermal cutoff switch (usually 180-220°C rated) positioned near the heating coils. This component interrupts the circuit if internal temperatures exceed threshold–test it with a multimeter by applying 200VAC and monitoring current drop when heated. The relay cluster, often a SPST or DPDT, toggles power to the elements based on thermostat signals. Check coil resistance on each burner: 25-40 ohms (medium-load), 40-70 ohms (high-load)–deviation indicates wear or short-circuit risk.
For dual-element configurations, prioritize the inner ring (rapid-heat)–its resistance should measure 20-30% lower than the outer. The infinite switch (rotary or push-button) modulates power via PWM; inspect solder joints for micro-fractures, as failed contacts cause inconsistent heating. If repairing, replace wiring with Teflon-coated copper (12-10 AWG)–PVC insulation degrades above 90°C. Always disengage the main breaker before probing live circuits.
Ground-fault detection requires measuring leakage current–use a clamp meter at the distribution panel. Values above 5mA signal insulation breakdown. For induction models, focus on the IGBT module; overheating here (>100°C) trips overcurrent protection. Log diagnostic readings in an ASCII table for reference:
| Component | Expected Value | Failure Mode |
|---|---|---|
| Booster coil | 15-25Ω | Open circuit |
| Thermostat (max) | 200°C cutoff | Stuck closed |
| Top element | 45-65Ω | Short to ground |
Post-repair, bench-test with a variac (simulating 180-250V range) to confirm element responsiveness under variable loads. Document fuse ratings–most appliances use 15A slow-blow types–substitutes must match both current and interrupt capacity.
Understanding Household Cooktop Wiring Layouts
Begin by locating the main power input on the heating unit–typically a terminal block or heavy-duty cable entry point rated for 240V AC in residential settings. Verify the wire gauge against local electrical codes: for a 40-amp circuit, 8 AWG copper conductors are standard, while 50-amp circuits require 6 AWG. Connect the black and red conductors to the dual-pole breaker, ensuring the breaker’s amperage matches the cooktop’s nameplate rating (e.g., 7.2 kW models usually demand 30A). Ground the unit via a bare copper wire or green-sheathed conductor fastened to the chassis and bonded to the neutral bus bar in the service panel. Use a torque screwdriver to tighten terminal screws to manufacturer specifications–usually 15-20 lb-in–to prevent overheating at connection points.
The internal circuitry splits into two primary branches: control and heating. The control branch manages the user interface, often powered by a low-voltage 12V DC transformer feeding touch panels or rotary switches. Trace the transformer’s secondary winding to confirm it steps down from 240V to 12V without shorts–test with a multimeter set to AC voltage. Heating elements–resistive coils or radiant halogens–operate in parallel or series depending on the model; consult the service manual for resistance values (e.g., 30Ω for a 2 kW burner at 240V). For induction models, identify the high-frequency inverter board, which converts DC to 20-50 kHz AC–inspect for swollen capacitors or burnt MOSFETs during diagnostics.
Avoid common pitfalls by cross-referencing the wiring color codes with regional standards:
| Region | Live (L1) | Live (L2) | Neutral | Ground |
|---|---|---|---|---|
| North America | Black | Red | White | Green/Bare |
| EU/UK | Brown | Black | Blue | Green-Yellow |
| Australia | Red | White | Black | Green |
When replacing components, ensure the new part’s temperature rating exceeds the original–ceramic connectors should withstand 250°C, while silicone-insulated wires tolerate 200°C. For dual-fuel units with gas burners, isolate the electrical traces feeding spark igniters or safety valves; these often share a 120V circuit but require a separate 3A fuse. Label each wire with heat-shrink tubing before disconnecting–mismatched reconnections can trip GFCIs or damage controllers. Test the circuit with a non-contact voltage detector before reassembly to confirm residual charge dissipation.
Advanced models integrate smart features via Wi-Fi modules or NFC-enabled control boards. To troubleshoot connectivity issues, probe the UART pins on the mainboard: TX/RX signals should pulse at 3.3V when communicating with the mobile app. If the cooktop fails to heat, measure the voltage drop across the heating element’s relay–replace the relay if the reading deviates by more than 5% from the expected 240V. For dimmer-controlled halogen burners, check the TRIAC’s gate voltage; a faulty TRIAC will show no triggering signal (typically

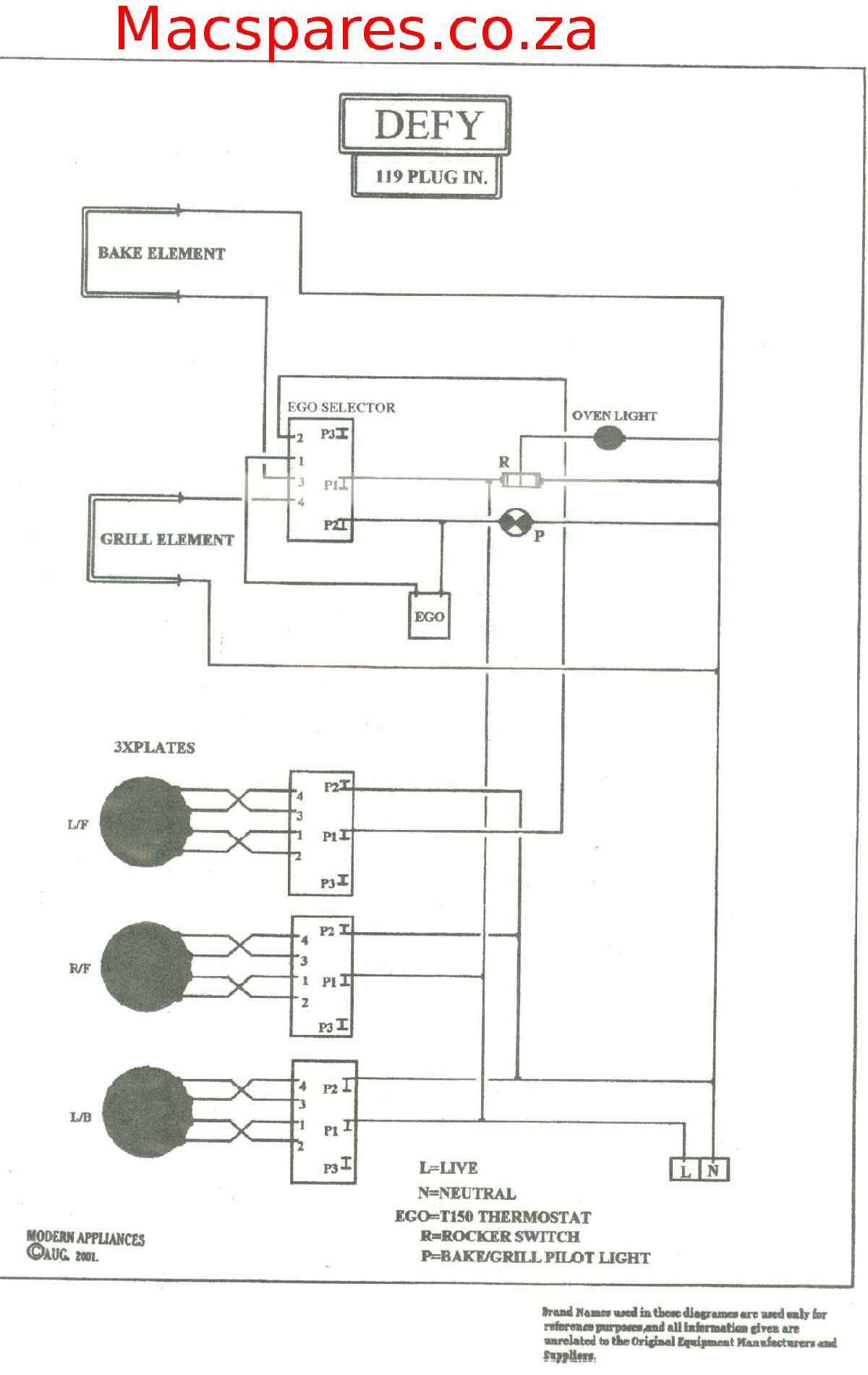

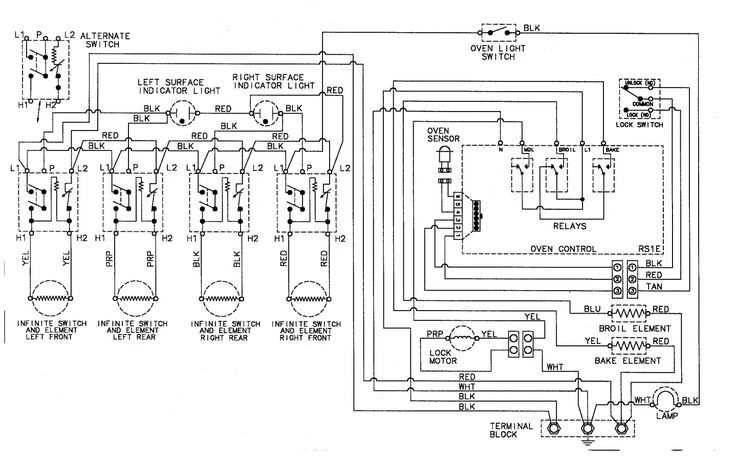

Pinpointing Core Elements in a Cooktop Circuit Blueprint
Locate the heating elements first–these resistive coils transform current into thermal output and reside beneath the cooking surface. Verify their resistance using a multimeter: typical values range from 20 to 60 ohms; deviations demand replacement. Trace their wiring to the terminal block, where sequential markings (L1, L2, N) denote phase, neutral, and grounding connections. Incorrect pairing risks uneven heating or circuit overload.
- Control switch assembly: rotary knobs or digital interfaces route power through infinite or preset resistance paths to modulate intensity. Inspect for burn marks, loose contacts, or cracked insulation–symptoms of arcing. Replace if continuity tests fail across adjacent terminals.
- Thermal fuse: concealed beneath the cooktop, this single-use component ruptures at 180–220°C to prevent fires. Bypass only for testing; permanent reinstatement requires exact model specs.
- Relay module: solid-state types manage high-current cycles silently; electromechanical relays emit audible clicks during activation. Probe both coil and contact sides–coil impedance ~50–150 ohms, contacts should show zero ohms when engaged.
Examine the power inlet cord for strain relief–look for frayed strands or brittle insulation, especially where the cable exits the appliance chassis. Replace cords rated below 16 AWG for 240V circuits to prevent overheating. Secure ground wires to chassis studs; omitted grounding triples electrocution risk during faults.
- Assemble a component map: sketch terminals, wire gauges (14–12 AWG for 120V branches), and color codes (black/red=hot, white=neutral, green/bare=ground).
- Isolate circuits with a non-contact voltage detector before disassembly–energized terminals can retain hazardous charges even after breaker tripping.
- Cross-reference wire labels with manufacturer wiring grids; mismatches between diagrams and actual units occur in post-factory retrofits.
- Test capacitive touch panels for ghost inputs; defective sensors exhibit erratic response or require excessive pressure.
Step-by-Step Guide to Tracing Power Flow in a Cooking Appliance Circuit
Start by isolating the unit from the mains. Flip the dedicated breaker to the OFF position and verify zero voltage at the terminal block using a multimeter. A reading above 5V indicates residual current or faulty isolation–recheck connections before proceeding.
Locate the L1, L2, and neutral terminals on the rear panel. Document wire gauge and color coding: gauge dictates current capacity (typically 10-6 AWG for 240V elements), while colors vary by region (common: black/red for hot, white for neutral, green for ground). Cross-reference with local codes if discrepancies arise.
Key Components to Inspect
Examine the infinite switch for continuity. Remove it and test with a multimeter in resistance mode–closed contacts should show near 0Ω when activated. Burn marks or pitting on contacts signal arcing; replace if resistance exceeds 2Ω. Note the switch’s dual-function: it both powers the heating element and cycles the thermostat.
Trace the path from the switch to the heating coil. Bypass wires should be 8-12 AWG, depending on wattage (1500W coils use 12 AWG; 3000W coils require 10 AWG). Follow the coil’s loops–uniform spacing prevents hot spots. Test for continuity across the coil’s terminals; resistance should match the manufacturer’s spec (e.g., 16-24Ω for a 2000W coil).
Check the thermostat’s role in the loop. Unlike the switch, it constricts current flow when the target temperature is reached via a bimetallic strip or capillary tube. Verify its placement upstream of the coil–incorrect positioning causes overheating. Test by slowly heating the sensor with a hairdryer while monitoring resistance; abrupt jumps confirm proper operation.
Reassemble in reverse order, ensuring all fasteners torque to 12-15 in-lbs to prevent vibration-induced loosening. Restore power and monitor the first heating cycle with a clamp meter: current should stabilize within 10% of the coil’s rated value (e.g., 8.3A for a 2000W unit at 240V) within 30 seconds. Deviations suggest incorrect wiring or a compromised component.
For three-wire systems, confirm the neutral wire carries only control circuit loads (e.g., indicator lights). In split-phase setups, monitor L1 and L2 separately–uneven current draw (>0.5A difference) indicates an imbalance; rebalance or reduce load. Always cap unused terminals with insulated wire nuts to prevent accidental shorts.
