If your all-terrain vehicle fails to engage when pressing the ignition button, check the solenoid connections first. The black wire with a white stripe (B/W) must link directly to the solenoid’s input terminal, while the black wire (B) connects to the output. Use a multimeter set to 12V DC to verify voltage at the solenoid when the button is held–readings below 10V signal a weak battery or corroded terminals.
Critical Points for Troubleshooting:
1. Battery Health: A fully charged lead-acid unit should read 12.6V+ when idle. Anything under 12.2V risks insufficient cranking amperage. Replace if sulfation is visible on plates.
2. Ground Path: Scrape paint from the frame’s mounting point before securing the ground lug. A loose or oxidized ground drops voltage by 0.5V or more under load.
3. Starter Relay: Swap with a known-good relay if the solenoid clicks but the motor doesn’t spin. Wire colors on the OEM relay: red (R) for power, yellow (Y) for ignition feed.
For models with an auxiliary flip-switch (e.g., 2001–2008 Grizzly-derived units), the grey wire (G) bypasses the main ignition circuit. Splice it with a 10A inline fuse to prevent burnout. Label all wires with heat-shrink tubing–yellow for ignition, red for constant power–to avoid reversing polarity during reassembly.
Refer to the OEM service manual’s page 3-12 for torque specs on starter bolts: 18 ft-lbs (M8) or 24 ft-lbs (M10). Over-tightening cracks the housing, causing internal shorts. Use dielectric grease on all connectors to block moisture ingress.
Automated Ignition System for ATV Powerheads: Circuit Layout Guide
Locate the solenoid near the battery’s positive terminal–ensure it’s rated for at least 30A continuous current if the engine is 500cc or larger. Connect the ignition switch’s output wire (typically red or orange) to the solenoid’s smaller terminal using 14-gauge wire; confirm crimping with heat-shrink tubing to prevent corrosion. The solenoid’s larger terminal routes directly to the starter motor via a 10-gauge cable, fused at 40A no more than 30 cm from the battery. Ground the motor’s case to the frame with a dedicated 8-gauge wire, avoiding shared grounds with lighting or ECU circuits.
Test voltage at the solenoid’s activation terminal while pressing the ignition button–readings should drop from 12.6V to below 0.5V. If voltage remains high, inspect the kill switch for shorts or replace the ignition relay. For models with a separate starter relay, wire it in parallel: solenoid’s activation terminal to relay coil, relay’s common terminal to the ignition switch, and relay’s normally open terminal back to the solenoid. Use dielectric grease on all connections to prevent moisture ingress, particularly in the chassis-mounted starter motor common on 2010–2018 models.
Locating Critical Conductors in the ATV Kick-Free Ignition Setup
Begin by tracing the battery’s positive lead–typically a thick red cable–from the power source to the solenoid. This connection often splits into two: one branch heads directly to the ignition switch, while the other merges with the relay. Verify continuity with a multimeter; voltage should read 12.6V when fully charged. If readings drop below 11.8V, inspect terminal corrosion or a failing battery before proceeding.
Next, isolate the solenoid’s smaller trigger wire, usually a thin yellow or orange conductor. This link bridges the ignition switch and relay, activating the starter motor when the key is turned. Disconnect this wire at both ends, then test for resistance–values exceeding 0.5 ohms indicate internal damage or excessive length, requiring replacement. Ensure the wire isn’t pinched under body panels or exposed to engine heat, as insulation breakdown can cause intermittent failures.
Common Conductor Colors and Functions
| Color | Primary Role | Key Connection Points | Troubleshooting Tip |
|---|---|---|---|
| Red (thick) | Main power feed | Battery → Solenoid → Ignition switch | Check for voltage drop under load |
| Black | Ground reference | Engine block → Frame → Battery negative | Scrape paint at contact points for bare metal |
| Yellow/Orange | Relay trigger | Ignition switch → Solenoid | Test for 12V when key is turned |
| Brown/Purple | Starter motor output | Solenoid → Motor | Listen for a sharp click during activation |
Examine the ground path–most failures stem from poor earth connections. Locate the thick black cable linking the engine block to the frame or battery negative terminal. Clean both contact surfaces with a wire brush, removing oxidation or paint, then secure with a star washer for optimal conductivity. A loose or corroded ground can mimic battery, relay, or motor issues, so prioritize this step before replacing components.
Finally, test the starter motor’s live input, usually a heavy-gauge brown or purple cable from the solenoid. With the key held in the crank position, use a multimeter to confirm 12V at this terminal. If voltage is present but the motor doesn’t engage, the issue lies within the motor itself–disassemble to check for worn brushes or a seized armature. Absence of voltage suggests a faulty solenoid or relay, which can be bypassed temporarily by bridging the large terminals with a screwdriver (do this only for testing, as it risks damaging the ignition system).

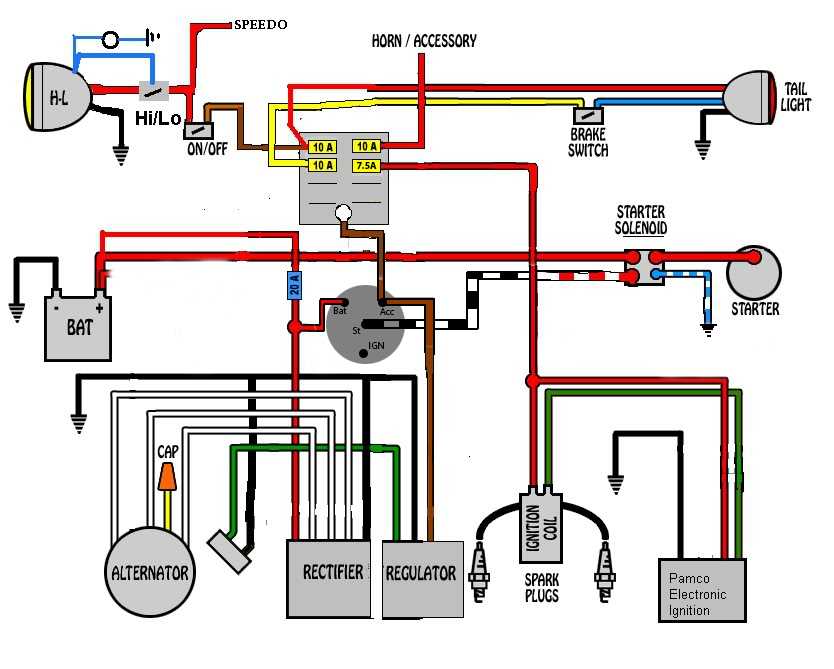

Step-by-Step Guide to Tracing the Ignition Activation Network on a Schematic
Locate the battery’s positive terminal output on the blueprint–typically marked as a thick red line branching from the power source. Follow this line to the first junction, usually a fuse or relay, and verify its label matches the component list for your vehicle model (e.g., *Kawasaki Brute Force 750* uses a 30A fuse). If tracing digitally, toggle layers to isolate the activation loop; if working on paper, use a highlighter to avoid mixing circuits.
Key Checkpoints in the Circuit
- Switch Contact: Identify the activation switch symbol–a rectangular box with three terminals (common, NO, NC). Trace the common terminal to the relay coil.
- Relay Coil: The coil’s input side connects to the switch; the output side grounds through a diode (look for a triangle with a line). Cross-reference the relay’s pinout (e.g., *Bosch 4-pin* vs. *Tyco 5-pin*) to avoid miswiring.
- Solenoid Trigger: From the relay’s switched output, follow the line to the solenoid’s small terminal. Measure voltage here (should match battery voltage when the switch is engaged). If voltage drops, inspect the relay contacts for corrosion.
- Starter Motor Connection: The solenoid’s large terminal connects directly to the motor via a thick cable. Ensure this line is uninterrupted–no splices or aftermarket additions that could introduce resistance.
Use a multimeter in continuity mode to validate each segment before powering on. Disconnect the battery’s negative lead before probing to prevent accidental shorts. If the schematic lacks labels, compare against a known-good unit or OEM manual for reference.
Common Circuit Problems and Troubleshooting Steps
Begin by inspecting the battery terminals for corrosion or loose connections–this causes intermittent power loss even with a charged unit. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation. Verify voltage with a multimeter: a reading below 12.4V indicates insufficient charge, requiring a recharge or replacement if sulfation is visible on plates. Check the ground cable connection to the frame, ensuring it’s tight and free of paint or rust; a poor ground mimics starter failure by reducing current flow.
Solenoid and Relay Failures
Tap the relay lightly while engaging the ignition–a temporary response suggests internal contact issues. Remove the relay and test continuity between terminals 85 and 86 (coil) and 30 and 87 (contacts) with a multimeter; infinite resistance confirms a failed unit. Replace relays in pairs if age exceeds 5 years, as heat cycles degrade internal components unevenly. For solenoid testing, measure voltage at the input terminal when the key is turned: absence of 12V signals a broken ignition switch or blown fuse, while voltage drop below 9.6V indicates high resistance in cables.
Examine the stator output under load by disconnecting the regulator leads and running the engine at 3000 RPM–readings should be 18-25V AC; deviations suggest winding short or open circuit. Trace each wire from the handlebar controls to the harness for chafing or pinch points, especially near sharp edges or moving parts. Use a tone generator to identify fractured conductors hidden under insulation. Secure loose harnesses with zip ties spaced no more than 6 inches apart, ensuring no strain on connectors.
Essential Gear for Diagnosing and Fixing Ignition Circuitry
Begin with a multimeter capable of measuring DC voltage (0-20V range), resistance (0-200Ω), and continuity. A Fluke 17B or Klein MM700 ensures accuracy–avoid cheaper models with erratic readings. Set the meter to DC voltage to verify battery output (12.6V fully charged) and trace power drops across the solenoid, relay, and starter button contacts. For resistance checks, test the ignition switch, kill switch, and ground connections; values above 0.5Ω indicate corrosion or loose terminals. Use needle probes to pierce wire insulation for hidden shorts without damaging cores.
- Insulated screwdrivers (Phillips #2, flathead 5/16″)–magnetic tips risk damaging control modules, so opt for ESD-safe versions.
- Wire strippers/crimpers (e.g., Knipex 97 52 24) with 16-14 AWG slots for repairing frayed cables or replacing terminals.
- Solid-core jumper wires (18-14 AWG, 30cm lengths) with alligator clips to bypass suspect components during diagnostics.
- Heat-shrink tubing (polyolefin, 1.5:1 shrink ratio) + butane torch for waterproof repairs–electrical tape degrades under vibration.
- 12V test light (non-LED) to confirm current flow at the solenoid without a multimeter’s finicky settings.
- Battery load tester to rule out weak cells before tampering with circuitry; a Centech DL-3 handles 6V/12V systems.
- Contact cleaner (DeoxIT D5) and dielectric grease for treating corroded bullet connectors and switch contacts.
- Torque wrench (0-25 ft-lbs) for tightening battery terminals–overtorque distorts lead posts.
- Zip ties (UV-resistant, 4.8mm width) to secure loose harnesses away from exhaust and moving parts.
- Shop manual explosion diagrams–identify pinouts for the CDI unit and regulator/rectifier; Haynes or OEM guides specify wire colors (e.g., Y/G = yellow/green stripe for ignition feed).
