Choose a relay with a response threshold matching your system’s load requirements–standard models activate at 120V or 240V AC with tolerances of ±5%. Verify the switching capacity: heavy-duty variants handle 15A to 30A, while compact designs cap at 10A. Prioritize snap-action mechanisms to prevent arcing in inductive circuits.
Critical installation steps: Mount the device vertically to avoid moisture ingress in vented enclosures. Use 18 AWG stranded copper wire for signal paths and 14 AWG minimum for power lines. Isolate control wires from high-voltage conductors by at least 50mm to prevent electromagnetic interference. Apply dielectric grease to terminals when operating in damp conditions, reducing corrosion risk by up to 40%.

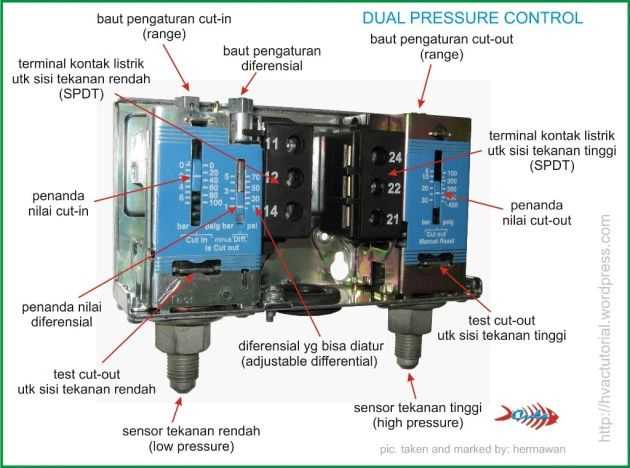

For systems demanding precise calibration, opt for adjustable differential relays. Set the cut-in point 0.5 psi above the minimum operating threshold and the cut-out 0.7 psi below the safety limit. This margin prevents rapid cycling–common in compressors–which shortens lifespan by 30%. Test the relay under load before permanent installation; a multimeter should show clean transitions between open and closed states.
Replace the relay immediately if:
– Contact resistance exceeds 0.1Ω.
– Delayed response >200ms at activation.
– Visible pitting on contact surfaces.
These faults indicate wear and compromise system reliability. For critical applications, install a secondary mechanical override to bypass failed relays during emergencies.
When sourcing components, avoid counterfeit relays–common in online marketplaces–which often lack proper UL/CSA certification. Authentic units include a laser-etched serial number and internal suppression diodes. Cost-saving alternatives exist but require derating: a $15 generic may handle 80% of the load of a $40 branded model.
Understanding AC Compressor Control Circuit Layouts
Integrate a normally open (NO) contactor into the 24V control loop for direct cut-off during overloading conditions, bypassing intermediary relays. Place the sensing element as close to the compressor discharge port as possible–preferably within 15 cm–to minimize response lag. Use 18 AWG stranded copper wire for signal paths to reduce voltage drop under 0.3V across 5-meter runs.
Critical Component Placement
- Mount the actuator on vibration-dampening brackets if ambient tremor exceeds 0.5G at 50Hz.
- Position the reset button on the panel’s lower edge, outside the operator’s primary reach zone to prevent accidental engagement.
- Separate high-voltage (230V) traces from low-voltage (24V) traces by at least 25 mm on PCB layouts; maintain a clearance of 10 mm even for enclosed tracks.
Set differential thresholds at 20% above system nominal–typically 3.5 bar for 3-ton units–but ensure factory presets are overridden only via jumpers soldered to 1% tolerance resistors. Verify contact bounce does not exceed 15 ms; if detected, insert a 10 µF polyester capacitor parallel to the coil to stabilize transitions.
Include a manual override toggle rated for 10A inductive loads directly beneath the primary breaker–label it in red with 4 mm tall characters to comply with IEC 60073. Test thermal derating by cycling the actuator 1000 times at 80% of rated current; resistance drift must stay within ±2%.
- Connect the alarm output to a PLC input module using shielded twisted pair; ground the shield at the PLC end only.
- Attach a 470 Ω series resistor to LED indicators to limit current to 20 mA at 24V.
- Use snap-action micro switches for auxiliary contacts–avoid slow-moving reed types in high-humidity environments.
Post-Installation Validation
Measure response time from trigger to cut-off using a dual-channel oscilloscope; acceptable latency is under 80 ms. Record leakage current across contacts in standby–maximum 1 µA at 40°C. If ambient temperature surpasses 60°C, replace standard polyimide PCB traces with 2 oz copper-clad laminates.

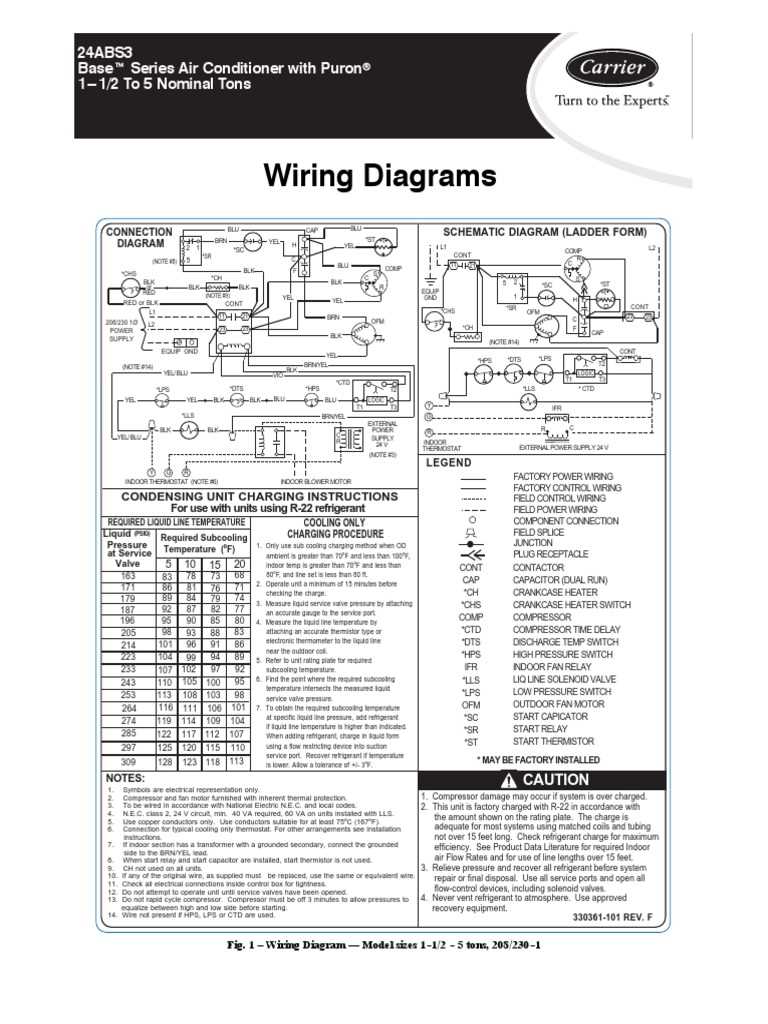

Decoding HVAC Control Circuit Symbols for Cooling System Triggers
Locate the normally open (NO) and normally closed (NC) contacts on the wiring plan by scanning for a circle with a diagonal line–this marks the compressor safety cutout. The line typically intersects a pair of arrowheads indicating refrigerant flow direction, helping distinguish it from similar symbols like thermal overloads. ANSI Y32.2 standards dictate these contacts use letters “C” (common), “NO”, and “NC” inside rectangular callouts adjacent to the circle, eliminating guesswork on older blueprints lacking legend keys.
Compare the notation against industry-standard IEC 60617 reference tables to confirm symbol interpretation. A partial cross-reference table:
| Symbol Shape | IEC Identifier | Function in Cooling Circuit |
|---|---|---|
| Circle with diagonal slash | 07-02-01 | Compressor high-side safeguard |
| Triangle pointing outward | 07-07-03 | Low refrigerant alarm |
| Double diagonal lines on rectangle | 07-15-04 | Dual-stage overpressure relay |
Trace wires from the device back to the 24V control network–most triggers share color coding: red (hot), yellow (compressor request), and brown (common). If the wiring map omits labels, use a multimeter to verify continuity across contacts during idle and active states; NO should read open when idle, closing under safe operating thresholds, while NC performs the opposite.
Note variations in European designs where symbols merge with DIN EN 60617 conventions–expect squarer outlines and filled triangles for alarm states instead of arrowheads. Always cross-check with equipment datasheets if symbols deviate; manufacturers like Danfoss and Johnson Controls often override standard shapes with proprietary glyphs.

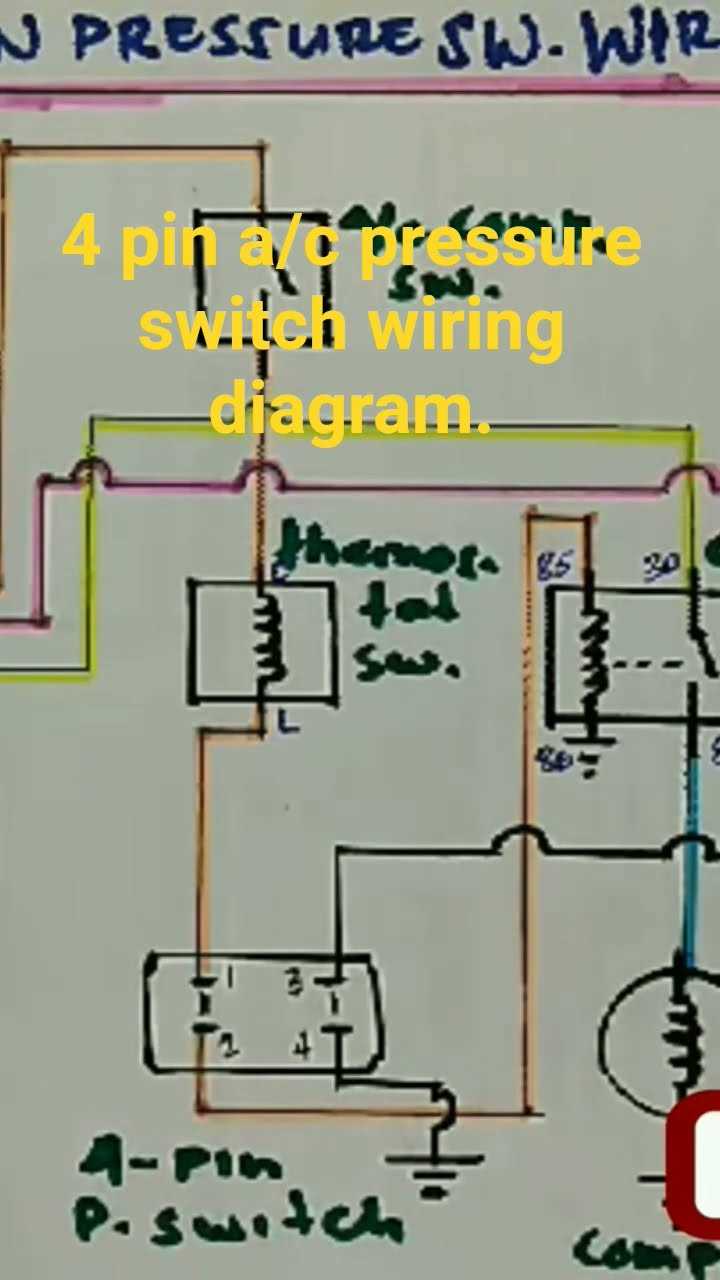

Step-by-Step Wiring Guide for HVAC Current-Sensing Component Integration
Disconnect the main power supply at the circuit breaker before handling any wires–even low-voltage connections can cause arcing if mishandled. Identify the compressor’s control circuit terminals: typically labeled “C” (common), “NC” (normally closed), and “NO” (normally open) on the sensing device. For single-stage cooling systems, splice the common wire (often brown or black) into the NC terminal, then run a 14–16 AWG stranded copper wire from the NO terminal to the compressor contactor coil–this ensures the circuit opens under high-side overload. Test continuity with a multimeter (set to Ω) between the NC and common terminals; resistance should read near zero when de-energized.
For dual-stage systems, integrate a 10 kΩ pull-down resistor between the NO terminal and ground to prevent false tripping–ambient noise can trigger erratic responses in underdamped circuits. Use crimp connectors (not twist-and-tape) for all splices, then secure with heat-shrink tubing rated for at least 125°C to withstand thermal cycling. Reconnect power and monitor with a clamp meter at the compressor lead: current draw should drop below 0.5A within 3 seconds of simulated high-pressure conditions. If latency exceeds thresholds, verify the relay’s hysteresis setting or recalibrate the transducer’s response curve via manufacturer-recommended parameters–generic defaults often misalign with inverter-driven units.
Common Faults and Troubleshooting in HVAC Current-Control Circuits
Check for corroded contacts first–oxidation buildup at relay terminals causes intermittent cutoff signals, particularly in humid environments. Use a multimeter to measure resistance across the actuating mechanism while manually triggering the cutoff; readings above 1Ω confirm corrosion. Sandpaper (#400 grit) or contact cleaner restores conductivity, but replace the component if pitting exceeds 0.2mm depth.
Erratic Cutoff Signals
Fluctuating voltage from a failing power supply or loose wiring triggers false activations. Probe the control board’s sensing lines with an oscilloscope–ripple exceeding 5% of nominal voltage identifies a degrading capacitor. Tighten all terminal screws to 2.5Nm torque, then recheck waveform stability. If ripple persists, bypass the capacitor temporarily to isolate the fault before replacement.
Misaligned mechanical linkages in bellows-type sensors degrade over 10,000 cycles, especially under thermal stress. Lubricate pivot points with silicone grease (NLGI grade 2) and recalibrate using a refrigerant manifold gauge. For electronic sensors, verify signal drift by comparing output voltage to manufacturer specs–deviation beyond ±3% requires recalibration via onboard potentiometers or sensor replacement.
Essential Instruments for Verifying Climate Control Circuit Contacts
Begin with a multimeter capable of measuring resistance, voltage, and continuity. Select a model with accuracy down to 0.1 ohms to detect subtle variations in low-resistance circuits. Ensure it supports both AC and DC readings–many compact HVAC components use DC for signal processing despite the system operating on AC power. A true RMS meter is critical for distorted waveforms common in variable-speed compressors. Avoid cheap analog alternatives; digital models with auto-ranging save time and reduce human error.
Specialized Probes and Adapters
Use needle-tip probes for accessing tight terminal blocks without shorting adjacent contacts. Insulated alligator clips work for extended tests but require secure attachment to prevent intermittent false readings. For sealed systems, invest in piercing probes–these clamp onto insulated wires, temporarily penetrating the jacket without permanent damage. Backprobe connectors designed for automotive sensors are equally effective on residential climate controls, especially for diagnosing 3-wire floating-gate transducer configurations.
Thermal imaging cameras reveal hotspots invisible to standard meters. A basic entry-level model with ±2°C accuracy suffices for locating wiring faults or overheating relays hidden behind panels. Cross-reference thermal data with voltage drops; a 0.2V discrepancy at a crimp often correlates with a 5-10°C temperature rise. Pair the camera with a contact thermometer for verifying readings–surface emissivity on oxidized aluminum terminals can skew results by up to 15%.
Manifold gauges validate circuit behavior against actual system dynamics. High-side and low-side readings should mirror the expected cut-in/cut-out thresholds within ±3 PSI tolerance. Digital gauges with data logging document pressure curves, revealing hysteresis issues not apparent in static tests. A vacuum pump and micron gauge round out the setup, essential for evacuating contaminants before charging–even 0.01 oz of moisture can coronal a contact gap.
Document everything with a polarized connector test lead and a fiber-optic inspection scope. The former ensures proper plug polarity in molded connectors that often lack keying on universal replacement parts. The scope checks for internal arcing, pitting, or carbon tracking invisible through standard continuity tests. Record all findings in a spreadsheet with columns for: reading type, measured value, expected range, tolerance percentage, and pass/fail status. This structured approach isolates intermittent faults in less than 20 minutes–a critical advantage when diagnosing seasonal systems.
