Start with a 5V regulated power supply–either a USB adapter or a 9V battery paired with a 7805 voltage regulator. Avoid unregulated sources: voltage spikes above 5.5V will damage CMOS logic chips like the 4017 decade counter or 4081 AND gates, which are core to this setup. Use a 0.1µF ceramic capacitor across the power rails for noise suppression, especially if running the system from a battery.
Wire each question-answer pair to a CD4081 quad AND gate. Connect one input of the AND gate to the question terminal, the other to the corresponding correct answer. The output should trigger a 2N2222 transistor, which drives a low-current LED (max 20mA) with a 470Ω resistor in series. Incorrect answers remain dark–a simple but effective feedback mechanism.
For multi-choice setups, chain CD4017 counters to step through ten questions sequentially. Clock pulses come from a debounced pushbutton (use a 1µF capacitor and 10kΩ resistor for debounce). Reset the counter after the tenth question to restart the cycle. Add a piezo buzzer (active, 3V) to the fourth CD4017 output for an audible “win” signal–no resistors needed, as the chip sinks current directly.
Mount all components on perfboard with 2.54mm pitch. Solder question/answer wires directly to header pins or use 12-way screw terminals for secure, detachable connections. Test continuity with a multimeter before powering up: shorts between neighboring pins (common with tight pitch) can latch the counter in unpredictable states. Use 3mm diameter copper rivets as contact points–cheap, reliable, and reflow-solderable.

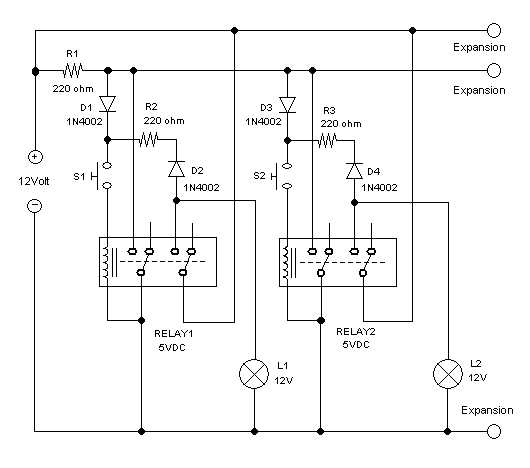

For larger setups, replace LEDs with 5V relays to control heavier loads (e.g., lamps or solenoids). Keep relay coils under 100mA; exceed that and you’ll need a ULN2003 Darlington array. Route all high-current paths separately from logic signals to prevent ground loops. A flyback diode (1N4007) across each relay coil is non-negotiable–omit it and you’ll fry adjacent chips within seconds.
Building an Interactive Knowledge Tester: A Practical Guide

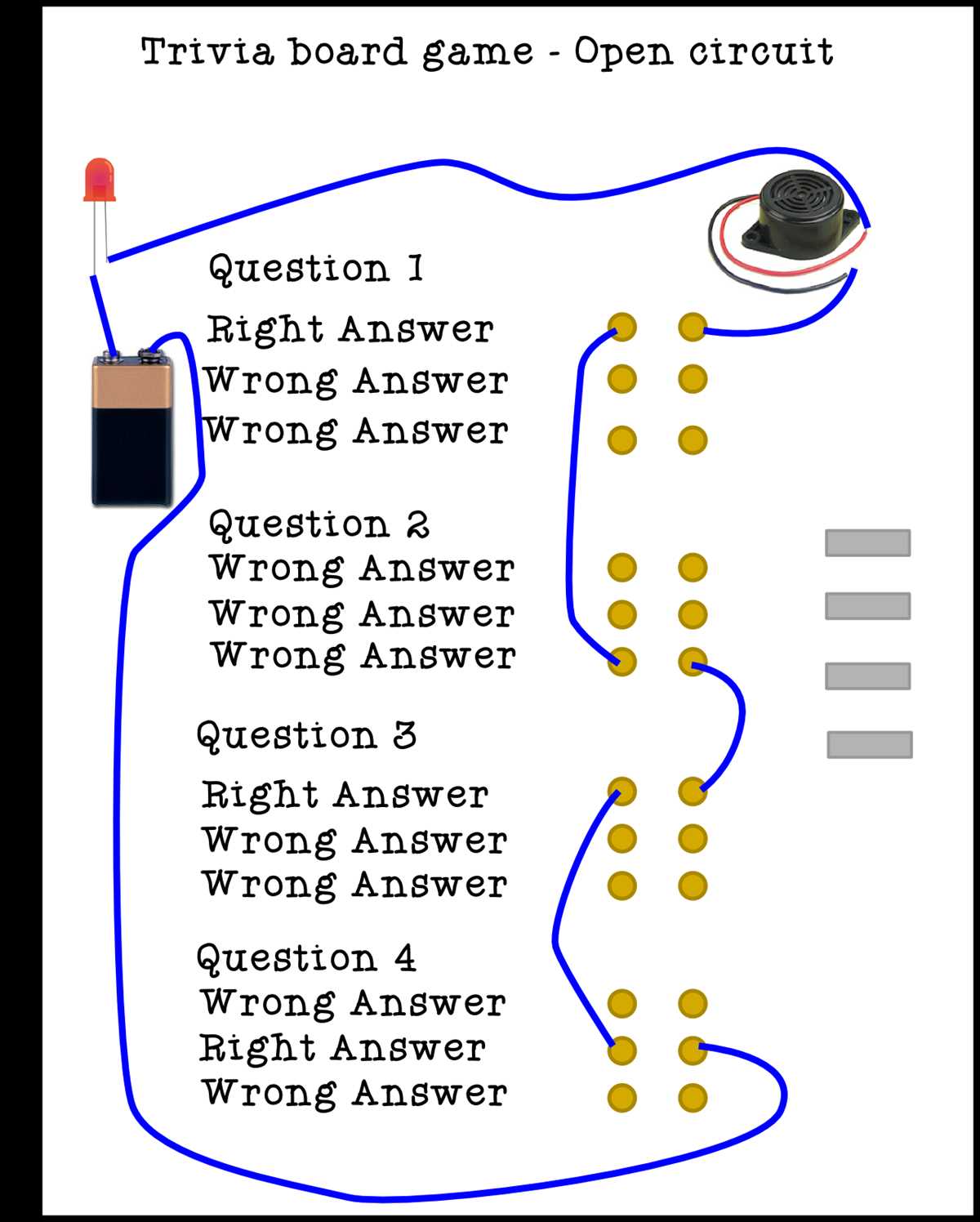

Start by sourcing a perforated panel no smaller than 20×30 cm–this will serve as the foundation for your setup. Use brass thumbtacks for question points and matching sockets for answers, spacing each pair at least 2.5 cm apart to prevent accidental shorts. Connect question points to a 9V battery via a common bus line, ensuring each has a unique return path through an LED indicator (20-30 mA forward current). Test continuity with a multimeter before finalizing connections; a resistance above 2 Ω in any path will cause inconsistent lighting.
Arrange components in a modular layout to simplify troubleshooting. Group related question-answer pairs into segments of 4-6 units, each sharing a serial resistor (470 Ω for red LEDs, 220 Ω for blue). Use stranded copper wire (22 AWG) for flexibility, but keep runs under 40 cm to minimize voltage drop. If incorporating a buzzer as an audio cue, place it in parallel with the battery’s negative terminal and insert a 100 Ω resistor to limit current to 85 dB output. Avoid soldering question points directly–clip leads allow rapid reconfiguration if themes change.
Critical Fault Prevention
Add a 10 kΩ pull-down resistor between the common bus and ground to suppress false triggers from static. Verify all LEDs by touching each answer socket to its question tack; flickering indicates poor contact–reinforce with conductive epoxy. For larger setups (beyond 12 pairs), split power into dual buses at opposite corners to balance load; 9V alkaline batteries deplete unevenly under sustained use, so consider a 5V regulated adapter for prolonged sessions. Label the reverse side with a grid reference to streamline repairs.
Scaling and Customization
Expand capacity by stacking thin insulating layers (0.5 mm acrylic sheets) between conductive paths. Drill 2 mm holes to route jumpers, then seal with electrical tape. For thematic units, swap LEDs for tricolor variants (common cathode) and program a microcontroller (e.g., ATtiny85) to cycle states–use 8-bit patterns to flag correct/incorrect/waiting responses. Limit active pairs to 16 at once to stay within an Arduino Nano’s 20 mA per pin ceiling. Document wire colors in a schematic software (KiCad or Fritzing) before assembly to halve debugging time.
Selecting Optimal Parts for an Interactive Knowledge Game
Begin with pushbuttons rated for 12V DC–momentary SPST types like Omron B3F or Tactile switches with 50mA current handling. These ensure sharp contact closure without bounce issues, critical for fast-paced response tracking. Avoid membrane switches; their slower actuation speed distorts timing precision in rapid-fire scenarios.
Use 5mm LEDs within the 2-20mA range–Kingbright WP7113 series or Cree C503C for balanced brightness and low power draw. Choose red for incorrect answers, green for correct ones, and yellow for neutral states. Verify forward voltage (Vf) matches your supply; 2.0-2.2V Vf LEDs pair well with 3.3V logic but require current-limiting resistors (150-470Ω for 5V).
Wiring and Connectivity Essentials
| Component | Gauge (AWG) | Max Current | Use Case |
|---|---|---|---|
| Copper hook-up wire | 22-26 | 3A | Signal paths |
| Solid core wire | 18-20 | 7A | Power distribution |
| Ribbon cable | 28 | 1A | Multi-switch arrays |
For solder joints, use 60/40 rosin-core solder (0.5mm diameter) with a temperature-controlled iron set to 315°C. Cold solder joints introduce intermittent failures–heat each pad for 3 seconds before applying solder. Avoid acid-core flux; it corrodes copper traces over time.
Resistors should be metal film (1% tolerance) for stable values under heat–panasonic ERA or Vishay MRS25 series handle 0.25W power dissipation safely. For pull-ups, 4.7kΩ works with 5V logic; scale inversely for lower voltages (10kΩ for 3.3V). Capacitors: 0.1µF ceramic (Murata GRM series) across switches to filter noise; 100µF electrolytic (Nichicon UHE) near power inputs for bulk decoupling.
Logic and Power Considerations
Opt for Schmitt-trigger ICs (74HC14) to debounce inputs–these reject noise better than RC networks. For microcontrollers, Atmel ATtiny85 or STM32F030 draws ~10mA running at 8MHz; pair with a 7805 regulator if input exceeds 12V. Batteries: 9V alkaline lasts ~10 hours with 20 components active; Li-ion 18650 (Samsung 35E) offers 7x longevity but requires a protection circuit.
Enclosures should allow 5mm of clearance around LEDs to prevent light bleed. Polycarbonate (Lexan) diffuses light better than acrylic; laser-cut 3mm sheets with 70% opacity work well. For mounting, use M3 brass standoffs–plastic variants crack under repeated screw torque.
Step-by-Step Assembly of a Basic Interactive Panel Setup
Gather these components first: a perforated prototyping sheet (10×15 cm), insulated copper wire (22 AWG), eight miniature pushbuttons, a 9V battery snap connector, a small piezo buzzer, and twelve 220Ω resistors. Avoid bulkier alternatives–they complicate soldering later.
- Mark positions for pushbuttons on the sheet in two rows of four. Space them 2.5 cm apart horizontally and 1.8 cm vertically.
- Drill 3 mm holes at each mark–ensures precise alignment.
- Insert buttons from the underside, securing them with hot glue. Trim leads to 5 mm above the surface.
Solder one resistor to each button’s common terminal. Twist the free ends of the resistors together, creating a shared bus bar. This minimizes wiring clutter while maintaining signal integrity.
- Thread the wire from the buzzer’s positive lead through the nearest hole. Solder it to the bus bar.
- Attach the battery snap’s red lead to the bus bar using a short jumper.
- For each button’s second terminal, solder a separate wire (10 cm length). Route these through adjacent holes, color-coding them if possible.
Create question-answer pairs on a separate sheet: label eight contact points (A-H) with conductive ink or copper tape, spaced 1.2 cm apart. Ensure no traces overlap–test continuity with a multimeter before proceeding.
Wiring the Matching Mechanism
- Connect one wire from each button (Step 4) to a unique contact point (A-H). Secure with solder.
- Attach the battery’s black lead to the buzzer’s negative terminal.
- Verify polarity: press any button–if the buzzer sounds, the circuit works. Silence indicates a fault–check for cold solder joints or reversed connections.
Mount the panel in a non-conductive enclosure. Cut an 8 mm hole above the buzzer for sound projection. Reinforce the back with 3 mm acrylic standoffs to prevent pressure on components during use.
Testing and Calibration
Pair each question contact (e.g., A) with its answer (e.g., E) using a 1.5 mm diameter wire probe. Shorting A to E should activate the buzzer. If multiple pairs trigger simultaneously, reduce resistor values to 180Ω to sharpen signal discrimination.

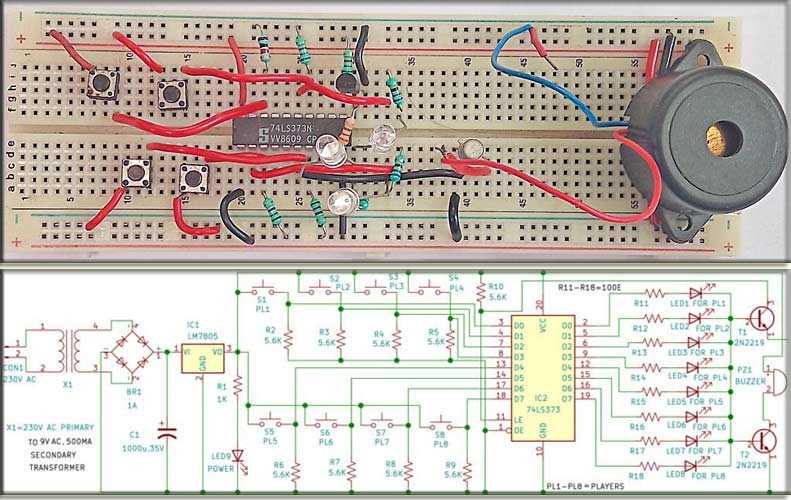

Connecting Light Indicators and Sound Signals for Response Feedback
Use a 220Ω resistor for each LED to limit current–values below 200Ω risk burning the diode at standard 5V supply levels. Green diodes (520nm–570nm) typically handle 20mA forward current; red variants (620nm–680nm) operate at lower voltage drops (1.8V–2.2V), requiring recalculated resistance if mixed in one setup. Connect the anode (+) of each diode to the positive rail through the resistor, grounding the cathode (-) to the negative bus; polarity errors immediately void light emission.
Position a momentary push switch between the LED and ground. Pressing the switch creates a closed path, illuminating the diode–release cuts power, testing both the diode and switch continuity simultaneously. Groups of four to six diodes per switch help distribute load evenly when multiple correct answers share a single validation path. For incorrect signals, invert this logic: feed the diode through a normally closed switch, breaking the circuit only when pressed–this isolates failure modes.
Buzzers demand stricter current attention. Piezo elements (passive) consume 1mA–5mA, tolerating direct microcontroller pins (Atmega328P: 40mA max per pin). Active buzzers (self-oscillating) pull 20mA–50mA, requiring a transistor (2N2222 or BC547) to avoid overloading low-power sources. The transistor base connects via a 1kΩ resistor; emitter grounds the buzzer, collector links to switched positive. Fail to isolate, and sustained activation risks overheating both buzzer and power rail.
- Place a flyback diode (1N4007) across buzzer terminals when using inductive elements–reverse voltage spikes during switch-off exceed 100V, damaging unprotected components within milliseconds.
- Stack parallel LEDs with independent resistors rather than sharing one; uneven voltage distribution causes brightness disparities, skewing intuitive feedback.
- Label LEDs by color and purpose on insulation sleeves–crossed wiring during assembly reverses intended right/wrong mapping post-installation.
Route buzzers away from high-impedance circuits–piezoelectric vibration induces 50mV–150mV noise on adjacent traces, corrupting analog readings in sensitive configurations. Mount through-hole buzzers with non-conductive standoffs to prevent board flex shorting signal layers. SMD variants require thermal vias directly beneath the pad to prevent heat-driven delamination during solder reflow.
Voltage Drop Calculations
Measure actual supply voltage at the switch node, not the source. A 5V rail drops 0.2V–0.4V across wiring and breadboard contacts; recalculate resistor values using Kirchhoff’s loop: (Vsupply - Vdrop - VLED) / ILED = R. Overlook this, and diodes operate under-driven (dull) or over-driven (flickering), accelerating degradation. For instance, a red LED with 1.9V drop and 20mA target on a degraded 4.7V line demands 140Ω, not 150Ω.
Audible feedback varies by buzzer model. Passive elements respond to frequency input (2kHz–5kHz); a 50% duty cycle square wave maximizes volume without overheating. Active buzzers draw 30mA–80mA at 5V–exceeding this threshold lowers pitch noticeably, indicating imminent failure. Use a scope to verify signal integrity; ringing waveforms suggest improper decoupling, requiring a 0.1µF ceramic capacitor across power pins.
- Wrong answer buzzer: 1kHz tone, 200ms duration, 30ms rise/fall ramp–prevents abrupt startle.
- Correct response: ascending chime (880Hz → 1320Hz), 300ms, 10ms ramp–reinforces association.
- Timeout warning: 3 pulses at 440Hz, 80ms on/off–immediate attention cue.
Final assembly checks: probe each switch contact with a multimeter diode mode–open circuits indicate cold solder joints or fractured traces. Verify LED orientation by briefly shorting anode to ground (light confirms polarity). Buzzers emit a faint click on power application, absence signals reversed polarity or damaged diaphragm. Stubborn silence requires signal tracing with a logic analyzer–false triggers often stem from floating inputs; tie unused switches to ground via 10kΩ pull-downs.
