Start with a standardized single-phase layout featuring a 230V input, a current transformer rated for 5(60)A, and a pulse output rated at 1000 imp/kWh. Ensure the shunt resistor tolerances remain within ±0.5% to prevent measurement drift. Mount varistors (MOV 14D431K) across the live and neutral lines to suppress transients exceeding 1.5kV. For multi-tariff setups, integrate an external clock module synchronized to UTC±1s to avoid billing discrepancies.
Use AWG 14 copper wiring for secondary connections, maintaining a minimum bend radius of 3mm to prevent insulation damage. Ground the metal enclosure directly to the main earth busbar–never through field wiring. High-impedance burdens (≤0.1Ω) must be avoided as they distort phase angles by >2° at full load. For accuracy class 1.0 devices, the calibration interval should not exceed 8 years under IEC 62053-21.
Isolate pulse outputs with an optocoupler (e.g., PC817) configured for a 5V logic level, ensuring a current transfer ratio of ≥50%. For three-phase installations, stagger voltage dividers symmetrically–imbalance over 0.2% skews reactive power readings. Shield twisted pairs from switching regulators using tinned copper braid with ≥90% coverage. Test dielectric strength between live parts and enclosure at 4kV AC for 1 minute during commissioning.
Firmware should include fault flags for reverse energy flow, neutral loss, and magnet tampering. Log events with a 32-bit timestamp and CRC-16 checksum. Avoid placements near heat sources exceeding 60°C–derate accuracy by 0.3% per 10°C above nominal. For outdoor units, use IP54-rated gaskets and polycarbonate windows instead of glass to prevent UV degradation.
Key Components of a Power Measurement Schematic
Start by ensuring the voltage divider network uses precision resistors (e.g., 0.1% tolerance, 1MΩ for high-voltage inputs) to maintain accuracy across varying loads. Isolation transformers (1:1 ratio, >5kV dielectric strength) prevent ground loops–critical for reducing interference in readings. Employ a low-drift shunt resistor (e.g., manganin or constantan, 90dB) to capture minor fluctuations in real-time.
Fuse protection (fast-acting, 250V AC) must be placed on both live and neutral lines to prevent overloads. Use a transient voltage suppression diode (e.g., 400W peak pulse power) across the shunt to clamp surges. Calibrate the system by comparing readings against a certified reference standard (e.g., Fluke 5520A) at 5%, 50%, and 100% load points. Log data via RS-485 (isolated) or LoRa (long-range) for remote monitoring, ensuring encryption (AES-128) if transmitting over public networks.
Core Elements of a Single-Phase Measuring Device Blueprint
Ensure the incoming supply lines connect directly to the current transformer (CT) and voltage divider first–these are the primary sensors shaping accuracy. The CT must match the anticipated load range; standard residential units typically handle 5–100 A, while industrial variants may require custom ratios like 200:5 A. Validate the transformer’s core material–ferrite for low-cost applications, silicon steel for prolonged stability under varying temperatures. Misalignment here introduces phase displacement errors up to 3% at nominal currents, distorting consumption readings.
- Measurement IC: Select a metrology-grade processor (e.g., Teridian 71M6513, Cirrus Logic CS5463) designed for IEC 62053-21 Class 1 compliance. Prioritize models with integrated temperature compensation–drift exceeds 0.5% without it across a –40°C to +85°C range.
- Shunt resistor: Use precision thin-film or manganin alloy resistors with ±0.1% tolerance. A 350 µΩ shunt suffices for most 230 V systems; higher values increase self-heating, skewing results. For pulsed loads, pair with a snubber network (10 nF + 100 Ω) to suppress transient distortions.
- Reference voltage: A bandgap regulator (e.g., LM4040) delivering 2.5 V ±0.5% ensures consistency. External capacitors at VREF pins must be low-ESR types–tantalum or X7R ceramic–to prevent noise coupling.
Isolate the high-side sensing path from the MCU using an analog optocoupler (HCPL-7840) or digital isolator (ADuM1401). Direct connections risk ground loops, adding noise spikes equivalent to 50–100 W false energy tallies in 1 kWh tests. For LCD-based devices, route the segment driver signals (typical 8–16 lines) through series resistors (220 Ω) to curb EMI emission–omitting these causes ghosting on 7-segment displays beyond 2 meters.
Power the control logic from a flyback converter if input exceeds 40 V AC; linear regulators dissipate excessive heat (P = (VIN − VOUT) × I) in high-current scenarios. Include a sleep-mode consumption check: quiescent draw should stay below 2 W for metrology certification, achievable with buck converters (e.g., TPS54331) paired with a 10 µA RTC like DS3231. Overlook this, and stand-by losses accumulate, violating regulatory thresholds like EN 50470-3.
Decoding Power Measurement Device Wiring Layouts

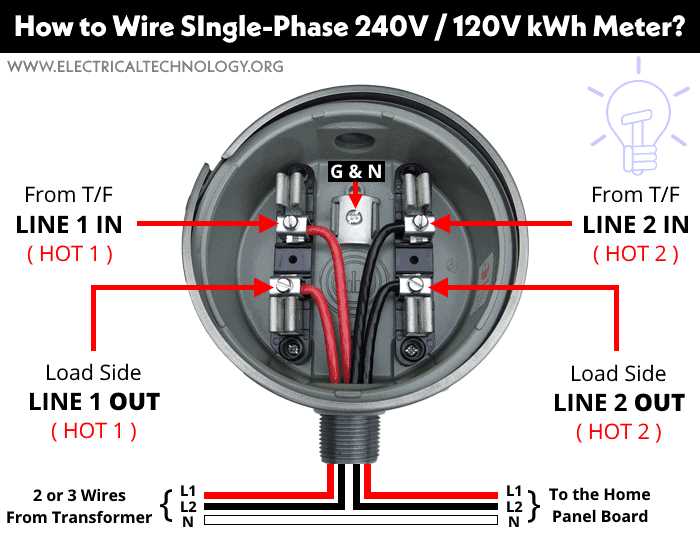

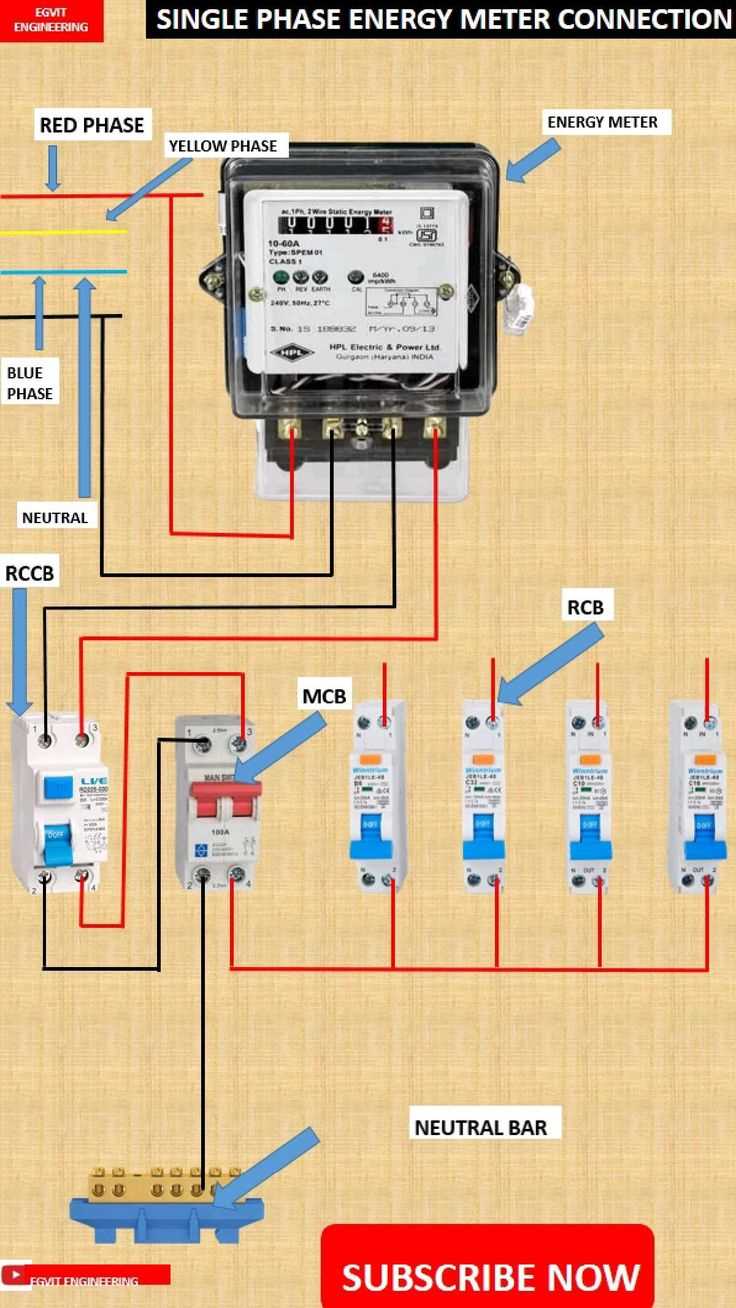

Identify terminal blocks marked with standardized color codes or alphanumeric labels. In most residential setups, live wires connect to terminals labeled L1, L2, and L3 (for three-phase), while neutral uses N. Ground wires terminate at a dedicated PE or earth symbol. Verify polarity by tracing wires from the main service panel–incorrect connections disrupt readings or damage the unit. Use a multimeter to confirm voltage between terminals: 230V (single-phase) or 400V (three-phase) should appear between live and neutral, with zero volts between neutral and ground.
Key Symbols and Wire Pairings in Schematic Blueprints
Study the legend for symbols–zigzag lines represent resistors (shunts), straight lines with breaks denote switches, and arrows indicate current flow direction. For shunt-based devices, locate the current coils (often labeled I with subscripts) hooking in series with the load path; voltage coils (U or V) connect in parallel. In DIN rail-mounted units, external transformers may relay signals to separate terminals–match primary and secondary sides precisely. Cross-reference wire gauges with national codes (e.g., 2.5 mm² for 20A circuits) to prevent overheating.
How to Sketch a Precision Energy Monitoring Device Layout
Begin with a power source block at the top left. Use a 9V battery or AC-DC adapter symbol, clearly labeling input terminals. Connect a fuse rated for 1A immediately after–this prevents overload damage to downstream components. Add a varistor (MOV) across the power lines if transient voltage spikes are expected in the application environment.
Next, integrate a voltage regulator. For low-power designs, a 7805 IC (5V output) works well; for higher efficiency, consider AMS1117 (adjustable variants available). Place input/output capacitors (typically 10μF electrolytic and 0.1μF ceramic) close to the regulator pins. Route the stabilized output to the microcontroller unit–an ATmega328P is a common choice for its built-in ADC and 32KB flash memory.
Key Components Placement
- Current sensing: Position a shunt resistor (e.g., 0.01Ω, 1% tolerance) in series with the load line. Place a precision amplifier (like INA125P) adjacent to it, configured for differential measurement. Ensure analog traces are short and separated from digital signals to minimize noise.
- Voltage measurement: Connect high-value resistors (e.g., 470kΩ) forming a divider across the load. Link the divider midpoint to the MCU’s analog input pin, adding a 0.1μF bypass capacitor to filter high-frequency interference.
- Display interface: For a 16×2 LCD, route RS, EN, and data pins (D4-D7) from the MCU, including a 10kΩ potentiometer for contrast adjustment. Alternatively, use an SPI OLED (SSD1306) for lower power consumption and higher resolution.
Finalize with load isolation. Include an optocoupler (e.g., PC817) or solid-state relay to control the load without direct MCU connection. Add metal-film resistors (1% tolerance) where precision matters–especially in current/voltage scaling circuits. Verify all connections with a multimeter before powering on; check for correct polarity, short circuits, and proper grounding. Use thick traces (minimum 1mm width) for high-current paths to reduce resistance losses.
Frequent Errors in Power Consumption Tracker Schematic Planning
Avoid placing shunt resistors too close to high-current paths–thermal coupling distorts readings by 3-5% at just 10°C above ambient. Use 1% tolerance components or better; standard 5% resistors introduce ±2.5% error in energy calculations, accumulating to kilowatt-hour discrepancies in as little as a week. Neglecting creepage and clearance for mains voltage traces risks arc faults at 600V+; follow IEC 60664-1 spacing: 4mm for 250VAC, 8mm for 480VAC. Ground loops emerge when analog and digital grounds merge–route them radially to a single star point, halving noise on ADC readings.
Missteps in Component Placement and Trace Routing
| Mistake | Impact | Fix |
|---|---|---|
| ADC reference near switch-mode supplies | ±12mV ripple on 3.3V ref, ±0.36% energy error | Add 10μF tantalum + 0.1μF ceramic within 2cm |
| Pulse output traces routed adjacent to MCU clocks | False counts at 1kHz+ rates | Maintain 5mm spacing or shield with ground fill |
| TA neglecting saturation | Drops 50% of pulses at 20A surge | Use cores with AL ≥200, 8-turn secondary |
Omitting ferrite beads on supply lines to isolation barriers passes conducted emissions beyond EN 55022 Class B, raising compliance costs by 40%. Soldermask openings smaller than pad gaps trap flux, corroding segments–design 0.3mm annular rings for 0603 passives. Ignoring PCB copper weight leads to voltage drops exceeding IEC 62053-21 Class 0.5 limits; for 35μm copper, 100A traces need 10mm width or parallel layers.
