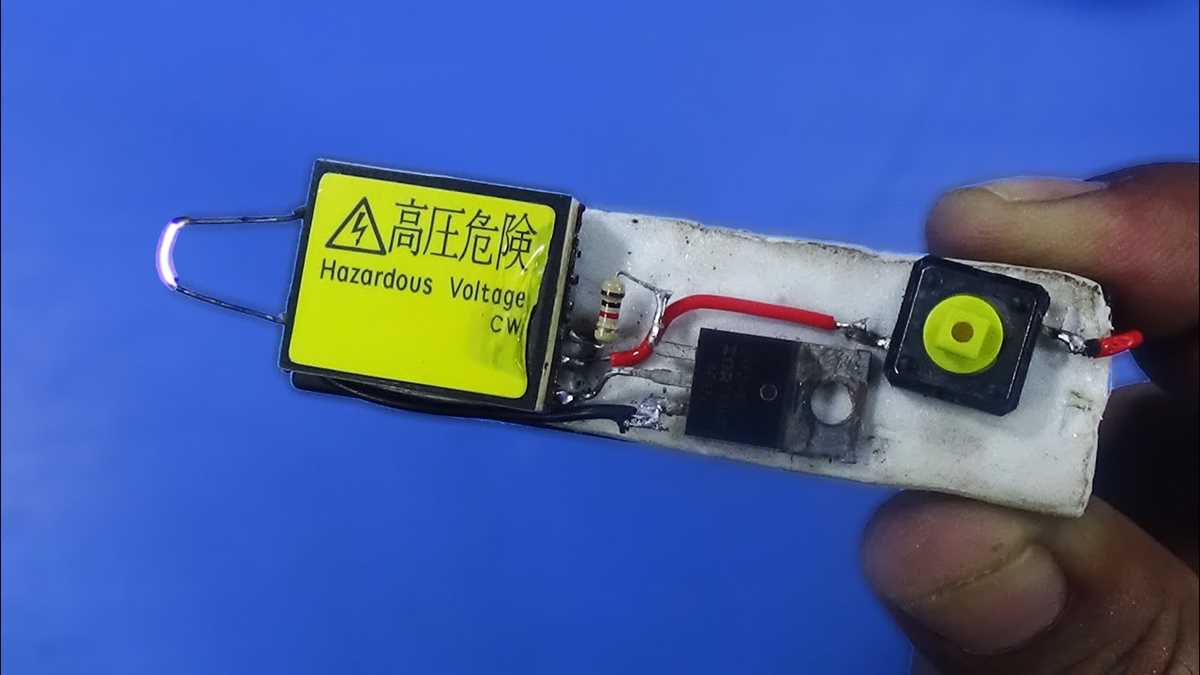

Start with a 5V power source–a standard USB charger or power bank will suffice. Connect it to a momentary push-button switch rated for at least 2A to handle the initial surge. From there, run the current through a N-channel MOSFET (IRFZ44N works well) to act as a high-current switch. The MOSFET’s gate should be triggered by the push button, ensuring precise control without delays.
A high-voltage ignition coil–salvaged from a gas stove or disposable igniter–forms the core of the spark generation. Wire it between the MOSFET’s drain and a flyback diode (1N4007) to protect against voltage spikes. Position a 0.1µF capacitor across the coil’s terminals to smooth out oscillations and extend component life. This setup reliably produces a sharp, consistent spark with minimal power draw.
For safety, add a 220Ω resistor between the MOSFET gate and the push button to limit current to the gate. A 10kΩ pull-down resistor from the gate to ground prevents accidental triggers. Test the assembly with a multimeter first–verify the MOSFET activates fully at 5V (RDS(on) < 0.02Ω) before proceeding. If the spark weakens, check coil impedance (should be ~5Ω), and ensure all connections are soldered, not just twisted.
To improve durability, encase the coil in heat-shrink tubing and secure components to a small PCB or perfboard. For portable designs, use a 18650 lithium cell with a charging module, but add a 3A fuse to prevent overheating. Avoid cheap switches–they fail under frequent use. A properly assembled unit ignites three times per second for over 300 cycles on a single charge.
How to Build a Spark-Based Igniter Schematic
Begin with a high-voltage transformer–opt for a neon sign coil or flyback design rated for 3–10 kV. These components step up low voltage (3–12V DC) to the arc-producing range efficiently. Connect the primary winding to a switching mechanism: a simple push-button or a 555 timer IC in astable mode for pulsed ignition. Avoid continuous current to prevent overheating.
For the output stage, use a spark gap between two electrodes–copper rods or stainless steel screws work best. Maintain a gap of 2–5 mm to ensure consistent spark generation without short-circuiting. If the arc fails to form, reduce resistance in the secondary circuit by shortening leads or using thicker gauge wire (18 AWG or lower).
- Input voltage: 3–12V DC (battery or adapter).
- Transformer ratio: 100:1 (primary:secondary) minimum.
- Spark gap materials: Copper, tungsten, or nichrome for durability.
- Heat management: Mount the transformer on a heatsink if cycling >5 seconds.
Add a capacitor (0.1–1 µF) in parallel with the spark gap to enhance arc intensity. This stores energy and releases it in a surge, creating a hotter, more reliable spark. Polypropylene film capacitors handle high voltage better than ceramic types. For safety, place a flyback diode (1N4007) across the transformer’s primary to suppress voltage spikes.
To refine performance, incorporate a current-limiting resistor (10–100 Ω) in series with the transformer’s primary. This protects the circuit from inrush current and extends component lifespan. For battery-powered units, a 10 Ω resistor drops voltage minimally while preventing thermal runaway. Test with a multimeter: primary current should peak at 1–3A during ignition.
Assemble components on a perforated board or custom PCB with wide traces (2–3 mm) to handle high voltage. Secure all connections with solder or crimp terminals to avoid loose joints under vibration. For mobile setups, enclose the board in a non-conductive case (PVC or acrylic) with ventilation slots to dissipate heat. Avoid metal housings to prevent accidental shorts.
- Verify transformer polarity before powering on (reverse leads if no spark).
- Adjust spark gap incrementally (start at 2 mm, test, then widen).
- Monitor transformer temperature–excessive heat indicates inefficiency.
- Replace capacitors if bulging or leaking (signs of voltage stress).
- For dual-purpose designs, add a toggle switch to disable ignition during warmth-up.
Critical Parts for Assembling a Portable Ignition System
Select a high-voltage transformer capable of stepping up standard 5V DC to at least 15–20 kV. Flyback transformers scavenged from old CRT monitors offer reliable performance without modification–salvage the primary coil and rewind the secondary with 10–12 AWG enameled wire, targeting 100–150 turns for optimal spark generation. Avoid underestimating insulation requirements; wrap each layer with polyimide tape to prevent corona discharge.
Pair the transformer with a switching element that handles rapid on-off cycles. A MOSFET like the IRFZ44N withstands 55V drain-source voltage and 49A continuous current, ideal for pulsed operation. Trigger it via a 555 timer IC configured in astable mode, adjusting the potentiometer to regulate pulse width between 0.5–2 ms–shorter pulses conserve battery but weaken spark intensity, while longer pulses risk overheating components.
Power the assembly using a lithium-ion cell with a minimum 2000mAh capacity. A TP4056 charging module ensures safe recharging without thermal runaway, featuring overcharge protection at 4.2V per cell. Integrate a 3A fuse inline with the battery’s positive terminal as a fail-safe against short circuits, particularly critical if enamel wire insulation fails during rewinding.
- Switching regulator: Buck converter (LM2596) stabilizes 3.7V–4.2V input to a consistent 5V for control logic, preventing voltage sag during spark events.
- Resonant capacitor: Use a 100pF–1nF ceramic capacitor rated at 3kV+ to smooth transformer output, eliminating erratic arcs caused by high-frequency noise.
- Heat management: Mount MOSFETs on a TO-220 heat sink with thermal paste, as even brief 5A loads generate noticeable heat.
For electrodes, choose tungsten rods 2mm in diameter, spaced 3–5mm apart. Tungsten’s 3,422°C melting point resists erosion from repeated arcs, while nickel-plated copper wires improve conductivity and oxidation resistance. Bend electrodes at 45° angles to concentrate the spark’s path, reducing energy loss to ambient air.
Test arc consistency before finalizing the enclosure. A multimeter’s capacitance mode verifies transformer windings–expect 50–100Ω primary resistance and 10–50kΩ secondary resistance. Spark length should exceed 10mm in dry air; shorter arcs suggest inadequate voltage or excessive resistive losses in wiring. Calibrate the 555 timer’s frequency empirically–1 kHz typically yields stable performance.
Failure Modes and Mitigations
- Transformer saturation: Occurs if MOSFET on-time exceeds 5ms. Reduce pulse width or increase switching frequency to 2kHz.
- Capacitor failure: Replace ceramics with polypropylene film types if audible buzzing suggests dielectric breakdown under voltage spikes.
- Battery drain: Idle current should stay below 50mA; add a physical power switch if battery longevity is a priority.
Step-by-Step Wiring Guide for a High-Voltage Arc Igniter
Start by securing a 12V DC power source with at least 2A output. A lead-acid battery or stabilized adapter works best–avoid unregulated USB ports. Connect the positive terminal to a switch to enable on-demand arcing without draining the source continuously.
Wire a flyback transformer salvaged from an old CRT monitor or TV. The primary coil typically handles 12V input; the secondary must output 15kV–30kV for reliable ignition. Identify the primary and secondary windings using a multimeter–resistance should read 0.5–5Ω for primary and 10kΩ+ for the secondary.
Integrate a MOSFET (e.g., IRFZ44N) or an IGBT (e.g., HGTG20N60A4D) to act as a high-speed switch. Mount it on a heatsink if continuous operation exceeds 5 seconds. Connect the gate to a 555 timer IC configured in astable mode (frequency: 15–30 kHz) to pulse the transformer efficiently. Use a 1N4007 diode across the MOSFET’s drain-source to suppress voltage spikes.
| Component | Specification | Purpose |
|---|---|---|
| Flyback transformer | 15kV–30kV output | High-voltage generation |
| MOSFET (IRFZ44N) | 60V/50A | Switching control |
| 555 timer IC | 15–30 kHz output | Pulse modulation |
| Capacitor (electrolytic) | 1000µF/25V | Smoothing input power |
| Resistor (carbon film) | 10kΩ/0.25W | 555 timer frequency tuning |
Attach the transformer’s secondary to two tungsten or stainless-steel electrodes spaced 3–5mm apart. Polished rods (2mm diameter) reduce oxidation and extend lifespan. For adjustable gaps, use a threaded rod and locknut to fine-tune arc length–shorter gaps require less voltage but may melt smaller wires.
Add a 1000µF smoothing capacitor across the 12V input to stabilize voltage during high-current draw. A varistor (e.g., 150V MOV) between the transformer’s primary and ground protects against transient surges. Test the setup with a neon bulb–if it glows, the transformer is functional; if not, reverse the secondary connections.
Enclose the assembly in a non-conductive casing (e.g., polycarbonate) with ventilation holes to dissipate heat. Label all connections and insulate exposed high-voltage points with silicone tape or heat-shrink tubing rated for 30kV. For portability, use a 9V battery wired to a boost converter (e.g., MT3608) set to 12V output, but expect reduced runtime (≈10 minutes at full load).
Safety Precautions When Building a Handheld Ignition Device
Always discharge capacitors before handling the assembly, even if they appear inactive. A charged capacitor can hold lethal voltage for hours–short its terminals with an insulated screwdriver or a 10kΩ resistor to prevent accidental shocks. Verify discharge with a multimeter before proceeding.
Use only heat-resistant materials for the ignition element. Nickel-chromium wire (22-30 AWG) coated in ceramic beads or fiberglass sleeving prevents melting, shorting, or fire hazards. Avoid PVC-insulated wires–they emit toxic fumes when overheated and degrade under high current.
Mount all components on a non-flammable base, such as mica, phenolic board, or anodized aluminum. Plastic enclosures melt at temperatures above 80°C; opt for metal or glass-reinforced polymers. Secure connections with crimp terminals or high-temp solder (63/37 tin-lead or lead-free SAC305) to prevent loosening under thermal stress.
Include a fuse rated at 125% of the expected current draw (e.g., 3A for a 2.4A load). Place it as close to the power source as possible. For lithium-based batteries, use a battery management system (BMS) with overcharge, over-discharge, and short-circuit protection–failure risks thermal runaway.
Test the device in a well-ventilated area, away from flammable vapors or dust. Keep a Class D fire extinguisher (for metal fires) or ABC extinguisher on hand. Never leave the unit unattended during operation; monitor for excessive heat, sparking, or unusual odors–these signal imminent failure.
Ground all conductive parts not intended for contact. Use star washers under screw terminals to ensure low-resistance connections. For high-voltage designs, apply conformal coating to exposed traces to prevent arcing. Children and untrained individuals should never handle or operate the device.
