Start by identifying the power source voltage–most industrial pulling mechanisms operate on 230V or 400V AC. Verify the machine’s rating plate before proceeding. Incorrect voltage risks burnout or failure. Use a multimeter to confirm live wires if documentation is missing.
Trace the main supply cables from the control panel to the motor. Typically, two thick wires (phase and neutral) deliver power, while a thinner ground wire ensures safety. Secure connections with crimp terminals, not twisted wires, to prevent corrosion or loose contacts under load. For three-phase units, follow phase sequence–mismatch causes reverse operation.
Install relays and contactors between the motor and switch. A 24V DC coil contactor isolates high current from the operator’s push buttons, reducing shock hazard. Wire the control circuit first, testing each switch before energizing the motor. Use 1.5mm² cables for control signals, 4mm² or thicker for power lines, depending on load.
Label every wire before disconnecting old systems. Photograph existing layouts if available–color codes vary (EU: brown/black/blue; US: black/white/green). Missing a single neutral or ground wire can trip breakers or damage components. For variable-speed setups, add a frequency converter, ensuring proper grounding and motor braking settings.
Avoid daisy-chaining power strips to the lifting mechanism. Dedicated outlets or subpanels prevent voltage drops during heavy lifts. Calculate cable length–every 10 meters of 4mm² copper wire adds ~0.1 ohms resistance. If voltage drops below 90% of rated value, upgrade wire gauge or reduce distance.
Seal all connections with heat-shrink tubing or liquid electrical tape. Exposed terminals collect dust and moisture, leading to arcing. Test the setup with minimal load first–listen for unusual noises, check for overheating. If the motor hums but doesn’t start, suspect phase rotation mismatch or seized bearings.
Guide to Connecting a Lifting Device Circuit
Ensure the main power disconnect is switched off before handling any cable connections. For a 3-phase load rated at 400V, match the phases (L1-L2-L3) to their corresponding terminals marked U-V-W on the motor housing–incorrect pairing risks immediate overload. Single-phase variants (230V) require only L/N links, with the grounding conductor (PE) secured to the motor’s metal casing using a crimp lug or star washer to prevent corrosion.
Critical Component Links
| Component | Wire Color (EU Standard) | Terminal Label | Torque (Nm) |
|---|---|---|---|
| Phase L1 | Brown | U | 2.5–3.0 |
| Phase L2 | Black | V | 2.5–3.0 |
| Phase L3 | Grey | W | 2.5–3.0 |
| Neutral | Blue | N | 1.8–2.2 |
| Protective Earth | Green-Yellow | PE | 4.0+ |
Use ferrules for stranded wire ends to eliminate fraying; AWG 14 (2.5 mm²) is standard for 15A circuits, but double-check the motor plate for exact gauge requirements–underpowering causes thermal trips. Connect the brake coil last; it’s polarity-sensitive (DC 24V or AC 230V depending on model) and failure to observe the “+” and “-” marks will prevent engagement. Verify direction arrows on the gearbox before finalizing; reversing phases swaps upward/downward motion.
After securing all terminals, energize the circuit and perform a 10-second no-load test. Listen for irregular noises–grinding or humming indicates misaligned wiring. Check voltage drop across U-V, V-W, and W-U with a multimeter: readings should match ±5% of supply (e.g., 380–420V for a 400V line). If deviation exceeds tolerance, re-examine phase order. Finally, attach the control pendant’s upward/downward switches to the relay contacts–swap terminals 4 and 5 if the pendant reverses the intended movement.
Core Elements of a Fundamental Lifting Gear Circuit
Begin with a sealed control panel housing a contactor rated for at least 125% of the motor’s full-load current. Example: for a 7.5 kW load, select a 40 A AC-3 contactor. Ensure copper busbars inside the panel are sized according to IEC 60364-5-54, keeping voltage drop below 3% under peak demand.
Install three-phase overload relays calibrated to trip at 105%–110% of the motor’s rated current, connected in series with the contactor coil. Use class 10 relays for general lifting tasks; class 20 for intermittent heavy loads. Verify tripping curves match the duty cycle–standard S3 or S4 per ISO 4301.
Power conductors (typically 6–16 mm² for 400 V systems) must be run in armored conduit or flexible metal sheaths where mechanical stress occurs. Ground wires (minimum 10 mm²) bond every component–motor frame, gearbox, brakes–to a dedicated ground busbar tied to the facility’s grounding electrode system.
Integrate a double-pole emergency stop switch wired in series before the contactor coil, fulfilling EN ISO 13850 Category 0 requirements. Place actuating buttons within 60 cm of all operator positions, illuminated for visibility in dim conditions.
Fuses serving as short-circuit protection should be gG type, sized at 200%–250% of the motor’s full-load current. Example: a 15 A fuse for a 7 A continuous load prevents nuisance trips while safeguarding against catastrophic faults.
Motor brakes demand separate DC excitation. Supply 24–190 V DC via a bridge rectifier fed from the main circuit. Adjust brake air gap to 0.3–0.5 mm; tighter gaps risk overheating, looser gaps reduce holding torque below 1.5× load torque.
Signal lamps–red for power, amber for overload, green for ready–must be 24 V LED types to align with control circuit voltage. Mount them on the operator pendant and panel, ensuring EN 60073 compliance for color coding.
Verify torque alignments using a spring scale. Lifting gear should stall at 110%–120% of rated load; brakes must hold 150% without slipping. Re-test annually or after gearbox oil changes per manufacturer torque decay curves.

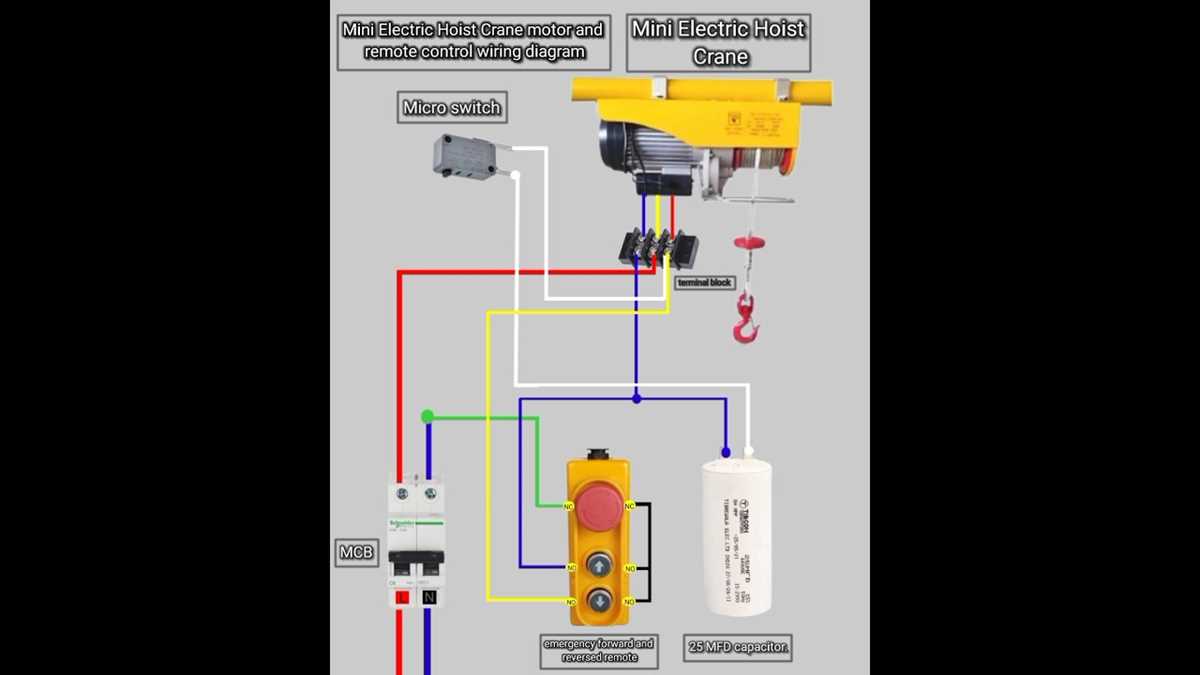

Step-by-Step Guide to Connecting a Single-Phase Lifting Mechanism
Begin by isolating the power source. Confirm the circuit breaker or switch controlling the load lifter is deactivated to prevent accidental energization. Use a multimeter to verify zero voltage across the input terminals–probes should register no reading. Label all wires at both the motor and control box ends with masking tape, noting colors and terminal numbers (e.g., L1, L2, N, U, V, W). For a 230V single-phase setup, connect the live (typically brown) wire to terminal L, the neutral (blue) to N, and the earth (green/yellow) to the grounding screw. If the motor has dual capacitors, attach the start capacitor to terminals marked “S” and “C,” then link the run capacitor between “R” and the motor’s main winding.
Attach the control pendant’s push buttons to the designated relay terminals–up and down buttons to their respective contactors via 0.75mm² stranded copper cables. Route the cables through flexible conduit, securing with cable ties every 30cm. Test the system by momentarily energizing the circuit: depress the up button while observing the motor shaft–it should rotate clockwise; reverse rotation indicates swapped capacitor connections. Adjust limit switch settings by threading the actuator rod until the lever disengages at 10cm below the maximum safe lift height. Recheck all connections with a torque screwdriver (target: 1.5Nm for M4 terminals) to prevent loosening under vibration.
Critical Errors in Lifting Gear Circuit Setup and Prevention Methods
Reverse polarity on the power feed trips thermal overloads within minutes. Confirm L1, L2, and L3 terminals on the control panel match the phase sequence printed inside the motor housing before energizing. Use a phase rotation meter if labels are missing or faded.
Undersized conductors overheat under load. Reference NEC Table 310.16 for copper ampacity and subtract 10% for aluminium when routing cables longer than 20 meters. Example: 4/0 AWG copper safely carries 230 A at 75°C, but only 197 A after derating for conduit fill and ambient temperature.
Incorrect limit switch alignment stops upward travel prematurely. Mount the upper cam so the lever depresses fully at least 10 mm before the load block contacts the drum flange. Secure the switch with two M6 locknuts to prevent vibration-induced drift.
Skipping ground bonding risks frame leakage currents. Run a 6 AWG bare copper conductor from each motor frame to the main service ground busbar. Verify continuity with a 500 V insulation tester before commissioning.
Frequent Missteps During Installation
- Mixing line and load conductors on the contactor causes unintended energization. Label each wire with heat-shrink sleeves and trace circuits with a continuity tester.
- Omitting surge suppressors across contactor coils leads to premature coil failure. Install MOVs rated for 275 VAC across all coil terminals.
- Loose terminal connections create hotspots. Torque motor leads to 18 Nm and control circuit screws to 2.5 Nm using a calibrated torque screwdriver.
- Running motor cables near variable frequency drives induces harmonic interference. Maintain 300 mm separation or use shielded cables grounded at one end only.
Misconfigured soft start parameters extend ramp times unnecessarily. Set initial voltage to 30% of line voltage and ramp duration to 2 seconds for loads under 5 tons. Adjust acceleration current to 150% of full load amps to prevent stalling.
Post-Assembly Verification Checks
- Measure insulation resistance between phases and ground; readings below 1 MΩ indicate moisture ingress or damaged winding insulation.
- Check brake voltage drop; excessive values above 5% of rated coil voltage suggest worn discs or misaligned actuators.
- Operate the lifting mechanism through full travel while monitoring line current; spikes over 120% of nameplate rating signal binding pulleys or misaligned rails.
- Test emergency stop circuits with a pushbutton simulator; verify all contactor coils drop out within 200 ms.
Improper frequency converter settings cause resonance at certain speeds. Program skip bands around 10 Hz, 25 Hz, and 40 Hz with a 2 Hz width to avoid mechanical oscillations. Use a handheld vibration analyzer to confirm smooth operation across the entire speed range.
