Start by locating the temperature sensor near the engine thermostat. Most vehicles use a 100-ohm NTC sensor that triggers the control module at 90–95°C. Verify resistance with a multimeter–expect 500–1,200 ohms at operating temperature. If readings deviate, replace the sensor before proceeding.
Identify the power distribution block labeled FAN CTRL or COOL SW. Use a 30A fuse directly from the battery terminal, routed through a 40A maxi-fuse for protection. Avoid splicing into accessory circuits; voltage drop under load can cause inconsistent switching.
Connect the switched side to the module pin marked SIGNAL or TRIGGER. Polarity matters–ground the return wire to the chassis near the module, not the sensor. Use 16-gauge wire minimum for signal paths, 12-gauge for power feeds. Twist signal pairs to reduce EMI interference, especially in newer turbocharged models.
Test activation by running the engine to 98°C. The module should engage within 2–3 seconds–listen for a distinct click from the switching device. If delayed, check for oxidation on ground connections or voltage sag at the power source. For high-current setups (>20A), add a 1N4007 diode across the coil to suppress voltage spikes.
How to Connect a Cooling Device Switching Circuit

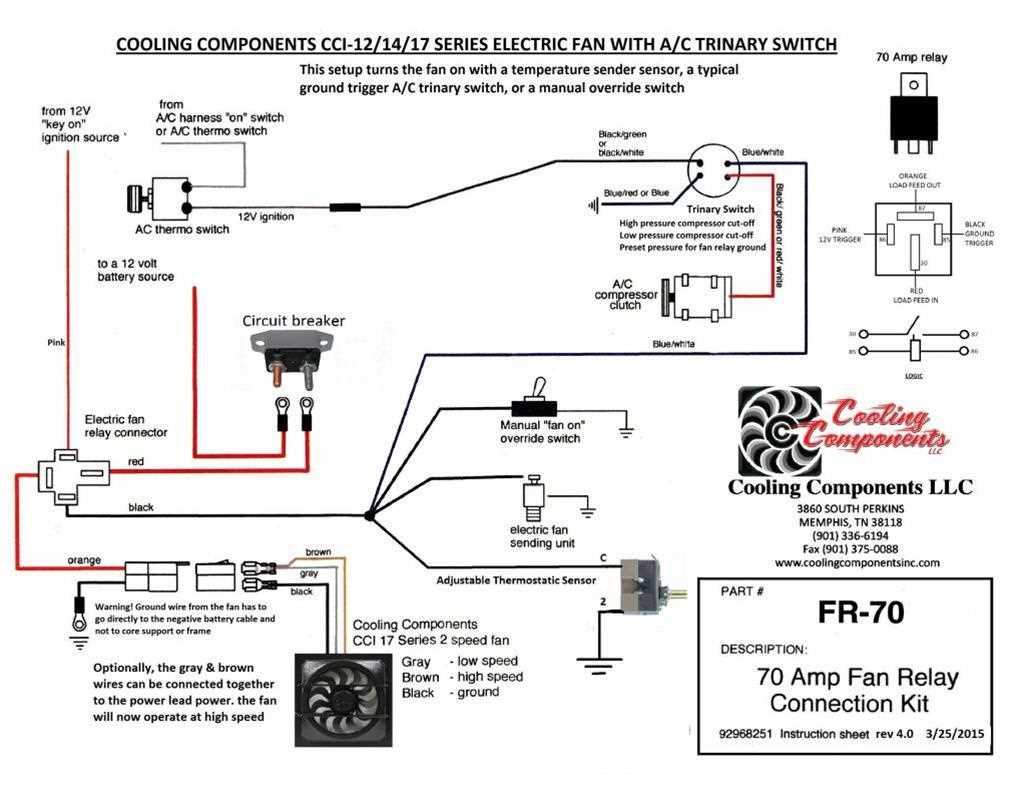

Begin by identifying the power source–typically a 12V battery or fuse box output. Use a 20-amp fuse inline with the positive lead to protect the circuit from overloads. Connect this lead to the common (30) terminal of the control module, ensuring a secure crimp or solder joint to prevent voltage drops.

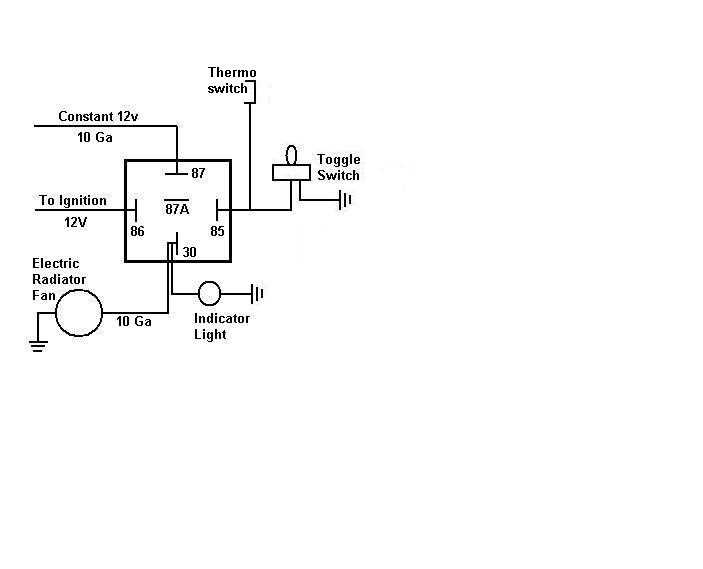

Wire the coil side (85 and 86) to a triggering signal, such as the engine temperature sensor or a manual switch. For automatic operation, splice into the coolant sensor’s ground circuit (85 to chassis, 86 to sensor output). For manual control, attach 85 to a dashboard toggle and 86 to a fused ignition-switched 12V source. Verify resistance across the coil–most units require 70-120 ohms; deviations indicate a faulty component.
Attach the load output (87) to the cooling mechanism’s positive terminal. If the device draws over 20A, route this wire directly to the battery with a minimum 12-gauge cable to handle current spikes. The normally open (87a) terminal is irrelevant for standalone installations but can be used for dual-speed setups by adding a second module.
- Use heat-shrink tubing over all connections to prevent corrosion.
- Avoid routing wires near exhaust manifolds or sharp edges.
- Test coil voltage with a multimeter before finalizing–the coil should activate at ~8V.
Ground the system at two points: the module’s chassis-side coil terminal (85) and the cooling device’s frame. Use star washers for metal-on-metal contact and apply dielectric grease to prevent oxidation. For vehicles with fiberglass bodies, install an auxiliary ground strap to the nearest engine bolt.
Double-check all terminals for continuity with a test light before powering on. A misfired coil or reversed load/output pairing can fry the module instantly. For troubleshooting, refer to this quick reference:
- No activation? Probe coil terminals–voltage should match battery output.
- Device runs but cuts out? Check for voltage drop across the load wire (max 0.5V).
- Random cycling? Inspect sensor connections for intermittent shorts.
Document wire colors and pinouts with a simple sketch–future diagnostics depend on it. Label all splices, especially if tapping into factory harnesses. For aftermarket controllers with multiple speed settings, match the module’s rating to the device’s peak amperage draw; undersized modules will fail under prolonged load.
Key Elements in a Cooling System Switching Layout
Locate the control module first–it typically resides near the motor housing or inside the vehicle’s fuse box. Check for a small rectangular or square unit with 4-6 terminals, often labeled “85,” “86,” “30,” and “87” if following DIN standards. Misidentification risks damaging the circuit during testing.
Verify the power source connections directly. Terminal 30 should link to a fused 12V feed from the battery, while terminal 85 connects to the ground trigger. Use a multimeter set to DC voltage–probe 30 to chassis ground should read ~12.6V with ignition off. If readings drop below 11.8V, inspect the fuse rating (usually 10-30A) and wire gauge (minimum 18 AWG for signal, 14 AWG for power).
Examine the trigger path critically. Terminal 86 receives the activation signal–often from a temperature sensor or ECU–while terminal 85 grounds the coil. A failed trigger manifests as silent switching; test by bridging 85 to ground while monitoring motor response. Avoid prolonged bridging–excessive current (>0.5A) risks burning the winding.
| Component | Typical Location | Failure Symptoms | Testing Method |
|---|---|---|---|
| Switching device | Near motor bracket or fuse panel | Motor runs continuously/no operation | Check coil resistance (40-120Ω) with ohmmeter |
| Load contacts | Internal to switching device | Intermittent cooling/motor stalling | Measure contact resistance ( |
| Diode suppressor | Parallel to coil terminals | Erratic switching/ECU glitches | Test diode forward voltage (0.6-0.7V) with multimeter diode mode |
Inspect the load circuit thoroughly. Terminal 87 carries current to the motor–confirm continuity from 30 to 87 when triggered. Corroded contacts (
Assess the temperature sensor’s role if integrated. Sensors trigger the switching device at ~90°C–verify using an infrared thermometer during operation. A faulty sensor may stick open/closed; bypass temporarily to isolate. Replace sensors if resistance deviates more than 10% from manufacturer specs (e.g., 250Ω @ 80°C, 150Ω @ 100°C).
Document all connections before modification. Label wires with terminal numbers and destination (e.g., “30 → Fuse #12”). Sketch the circuit path–include wire colors (typically red for power, black for ground, green/blue for signal). Store documentation near the installation for future diagnostics; incorrect reconnection often causes irreversible damage to the switching device or motor.
How to Install a Cooling Device Controller: Practical Steps
Locate the vehicle’s primary power distribution block–this is usually a fuse box beneath the dashboard or near the engine bay. Identify the 30-amp fuse slot designated for auxiliary circuits, as this will supply the current needed for activation. If no spare slot exists, use a fuse tap adapter rated for 30 amps, ensuring it matches the box’s specifications. Avoid tapping into circuits powering critical systems like ignition or lighting to prevent voltage drops.
Mount the switching mechanism in a dry, vibration-resistant area–inside the cabin behind the glovebox or under the hood near the radiator support works best. Secure it with self-tapping screws or heavy-duty adhesive strips to prevent movement. Route the control wires along existing harness paths, using split loom tubing to shield them from abrasion and heat. Keep wires at least 10 cm away from hot surfaces, especially exhaust manifolds, to avoid insulation damage.
Connect the trigger wire to the temperature sensor’s output–this is typically a dedicated terminal on the engine control module or a standalone coolant sensor. Splice into the signal wire using a crimp connector, then apply dielectric grease to the joint to prevent corrosion. For aftermarket sensors, set the activation threshold to 90°C (194°F) for optimal efficiency; higher settings risk overheating, while lower ones cause unnecessary cycling.
Attach the load wire directly to the cooling unit’s motor, bypassing any factory resistors to ensure full voltage delivery. Use 10-gauge wire for currents exceeding 20 amps, downgrading to 12-gauge only for shorter runs under 3 meters. Ground the system to a bare metal chassis point, sanding away paint or rust to ensure conductivity. Test continuity with a multimeter before powering on–resistance should read below 0.2 ohms for proper operation.
Verify functionality by simulating heat conditions: disconnect the sensor temporarily and jump its input to battery positive. The controller should activate within 2 seconds. Reconnect the sensor, then heat it with a hairdryer or heat gun; activation should occur at the preset threshold. If erratic, check for loose connections or incorrect trigger polarity. Seal all splices with shrink tubing and secure excess wire with zip ties to prevent chafing against moving components.
Solving Typical Cooling System Control Problems
Begin by checking the power source with a multimeter–voltage at the control module should read 12V when the ignition is active. If absent, trace the fuse box for blown elements, focusing on positions linked to thermal management, typically labeled “CL” or “COOL.” Corrosion on connectors is a frequent culprit; clean contacts with electrical cleaner and a small wire brush, ensuring no residue remains.
Verify the trigger signal by probing the module’s activation lead while cycling the temperature sensor. A fluctuating reading below 0.5V indicates a faulty sensor, while no change suggests a broken circuit or damaged control unit. Replace the sensor first–it’s cheaper and simpler than swapping the entire module, which should be a last resort.
Inspect the load side for continuity. Disconnect the motor and use an ohmmeter across its terminals–any reading above 1 ohm signals internal burnout. If the motor tests fine, examine the module’s output terminals while simulating activation. No voltage means the module’s internal switch has failed, requiring replacement. Avoid bypassing the module temporarily; this risks overheating the motor or straining the power delivery.
Listen for unusual noises–a rapid clicking during attempted startup points to arcing inside the module, often caused by intermittent connections or moisture ingress. Dry components thoroughly before testing again, but if the issue persists, replace the module to prevent fire hazards. Never ignore sporadic operation–it’s a precursor to complete failure.
Test ground connections by measuring voltage drop between the motor’s ground terminal and chassis. A reading above 0.1V indicates a high-resistance path, likely due to loose bolts, oxidized surfaces, or frayed wires. Clean the grounding point and tighten all connections, then recheck. Poor grounding is a leading cause of erratic behavior and premature component wear.
For modules with manual override functions, confirm the switch’s mechanical integrity. Remove the cover and check for broken springs, melted contacts, or misaligned actuators. If the switch sticks or feels loose, replace it–attempting repairs rarely lasts and can introduce safety risks. Always use OEM-recommended parts to avoid compatibility issues.
Document all steps and findings to streamline future diagnostics. Label wires before disconnecting them, and photograph connections for reference. If replacing components, verify the new unit’s specifications match the original, paying attention to amperage ratings and pin configurations. Incorrect installations can cause immediate failure or void warranties.
