Start by identifying the power source–whether a battery, generator, or mains supply–and note its voltage and current ratings. Miscalculations here will cascade into failures downstream. Use thick gauge conductors for high-current paths to prevent voltage drops; 12 AWG suits most low-power applications, while 8 AWG or thicker is mandatory for loads exceeding 10A. Label every wire at both ends with heat-shrink tubing or color-coded sleeves to eliminate diagnostics guesswork.
Position the control element–toggle, push-button, or relay–before the load in the signal path. This ensures the device de-energizes fully when toggled off, reducing parasitic draw. For inductive loads (motors, solenoids), integrate a flyback diode (1N4007) across the coil terminals to clamp voltage spikes. Omitting this risks destroying semiconductors in the path within microseconds of activation.
Grounding demands precision: terminate all ground wires at a single star point near the power source rather than daisy-chaining. This prevents ground loops that introduce noise and erratic behavior. Verify continuity with a multimeter in continuity mode–readings should show ferrule connectors.
For schematics, use ladder logic notation when documenting parallel branches. Number rung references sequentially (L1, L2, etc.) and annotate each with component values (e.g., “R1: 220Ω, 1/4W”). Software like KiCad or Altium accelerates design but mandates physical prototyping–breadboard flaws (capacitive coupling, loose joints) often go unnoticed until bench testing reveals intermittent faults.
Always fuse the positive rail immediately after the power source with a rating 120-150% of the maximum expected current. Slow-blow fuses handle inrush surges; fast-acting types suit sensitive electronics. Test the assembly under 110% of nominal voltage for one hour–hot components (transformers, resistors) indicate undersized parts or thermal management gaps.
Visualizing Controlled Current Paths Using Schematic Layouts
Start by drawing a straight line to represent the power source–label the positive terminal “+” and the negative terminal “−” for clarity. Use a horizontal gap of 1–2 cm between them to reserve space for the control element. This separation prevents visual clutter and ensures the actuating component remains the focal point.
Place the toggle or push mechanism perpendicular to the main conductor, intersecting it midway. Standard symbols for mechanical interrupters include a diagonal break in the line (toggle) or a T-shaped bar (push). Verify the direction of current flow before finalizing placement–incorrect orientation leads to faulty simulations.
Add load elements downstream of the interrupting device. For resistors, draw a zigzag line; for lamps, use a circle with a cross. Keep all components aligned vertically to maintain consistency with engineering schematics. Use thin solid lines for connections and thicker ones for the main conductor to distinguish power routes.
Test the schematic by tracing each path: power source → interrupting device → load → return. If a path doesn’t close, re-examine connections–gaps as small as 0.5 mm can disrupt simulations. Annotate each segment with voltage drops if troubleshooting: ideal voltage across a closed interrupting device should be 0V.
For AC configurations, replace the straight line with a sinusoidal loop before the interrupting device. Label frequency (e.g., “50Hz”) above the waveform to avoid ambiguity. Avoid mixing DC symbols–AC waveforms must remain distinct to prevent misinterpretation during assembly.
Export the layout as SVG or PDF at 300 DPI resolution for documentation. Lower resolutions blur thin connection lines, complicating physical assembly or debugging. Include a legend with component scaling (e.g., “1:1 for breadboard use”) to ensure accurate replication.
Constructing a Simple Conductive Path Featuring a Control Element

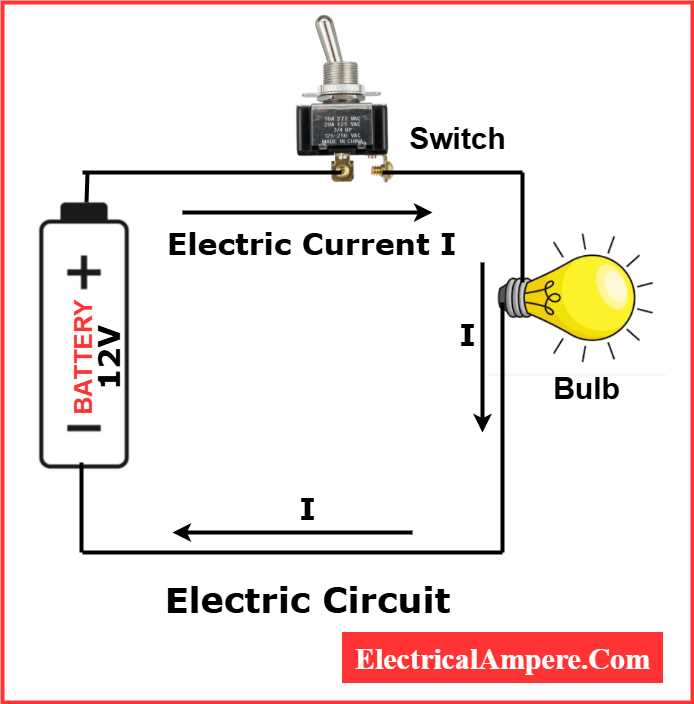

Gather a battery, conductive wire, a load (such as a lamp or resistor), and a toggle mechanism before starting. Arrange components on a flat surface in the sequence: power source, conductor, load, control element, and back to the battery to form a closed loop. Ensure the toggle is positioned between the load and the return path to the power source for proper interruption capability.
Begin by sketching the battery as a pair of parallel lines–one longer than the other–with “+” and “–” symbols adjacent to each terminal. Connect the positive terminal to the first conductor using a straight line extending rightward. Attach the load (a circle for a bulb or a zigzag for resistance) midway along this path to ensure current flow demonstration.
From the load, draw another straight conductor leading to the toggle, represented by a break in the line with a diagonal segment crossing it. This symbol indicates an open state; leave a small gap to show the disconnect. Extend the return conductor from the toggle’s opposite side back to the battery’s negative terminal, completing the loop without overlaps.
Label each segment with abbreviations: “B” for battery, “L” for load, “T” for toggle, and “C” for conductors. Use consistent spacing between symbols; keep conductors straight with right-angle bends where necessary. Avoid diagonal lines unless depicting the toggle’s activating arm to prevent confusion in interpretation.
Verify the loop’s integrity by tracing the path: power source → conductor → load → toggle → return conductor → power source. If the load is bypassed when the toggle closes, reposition it to ensure proper sequencing. Use a ruler for precision, maintaining uniform line thickness (0.5mm for standard sketches) to enhance readability.
To test functionality, substitute components with actual parts if available. Close the toggle by bridging its gap with a finger or jumper wire–the load should activate immediately. If no response occurs, recheck connections for continuity, ensuring no unintended breaks exist in the conductive path.
Critical Elements for a Reliable Control Path Setup
A toggle mechanism must integrate a power supply delivering stable voltage between 3V and 24V, depending on load requirements. Alkaline or lithium-ion cells work for portable setups, while AC-DC adapters suit stationary applications. Choose a voltage rating 10-20% above the device’s nominal needs to prevent brownouts during transient spikes.
Conductive paths require copper traces or 18-22 AWG stranded wire for most low-power implementations. Solid wire suffices for fixed installations, but stranded handles vibration better in dynamic environments. Gold-plated contacts reduce oxidation in high-humidity conditions, extending service life to 50,000+ cycles.
Load devices span resistive (LEDs, heaters), inductive (motors, relays), or capacitive (timers, sensors) types. Match the toggle actuator’s current rating to the combined load–most miniature versions handle 5-10A, while heavy-duty types tolerate 20-30A. Exceeding this threshold risks arcing or permanent contact welding.
Actuation and Protection Essentials
Instantaneous toggles snap between positions with a force of 1-3N, while maintained types require 2-5N for secure latching. Springs or magnets inside the housing ensure consistent engagement–failure here causes intermittent faults. For high-cycle applications (10k+ operations), specify industrial-grade actuators with reinforced pivots.
Overcurrent safeguards typically include fuses or resettable PTCs placed in series with the load. A slow-blow 250V fuse protects against sustained overloads, while PTCs reset automatically after cooling. Thermal cutoffs or varistors further isolate sensitive components from voltage surges, especially in inductive setups where back-EMF reaches 600V+.
Enclosure material influences performance–polycarbonate resists impact but degrades under UV exposure, whereas phenolic withstands heat but cracks under stress. IP65-rated housings prevent dust ingress during outdoor use, while IP67 protects against temporary submersion. Ventilation slots accelerate cooling in high-power arrangements but compromise ingress resistance.
Signal Integrity and Modulation Techniques
Low-impedance wiring minimizes signal degradation over distances exceeding 2 meters. Twisted pairs cancel noise in differential signaling, critical for microcontroller-triggered paths where logic levels drop below 1V. Shielded cables further isolate analog signals from RF interference, essential near motors or switch-mode converters.
Frequent Errors in Wiring a Control Device Within a Power Network
Reversing live and neutral conductors at the control point leads to hazardous conditions. Modern safety standards mandate that the current-carrying line must be interrupted by the activating mechanism, not the return path. Many beginners mistakenly connect the neutral wire through the toggle or button, leaving the live wire constantly energized. Verify connections with a non-contact voltage detector before closing the enclosure–this takes seconds but prevents equipment damage or personal injury.
Overlooking terminal tightness causes intermittent failures. Loose connections create resistance hotspots, which melt insulation over time and may trigger arc faults. Torque specifications for terminal screws vary: 1.2 Nm for 18-16 AWG copper wires, 1.8 Nm for 14-12 AWG. Use a calibrated screwdriver and recheck torque after initial current flow–thermal cycling loosens connections by up to 30% within hours.
Mixing incompatible component ratings is common. Below is a comparison of maximum tolerances for typical control devices:
| Device Type | Maximum Current (A) | Voltage Rating (V) | Temperature Limit (°C) |
|---|---|---|---|
| Toggle switch | 15 | 250 AC / 30 DC | 85 |
| Push button (momentary) | 10 | 125 AC / 24 DC | 60 |
| Rotary selector | 6 | 30 AC / 12 DC | 50 |
Using a 15 A toggle in a 20 A branch path violates NEC 240.4(D)(3)–this creates a fire risk. Always match control device specifications with upstream overcurrent protection.
Splicing wires inside outlet boxes without proper strain relief damages conductors. Sharp edges of metal enclosures cut through insulation under normal building vibrations; exposed copper oxidizes within weeks, increasing resistance. Secure cables with approved clamps rated for the enclosure type–plastic boxes require snap-in clamps, metal boxes need threaded bushings. Leave 15 cm of slack inside the box for maintenance.
Assuming all activating mechanisms are polarity-agnostic leads to erratic behavior in solid-state loads. LED drivers and dimmable ballasts require correct phase sequencing; reversing live and neutral connections reduces lifespan by 40%. Mark phase conductors with red tape during installation and use a multimeter to confirm continuity–this prevents ground loops in low-voltage systems.
