Begin by selecting precise symbols for each component–resistors as rectangles with labeled values, capacitors with curved plates, and transistors with standardized emitter-base-collector markings. Avoid arbitrary variations; consistency ensures clarity across revisions and team collaborations. Use IEEE Standard 315 as a baseline, but adapt symbols only where necessary for specialized hardware like high-frequency modules or custom sensors.
Structure paths logically: ground connections should funnel downward, power rails run horizontally at the top, and signal traces follow the shortest viable route between nodes. Prioritize minimal crossovers–every intersection introduces potential noise or misreading risks. For complex layouts, segment into functional blocks (e.g., power supply, logic, output stages) and align inter-block connectors on a shared grid.
Label every component with unique identifiers–R1, C3, Q2–paired with exact specifications (e.g., 10kΩ 1%, 0.25W). Omit generic placeholders like “resistor” or “cap”; specificity prevents assembly errors and simplifies diagnostics. Add test points near critical junctions: a 1mm diameter pad with silkscreen annotation (e.g., “TP1: 5V Reg Out”) reduces troubleshooting time by 40% in field repairs.
Color-code wires by function: red for positive voltage, blue for negative, green for grounds, yellow for signals. Reserve purple for high-impedance inputs to flag sensitive nodes. For multilayer boards, assign a distinct layer for each net (e.g., power, analog, digital) and use via stitching on high-current paths to reduce inductance.
Include a bill of materials table adjacent to the schematic–list component designators, values, tolerances, footprints, and supplier part numbers. Note package variants (e.g., SOIC-8 vs TSSOP-8) to prevent footprint mismatches during PCB layout. Add a version history block with date, author initials, and change log to track revisions.
Schematic Blueprint Design: Key Rules for Clarity
Begin by assigning standardized labels–use uppercase for power rails (VCC, GND) and lowercase for signal traces (clk, data_in). Group related components in functional blocks: power delivery (capacitors, regulators), processing (MCUs, FPGAs), and I/O (connectors, sensors). Place ground symbols at the bottom, power symbols at the top, and arrange logic flow left to right–mirroring data movement in the physical layout. For ICs, pin numbers should align with datasheet order; rotate symbols to minimize crossing traces.
Adopt a consistent symbol library:
– Resistors: R1 (zigzag) for general use, PTC for thermistors
– Capacitors: C (parallel lines) for ceramics, C_POL (curved line) for electrolytics
– Inductors: L (looped line) with core material noted in the label
– Switches: SW_DIP for arrays, SW_PUSH for buttons
Color-code net classes: red for power, blue for ground, green for signals. Validate connectivity with a DRC tool–flag floating pins, disconnected grounds, and overlapping traces.
Decoding Common Notations in Schematic Maps
Begin by identifying power sources–straight lines with a plus (+) and minus (−) sign mark direct current supplies, while zigzag symbols denote signal or alternating sources. Voltage levels often label these elements; 5V, 12V, or 24V directly indicate expected potential difference. Misinterpreting these leads to incorrect component pairing or hazardous connections.
Resistors appear as rectangles with numeric values like 10kΩ or 470R; digits before “k” or “R” signify thousands or single units of ohms. Tolerance bands (gold, silver, or color-coded stripes) expand on this–gold ±5% or silver ±10% dictate precision limits. Without noting these, calculations for current or voltage drop remain inaccurate.
Capacitors split into two categories: parallel lines for polarized types (electrolytic) and curved lines for non-polarized (ceramic). Values stretch from picofarads (pF) to farads (F), with microfarads (µF) and nanofarads (nF) bridging the gap. Mixing these risks circuit malfunction or component damage, especially in filtering or timing applications.
Transistors combine three terminals–base, collector, emitter–aligned in specific configurations. An arrow on the emitter distinguishes NPN (outward) from PNP (inward) types. Incorrect orientation reverses signal amplification or switching behavior, rendering the design non-functional. Verify pinouts against datasheets before placement.
Connectivity and Switching Elements
Switches simplify to open or closed breaks in lines, labeled SPST (single-pole single-throw), SPDT (double-throw), or DPDT (dual configurations). Dots at intersections confirm conductive crossings, while gaps isolate paths. Overlooking these nuances collapses intended logic flows or power distribution.
- Ground symbols converge into three variations: earth (three descending lines), chassis (thick single line), and signal/common (single line). Each serves distinct roles–mixing them introduces noise or safety risks.
- Diodes permit current flow in one direction only, marked by a triangle pointing toward a vertical line. Light-emitting variants replace the line with arrows–confusing polarity inverts functionality.
- Integrated components cluster generic shapes (rectangles or circles) with pin numbers labeled numerically. Pin 1 often aligns with a notch or dot; misalignment disrupts microcontroller or amplifier pin assignments.
Signal and Measurement Notations
Oscillators and crystals pair parallel lines with frequency labels like 16MHz. Missing or misreading these skews timing-dependent processes in clocks or communication protocols. Antennas branch into dipole or monopole symbols–directional arrows clarify input/output for RF designs.
- Voltmeters and ammeters nest inside circles or arcs–parallel placement measures potential difference, while series alignment tracks current. Skipping these steps omits critical diagnostic steps during prototyping.
- Fuses appear as two overlapping loops or a single thin rectangle; amperage ratings (e.g., 250mA) prevent overload. Replacing these without matching specs invites fire hazards.
- Inductors coil into loops or lines–values in henrys (H) or microhenrys (µH) dictate magnetic field behavior. Misjudging these alters filter cutoffs or energy storage capacities.

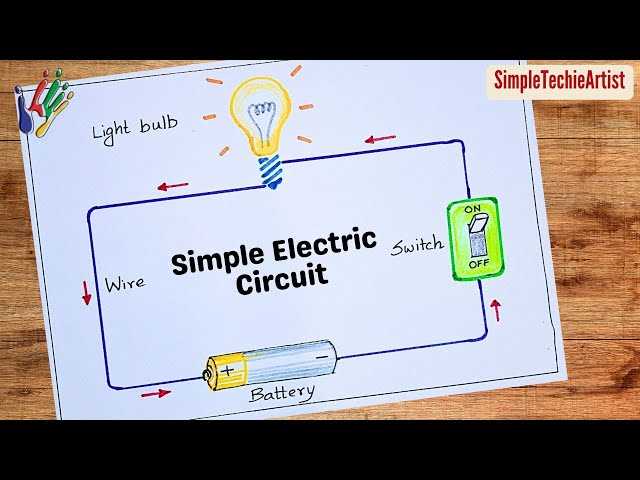

How to Sketch a Basic Schematic from Scratch
Begin by selecting graph paper or a digital tool with a grid. A 5mm grid works best for standard components like resistors and LEDs. Trace straight lines with a ruler–horizontal for power rails, vertical for component connections. Avoid freehand drawing; precision prevents misalignment later.
Identify key elements first. Draw a horizontal line at the top for the positive voltage source (e.g., a 9V battery). Place a matching line at the bottom for ground–leave a 3cm gap between them. These rails will anchor all other parts.
- Symbols to memorize:
- Resistor: zigzag line (4-5 peaks, 0.8cm long)
- LED: triangle pointing to a line, add two arrows outward
- Switch: gap with a diagonal line touching one side
- Battery: two parallel lines (longer for positive)
Arrange symbols along the rails. For a simple loop with one LED and resistor:
- Place the battery symbol at the left end of the top rail.
- Add a switch 2cm from the battery, connecting it to the bottom rail when closed.
- Insert the resistor 1.5cm from the switch on the top rail.
- Attach the LED 1cm right of the resistor, anode (long leg) to the top rail.
- Draw a vertical line from the LED’s cathode to the bottom rail to complete the path.
Label every part immediately. Use 2mm uppercase letters (e.g., “R1 220Ω”, “LED1 RED”). Place labels above resistors, below LEDs/switches. Add arrowheads to show current flow–start from the positive rail, follow each segment, mark every turn. Double-check connections against a reference sheet to avoid short circuits.
Verify the sketch with the continuity rule: every junction must connect to at least two other points. No floating lines–every element starts and ends on a rail or another component. Trace the path with a highlighter pen to confirm a single unbroken loop. Erase stray marks with a soft eraser to keep the schematic clean.
Common Pitfalls in Schematic Drafting
Avoid inconsistent component labeling–resistors marked “R” alongside capacitors labeled “C1” create confusion. Standardize prefixes (R, C, D, Q) across the entire layout to prevent debugging delays. Non-sequential numbering (R1, R3, R2) forces extra cross-referencing; renumber systematically left-to-right or top-to-bottom. Omit ambiguous symbols like generic boxes for ICs; use exact pinouts even for common chips such as LM358 or 74HC595.
Grounding errors introduce phantom faults. Split analog and digital grounds incorrectly, and noise infiltrates sensitive sections. Use star grounding or separate planes tied at a single point. Forget decoupling capacitors–at least 100 nF ceramic per IC–risks unstable logic levels. Place bypass caps within 2 mm of power pins; longer traces negate their purpose.
| Mistake | Fix | Impact |
|---|---|---|
| Missing pull-up/down resistors on open-drain outputs | Add 10 kΩ resistor to VCC or GND | Floating inputs trigger random states |
| Unlabeled power rails | Mark +5 V, +3.3 V, GND clearly | Assembly errors increase by 30 % |
| Overlapping signal lines | Maintain 0.2 mm minimum spacing | Crosstalk corrupts high-speed data |
Ignoring thermal considerations leads to premature failure. Power MOSFETs without heatsinks operate at 120 °C; mount on a copper pour or add a thermal pad. Overlook trace width for currents above 500 mA–inadequate cross-section causes voltage drops. Use 1.5 mm-wide traces for every amp; wider for higher temperatures. Silkscreen legends smaller than 1 mm become illegible after solder mask coating; enlarge text or move labels to assembly notes.
