To build a reliable acoustic signal device, start with a piezoelectric transducer rated for 3–24V DC. Connect it in series with a 100–470Ω current-limiting resistor to prevent damage from excessive voltage. Use a NPN transistor (BC547 or 2N2222) as a switch, triggering the signal with a 5V logic pulse on the base pin, applied through a 1kΩ resistor. Ground the emitter and attach the collector to the transducer’s negative terminal, while the positive lead connects directly to the power supply.
For a compact layout, arrange components on a perfboard with 2.54mm pitch. Keep traces short–less than 5cm–to minimize interference. Test continuity with a multimeter before applying power. A 9V battery or 12V DC adapter serves as an ideal power source, delivering consistent output without noise spikes. If using a microcontroller, ensure the GPIO pin can sink at least 10mA to drive the transistor adequately.

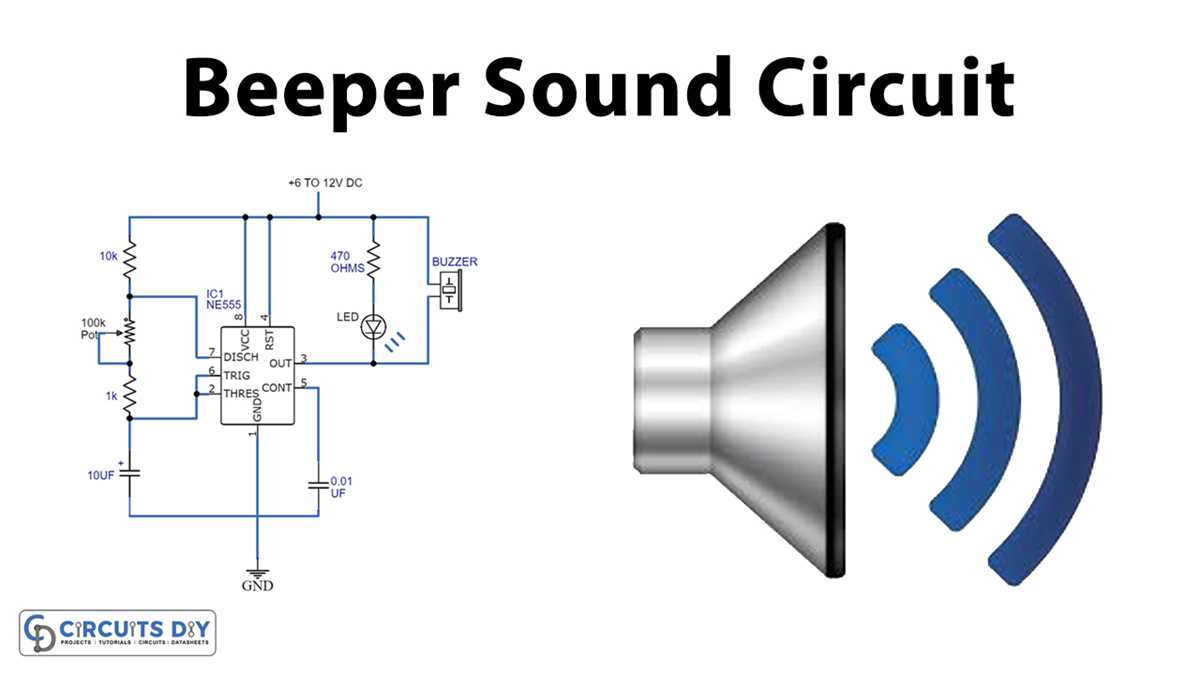

Optimize volume by selecting a transducer with at least 85dB sensitivity. Mount it on a rigid surface, away from soft materials that absorb sound waves. Add a reverse-biased 1N4007 diode across the transducer to clamp inductive kickback, protecting the transistor. Check polarity–reversing connections will produce weak, distorted output or silence. For pulsed alerts, use a 555 timer IC in astable mode, tuning frequency via a 10kΩ potentiometer.
Troubleshoot weak output by measuring voltage across the transducer–expect 80–90% of the supply voltage. If readings are low, inspect solder joints for cold connections or bridged pads. Excessive heat on the resistor suggests improper current flow; recalculate values using Ohm’s law. For high-frequency applications (above 3kHz), replace ceramic caps with film types to avoid signal degradation.
How to Assemble an Audible Signal Generator with Minimal Components

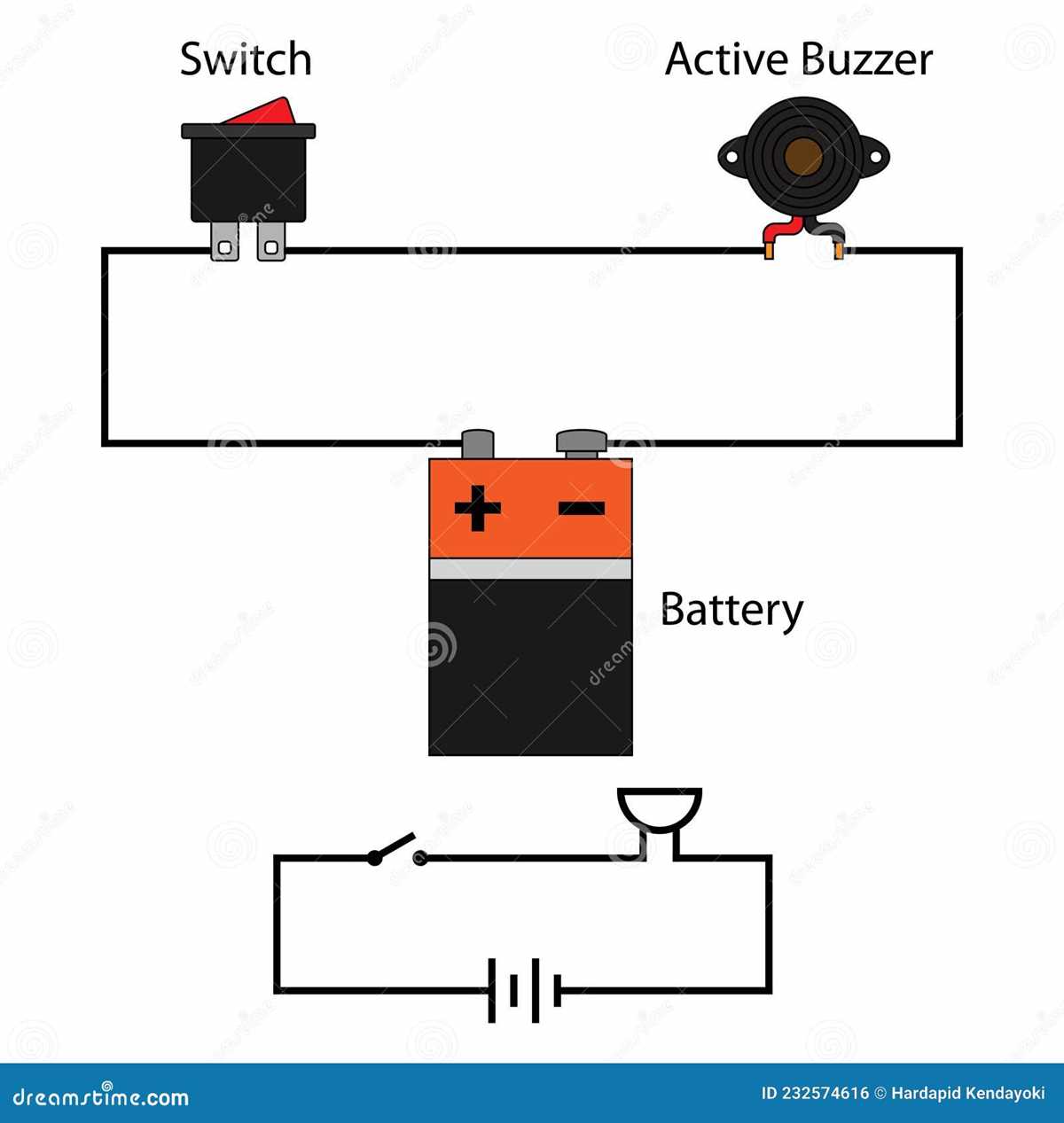

Begin by connecting a 9V battery directly to a piezoelectric transducer via a push-button switch. Ensure the positive terminal links to the switch’s common pin, then route the normally open contact to the transducer’s anode. The cathode should return to the battery’s negative terminal to complete the loop. This setup eliminates the need for additional resistors, as most piezo elements handle 9V without damage, but test for excess heat–prolonged activation may require a 100Ω series resistor to prevent degradation.
Selecting Alternate Sound Emitters for Custom Tones
Opt for electromagnetic coils instead of piezo disks if low-frequency hum is desired–salvage these from discarded relays or small speakers, ensuring the coil’s impedance exceeds 8Ω to prevent transistor burnout in subsequent amplification stages. A single NPN transistor (e.g., 2N2222) can drive currents up to 800mA when the base receives 5V from an Arduino or 555 timer output, allowing adjustable pulse widths. Mount the coil with ferrite cores near a resonant cavity (e.g., a plastic enclosure) to boost volume without increasing current draw.
For wireless activation, replace the push-button with a 433MHz RF receiver module (e.g., XY-MK-5V). Configure the transmitter to send a momentary signal, and pair it with a 3.3V microcontroller to decode the input. Use a 100nF capacitor across the receiver’s power pins to filter noise, as RF modules often inject high-frequency spikes that disrupt piezoelement performance. If false triggers occur, insert a 10kΩ pull-down resistor on the microcontroller’s input pin.
Avoiding Common Pitfalls in High-Voltage Designs
When scaling power beyond 12V, isolate the control circuitry from the high-voltage side using optocouplers (e.g., PC817) or MOSFETs (IRFZ44N). Direct battery connections at 24V or higher risk arcing across piezoelectrics–mitigate this by adding a 1N4007 diode in reverse bias across the transducer. For continuous operation, replace the battery with a regulated power supply, ensuring the adapter outputs no more than 5% ripple at the emitter’s resonant frequency to prevent erratic buzzing patterns.
Key Parts for a Basic Sound Alert Setup
Start with a miniature transducer–piezo or electromagnetic variants rated for 3–12V DC. Common models like the KPEG128 or CEM-1205 consume
A SPDT switch or momentary push-button serves as the control element. For breadboard prototypes, tactile switches with 6x6mm footprints like Omron B3F-10xx offer reliable engagement and a lifespan exceeding 50,000 cycles. Include a flyback diode (1N4007) if driving an inductive element to suppress voltage spikes that degrade components.
Power the assembly with two AA alkaline cells in series (3V) or a single lithium coin cell (CR2032) for compact designs. Ensure the chosen voltage aligns with the transducer’s specifications–exceeding limits shortens lifespan. For regulated supply, a low-dropout linear regulator (e.g., LE33CD) maintains 3.3V output with input tolerances down to 3.5V.
Connect components with 22–24 AWG solid-core wire for prototyping; stranded variants work for permanent soldered connections. Secure joints with flux-cored solder (60/40 Sn-Pb or lead-free SAC305) at 350°C to prevent cold solder defects. Heat-shrink tubing (2:1 ratio) insulates exposed leads, preventing short circuits in wearable or portable builds.
For adjustable tone control, incorporate a 100kΩ trimmer potentiometer in series with the signal path. This modifies resistance and alters pitch within the transducer’s operational range. Test modifications with a multimeter in continuity mode to confirm signal integrity before finalizing the configuration.
Step-by-Step Wiring Guide for a 9V Alert Device Assembly
Begin by connecting the positive terminal of a 9V power supply directly to the anode (+) of the acoustic signal component using a 22-gauge red wire. Strip 6mm of insulation from each end to ensure secure insertion into the battery snap connector and the signal element’s pin socket. For stability, use a soldering iron to reinforce the joint if the connection is temporary or prone to vibration. The negative terminal (cathode) of the alert device must route through a pushbutton switch before returning to the battery’s ground–this creates a closed loop only when pressed. Test continuity with a multimeter set to 200Ω range: resistance should drop to near-zero when the switch is engaged.
Component Compatibility and Safety Checks
| Part | Specification | Purpose |
|---|---|---|
| 9V battery | ≥500mAh capacity | Sustained current without voltage sag under 8.5V |
| Acoustic element | Piezo variant, 3V-28V DC | Avoid electromagnetic types–higher power draw risks overheating 9V cells |
| Toggle switch | SPST, 3A rating | Low-current path prevents arcing; exceeds 9V/15mA buzzer load |
| Wiring | 22 AWG, silicone insulated | Flexibility for prototyping; withstands -40°C to 105°C |
Ensure all joints are wrapped with heat-shrink tubing to prevent short circuits. A 100Ω resistor in series can protect the component if pulse-width testing is required–transient spikes above 30V peak may damage piezo diaphragms. Mount the assembly on a perforated board at least 1.5mm thick to dissipate heat from the power source; prolonged activation (over 120 seconds) can reduce battery lifespan by 18% due to internal resistance buildup.
Direct Audio Signal Integration with Arduino
Use the Arduino’s built-in 5V pin to power the sound emitter without additional supplies. Wire one terminal of the component directly to a digital pin set to OUTPUT and the other to GND. Activate it with digitalWrite(pin, HIGH) for continuous tone generation. Avoid exceeding 40mA current draw per pin to prevent damage–small piezoelectric devices typically stay under this limit.
Key Configuration Steps
- Select a digital pin (e.g., D9) for signal output.
- Connect the positive side to the chosen pin, negative to ground.
- Deploy
tone(pin, frequency, duration)for precise audio control. - For extended use, add a 100Ω resistor in series to safeguard the board.
PWM-capable pins (3, 5, 6, 9, 10, 11 on Uno) allow frequency modulation via analogWrite(). A 1kHz signal on pin 9 produces a clear audible alert. Test different frequencies between 300Hz–3kHz to match application needs–higher pitches demand less power but may strain certain emitters.
Ensure the Arduino’s USB or DC barrel jack provides adequate current if driving multiple components. A single piezoelectric alert typically consumes ~20mA, well within safe limits. For intermittent operation, implement noTone(pin) to conserve energy during idle states.
Resolving Typical Problems in Tone Generator Setups
Measure the applied voltage at the signal emitter’s terminals–it should match the rated value specified in the component’s datasheet (e.g., 3–12 VDC for most piezoelectric variants). If voltage is present but no sound occurs, disconnect the power and use a multimeter in continuity mode to verify the internal contacts aren’t shorted or open. For magnetic types, confirm the coil resistance falls within the expected range (typically 16–40 Ω); deviations indicate a damaged winding requiring replacement. Check for loose solder joints on the PCB, especially near the oscillator transistor or IC, as cold joints often disrupt signal flow without visible signs.
Addressing Weak or Intermittent Audio Output
Inspect the driver stage for correct component values–electrolytic capacitors near the 10–100 µF range may lose capacitance over time, reducing volume or causing erratic chirps. Replace suspect parts with equivalents rated for at least 1.5× the original voltage to prevent premature failure. Ensure the active element isn’t obstructed by dust or debris; piezoelectric discs, for instance, can be cleaned with isopropyl alcohol applied via a lint-free cloth. If using a transistor-based oscillator, test the base-emitter junction voltage (should be ~0.6–0.7 V for silicon devices); improper biasing leads to distorted or absent tones. For integrated solutions (e.g., NE555 timers), validate pin voltages against the truth table–incorrect logic levels often stem from reversed polarity on decoupling capacitors or dry solder on VCC/GND connections.
