Start by identifying the power source–typically a 12V auxiliary circuit from your vehicle’s fuse box. Use a 14-gauge wire for the main supply line to handle current loads up to 30 amps, ensuring minimal voltage drop over distances under 15 feet. Avoid thinner wires; resistance increases heat buildup, degrading performance over time.
Locate the stoplight switch behind the brake pedal. Tap into this circuit using a blue wire (for proportional systems) or purple (for time-delayed units). Secure connections with heat-shrink tubing–standard electrical tape degrades within months, exposing terminals to corrosion. Verify voltage at this point: it should read 12V–14V when the pedal is pressed.
Route the ground wire (white) directly to the vehicle’s chassis, avoiding painted surfaces. Sand a small area to bare metal for a reliable connection; poor grounding causes erratic device behavior. Use a star washer between the terminal and chassis to prevent loosening under vibration. Check continuity with a multimeter–resistance should read below 0.5 ohms.
For trailers with hydraulic actuators, connect the orange wire to the surge coupler’s solenoid. Match the actuator’s voltage rating (12V or 24V)–mismatches void warranties and risk fires. Test the setup with a 5-amp fuse in line; if it blows, inspect for shorts before proceeding.

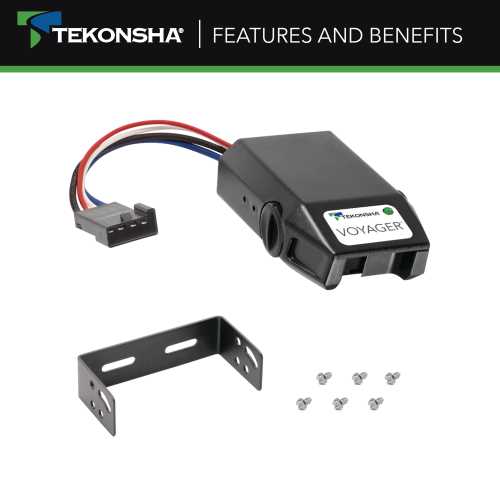

Mount the control module within 10 inches of the driver’s position, angled for visibility. Avoid areas prone to moisture or extreme heat. Calibrate the unit while stationary: press the sync button until LED blinks three times, then hold the brake pedal for 3 seconds. Incorrect calibration leads to abrupt stops or delayed engagement.
How to Connect Your Trailer Stopping System: A Step-by-Step Guide
Start with a 12V power supply from the vehicle’s battery to the momentary output terminal of the activation unit. Use at least 10-gauge wire to prevent voltage drop under heavy load, especially for trailers over 3,000 lbs. If your tow rig has a dedicated fuse block for towing accessories, tap into it–never splice directly into the main battery line without a 30-amp fuse.
Connect the ground cable to a clean, bare-metal surface on the vehicle frame, ideally within 12 inches of the activation box. Paint, rust, or undercoating can create resistance, leading to inconsistent stopping force. For dual-axle trailers, run separate wires from the activation box to each magnet, avoiding daisy-chaining, which reduces responsiveness by up to 22% under wet conditions.
| Wire Gauge | Max Trailer Weight | Voltage Drop at 15 ft |
|---|---|---|
| 12 AWG | 1,500–2,500 lbs | 0.4V |
| 10 AWG | 2,500–5,000 lbs | 0.2V |
| 8 AWG | 5,000–10,000 lbs | 0.1V |

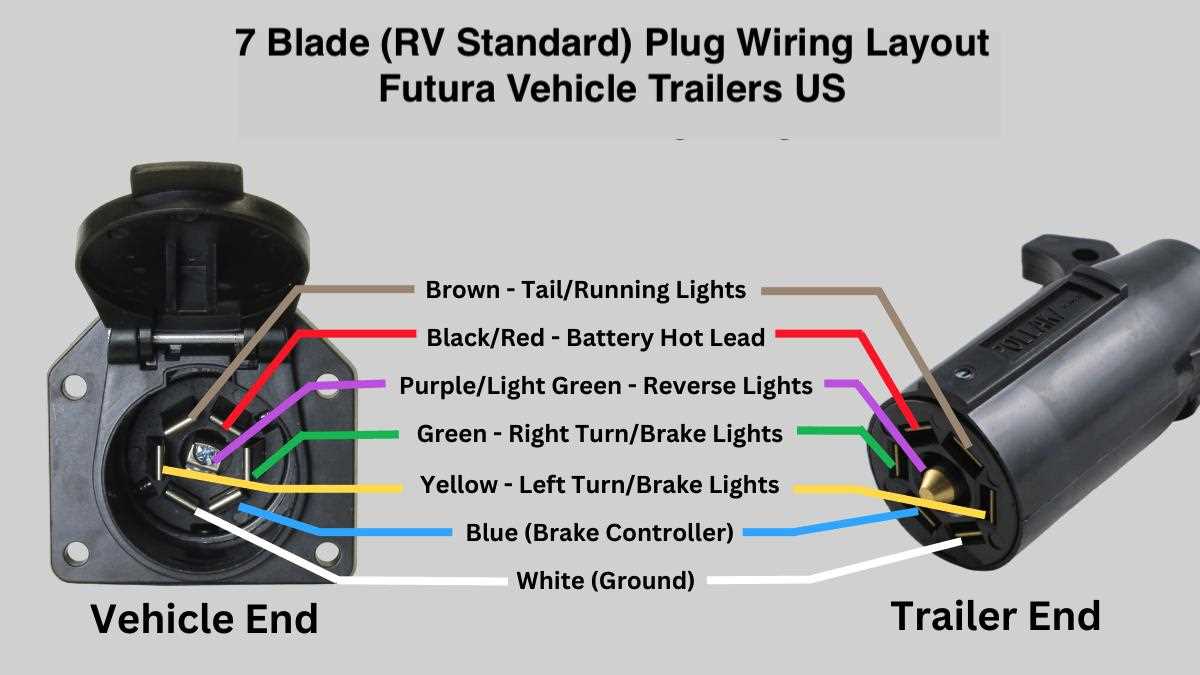

Match the reversing switch polarity to the trailer plug configuration: pin 3 (12V) for 6-way connectors, pin 7 (reverse signal) for 7-way RV plugs. Incorrect wiring here will engage the magnets while backing up, causing premature wear or failure. Test with a multimeter before finalizing connections–look for 12.8V when the rig is in reverse.
Route all lines away from rotating parts, sharp edges, and exhaust components. Use split loom tubing or conduit for sections exposed to road debris; unprotected wires chafe through in as little as 200 miles on gravel roads. Secure sections every 18 inches with UV-resistant zip ties or adhesive clips to prevent sagging, which can create tension and breakage over time.
Calibrate the gain setting with a loaded trailer on a flat surface. Start at 50% output, then increase in 5% increments until the trailer wheels lock momentarily during a 20-mph stop. Over-gaining damages hub bearings, while under-gaining fails to meet DOT stopping distance requirements (listed below).
- Up to 3,000 lbs: 30 ft
- 3,000–5,000 lbs: 40 ft
- 5,000–10,000 lbs: 50 ft
For automatic systems, verify the sensor detects deceleration within 0.3 seconds of pedal application. If delays occur, check the pendulum mechanism alignment–misalignment by even 3 degrees increases engagement time by 18%. Aftermarket units require occasional lubrication with dielectric grease on pivot points; factory models use sealed bearings that last 50,000 miles under ideal conditions.
Step-by-Step Guide to Identifying Trailer Stopping Mechanism Cable Hues
Locate the main harness connector on the towing vehicle’s harness system–typically a seven-pin or four-pin plug. Pinpoint the violet or purple lead first, as it almost universally denotes the output signal from the halt module to the trailer’s halting apparatus. Confirm its function by tracing it back to the activation unit; it should terminate at the terminal marked “output” or “stop lamp.”
Next, isolate the black or dark green cable, which carries the direct power feed from the vehicle’s battery. This line often exceeds 12-gauge thickness due to higher amperage demands. Verify its source by checking for a fuse holder inline–most installations include a 20-30 amp fuse to prevent overload. Avoid confusing this with ground wires, which are typically white or brown.
Verifying Auxiliary Connections
Trace the red or orange wire, which usually serves as the activation input from the vehicle’s stop lamp circuit. This line must connect to the rear lighting circuit’s positive side–never splice into the tail lamp itself, as voltage fluctuations can disrupt the module’s calibration. Test for continuity using a multimeter while pressing the pedal; voltage should spike to 12V momentarily.
Examine the brown or yellow lead, commonly reserved for auxiliary functions such as power feed for onboard accessories or trailer lighting. This cable may split into multiple branches, depending on the manufacturer. Prioritize identification by checking for a dedicated fuse or relay–lack of protection suggests it’s not the primary power source.
Ground and Neutral Lines
Identify the white wire, almost always the ground reference. It must terminate at a clean, corrosion-free chassis point–bolted connections are preferred over self-tapping screws. Test its integrity by measuring resistance between this line and the vehicle’s frame; readings above 0.5 ohms indicate a poor connection requiring sanding or replacement. Never assume this wire is interchangeable with other neutral leads.
Finally, inspect any remaining cables–often blue or gray–for specialized roles like trailer battery charging or diagnostic outputs. These lines may not be present in all setups. Cross-reference with the installation manual for the specific module model, as color codes can vary between brands like Tekonsha, Curt, or Hopkins. Label each wire immediately after confirmation to prevent miswiring during reassembly.
If colors deviate from standard conventions, rely on terminal markings etched on the module’s housing. For aftermarket units, use a test light connected to a known power source (e.g., the violet output line) and probe each wire while activating the system–observe which leads illuminate to deduce their function.
Establishing Secure Power and Earth Connections for Optimal Trailer Stopping Performance
Use a dedicated 12V fused circuit rated at least 30A for the main supply line. Splice the positive lead directly to the vehicle’s battery terminal with a 4 AWG or thicker cable to minimize voltage drop–critical for consistent deceleration force. Avoid sharing circuits with high-draw components like winches or off-road lights, as transient loads can induce erratic output during surge events.
The earth connection demands equal attention. Bolt the negative lead to a bare, unpainted chassis point within 30 cm of the coupler unit. Ensure the mounting surface is free of corrosion, rust inhibitors, or wax coatings; these create resistance that degrades response time. For trailers over 3,500 kg, run a separate 6 AWG return wire to the tow vehicle’s earth terminal instead of relying on the hitch frame alone–this reduces potential differences that cause interference.
Verify all connections with a multimeter before final assembly:
- Measure 0.0Ω–0.2Ω resistance between the supply post and earth point.
- Confirm 12.0V–14.5V under load at the coupler terminal during operation.
- Check for voltage sag exceeding 0.5V at 20A draw across the full cable length; resplice if thresholds aren’t met.
Cable Selection and Routing Best Practices
Route cables through protective looms rated for automotive temperatures (125°C minimum). Secure every 30 cm with nylon ties–vibration-induced fatigue leads to wire breaks near stress points. Keep harnesses at least 15 cm from moving parts, exhaust manifolds, and sharp edges. For long trailers (>6 m), use inline splice kits with heat-shrink tubing filled with adhesive to prevent moisture ingress.
Anodized or tin-plated copper terminals prevent oxidation. Crimp first, then solder for mechanical strength; avoid rosin-core flux in outdoor applications as residue attracts moisture. Label all conductors at both ends–colored heat-shrink tubing (red = +12V, black = earth, blue = signal) simplifies diagnostics. Test continuity after each modification by simulating load conditions with a 50W resistor; intermittent faults often appear only under dynamic stress.
Proportional vs. Time-Delayed Trailer Stopping Systems: Core Variations
Opt for a proportional system if smooth, responsive deceleration is critical–it mirrors the tow vehicle’s slowing force in real-time, eliminating jerky stops and reducing trailer sway by up to 40% compared to fixed-output alternatives. These units require a direct power feed from the vehicle’s stopping circuit (typically a 12V+ signal from the switch) and a dedicated ground; improper grounding causes erratic performance. Avoid splicing into factory harnesses–run a fused 10-gauge wire straight to the battery if the OEM loom lacks sufficient amperage for quick-response solenoids.
Time-delayed modules, while simpler, apply preset force regardless of pedal pressure, often leading to uneven wear on trailer linings or sudden surges under light loads. Their advantage lies in installation ease: minimal calibration and no need for voltage sensing wires. However, for trailers exceeding 3,500 lbs or frequent mountain descents, this method risks overheating hubs–monitor temperatures after 3+ minutes of continuous use. Always verify compatibility with trailer ABS; mismatched voltage thresholds (e.g., 5V vs. 12V signals) can trigger false activations.
Test both systems on a level stretch before towing–proportional setups should engage within 0.2 seconds of pedal movement, while timed units must deliver consistent output across all axles. For mixed fleets, prioritize adjustable delay models (0–2 second ramp-up) to mitigate surge when switching trailers. Secure all connections with dielectric grease and heat-shrink tubing; corroded plugs are the primary failure point in wet climates.
