Start by mapping your loop with a 48V power source–most mid-drive setups handle this voltage range smoothly. Identify the throttle input on pin 3 of the control module; it expects a 1–4V signal. Cut the factory wire and solder a 2.2kΩ resistor between the throttle’s signal line and ground to prevent ghost pulses when disengaged. Hall sensors (A, B, C) must tie to pins 8, 9, and 10 respectively–reverse any phase if the motor spins backward during testing, but never swap phase wires after initial calibration unless you rerun autotune.
Route the brake lever microswitch to pin 12. Ensure the normally-open contact closes when the lever is pulled; a miswired switch will cut power unpredictably. For regenerative braking, connect a 10A Schottky diode in series with pin 15–any standard 1N5822 will work–but omit this step if your system lacks regen hardware. Ground all sensor shields directly to the frame at a single point to eliminate EMI, especially near the motor shaft.
Use 16-gauge silicone wire for power lines; anything thinner risks voltage drop under peak loads. Twist phase wires tightly (3 twists per inch) to reduce inductive noise, and keep them at least 5 cm from signal cables. Install a 150A fuse in-line with the battery positive–do not rely on the battery’s internal protection. When verifying connections, power up without the motor attached; if the display shows an error code below 30, check for shorts between signal lines; codes above 50 typically indicate undervoltage or open circuits.
Calibration involves turning the throttle to full while holding the brake lever depressed–this triggers the self-learning sequence. If the LED on the module blinks red, release the throttle and repeat once more. Persistent red flashes mean phase or sensor misalignment; recalibrate by spinning the wheel backward by hand during startup. Always secure loose wires with nylon zip ties rated for high temperatures–failure here causes intermittent failures under vibration.
Understanding Power Cycle Connection Schematics for Two-Wheel Vehicles
Begin by identifying the throttle signal wire, typically a thin green or blue cable on most speed regulator units. Connect it directly to the corresponding input on the motor hub, ensuring polarity matches–reversing this can damage the signal processor. For models with a 48V battery, verify the voltage regulator output sits between 4.8V and 5.2V; deviations indicate a faulty unit or mismatched components.
Grasp the brake cutoff switches first–these are safety-critical. Locate the normally closed (NC) contacts on the lever assembly; if using hydraulic brakes, a separate sensor module may be required. Wire the cutoff cables in series to the power management module’s input, then ground the opposite end to the frame. Failure here prevents motor disengagement during braking, risking controller overload.
Handling Hall Sensor and Phase Wires
- Hall sensor wires (thin, often white/black/yellow) must connect to the motor’s matching pins–swapping any pair causes erratic performance or motor failure.
- Phase wires (thick, red/black/blue) carry high current; use 14–12 AWG cables and soldered connections, not crimp terminals, to avoid voltage drop.
- For direct-drive hubs 500W+, add an anti-spark circuit–this protects against arcing when connecting the battery and extends component lifespan.

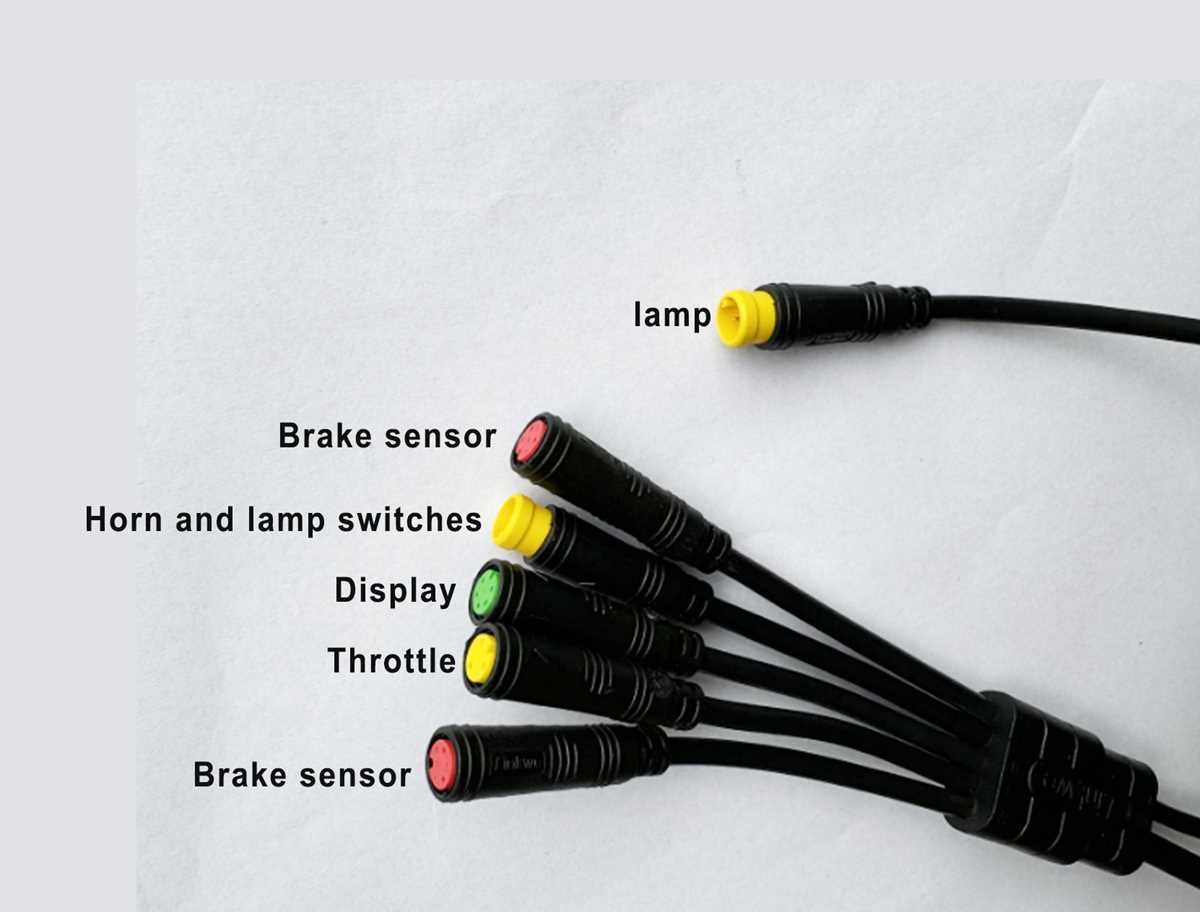

Integrate the display interface next. Six-pin LCD connectors usually follow this pinout: red (battery+), black (ground), green (throttle signal), blue (brake signal), white (speed sensor), yellow (hall sensor ref). Cross-reference with your unit’s manual–some cheaper models reverse the blue and green cables. A multimeter set to continuity mode confirms correct mapping before powering on.
Thermal management requires a 10kΩ NTC thermistor attached to the regulator’s heat sink or motor casing. Wire it to the dedicated temperature input; most systems shut down at 80°C to prevent overheating. If absent, install a thermal fuse rated 10°C below the maximum operating temp of your components–typically 125°C for MOSFETs.
Final Checks Before Power-Up
- Verify all ground connections converge at a single point–avoid ground loops by separating high-current and signal returns.
- Apply dielectric grease to connectors exposed to moisture; corrosion accounts for 40% of field failures.
- Test with a 12V power supply first–monitor for smoke, unusual noise, or excessive heat; discard the regulator if any appear.
- For torque-sensing models, calibrate the strain gauge via the manufacturer’s software; improper settings cause jerky acceleration.
Document each step with photos and labeled diagrams–future troubleshooting relies on this. Use color-coded sheathing for wires (e.g., red/black for power, yellow/blue for signals) to simplify maintenance. Retain spare fuses (20A for 48V systems) and a replacement regulator; delivery delays can leave vehicles inoperable for weeks.

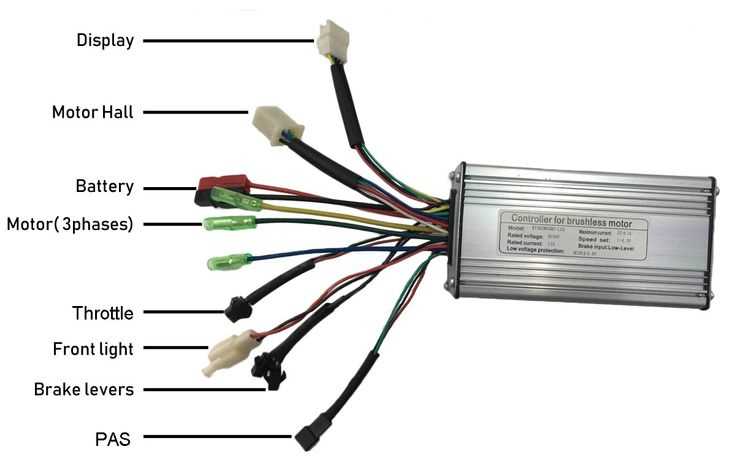

How to Identify Core Parts in a Power-Assist Drive System Connection Scheme
Locate the throttle input connector–a slender, three-wire plug typically marked with red (5V+), black (ground), and a signal wire (often green or yellow). Probe the signal wire with a multimeter set to 1-4V DC while rotating the throttle; voltage should climb smoothly from ~0.8V to ~4.2V without spikes.
Trace the brake lever cut-off switches next. These appear as pairs of micro-switches embedded in each lever assembly, wired to interrupt motor current when engaged. Test continuity with the lever pulled–open circuit at rest, closed circuit when activated–otherwise, the motor may run unexpectedly.
Find the phase wires exiting the drive unit housing. These three thick, color-coded cables (usually blue, green, yellow) carry high-frequency PWM signals to the hub motor. Avoid touching them while powered; even a brief short can destroy MOSFETs. Label them with shrink tubing before disconnecting for troubleshooting.
Check the main power input–a chunky two-wire plug (red for +, black for –) mating to the battery pack. Verify voltage here matches the pack’s nominal rating (e.g., 36V, 48V, 72V) under load; anything below 70% indicates weak cells or corroded terminals.
MOSFET Bank & Hall Sensor Interface
Inspect the semiconductor array–typically six to twelve TO-220 or TO-247 packages screwed to a heatsink–responsible for switching motor phases. Look for bulging capacitors or discolored solder joints; both signal imminent failure.
Identify the Hall sensor connector–a five-pin plug (red 5V+, black ground, and three small signal wires). Use an oscilloscope to confirm clean square waves (~5V peak-to-peak) from each sensor while spinning the wheel by hand; erratic waveforms suggest a faulty rotor magnet ring.
Follow the auxiliary output leads–thin wires supplying 12V, 5V, or even 3.3V to displays, lights, or derailleurs. Miswiring here risks overloading the voltage regulator; always cross-check against the pinout legend provided in the drive’s tech sheet.
Examine the thermal fuse or NTC thermistor–usually clipped to the heatsink or embedded in potting compound. A reading below 1kΩ at room temperature confirms proper operation; an open circuit necessitates immediate PCB replacement to prevent overheating.
Step-by-Step Guide for Connecting Throttle and Pedal Assist Sensors
Identify the three-wire harness from the throttle mechanism: typically red (+5V), black (ground), and green or yellow (signal). Match these to the corresponding pins on the drive system’s interface–align polarity strictly. Most mid-drive units label terminals THR or TH; verify with a multimeter if labels are absent (signal wire should register ~0.8V–4.2V).
For pedal assist sensors (PAS), locate the disc-and-magnet assembly attached to the crankset axle. Ensure 8–12 magnets are evenly spaced around the disc–misalignment causes erratic power delivery. The sensor’s three wires (red, black, blue) connect to the drive system’s PAS or SPD port. If the unit uses a torque sensor instead, confirm 5V output on the red wire during pedaling; torque sensors often require calibration via software.
Route wires away from moving parts and heat sources; secure with zip ties every 15 cm. Use waterproof connectors (e.g., JST-SM or Anderson Powerpole) for throttle and PAS–avoid soldering unless heat-shrink tubing is applied afterward. For hub motors, throttle wires may split into additional brake cutoff inputs; connect these last to prevent accidental engagement.
Before powering on, check for shorts with a continuity tester. Activate the system and test throttle response in walk mode (if available); voltage should rise smoothly. For PAS, pedal lightly–power should engage within 0.5 seconds. If power cuts intermittently, inspect magnet alignment (gap should be ≤2 mm) or sensor distance (
Adjust sensitivity settings via the drive unit’s display or app. Most systems default to 3–5 assist levels; level 1 should provide ~20% power, level 5 ~100%. For cadence sensors, set the startup delay to 0.2–0.5s to reduce lag. Torque-sensor bikes may require Nm threshold adjustments–start at 5 Nm and increase incrementally to avoid sudden surges.
Finalize installation by securing all connectors with dielectric grease to prevent corrosion. Recheck wire routing after a 5 km test ride–vibration can loosen even tightly fastened connections. If errors persist (e.g., error code E05), swap PAS and throttle wires at the drive unit to isolate faulty components.
