Begin by verifying your HVAC system’s voltage requirements–most residential units operate at 24V AC, but some older models or commercial installations may use 120V or 240V. Locate the transformer (typically near the furnace or air handler) and confirm output with a multimeter before connecting any cables. Incorrect voltage can damage components or void warranties.
Identify the common (C) wire–this is critical for continuous power supply. If missing, alternative solutions include using a PEK (Power Extender Kit) or repurposing an unused wire (such as a fan (G) wire if your system doesn’t require separate fan control). Avoid relying on batteries alone; they drain quickly under Wi-Fi and sensor loads.
Match terminals precisely: R (power) to Rh (heating) or Rc (cooling), W for heat, Y for cooling, and G for fan. For dual-fuel systems, connect O/B to control heat pump reversal. Label each wire with masking tape before disconnecting the old device to prevent confusion during reinstallation.
For multi-stage systems, connect additional wires to W2 (second-stage heat) and Y2 (second-stage cool). Check the furnace’s control board for compatibility–some older boards lack support for two-stage operations, requiring a zone control panel or relay installation.
Test all connections after powering the system: use the built-in diagnostics to verify sensor readings and response times. If the device fails to power on, recheck the C wire or inspect for loose terminals. For radiant floor heating or boiler systems, consult the manufacturer’s technical guide–standard terminal assignments may vary.
Connecting Your Climate Control Device: Circuit Guide

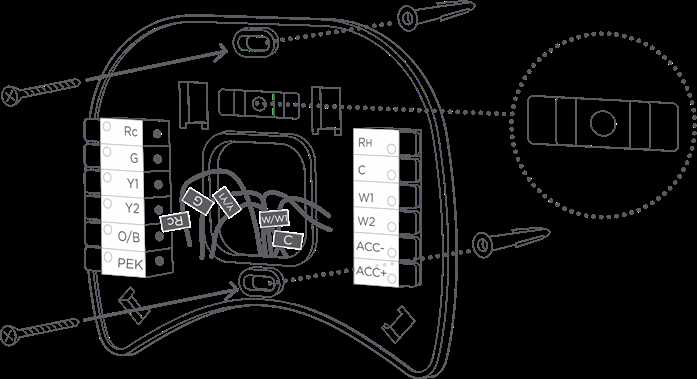

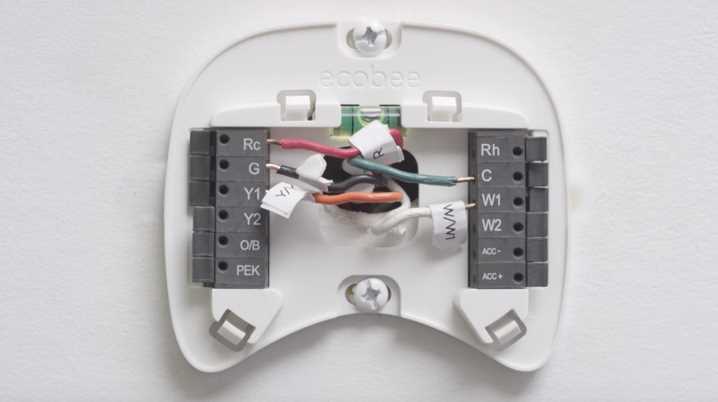

Disconnect power at the breaker before handling any connections. For standard 24V HVAC systems, identify these terminals on the backplate:
Rc: Cooling power (red wire, often jumpered toRhunless separate transformers exist)Rh: Heating power (red wire, separate from cooling in dual-transformer setups)W: Heat relay (white wire, connects to furnace control board)Y: Cooling call (yellow wire, links to AC condenser)G: Fan control (green wire, direct to air handler blower)C: Common/ground (blue or black wire, completes 24V circuit from transformer)O/B: Heat pump reversing valve (orange wire for cooling, dark blue for heating models)
For heat pumps, verify the O/B position: O energizes in cooling mode (typical for Rheem/Carrier), B energizes in heating (common for Trane/American Standard). Label wires with provided stickers before removal to prevent mismatches.
Non-standard setups require additional steps:
- Dual-fuel systems: Add
Eterminal (emergency heat) for backup electric elements - Humidifiers/dehumidifiers: Connect
HUMorDEHUMto dedicated controller outputs - Ventilation: Use
AUXor spare terminals for ERV/HRV control, matching your air exchanger’s voltage requirements
Test all connections with a multimeter: 24-28VAC between R and C confirms proper transformer output. After restoring power, initiate a test cycle via the interface to verify compressor, fan, and heat strip activation delays (typically 5 minutes for safety locks).
Matching Control Unit Layouts to Climate System Types
Single-stage heating systems require only an R (power) and W (heat) terminal. Verify the Rc terminal remains jumpered to Rh if the unit lacks separate cooling power. For dual-fuel setups, connect the auxiliary heat relay to the W2 terminal and label all wires clearly to prevent miscommunication during HVAC servicing.
Heat pump configurations demand precise PEK (power extender kit) placement for models without built-in relays. Connect the O/B terminal to the reversing valve–energize O for cooling mode if the valve defaults to heating. Compressor staging wires (Y, Y1, Y2) must align with the outdoor unit’s capacity stages to avoid short-cycling.
Multi-stage furnaces need sequential wiring: W1 for first-stage heat, W2 for second-stage, and E for emergency heat where applicable. Use the C (common) wire to power the device–modern systems often include this, but verify compatibility with older 4-wire setups by checking the furnace control board for a dedicated C terminal.
Zoned systems with dampers require a PEK or separate zone controller. Route all zone thermostat wires through the controller, ensuring Rh and Rc split correctly for heating and cooling demands. Label each zone wire at both ends to simplify troubleshooting during temperature inconsistencies.
Humidifier or dehumidifier integration uses the HUM or DEHUM terminal. Confirm the HVAC system’s humidistat is disabled to prevent signal conflicts. For whole-home dehumidifiers, connect the control wire to the accessory terminal only if the air handler supports variable-speed fan control.
Gas/electric hybrid systems prioritize the heat pump’s efficiency until outdoor temperatures drop below 35°F. Wire the switchover relay to the W2/E terminal and set dip switches on the indoor unit to “hybrid mode” to enable automatic fuel source toggling without manual intervention.
Boilers with low-voltage controls connect via R, W, and C terminals. If the boiler lacks a C terminal, splice into the transformer’s secondary side or use a 24V adapter. For radiant systems with pumps, wire the T terminal to activate circulation only when the device calls for heat to conserve energy.
Dual-transformer systems separate heating and cooling power sources. Identify the transformer supplying each function (Rh for heating, Rc for cooling) and ensure jumpers match the system’s requirements. Test voltage at each terminal with a multimeter before final connections to avoid damaging the control panel or HVAC components.
Step-by-Step Guide to Decoding Your Climate Control Panel Identification Tag
Locate the metal or adhesive tag affixed to the furnace, air handler, or outdoor condenser unit–this is the foundation. Manufacturers like Carrier, Trane, or Goodman imprint critical electrical details here, often in a small box labeled “Low Voltage” or “Control Board Wiring.” Focus on the row of terminals marked with letters (R, C, W, Y, G, O/B) and note any additional annotations like “24V,” “Com,” or “Aux.” These identifiers correlate directly to the corresponding wires in your existing control interface, eliminating guesswork during transition.
Match each terminal to its wire color using a multimeter set to voltage (AC mode, 20V range). Probe the R terminal (power) and each subsequent terminal (e.g., W for heat, Y for cooling) to confirm 24V presence–this verifies the circuit’s integrity. Record findings in a table for clarity:
| Terminal | Function | Typical Wire Color | Voltage Check (R to Terminal) |
|---|---|---|---|
| R | Transformer 24V Hot | Red | 24V |
| C | Transformer Common | Blue/Black | 0V (reference) |
| W | Primary Heat Relay | White | 24V when calling for heat |
| Y | Cooling Relay | Yellow | 24V when calling for cool |
| G | Fan Relay | Green | 24V when calling for fan |
| O/B | Heat Pump Reversing Valve | Orange/Brown | 24V for cooling (O) or heating (B) mode |
Scan for lesser-known terminals like “E” (emergency heat), “L” (fault indicator), or “AUX” (secondary stage). These may require jumper wires or specific configuration in the new interface. Systems with dual-fuel setups (e.g., heat pump + gas furnace) often split “W1” (first-stage heat) and “W2” (second-stage heat) or “Y1” (single-speed cooling) and “Y2” (two-speed). Ignoring these subdivisions risks incomplete climate control or system damage during startup.
Cross-reference the tag data with the indoor unit’s installation manual–specifically the “Wiring Schematic” section. High-efficiency models (AFUE > 90%) often integrate secondary draft inducer motors or modulating valves, requiring additional relays not listed on basic tags. For variable-speed blowers, look for terminals labeled “V,” “BK,” or “BRN,” which correspond to tapped transformer outputs (e.g., 10V or 12V signals) for blower modulation. Miswiring here can trigger error codes like “F1” or “L1,” locking the system until corrected.
Final verification involves a dry run: power down the circuit breaker, disconnect the existing control interface, and attach the new device’s wires strictly per the tag’s terminal designations. Re-energize the system and observe startup sequences–listen for unusual relays (e.g., excessive clicking for heat pump systems) or error indicators on the furnace’s LED panel. If the system fails to initialize, revisit the tag and schematic to confirm auxiliary components (e.g., dehumidifiers, UV lights) aren’t siphoning power from critical circuits. Use a non-contact voltage tester to ensure no stray current remains before handling any wires.
Precise Terminal Assignment for Your Climate Control Upgrade
Start by labeling every conductor from the control panel with masking tape and a permanent marker. Use a multimeter set to continuity mode to confirm each cable’s function before detachment–triple-check against the legacy device’s terminal strip to avoid mismatches.
- R (Power): Trace the red or designated primary supply line from the furnace or air handler. If dual transformers exist (e.g., heating/cooling zones), pair Rc and Rh separately.
- C (Common): Identify the uninsulated, blue, or black return path–ensure 24VAC potential between R and C before proceeding.
- W (Heat): Attach the white or labeled heat actuator wire. For two-stage systems, W1/W2 must align with the equipment’s staged call sequence.
- Y (Cool): Connect the yellow or color-coded compressor relay conductor. Stage-two cooling (Y2) demands exact mapping to avoid short-cycling.
- G (Fan): Secure the green or fan-specific wire. Verify G operates independently of heating/cooling cycles to prevent forced-air override.
- O/B (Reversing Valve): For heat pumps, determine the system’s energization preference–O for cooling mode, B for heating–and mark accordingly. Reverse polarity risks compressor damage.
- Auxiliary/Backup (E, W3/Aux): Map emergency or tertiary heat sources directly to their dedicated terminals, ensuring compatibility with the new interface’s staged logic.
Cross-reference each assignment with the replacement unit’s installation manual–terminal blocks may vary in layout despite identical labeling. Use wire nuts and electrical tape for splices if adapting conductor gauge or type.
Before energizing, disconnect power at the breaker and air handler, then reconfirm all connections with a non-contact voltage tester. Reattach the faceplate and restore power only after verifying no exposed conductors remain.
Test each mode–heat, cool, fan–sequentially, monitoring for unexpected delays or error codes on the display. Log voltage readings at the terminals during operation to detect voltage drop or improper load distribution.
For systems with humidifier, dehumidifier, or ventilation add-ons, ensure dedicated low-voltage conductors (typically labeled HUM, DEHUM, VENT) are routed to their matching baseplate ports without crossing high-voltage runs.
Keep the legacy control panel accessible during the first 24-hour cycle to compare performance metrics. Adjust differentials or staging delays via the interface if anomalies appear in cycling frequency or runtime.
