Begin by identifying the pinout configuration for your vehicle’s control module–this is the foundation. Most wiring layouts follow a standardized pattern: power inputs (8-16V), ground references (low-noise, dedicated circuits), and sensor feeds (analog/digital). Check the manufacturer’s service manual for deviations; aftermarket units may swap signal polarities or voltage thresholds. Use a multimeter to verify connections before tracing paths–assume nothing.
Critical sensor circuits (crankshaft, camshaft, MAF, O2) require shielded twisted pairs to prevent signal corruption. Measure resistance: 200-1500 ohms for active sensors,
Power distribution demands isolated feeds: main relay (switched 12V), ignition (low-side driver), and secondary supplies (for injectors, coils). Cross-reference power-on timings with an oscilloscope–delays >50ms between relay activation and injector pulse signal instability. Ground points must be bare metal, free of paint or corrosion; star configurations prevent ground loops. For LS or drive-by-wire systems, validate throttle position resistors (
Actuator controls (injectors, ignition coils) use peak-and-hold drivers with current-limiting resistors (2-10Ω). Injector waveforms should show a sharp rise (
Troubleshooting starts with fault code isolation: freeze-frame data reveals voltage/sensor values at failure. Compare against known-good baselines (e.g., manifold pressure: 1.0-1.5V at idle). If no codes appear, force selective tests by unplugging sensors–erratic engine behavior confirms faulty wiring or internal module faults. Replace only after validating all external inputs (fuses, relays, sensors).
Key Components of an Engine Control Unit Blueprint
Begin by locating the microcontroller unit (MCU), typically a 32-bit processor like the Infineon TC1797 or STMicroelectronics SPC5. Verify its pinout against the manufacturer’s datasheet; mismatches here cause critical failures during validation. Pay attention to power pins (VDD, VSS) and oscillator inputs (XTAL, EXTAL) as they dictate timing accuracy.
Identify sensor interfaces immediately downstream of the MCU. MAP sensors, for instance, require a dedicated analog-to-digital converter (ADC) channel with
Power supply design must segment high-current outputs from low-noise analog sections. Use a multi-layer PCB with dedicated ground planes: one for actuators (injectors, ignition coils), another for sensors (crankshaft, camshaft). Cross-reference the schematic with a voltage regulator table to avoid dropout issues:
| Component | Input Voltage (V) | Output Voltage (V) | Current Limit (A) |
|---|---|---|---|
| LM2940 | 6-26 | 5.0 ±2% | 1.0 |
| LT1763 | 3-20 | 3.3 ±3% | 0.5 |
| TPS7A47 | 3-36 | 1.2-15 (adj.) | 1.0 |
Fuel injector drivers demand high-side switches with peak currents exceeding 5 A. The blueprint should specify MOSFETs with RDS(on)
Communication buses require termination resistors. For CAN, use 120 Ω resistors at both ends of the bus. LIN demands a single 1 kΩ pull-up to 12 V. Verify baud rates: 500 kbps for CAN, 19.2 kbps for LIN. Incorrect resistor placement leads to packet corruption, particularly in noisy environments like turbocharged engines.
Ground return paths must avoid star-point configurations that induce ground loops. Instead, split returns into three categories: analog sensors, digital logic, and power actuators. Route these to separate ground vias connected at the battery negative terminal. A common mistake involves tying sensor grounds to the chassis, introducing offsets of up to 500 mV in lambda readings.
Check EEPROM specifications if the unit stores calibration maps. A Microchip 24LC64 supports 8 KB but requires pull-up resistors (4.7 kΩ) on SDA/SCL lines. Verify write-cycle endurance; cheap EEPROMs fail after 10,000 cycles, risking fuel map corruption during reflashes.
Thermal management elements must include temperature sensors near high-dissipation components (e.g., MOSFETs, voltage regulators). The blueprint should show a 10 kΩ NTC thermistor connected to an ADC channel with a series resistor (4.7 kΩ) for linearization. Omitting this leads to thermal runaway in under 30 seconds at ambient temperatures above 85°C.
Key Components and Their Symbols in Engine Control Blueprints
Begin by identifying the Engine Control Unit (ECU)–its symbol is a rectangle with pin connectors, often annotated with “ECU” or a manufacturer-specific code (e.g., Bosch ME, Delphi MT). Label each pin with its function (e.g., “Injector 1,” “Throttle Position Sensor”) to avoid miswiring during repairs or modifications.
Sensors are marked with standardized icons: a thermistor (coolant/temperature) appears as a resistor with an upward arrow, while a Hall effect sensor (crankshaft/camshaft) uses a magnet-and-coil glyph. Verify sensor pinouts against manufacturer data–generic symbols may vary. For instance, Toyota’s MAF sensors often include a proprietary waveform symbol.
Actuators like fuel injectors and ignition coils use distinct shapes: injectors are shown as a nozzle with a solenoid coil, coils as a double-wound spiral or zigzag line. Cross-reference with OEM wiring colors (e.g., yellow/black for injector positive, green/white for negative) to prevent short circuits. Note that direct-injection systems add a high-pressure pump symbol, often a gear pump icon.
Power distribution components–relays, fuses, and diodes–require precise identification. Relays are drawn as a switch with a coil, fuses as a rectangle crossed by a diagonal line, and diodes as a triangle with a bar. Highlight critical fuses (e.g., ECU main relay, fuel pump) in red or bold on the layout to prioritize troubleshooting. Include voltage drop annotations (e.g., “12V nominal, 11.8V min”) for reliability.
Ground connections use a downward-pointing triangle or three parallel lines, labeled with chassis locations (e.g., “G103 Body Ground”). Confirm ground integrity with a multimeter–resistance should not exceed 0.1Ω. Hybrid systems add a high-voltage symbol (exclamation mark in a circle) for battery management circuits; these must be isolated from low-voltage paths.
For CAN/LIN bus networks, use twisted-pair lines (CAN-H/CAN-L) with termination resistors (120Ω) at both ends. Bus nodes (e.g., ABS, TCU) are connected via circular or rectangular nodes with “CAN” or “LIN” labels. Label baud rates (e.g., “500 kbps”) to ensure compatibility with scan tools. Avoid splicing into bus lines–use OEM connectors to prevent signal degradation.
Critical Symbol Variations
Aftermarket and Asian/European OEMs frequently modify symbols: Mitsubishi’s idle air control (IAC) uses a stepper motor glyph, while Volkswagen’s throttle body combines a potentiometer and motor in one icon. Always check the legend or service manual–assuming uniformity risks misdiagnosis. For wiring looms, color-coding follows ISO (DIN) standards, but Ford and GM may swap black (“ground”) and brown (“signal return”).

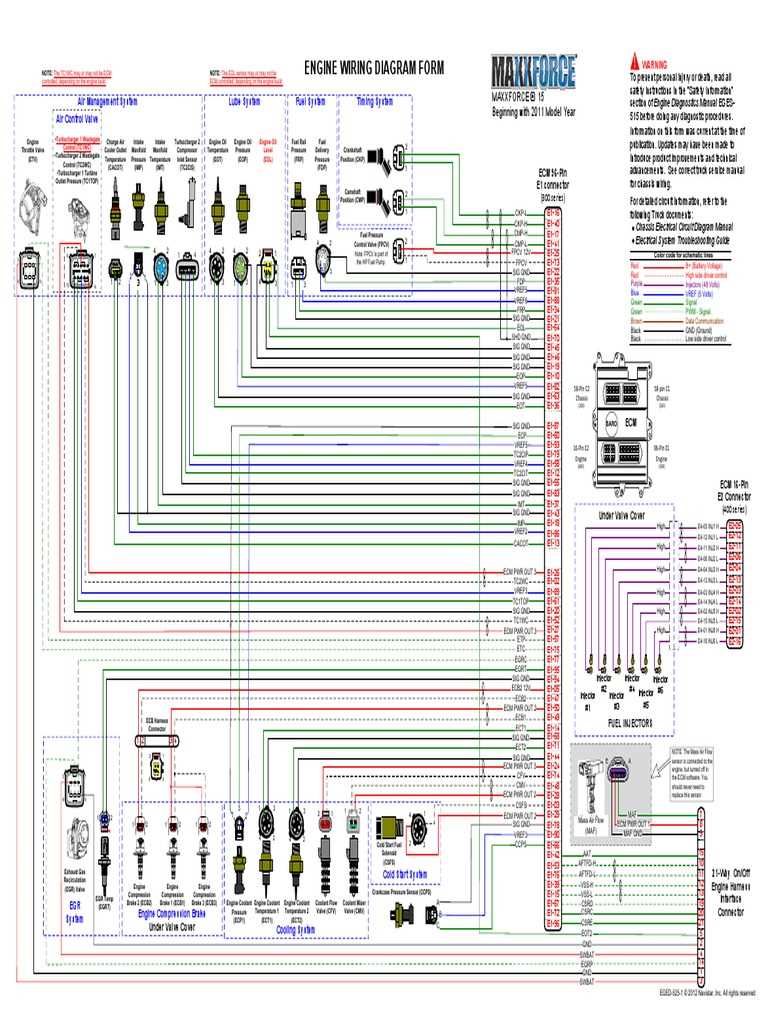

Step-by-Step Guide to Reading an Engine Control Unit Wiring Blueprint
Locate the power distribution section first, typically marked with a battery symbol or thick red lines leading to the control module. Trace these lines to identify fused circuits, ground points, and relay connections–critical for verifying voltage supply. Note wire gauge variations: thicker lines (e.g., 10-12 AWG) indicate high-current paths, while thinner ones (e.g., 20-22 AWG) service sensors or secondary actuators. Cross-reference color codes with the legend; mismatches often reveal repair errors or aftermarket modifications.
Decoding Sensor and Actuator Paths
Follow dashed or dotted lines for sensor circuits, paying attention to prefix symbols like “T” (temperature), “P” (pressure), or “O2” (oxygen). Measure resistance between endpoints using a multimeter–expected values range from 200 ohms (crankshaft position sensor) to 10 kOhms (engine coolant temperature sender). Actuator lines (fuel injectors, ignition coils) use solid arrows or diamond-shaped markers; verify continuity by observing voltage drops during engine cranking (injectors: 12V pulse, coils: 50-200V inductive spikes).
Isolate ground loops by identifying shared black/yellow-striped wires terminating at chassis points or the ECU housing. Use a probe to test for voltage drop–exceeding 0.1V indicates corrosion or undersized wiring. For CAN bus circuits (twisted pair, typically orange/purple), confirm differential voltage between 2.5V (recessive) and 3.5V (dominant) using an oscilloscope, ensuring no shorts to power or ground. Document splices (marked by dots or squares) as common failure points.
Validate pin assignments against manufacturer data: connector C171 (Ford) or X60 (VW) pinouts correlate sensor functions to ECU inputs/outputs. Use a breakout box for live diagnostics, monitoring signal waveforms (square waves for camshaft sensors, analog ramps for MAF). When reconnecting, torque terminal screws to 2-3 Nm–loose contacts cause intermittent faults, mimicking sensor failures.
Common Mistakes When Interpreting Control Module Circuit Symbols
Misidentifying sensor symbols as actuators often leads to diagnostic errors. A thermistor, for example, is frequently confused with a heating element simply because both share a similar resistor-like shape in visual plans. Yet their functions differ radically: one measures temperature, the other generates heat. Always verify the accompanying label or reference designator–an “R” prefix typically indicates a resistor or sensor, while “HTR” or “SOL” signals an actuator. Manufacturers like Bosch and Denso use distinct color codes in their wiring maps to differentiate these components.
Overlooking ground paths in circuit layouts creates phantom voltage readings. Technicians sometimes assume a floating signal originates from the module itself, when in fact it stems from an incomplete return path. Trace every ground symbol (usually a downward triangle or thick bar) back to its chassis connection. Even minor corrosion at the grounding point–measured at under 100 milliohms–can distort readings by 0.3 volts or more, mimicking sensor failure.
Ignoring Signal Conditioning Artifacts
Raw circuit symbols omit critical preprocessing stages shown only in block representations. A simple resistor symbol connected to a pressure transducer might hide an internal amplifier or analog-to-digital converter. Ignoring this intermediate stage can mislead interpretation of voltage swings–what appears as a 0-5V signal may actually represent a 0-200 kPa range. Always cross-reference the symbol with technical service bulletins that reveal built-in signal conditioning.
Assuming symmetric pinouts in modular designs triggers mis-wiring. A six-pin connector in one vehicle variant may serve injectors, while an identical connector in another variant routes ignition coil signals. Pin assignment tables, usually found in repair manual addendums, provide precise electrical profiles; a direct swap without verification risks shorting power stages rated for different current loads.
Interpreting dotted lines as physical connections rather than functional separators causes false continuity assumptions. These lines in service drawings typically indicate logical grouping, not electrical continuity–confusing them with solid traces leads to incorrect jumper wire placements. Denso diagrams use red dotted lines for CAN bus segmentation, while solid blue lines mark direct voltage rails.
Neglecting Load-Dependent Voltage Drops
Shared supply lines drawn as single segments obscure reality–multiple sensors on one rail create voltage divider effects invisible in simplified sketches. A MAP sensor and TPS sharing the same 5V reference will exhibit cumulative errors when one sensor’s current draw shifts; the error amplifies under load, exceeding 0.15V in 12% of 2018–2022 Toyota RAV4 ECUs measured in workshop conditions. Verify reference stability with a four-channel oscilloscope rather than relying solely on the visual silicon representation.
