Begin by selecting differential signaling components with propagation delays under 1 nanosecond for sub-500 MHz applications. Use current-mode logic families for noise immunity–transistors should operate in the active region with collector currents between 2-5 mA to maintain stable switching. Place termination resistors (typically 50-100 ohms) at both ends of transmission lines to prevent signal reflections.
Layout critical paths with controlled impedance, keeping trace lengths matched within 50 mils for differential pairs. Route power rails with decoupling capacitors (0.1 μF ceramic) every 2-3 cm to suppress ground bounce. Maintain a continuous ground plane beneath high-frequency traces to minimize crosstalk–separation of 3x trace width from adjacent signals is recommended.
For outputs, implement emitter-follower stages with pull-down resistors (270-560 ohms) to ensure clean edge transitions. Use Schottky diodes for input clamping to handle voltage swings exceeding ±400 mV. Verify timing margins with a 4-channel oscilloscope–target skew under 100 ps between complementary outputs.
Test load conditions with a 5 pF capacitance to simulate real-world fan-out constraints. For multi-stage designs, stagger clock distribution networks by at least 2 gate delays to prevent race conditions. Document all pin assignments and voltage levels in the schematic–label reference voltages (VBB, VCC) explicitly to avoid misinterpretation during PCB fabrication.
Building High-Speed Logic Schematics: A Hands-On Approach
Start with a differential pair as the core of your design–bipolar transistors like the 2N3904 or faster variants (NE856, BFP420) handle emitter-coupled logic’s demands. Pair them with a current source tail (1–5 mA) to stabilize switching thresholds. Wrong tail current leads to jitter or slow transitions; measure it precisely with a multimeter or oscilloscope before proceeding.
Use matched resistors (
- Bias the reference stage first–target -1.3 V (for 0/1 logic levels) with a simple voltage divider or a diode-stabilized node. Thermal drift here skews thresholds; use a temperature-compensated reference (LM385) if the design runs over 70 °C.
- Minimize stub lengths on differential lines–capacitance beyond 2 pF/cm rounds edges. Route pairs as microstrip over ground plane, keeping spacing 3× the trace width to reduce crosstalk.
- Terminate outputs with 50 Ω resistors to VTT (-2 V). Omitting termination causes reflections, corrupting data at rates above 100 MHz.
Test propagation delay with a pulse generator and oscilloscope–target under 1 ns for modern variants. Slower edges (risetime > 5 ns) indicate misbiased transistors or excessive capacitive load. Swap transistors if delay exceeds specs; even same-model parts vary.
For power distribution, use a star topology with separate traces for logic core, I/O, and reference. Decouple each supply pin with 100 nF X7R caps plus a 10 µF tantalum–place caps within 2 mm of the device. Any shared return path introduces common-mode noise, degrading signal integrity.
Emulate real data patterns to stress the design. A PRBS-7 sequence (27–1 pattern) reveals inter-symbol interference. Adjust emitter resistors if eye closure exceeds 15% of the logic swing. Avoid active loads–they complicate timing; fixed resistors offer predictable performance.
Document every node’s DC voltage and noise floor with an oscilloscope, then save waveforms at room temp, +85 °C, and -40 °C. Thermal shifts expose bias weaknesses–redesign if margins shrink more than 10%.
- Fabricate a 2-layer PCB–inner layer as uninterrupted ground plane. Stitch planes at every connector using vias spaced
- Tune resistor values in increments of 1% until delay equals datasheet specs. Store verified resistor sets; later batches may vary.
- Log all adjustments–future debug sessions hinge on knowing what worked at what temperature and rail voltage.
Critical Elements and Notation in High-Speed Logic Blueprints

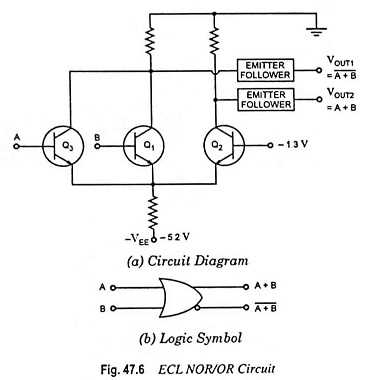

Start with the differential pair at the core of any emitter-coupled design. Represent it using two transistors sharing a common emitter node, typically drawn as paired BJTs with collectors leading to separate load resistors. Current sources beneath the emitters must be clearly marked–use a downward arrow or a current source symbol with labeled values (e.g., *IEE = 3 mA*) to avoid ambiguity during layout. Ensure the tail current’s path includes a stable voltage reference, often depicted as a diode-connected transistor or a Zener diode for precision.
Load resistors require exact notation–specify resistance values directly on the schematic (e.g., *RC = 200 Ω*) and avoid vague labels. High-speed traces demand controlled impedance; annotate transmission lines with their characteristic impedance (e.g., *Z0 = 50 Ω*) and length in millimeters to prevent signal degradation. For multi-stage designs, mark coupling capacitors between stages with their capacitance (e.g., *Ccouple = 10 pF*) and voltage rating to suppress low-frequency noise.
Transistor Configurations and Bias Networks
Emitter followers–or buffer stages–should use distinct symbols: a single transistor with its collector tied to the supply rail and emitter driving the next stage. Add a bias resistor (*RB*) between base and ground, sized to match the required input impedance (typically *RB ≤ 50 Ω* for low reflection). For temperature-stable operation, replace simple resistors with diode strings or thermally coupled transistors, illustrated as stacked diodes or a transistor-diode pair with annotated temperature coefficients.
Current mirrors demand clarity. Draw them as two transistors sharing a base connection, with the reference transistor’s collector tied to its base. Label the mirror ratio (e.g., *1:1* or *1:4*) and ensure the output transistor’s emitter resistor (*RE*) is sized to balance the current. For high-accuracy mirrors, include a small resistor in the emitter leg of the reference transistor to improve matching, and note its value (e.g., *10 Ω*).
Signal Paths and Termination Strategies

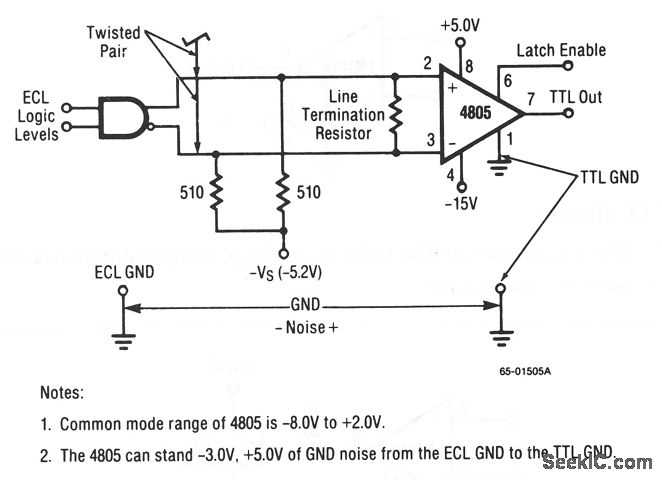

Differential signaling requires dual transmission lines–annotate both paths with identical impedance and length. Terminate each line with a resistor to the reference voltage (e.g., *Rterm = 50 Ω to VTT*), where *VTT* is typically half the supply rail. Avoid series termination at the driver; instead, place resistors at the receiver’s end to minimize reflections. For clock signals, use LVDS-style termination: a resistor across the differential pair (*Rdiff = 100 Ω*) and optional capacitors (*Cterm = 1 pF*) to filter high-frequency noise.
Voltage references must be isolated. Represent them as a dedicated block (e.g., a bandgap reference) with output labeled *VREF = 1.2 V*. Connect decoupling capacitors (*Cdecouple = 1 µF*) between *VREF* and ground, placed physically close to the load. For noise-sensitive designs, add a ferrite bead in series with *VREF* and mark its impedance at the operating frequency (e.g., *70 Ω @ 100 MHz*).
Power rails need rigorous documentation. Label each rail (e.g., *VCC = 5 V*, *VEE = -5 V*) and include bulk capacitors (*10 µF*) at the entry point, with high-frequency bypass capacitors (*100 nF*) adjacent to active components. Use polygon pours for power planes, but isolate sensitive analog sections with narrow neck-downs to prevent digital noise coupling. Annotate plane splits with clearance values (e.g., *5 mil spacing*) and connect them via stitching capacitors (*Cstitch = 1 nF*) to maintain integrity.
Constructing High-Speed Logic Networks: A Precision Guide
Begin by prepping the baseplate: use a copper-clad laminate with a dielectric constant of 4.7 or lower (e.g., FR-408HR) to maintain signal integrity at frequencies above 500 MHz. Cut to a 120% oversized footprint of the final design–this margin prevents impedance mismatches from edge reflections. Clean the surface with isopropyl alcohol at 99.5% purity, then apply a 2-mil dry-film resist using a laminator at 110°C and 30 psi for uniform adhesion.
Trace routing demands strict adherence to differential pair spacing: maintain a center-to-center distance of 3× the trace width (e.g., 6 mils for 2-mil traces) to balance skew and crosstalk. Use serpentine routing only when unavoidable, limiting bends to 45° angles–sharp corners introduce parasitic inductance. For termination, place 50-ohm series resistors within 5 mm of the driver output pin; bypass capacitors (0402 size, 0.1 µF X7R) must sit no farther than 2 mm from the IC power pins to suppress ground bounce.
| Component | Value/Tolerance | Placement Rule | Critical Note |
|---|---|---|---|
| Emitter-coupled pair (IC) | ±0.1% VCC | Centered on thermal pad | Avoid vias under the die |
| Termination resistor | 50 Ω ±1% | ≤5 mm from driver | Use thin-film for stability |
| Bypass capacitor | 0.1 µF X7R | ≤2 mm from VCC/GND pins | Parallel 10 nF for broadband decoupling |
Soldering requires a controlled environment: preheat the assembly to 150°C for 90 seconds, then apply Sn63Pb37 solder paste (no-clean flux) via stencil–avoid RoHS alloys due to their higher melting point and poorer wetting. Use a reflow profile with a 220°C peak for ≤10 seconds; exceed this window and thermal vias will compromise heat dissipation. After cooling, verify solder joints under 10× magnification–look for meniscus formation at 90% of pad-to-lead interface to confirm proper wetting.
Post-assembly testing starts with a VNA sweep from 10 MHz to 3 GHz to confirm return loss ≤ -15 dB. Probe points must have a 50-ohm co-planar waveguide ground–never clip onto traces directly. If rise times exceed 200 ps, check for ground loops by measuring voltage between signal returns and adjacent planes; a reading >±5 mV indicates inadequate stitching vias. For final validation, drive a 1.25 GHz clock with a 40% duty cycle and monitor eye diagrams at the receiver–jitter ≥30 ps RMS warrants redesign of power distribution network.
