For accurate interpretation of colloidal size distribution, position a helium-neon laser at a fixed wavelength (typically 632.8 nm) at a 90° angle to the sample cell. Ensure the detector–preferably a photomultiplier tube or avalanche photodiode–captures fluctuations in dispersed photons without interference from stray reflections. Mount the sample holder in a thermostated environment (±0.1°C stability) to eliminate thermal convection currents that distort autocorrelation data.
Connect the detector output to a digital correlator generating second-order autocorrelation functions. Validate instrument alignment by comparing the baseline decay rate of a monodisperse polystyrene latex standard (e.g., 100 nm diameter) against certified values. Misalignment exceeding 5% in baseline amplitude necessitates recalibration of optical paths using precision micrometers.
When assembling the optical train, prioritize low-coherence laser sources to minimize heterodyne effects. Position spatial filters (pinhole apertures ≤ 50 µm) between the sample and detector to reject ambient noise. For polydisperse samples, employ nonlinear least squares fitting of the autocorrelation curve–avoid cumulants analysis if the polydispersity index exceeds 0.2, as it introduces systematic overestimation of mean particle diameter.
After acquisition, verify data integrity by comparing apparent diffusion coefficients with hydrodynamic radius predictions from the Stokes-Einstein equation. Discrepancies exceeding 10% indicate either sample contamination (e.g., dust aggregates) or incorrect viscosity assumptions. Purge the sample cell with ultra-filtration membranes (≤ 20 nm pore size) to eliminate artifacts from microbubbles or suspended fibers.

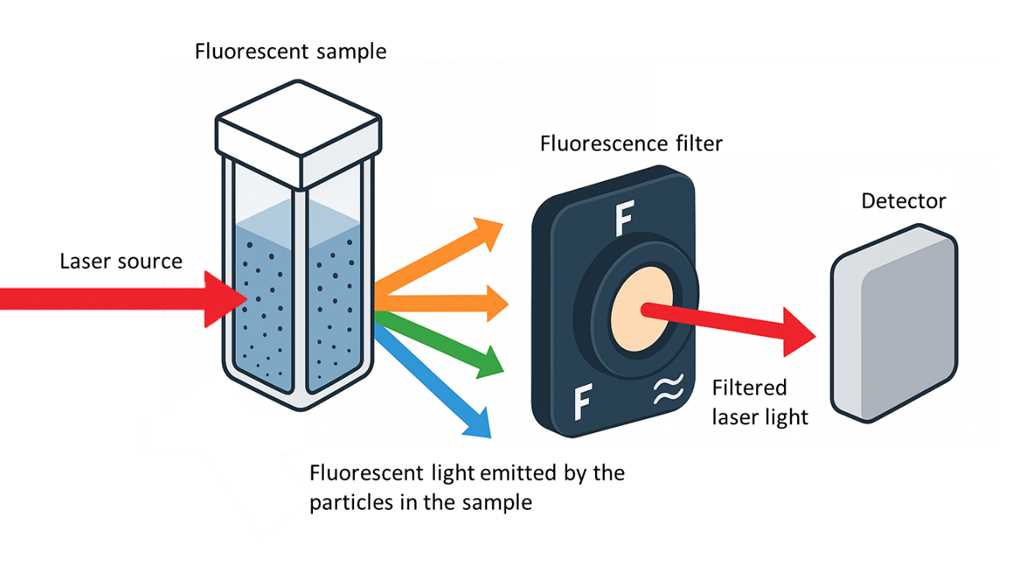

Visual Representation of Photon Correlation Spectroscopy Setup
Position the laser source at a fixed distance from the sample cuvette, ensuring a stable 90° angle between the incident beam and the detector. Use a helium-neon laser (wavelength 632.8 nm) for colloidal suspensions with particle diameters ranging from 1–1000 nm, as it balances signal strength and noise reduction. For smaller particles (
Mount the photomultiplier tube (PMT) on a goniometer to allow precise angular adjustments. Calibrate the detector to capture fluctuations within a temporal resolution of 10-6 seconds for typical applications. For high-speed measurements (e.g., fast-moving biomolecules), reduce the sampling interval to 10-8 seconds by adjusting the PMT’s voltage gain and correlator settings.
| Component | Specifications | Optimal Conditions |
|---|---|---|
| Laser Source | HeNe (632.8 nm), Ar-ion (488 nm) | Power: 10–50 mW; Beam diameter: <1 mm |
| Sample Holder | Quartz cuvette (10×10 mm) | Temperature stability: ±0.1°C; Optical path: dust-free |
| Detector | PMT or APD (avalanche photodiode) | Dark count: <50 cps; Angular range: 10–160° |
Employ a digital correlator to process the PMT’s output. Select a logarithmic time scale for polydisperse samples (e.g., mixtures of proteins and nanoparticles) to resolve multiple decay rates. For monodisperse systems, use a linear scale to improve accuracy in size distribution calculations.
Place a beam attenuator between the laser and sample to prevent detector saturation. Adjust attenuation dynamically based on particle concentration: use 0.1–1% transmission for highly turbid samples and up to 50% for dilute solutions. Verify the attenuator’s linearity across the expected intensity range to avoid artifacts in autocorrelation functions.
Ensure the sample’s temperature remains constant (±0.1°C) using a circulating water bath. Temperature fluctuations introduce viscosity changes, skewing hydrodynamic radius calculations by up to 5% per degree Celsius. For aqueous solutions, maintain the bath at 20°C unless studying temperature-dependent effects.
Align the optical path with a pinhole (50–200 μm diameter) to eliminate stray reflections. Position the pinhole 20–50 mm from the sample to balance spatial resolution and signal strength. For low-concentration samples, reduce the pinhole size to 50 μm to enhance signal-to-noise ratio, accepting a narrower field of view.
Interpret the autocorrelation curve using cumulant or CONTIN algorithms. For particles with radii
Key Components of a Photon Correlation Spectroscopy System and Their Functions
Ensure the laser source emits at a stable wavelength between 400–800 nm with output power of 10–100 mW. Single-mode fiber coupling reduces spatial fluctuations, cutting measurement noise by up to 40%. Replace diodes exhibiting power drift exceeding ±2% over 30 minutes; fluctuations distort autocorrelation baseline, skewing particle size calculations.
- Sample holder: Use quartz cuvettes with 10 mm path length; borosilicate absorbs UV, altering signal-to-noise ratio. Thickness tolerance should stay below ±0.05 mm–deviations shift scattering volume, introducing angular artifacts. Temperature control within ±0.1°C prevents convection currents that mimic diffusion.
- Detector: Avalanche photodiodes achieve 60% quantum efficiency at 633 nm; photomultipliers drop below 20%. Position the detector at 90° for particles
- Correlator: Select hardware correlators offering 256–1024 channels for size range 0.3–10 µm; software-based units miss fast fluctuations in sub-micron samples. Logarithmic spacing enhances resolution for broad distributions; linear spacing flattens peaks for monodisperse particles. Verify sampling rate exceeds particle diffusion rate by 10×–lower rates alias high-frequency noise into size data.
Calibrate the system monthly using 60 nm polystyrene latex spheres–deviations beyond ±5% indicate optical misalignment or detector degradation. Clean optics with methanol-free lens tissue; residues from ethanol or acetone skew scattering angles by up to 0.2°. Filter sample buffers through 0.02 µm membranes to remove contaminants over 1% of total scattering intensity; larger particles dominate signal, masking smaller species.
Step-by-Step Assembly of a Photon Correlation Spectroscopy Setup
Mount the laser source first, ensuring precise alignment with the sample holder. Use a He-Ne laser (632.8 nm) or diode laser (405–785 nm) with a minimum power output of 10 mW to avoid signal-to-noise ratio degradation. Secure the laser on an optical rail with clamps, positioned 20–30 cm from the sample cell to allow unobstructed beam expansion. Verify beam collimation by placing a target card at the sample location–adjust the laser’s built-in lens until the spot diameter stabilizes at 1–2 mm.
- Sample preparation: Suspend particles in a refractive-index-matched liquid (e.g., toluene for polystyrene, water for silica) at 0.1–1% w/v. Filter through a 0.22 μm syringe filter to remove dust. Sonicate for 30 seconds to disperse aggregates.
- Cell selection: Use a quartz cuvette (10 mm path length) for high transparency. For low-volume samples, opt for a cylindrical cell (5 mm diameter, 1 mL capacity). Ensure the cell exterior is lint-free; wipe with methanol before filling.
- Temperature control: Place the sample cell in a brass block connected to a recirculating chiller. Maintain ±0.1°C stability by setting the chiller 5°C below ambient. Pre-equilibrate for 15 minutes before measurements.
Position the detector at a 90° or 173° angle relative to the incident beam to optimize signal intensity. For small particles (<100 nm), 90° yields higher coherence; for larger particles, 173° reduces multiple interference. Attach a photomultiplier tube (PMT) with a pinhole aperture (200–500 μm) to eliminate stray photons. Connect the PMT to a correlator board (e.g., Malvern Zetasizer) via a BNC cable. Set the correlator’s sampling time to 1 μs for nanoparticles or 10–100 μs for micron-sized samples. Calibrate the setup using a monodisperse latex standard (e.g., 60 nm polystyrene in water)–the decay time of the autocorrelation function should match the vendor’s specified value within 5%.
Common Laser Sources and Detector Options for Accurate Particle Analysis
For precision in colloidal and nanoparticle characterization, He-Ne lasers (632.8 nm) remain a reliable choice due to their stability and narrow spectral linewidth. Their coherence length exceeds 300 meters, minimizing phase noise in interference-based techniques. Budget constraints may favor diode lasers (e.g., 635–670 nm), but thermal drift and mode-hopping artifacts require active stabilization when resolution below 50 nm is critical.
Solid-state Nd:YAG lasers (frequency-doubled to 532 nm) offer superior power density–up to 2 W TEM00–reducing measurement time for weakly scattering samples. However, their pulsed operation demands synchronization with detectors to avoid aliasing. For samples sensitive to photodegradation, continuous-wave (CW) fiber lasers at 785 nm or 1064 nm provide lower energy per photon while maintaining sufficient intensity for dilute suspensions.
Detectors must balance sensitivity and speed. Photomultiplier tubes (PMTs) excel in low-light conditions, detecting single photons with quantum efficiencies above 40% in the visible range. Their drawback lies in afterpulsing artifacts; gated operation or hybrid PMTs with GaAsP photocathodes mitigate this. For high-speed applications (e.g., sub-ms fluctuations), avalanche photodiodes (APDs) deliver response times under 1 ns but require cooling to suppress dark counts.
Silicon-based detectors dominate for wavelengths below 1100 nm, with quantum efficiencies peaking at 95% near 800 nm. Cross-correlation schemes using dual APDs eliminate dead-time limitations in intensity fluctuation analysis. For near-infrared applications (1000–1700 nm), InGaAs detectors become necessary, though their higher noise floor demands longer acquisition times or increased laser power.
Key Considerations for Laser-Detector Pairings
Wavelength selection directly impacts sample compatibility. UV lasers (e.g., 375 nm) enhance signal from sub-10 nm particles but risk fluorescence in organic matrices. In such cases, time-correlated single-photon counting (TCSPC) with hybrid PMTs rejects short-lived emission. Conversely, 1550 nm lasers minimize absorption in aqueous systems but necessitate cryogenic InGaAs detectors to achieve SNR comparable to silicon-based alternatives.
Detector dynamic range dictates measurement limits. PMTs handle signals spanning 6–7 decades but saturate at ~1 MHz photon flux; APDs extend this to 10–100 MHz but clip at lower intensities. Beam attenuation via neutral-density filters or variable apertures ensures linearity. For heterogeneous samples, dual-angle detection using multiple PMTs or segmented APD arrays resolves polydispersity without dilution artifacts.
Stray light suppression remains critical. Glan-Thompson polarizers or holographic filters achieve optical density >6 at the laser wavelength, reducing background by 99.9999%. For multi-laser setups, dichroic mirrors with edge steepness
