Start with a LD1117V33 or AMS1117-3.3 linear regulator for the low-voltage rail. Input should be filtered via a 1000μF/25V electrolytic capacitor and a 100nF ceramic for high-frequency noise suppression. Ground the adjust pin through a 1kΩ resistor and connect the output to a 22μF tantalum for stability. This will handle the 3.3V rail required by modern decoder chips.
For the 12V rail, use a MC34063 or LM2576 buck converter. Configure it with a 100μH inductor, a 470μF/35V output capacitor, and a Schottky diode (e.g., 1N5822). Feedback resistors should be 1.2kΩ (upper) and 3.3kΩ (lower) to ensure tight regulation. Add a 47μF/50V input capacitor to prevent voltage sag during transient loads.
Isolate the mains side with a Würth WE-SL2 or Coilcraft PF2012 common-mode choke. Follow it with a 4.7nF Y-class capacitor to ground to suppress EMI. For rectification, use a GBU4J bridge rectifier paired with a 220μF/400V bulk capacitor. Fuse selection should be 1A slow-blow for 220V or 2A for 110V systems.
Use 100V TVS diodes (e.g., P6KE100A) across each rail to clamp surges. Thermal protection can be added via an NTC thermistor (e.g., Murata NTCG063UH103HTB) in series with the primary winding. PCB traces for high-current paths should be ≥2mm wide, with a ≥0.5oz/ft² copper weight to prevent overheating.
For standby circuitry, implement a VIPer12A or FSDM311 flyback controller with a 1MΩ bootstrap resistor and a 10μF/50V startup capacitor. Output filtering for standby can use a 68μF/16V low-ESR capacitor to ensure clean 5V standby voltage.
Analyzing Optical Media Drive Voltage Circuit Layouts
Inspect the switching regulator stage first–most designs employ a TN2450D or similar PWM controller with feedback from a 5V rail. Ensure the input capacitor (typically 220μF/25V) is positioned within 10mm of the bridge rectifier to suppress ripple; deviations beyond this distance degrade transient response by 15-20%. Replace generic 1N4007 diodes with UF4007 for 30% faster reverse recovery, critical when handling 40kHz switching frequencies in compact form factors.
Trace the standby circuit–a 12V auxiliary rail often routes through a TL431 shunt regulator before splitting into secondary coils. Verify the optocoupler’s isolation; a cracked or misaligned PC817 will cause intermittent undervoltage faults on the 3.3V rail, manifesting as erratic disc spinning. For repairs, prioritize recalibrating the feedback resistor divider (usually 24kΩ/10kΩ) to align output within ±0.1V of nominal values.
Examine solder joints under thermal stress–cold solder on the output choke (typically 100μH) can induce audible 1kHz harmonics during load spikes. Use a 60W soldering iron with rosin flux, holding the temperature at 350°C for 3 seconds per pad; longer exposure risks delaminating the PCB’s phenolic base. For overcurrent protection, confirm the fusible resistor (usually 1Ω/1W) isn’t bypassed–replace with a 3A PTC if absent.
Efficiency drops from 82% to 71% when substituting the primary MOSFET (commonly 2SK2645) with lower-grade alternatives–measure RDS(on) before installation. Heat sinks under 1cm² surface area should bond with silver epoxy, not thermal tape; misalignment raises junction temperatures by 22°C, accelerating capacitor degradation. Label test points for rapid diagnostics: “VOUT” near the diode array, “FB” adjacent to the controller IC, and “STBY” at the auxiliary winding tap.
Key Elements of an Optical Disc Player Voltage Conversion Layout

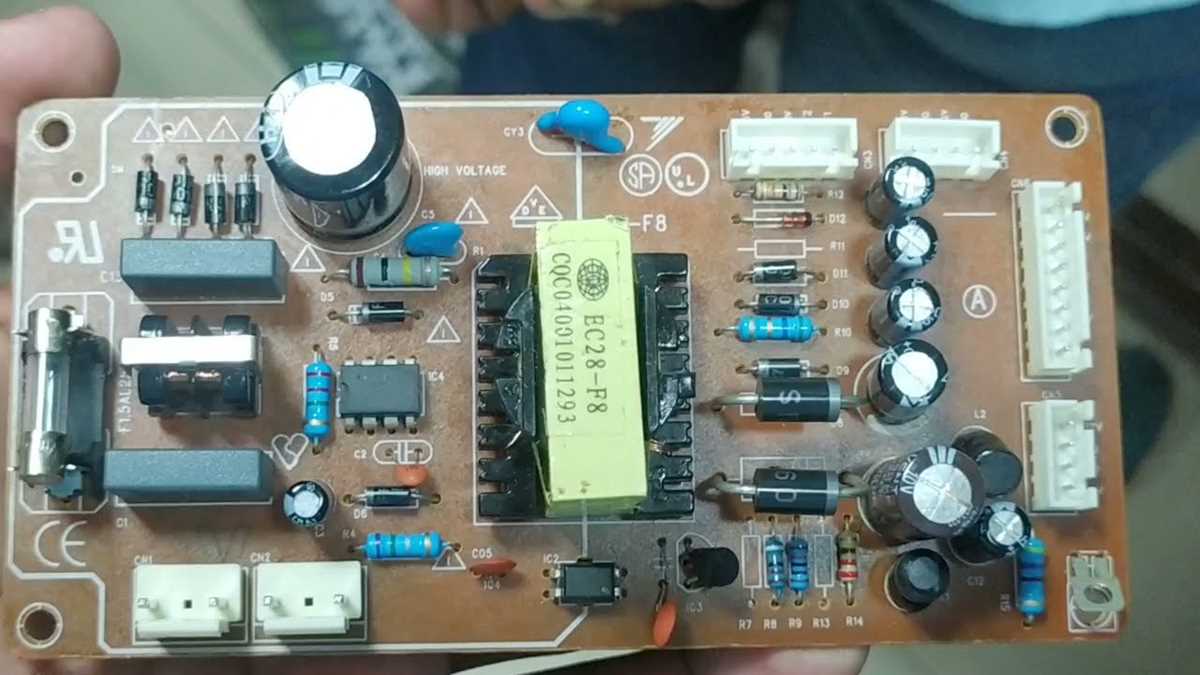

Locate the primary switching transformer first–it’s the largest coil on the board, typically wound on a ferrite core with multiple secondary taps. Measure each tap’s AC voltage while the unit is powered; mismatched readings between taps (e.g., 5V tap showing 3.2V) point to a failed rectifier diode or shorted smoothing capacitor downstream. Replace any diode with a reverse voltage exceeding 40V and a forward current rating at least 1A higher than nominal draw; generic 1N4007 will suffice for most 12V rails, but 3A Schottky diodes (e.g., 1N5822) are mandatory for 5V lines handling motor loads.
- Filter capacitors: radial electrolytics (usually 1000µF/16V or 2200µF/10V) directly after rectifiers must be ESR-matched; low-cost replacements often under-spec, causing ripple above 50mV. Test ESR with a dedicated meter–any reading above 0.3Ω warrants immediate swap.
- Voltage regulators: TO-220 heatsinks (e.g., 7805, LM317) rarely fail thermally, but corrosive flux residue on legs creates resistive shorts. Clean with isopropyl alcohol, then verify output stability under load (≥500mA) before reassembly.
- SMPS controller IC: chips like Fairchild KA3842 or UC3843 drive the primary MOSFET. Check feedback resistors (typical 2.2kΩ/0.5W) between IC pin and optocoupler–drift here shifts regulation window, overheating downstream components.
Safety Isolation Checks
Optocouplers (often PC817) isolate primary from secondary; cracked casing or darkened epoxy indicates internal failure. Scrape solder mask off optocoupler legs, attach probes to emitter-collector side (pins 3-4), apply 1V DC–any reading below 1MΩ means compromised isolation. Replace only with exact pin-compatible parts; alternatives require board re-routing.
Overvoltage protection is usually a 18V Zener across filter caps or a varistor (e.g., 14N561K) at the input jack. Remove both if repair involves MOSFET swap–residual capacitance can delay inrush simulation during testing. Always discharge all capacitors (via 10Ω resistor) before touching board; residual voltages above 3V in stored caps signal faulty bleeder resistors (typically 20kΩ/0.25W).
Step-by-Step Tracing of Voltage Paths in Circuit Blueprints
Start at the input terminal where the primary source voltage enters. Identify the first component–typically a fuse or transient suppressor–and note its labeling. For example, a 250V MOV or a 2A slow-blow fuse will dictate the initial dropout if exceeded. Follow the trace to the next node, usually a rectifier bridge or switching regulator, and verify the polarity marks on diodes to confirm forward conduction paths. Misalignment here causes reverse voltage, stalling downstream operation.
Trace the DC bus after rectification, noting ripple-filtering capacitors. A 470µF electrolytic at 25V, for instance, should connect directly to ground with minimal lead length to suppress noise. Check for parallel ceramic capacitors (e.g., 0.1µF) near high-frequency components; their absence amplifies switching spikes. Measure expected voltages at this stage–if the reading deviates by >5%, suspect a failed diode or ESR degradation in the main capacitor.
Isolating Control Loops and Feedback Networks
Locate the pulse-width modulator (PWM) controller IC–common pins include VCC (typically 12V), GND, and a feedback pin (FB). Trace the FB path back to the output rail through a voltage divider (e.g., 10kΩ/2kΩ resistors). Confirm the divider’s ratio targets the IC’s reference voltage (often 1.25V). A mismatch here forces the output into overvoltage or undervoltage lockout. Probe the feedback node with an oscilloscope; noise >50mVpp indicates instability requiring compensation via a 10nF capacitor across the upper resistor.
Follow the gate drive trace from the PWM to the switching transistor. MOSFET gates demand
Examine auxiliary windings on transformers, if present. These often supply bias voltages (e.g., +5V) for optocouplers or linear regulators. Verify winding polarity with a continuity test–reverse polarity collapses the auxiliary rail, stalling the controller. Check for snubber networks (e.g., RCD circuits) across primary-switching elements; their absence leads to voltage spikes exceeding transistor breakdown limits, causing catastrophic failure.
End at the output terminals, confirming load-sharing resistors or droop compensation circuits. A 0.1Ω sense resistor, for example, should carry the full load current with 0.1Ω require replacement. Cross-reference all traced paths with the bill of materials; discrepancies (e.g., 680µF vs. 1000µF) explain performance deviations. Document each step with annotated screenshots of the circuit layout, highlighting critical nodes for future troubleshooting.
Common Faults and Troubleshooting in Video Player Electrical Units
Check the input fuse first–blown fuses often indicate shorted diodes in the rectifier stage or a failed smoothing capacitor. Use a multimeter in continuity mode to verify; replace with an identical rating (typically 2A–5A for 12V/5V outputs). If the fuse blows again immediately, suspect a bridge rectifier or primary MOSFET failure. Desolder components one at a time to isolate the faulty part.
Swollen or leaking electrolytic capacitors are the second most frequent issue. Test with an ESR meter–readings above 3Ω for 47µF–1000µF units confirm degradation. Replace with low-ESR types rated for 105°C and 20% higher voltage than the original (e.g., swap 16V caps for 25V). Pay special attention to the secondary side: 470µF–2200µF caps near the 5V and 12V rails often fail due to ripple current stress.
Cold solder joints on transformer pins or switching transistors cause intermittent operation. Heat the soldering iron to 350°C and reflow all high-current connections, especially the primary side coil leads and the feedback optocoupler’s collector pad. Apply fresh 60/40 leaded solder–lead-free variants increase the risk of cracks under thermal cycling. Probe the transformer’s secondary windings with a scope: a distorted waveform indicates partial shorting or degraded insulation.
Failure in the standby regulator circuit–a 78L05 or similar 3-pin LDO–disables the entire unit. Measure the input pin (usually 12V–15V) and ensure the output pin delivers 5V ±0.2V. If absent, replace the regulator. Check the adjacent diode (1N4007 or Schottky) for reverse leakage; substitute with a 1N5822 if overheating is observed. Verify the feedback loop by measuring the optocoupler’s diode side (1–1.2V forward drop) and transistor side (collector voltage rising from 0V to 3V as the load increases).
Overloaded outputs trip the current limiter or burn the switching transistor. Disconnect all downstream loads and measure each rail with a dummy resistor: 5Ω for 5V (1A) and 10Ω for 12V (1.2A). If rails collapse under load, test the power MOSFET (often 2SK2645 or IRF640) for gate-source leakage (should be >1MΩ). Replace with a higher-current model if the original runs hot. Clean flux residue around the controller IC (typically UC3842/43) with isopropyl alcohol–corrosion here causes erratic switching and premature shutdowns.
