For low-voltage consumer electronics repair, begin by isolating the primary AC rectification stage. Most small appliances with linear regulators use a bridge rectifier–commonly a DB107 or similar module–followed by smoothing capacitors rated between 220µF and 470µF at 25V. Verify the reservoir capacitor’s ESR before proceeding; excessive ripple current (>100mV) indicates degradation. If present, a transient voltage suppressor (TVS) diode, usually a P6KE200A, protects against mains surges–check for short circuits here first.
Downstream, expect a fixed-voltage linear regulator, typically an L7805 or KA7805 for 5V rails, or an LM317 for adjustable outputs. These ICs require input capacitors (1µF ceramic or 10µF electrolytic) and output capacitors (100µF–470µF) to stabilize performance. Measure input voltage at the regulator’s VI pin: deviations >1V from expected (e.g., 8V input for a 5V output) signal a faulty regulator or excessive load current. For switching regulators like the MC34063, probe the inductor (10µH–100µH) for open circuits and the Schottky diode for reverse leakage.
Ground referencing is critical–use a floating ground isolation probe with fast-acting variants of identical current rating–slow-blow substitutes risk fire hazards from prolonged inrush currents.
Document component values and layout before desoldering–PCB pads on thin FR-4 (≤1.0mm) delaminate under 350°C for >3 seconds. Use a thermal camera or contactless IR thermometer to identify hotspots (>85°C) during operation; faulty SMPS transformers often exhibit asymmetry in core temperatures across windings. For obscure ICs without datasheets, probe adjacent passives: resistor dividers typically divide by integer ratios (e.g., 2:1 for 3.3V reference), while capacitors >1nF usually serve feedback networks.

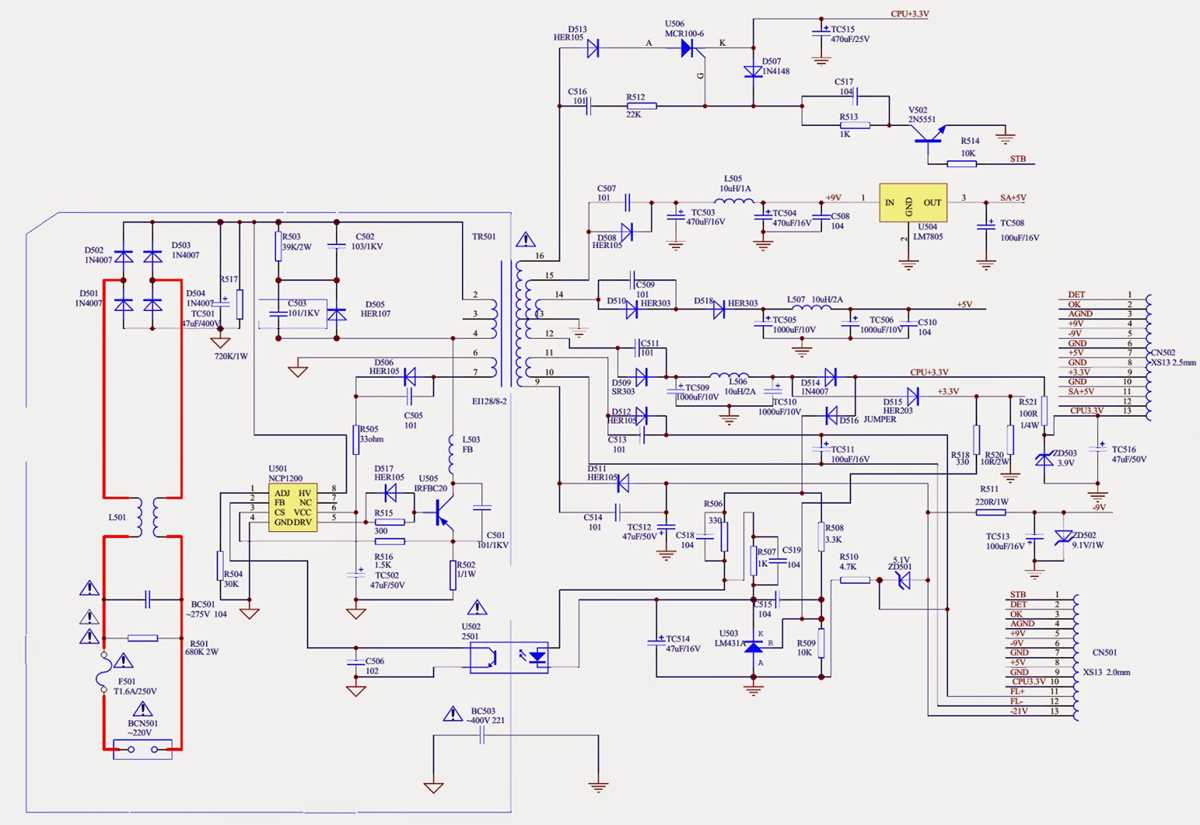

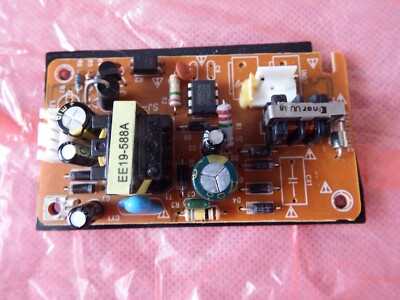

Decoding the Electrical Heart of Optical Media Devices
Start by locating the primary AC input filter on the circuit layout–typically marked near the mains connector. Most designs embed a common-mode choke (e.g., LFB08-10B1) paired with X/Y-class capacitors (such as 0.1µF/275V) to suppress high-frequency noise. Verify the fuse rating: 1.5A–2.5A slow-blow for 220V models; replacing it with a fast-acting type risks premature failure. Trace the bridge rectifier–often a DB107 or KBU608–its output should feed a smoothing capacitor bank (220µF–470µF/400V). Check ESR values; anything above 0.5Ω indicates degradation, requiring replacement with low-ESR equivalents like Nichicon UHE series.
Examine the PWM controller–popular ICs include the UC3842 (current-mode) or TOP246 (flyback). Pin 1 (VCC) draws 12V–15V from an auxiliary winding; stabilize it with a 10µF/50V ceramic cap to prevent startup issues. The feedback loop (optocoupler PC817 + TL431 reference) regulates output–probe TP1 for 2.5V (±5%); deviations suggest component drift in R/C networks or a failing optocoupler. For standby circuits, search for a 5V linear regulator (e.g., KA78R05) or a dedicated buck converter (MP1583DN); measure its input/output ratio–efficiency below 70% signals coil saturation or diode losses (Schottky SB560 common).
Isolate the secondary rails: +12V (for spindle drivers), +5V (logic), and -24V (laser bias). Use an oscilloscope to check ripple on the +5V line–spikes above 100mVpp often stem from dried-out output caps (1000µF/10V). Replace with polymer types (e.g., Panasonic SP-Cap) to extend lifespan. For troubleshooting intermittent faults, focus on solder joints near the switching transformer–thermal cycling cracks them; reflow with leaded solder (Sn63/Pb37) for better fatigue resistance. Ground loops are verified by injecting a 50Hz signal at the mains input and probing chassis-to-neutral voltage–readings above 1VAC require adding a 0.01µF/630V Y-class cap between primary ground and chassis.
Critical Elements in a Video Disc Device Voltage Regulation Layout
Begin with a robust flyback transformer as the core component–opt for models with a minimum 8W output capacity and multiple secondary windings (e.g., 5V, 12V, and -24V taps). Ensure the primary winding uses 0.3mm enameled copper wire for sufficient current handling, while secondary windings should incorporate 0.5mm wire to minimize voltage drop under load. Add a snubber circuit (1N4007 diode + 22Ω resistor in series with a 0.1µF capacitor) across the transformer’s primary to suppress high-frequency transients, which are common in switched-mode designs. Verify that the feedback winding (typically 3-5 turns) is isolated from the main output to prevent interference with the regulation loop.
Regulation and Protection Mechanisms
Integrate a TL431 shunt regulator paired with a photocoupler (e.g., PC817) for galvanic isolation between primary and secondary sides. Configure the TL431 with a 2.5V reference voltage using a precision resistor divider (1% tolerance resistors) to ensure stable output–adjust the divider ratio to match the target voltage (e.g., 2kΩ/6.8kΩ for 5V output). For overcurrent protection, include a 0.1Ω current-sense resistor in series with the MOSFET (e.g., 2SK2645) and couple it to a dedicated IC like the UC3842, which triggers shutdown at 120% of nominal load. Add a 10µF/50V bulk capacitor post-rectification to smooth ripple, but avoid exceeding 220µF, as inrush current may damage the bridge rectifier.
Prioritize component placement: keep the MOSFET heatsink thermally isolated from electrolytic capacitors to prevent premature failure due to heat stress. Use a 10mm creepage distance between high-voltage traces (primary side) and low-voltage outputs to comply with IEC 60950 safety standards. For EMI suppression, add a common-mode choke (e.g., 10mH) on the AC input line and ferrite beads (600Ω at 100MHz) on all output lines. Test the circuit with an oscilloscope–ripple should not exceed 50mV peak-to-peak at full load. If output instability occurs, reduce the feedback loop compensation capacitor (typically 1nF) by 20% increments until regulation stabilizes.
Step-by-Step Guide to Interpreting an Electronic Circuit Blueprint
Identify the primary voltage input first–usually marked at the board’s edge or near the connector. Look for symbols like AC lines (sine waves) or DC markings (±12V, 5V, etc.). Verify the expected range against the design notes, as discrepancies often point to faulty components or incorrect substitutions.
Trace the path from the input through filtering stages. Capacitors will appear as curved or straight lines near inductors (coiled symbols), forming EMI suppression networks. Measure their values with a multimeter if the circuit lacks labels; typical input caps range from 22µF to 470µF for smoothing rectified current.
Locate the regulator IC or transistor array–often a TO-220 package with three pins (IN, OUT, GND) or a switching controller (e.g., UC3843). Check the datasheet pinout; mismatches here cause overheating or output instability. Pulsed-width modulation chips require precise feedback loops–probe resistor dividers (e.g., 10kΩ/2kΩ) to confirm voltage ratios.
| Component | Symbol | Common Values | Failure Signs |
|---|---|---|---|
| Diode | ▷| | 1N4007, Schottky | Open/short, reverse leakage |
| MOSFET | |═ | IRFZ44N | Gate-source short, RDS(on) drift |
| Optocoupler | ⏣▷| | PC817 | LED burnout, CTR drop |
Follow the output rails to load-sharing components. Polyfuses, ferrite beads, or current-sense resistors (shunt resistors, often 0.1Ω–1Ω) will appear inline. Use Ohm’s Law to calculate expected voltage drops–deviations above ±5% indicate thermal runaway or degraded solder joints.
Examine protection circuits: Overvoltage clamps (Zener diodes), crowbar SCRs, or varistors. Test by introducing a controlled overcurrent (e.g., 120% nominal load); the circuit should shut down within 100ms. Absent or sluggish response suggests a compromised failsafe.
Cross-reference the blueprint with a known-good unit if troubleshooting. Thermal imaging during operation reveals hotspots, while a bench supply with current-limiting isolates shorts. For switching converters, verify switching frequency harmonics with an oscilloscope–ringing spikes exceeding 200mVpp degrade efficiency and suggest snubber adjustment.
Common Voltage Outputs and Their Roles in Optical Disc Drives
Verify voltage rails with a multimeter before replacing components: 3.3 V (analog core), 5 V (digital logic and motor drivers), and 12 V (laser diode and spindle motor) are standard. The 3.3 V rail typically sources 800–1200 mA; variations above ±5% cause tracking errors. A 5 V rail at 1.5–2 A powers MPEG decoders; ripple exceeding 100 mV RMS disrupts playback stutter. Check 12 V at 1–1.3 A for laser assembly–low voltage dims focus accuracy, high voltage burns optics.
Troubleshooting Voltage-Sensitive Subsystems
- Measure each rail under load: connect a 10 Ω 10 W resistor to verify output stability.
- Replace linear regulators (LD1117, AMS1117) if dropout exceeds 0.5 V; switch-mode ICs (MP2307, TPS5430) when efficiency drops below 85%.
- Inspect filter capacitors: ESR below 0.2 Ω at 1 kHz for 220 µF units, above triggers switching noise.
- Test standby rail (usually 3.3 V or 5 V at 50 mA) if front-panel buttons respond intermittently.
- Confirm isolation: use an optocoupler (PC817) or isolated DC-DC module between primary and secondary sides to prevent ground loops.
Diagnosing Faulty Circuit Board Connections
Check the input voltage at the main fuse with a multimeter set to AC mode. Measure between the live and neutral terminals–readings below 180V or above 260V indicate an unstable source or faulty household wiring. If readings are erratic, disconnect the unit and test the outlet directly to isolate whether the issue stems from external or internal components. Record these values before proceeding, as fluctuations can damage downstream rectifiers.
Inspecting AC-DC Conversion Stages
Trace the path from the primary transformer coils to the bridge rectifier. Use a continuity tester to verify connections on the solder side; cold joints or cracked traces often appear as dark rings around pads. Replace any swollen or leaking capacitors with identical voltage ratings (e.g., 25V for 16V caps) and ripple current specs–failure here typically causes humming, overheating, or complete shutdown. Check diode forward voltages: for standard 1N4007s, expect ~0.7V drop; readings above 1.1V suggest open circuits.
Examine the feedback loop optocoupler (often a PC817 or EL817) by measuring its output with the device powered. Pin 4 should stabilize at ~3.3V; deviations point to either a failing opto or misadjusted voltage divider on the secondary side. If replacing the optocoupler, ensure the replacement’s current transfer ratio matches the original (±5%) to prevent regulation errors.
Test standby circuits by probing the 5V standby rail with a logic probe or oscilloscope. Voltage should remain stable within ±0.2V when toggling standby mode via the front panel. Drooping or absent signals here usually trace back to a shorted linear regulator (e.g., 78L05) or damaged switching MOSFET (commonly marked AO4606). Replace MOSFETs with exact Rds(on) and Vgs(th) parameters to avoid switching noise.
Ground Path Verification
Confirm ground continuity between the chassis, main board ground plane, and secondary side returns using a low-resistance ohmmeter. Values above 0.5Ω indicate corroded vias, torn flex cables, or improper shielding connections–common culprits behind intermittent operation or audio/video interference. Clean oxide layers with isopropyl alcohol and reflow solder joints on mounting holes to restore proper grounding.
