Use a 120V or 240V supply line based on your system’s voltage rating. Connect the sensor’s load wire (usually red) to the fixture’s hot terminal first–this ensures the circuit completes when ambient light drops. The line wire (black or blue) should feed directly from the power source to the sensor, while the neutral (white) joins the fixture’s neutral terminal. Avoid mixing these connections; reversed wiring can cause the sensor to stay on permanently or fail to trigger.
For outdoor installations, position the sensor away from artificial light sources like security lamps or porch lights. Mount it facing north in the Northern Hemisphere (south in the Southern) to maximize natural light detection. Use weatherproof wire nuts or silicone-filled connectors rated for outdoor use–standard twist-on caps will corrode within months, leading to intermittent operation or shorts.

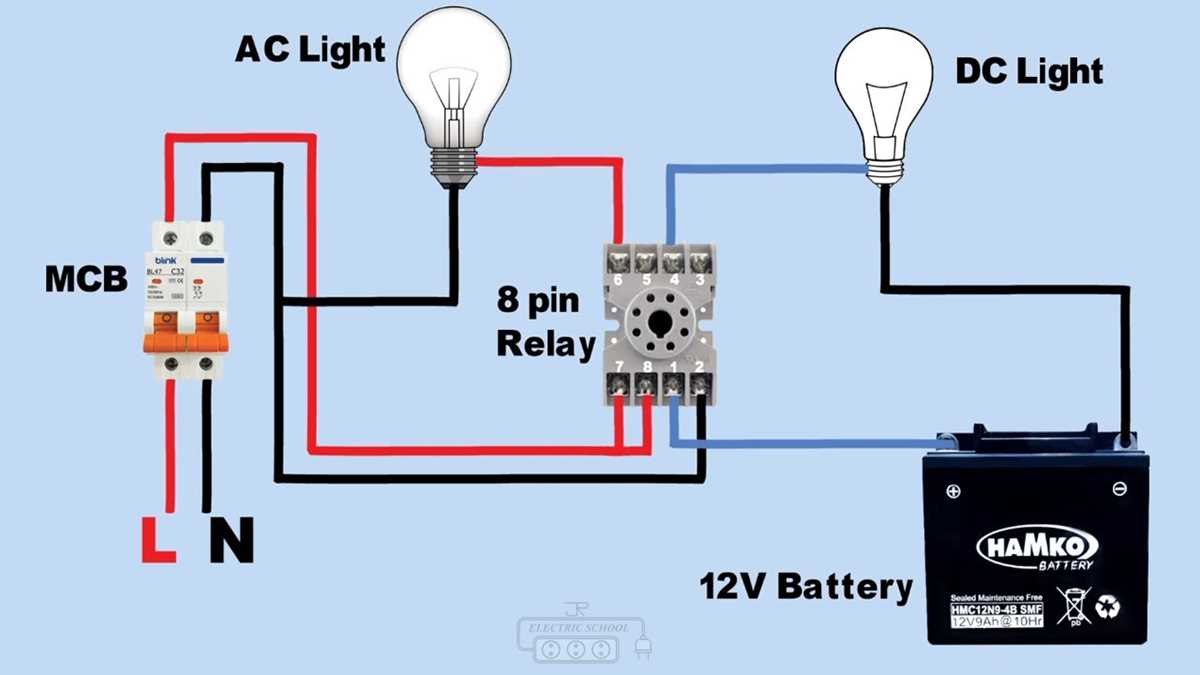

If integrating with existing switches, wire the sensor in series between the power source and the light fixture. The switch should bypass the sensor only when manual override is needed–parallel wiring cancels the sensor’s function entirely. Check the manufacturer’s specs for current rating; exceeding 1000W on a standard sensor risks overheating. For high-load applications (floodlights, industrial lighting), use a relay controlled by the sensor to handle the amperage.
Test the setup before finalizing connections. Cover the sensor with your hand during daylight–if the light doesn’t activate, reverse the load and line wires. If the light flickers, the sensor may require recalibration (adjust the sensitivity dial if available) or replacement. For LED fixtures, ensure the sensor’s inrush current tolerance matches the driver’s startup surge–some models trigger falsely from LED ghost voltage.
Secure all exposed wiring with liquid-tight conduit if buried or run along surfaces. Avoid zip ties directly on wires; UV exposure degrades plastic, causing shorts over time. Label each wire at both ends for future troubleshooting. If installing multiple sensors (e.g., for large properties), balance the load across circuits to prevent voltage drops that could cause inconsistent operation.
Connecting a Light-Sensing Switch: A Practical Guide

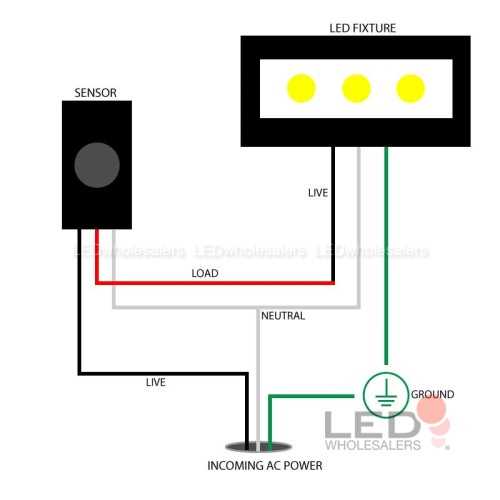

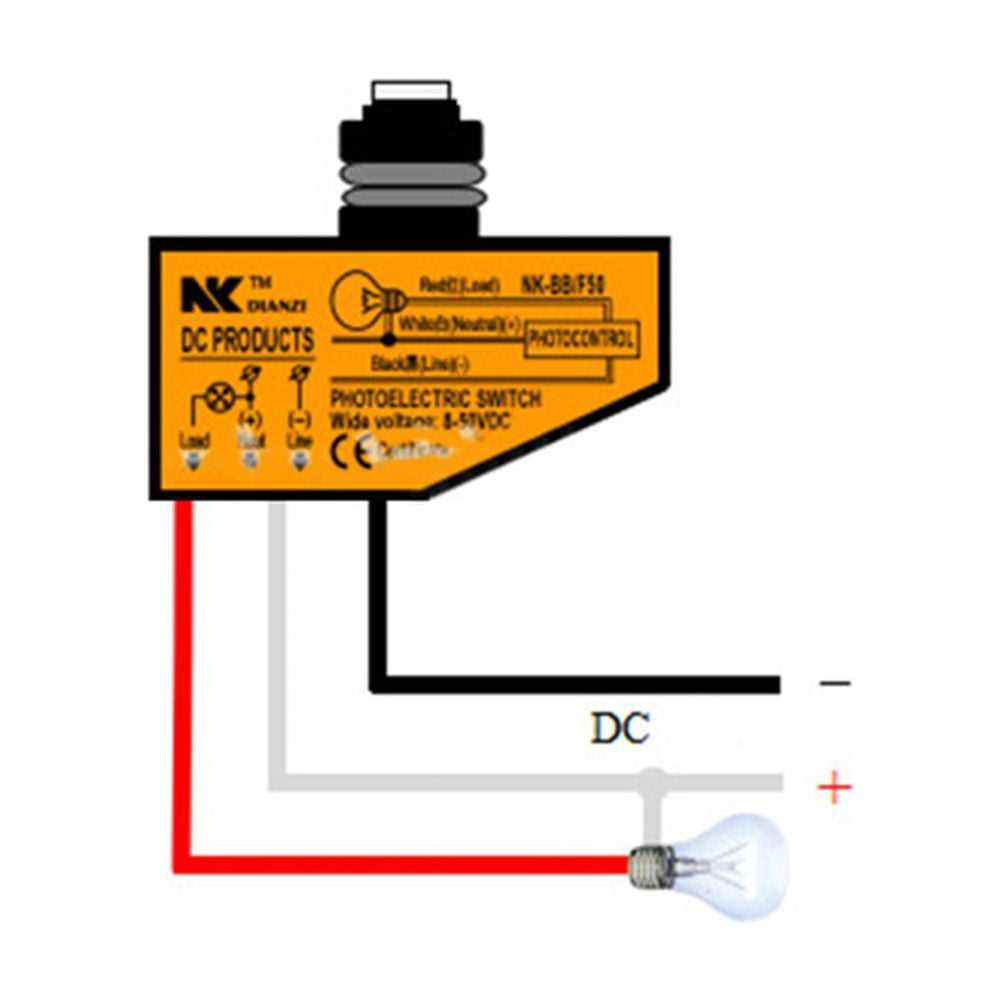

Start by identifying the three terminals on your automatic lighting controller: power input (marked L or Line), neutral (N), and load output (typically marked as the switched connection). Use a multimeter to confirm terminal functions if labels are unclear–measure voltage between L and N (should read ~120V or ~230V depending on your region) and verify no voltage at the load terminal until the sensor detects low ambient light. Wire the input directly to your power source, connect neutral to both the sensor and the fixture, then route the load output to the light’s live terminal. Ensure all connections are secured with wire nuts and protected by waterproof junction boxes if installed outdoors.
| Component | Wire Color (US/EU) | Terminal Connection |
|---|---|---|
| Power Source (Live) | Black (US) / Brown (EU) | Sensor L/Line |
| Neutral | White (US) / Blue (EU) | Sensor N + Fixture N |
| Switched Output | Red (US) / Black (EU) | Sensor Load → Fixture Live |
| Ground | Green/Yellow | Sensor + Fixture Ground |
Test the setup by covering the sensor’s lens–fixtures should activate within 30–60 seconds when ambient light drops below ~5–10 lux (adjust sensitivity via the built-in potentiometer if available). For LED fixtures, check compatibility; some sensors require a minimum load (typically 40W) to function correctly. If flickering occurs, add a capacitor (e.g., 2.2µF 250V) parallel to the fixture’s terminals or replace the sensor with one rated for low-power LED use. Always de-energize circuits before adjusting or troubleshooting.
Essential Equipment for Installing an Automatic Light Sensor
Start with a voltage tester (non-contact) rated for the circuit’s voltage. Models like the Fluke 1AC II or Klein NCVT-3 detect live wires without direct contact, reducing shock risks. Verify the tester works before each use–press the power button and hold it near a known live wire. Never assume wires are dead; even switched circuits can retain charge.
A screwdriver set with insulated handles (Phillips and flathead, sizes #1 to #3) is mandatory. Look for tools meeting IEC 60900 standards–these withstand 1,000V AC/DC. Avoid magnetic tips for electronic components; opt for anti-static or stainless-steel shafts. Lubricate threads occasionally with light machine oil to prevent corrosion.
Wire strippers must match the wire gauge (typically 12–14 AWG for residential setups). The Klein Katapult (model 11063) or Ideal T-Stripper (45-126) offer precise stripping without nicking conductors. For stranded wire, use the correct die size to avoid fraying–remove ⅜” of insulation for most connections. Calibrate the strippers every dozen uses by testing on scrap wire.
Line up waterproof wire connectors (UL-listed, silicone-filled) like 3M Scotchlok 560 or Marrette 1124. For outdoor use, ensure IP67 or higher ingress protection. Twist wires together firmly before inserting them into the connector–they should resist gentle tugs. Avoid electrical tape for permanent joints; it degrades under UV exposure and temperature fluctuations.
Use a multimeter (Fluke 17B or Amprobe AM-510) to check continuity and voltage. Set the dial to the correct range (200V for household circuits) and test probes together for zero ohms before use. Red probes go to “VΩ,” black to “COM.” Never measure current with probes in voltage sockets–this destroys the meter and risks arc flashes. Replace fuse if readings are erratic.
Additional Protection Gear
Rubber gloves (class 0, 1,000V) and safety glasses (ANSI Z87.1) are non-negotiable. Store gloves in a canvas bag away from solvents or sharp tools–they crack when exposed to ozone or oils. Test gloves monthly by inflating and listening for leaks. For arc flash risks, add a flame-resistant hood (NFPA 70E rated) when working near service panels.
Step-by-Step Connections for a Single Luminaire Installation
Begin by isolating the circuit at the breaker panel–toggle the correct switch to cut power to the intended lighting circuit. Use a non-contact voltage tester on the fixture’s supply wires to confirm zero current before proceeding. If the tester indicates live voltage, recheck the breaker or upstream disconnect.
Strip the conductor ends to expose ⅜ inch of copper, using wire strippers calibrated for the gauge (typically 12 or 14 AWG for residential loads). Twist the exposed strands clockwise until tight; avoid frayed ends that can creep past wire nuts and create shorts. Insert the stripped ends into the luminaire’s terminal block, matching the brass screw to the hot lead (black or red), the silver screw to the neutral (white), and the green or bare screw to the ground.
Securing the Junction
Align the luminaire’s mounting bracket to the junction box, ensuring the box’s knockout grommet seals the entry point–omitting this step often leads to moisture ingress during heavy rain. Tighten the two mounting screws incrementally, alternating between them to prevent bracket warp. Verify plumb with a torpedo level; an off-kilter mount causes screws to back out over thermal cycles.

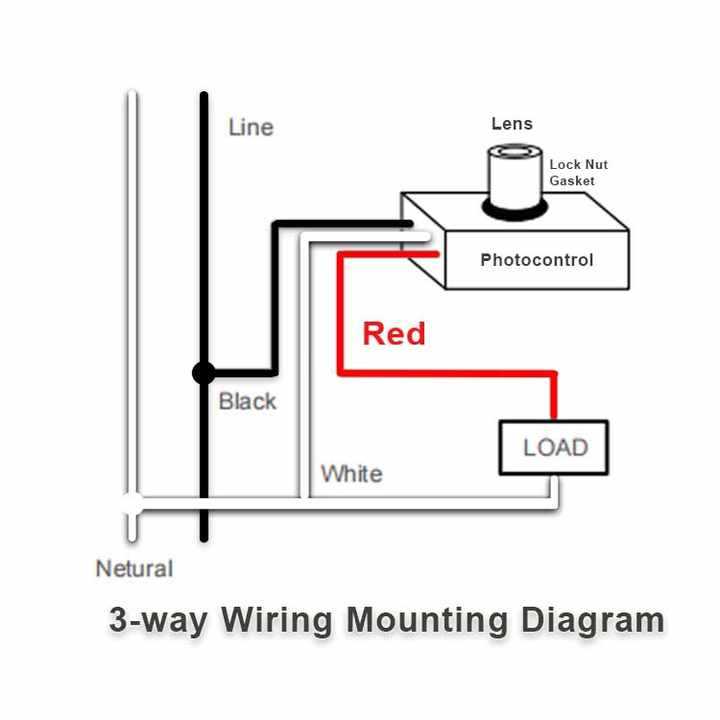

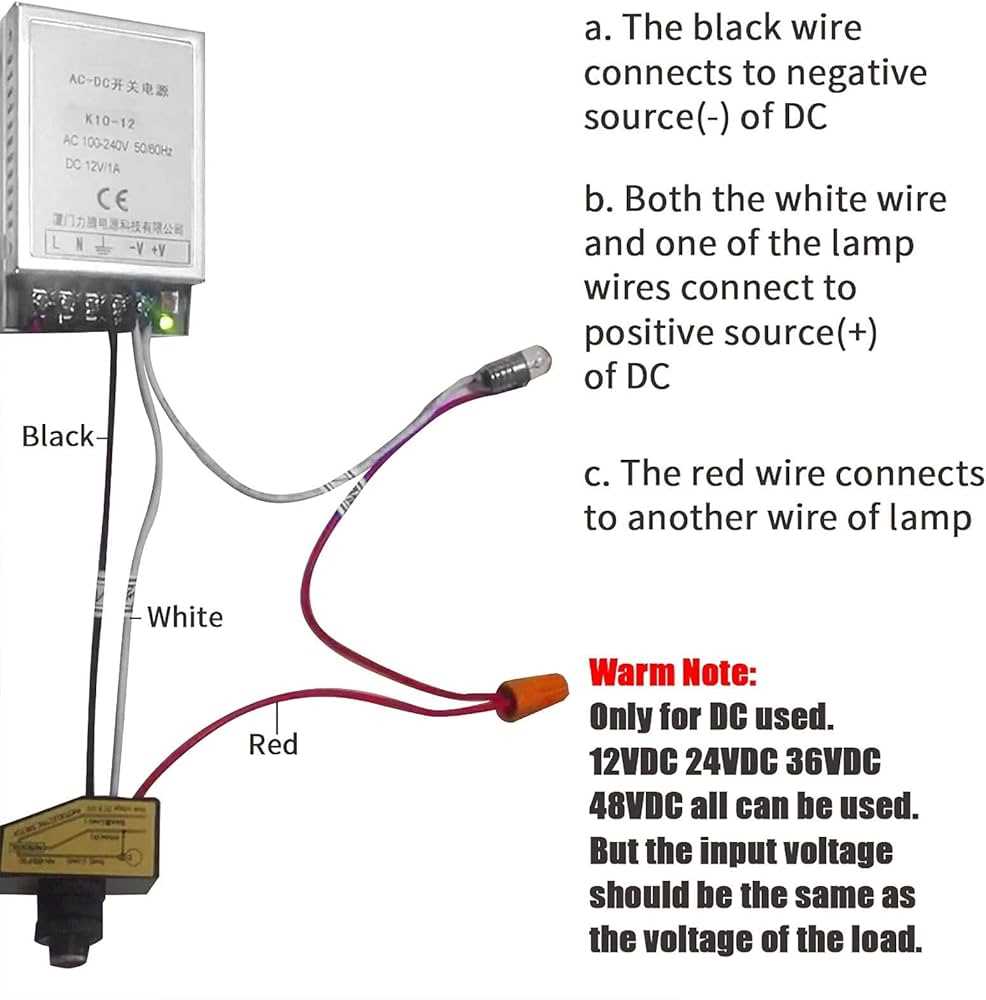

If the luminaire includes an ambient light sensor, route its three wires–load (red), neutral (white), and line (black)–through the same knockout. Connect the sensor’s line to the supply hot, its load to the luminaire’s hot terminal, and piggyback neutrals with a twist-on connector rated for the combined ampacity. Cap any unused sensor wires with a silicone-filled nut and secure the bundle with a nylon tie ½ inch from the junction box wall to prevent vibration wear.
Restore power at the breaker and observe the luminaire’s behavior under low light. If flicker occurs, measure voltage drop across the sensor’s contacts–any reading below 118 VAC suggests loose connections or undersized conductors. Replace the twist-on connectors with crimp-style terminals and #10 AWG pigtails for consistent contact.
Common Pitfalls in Light Sensor Installation and How to Prevent Them
Skipping voltage compatibility checks causes equipment failure. Ensure the control device matches the load’s voltage–120V, 240V, or 277V–before connecting. Mismatches lead to overheating or immediate burnout. Label all wires during disconnect to avoid confusion during reinstallation.
Exposing control units to direct sunlight or artificial glare tricks sensors into premature activation. Mount the unit under a protective overhang or use a shield to block stray light from streetlamps or vehicle headlights. Test positioning at twilight with a flashlight to confirm resistance to false triggers.
Ignoring weatherproofing shortens lifespan. Use only IP65-rated or higher enclosures for outdoor setups. Seal cable entries with silicone or rubber grommets to prevent moisture ingress, which causes corrosion and shorts. Replace cracked or brittle gaskets immediately.
Overloading circuits by connecting multiple fixtures to a single sensor trips breakers. Calculate total wattage–add 20% headroom–to select the right device. For multiple loads, use a relay-rated for the combined load instead of daisy-chaining.
Improper Grounding Risks
Failing to ground the system invites electrical hazards. Connect the grounding wire to a copper rod driven at least 8 feet into moist soil. Avoid attaching to metal pipes, which can corrode over time. Verify ground continuity with a multimeter before energizing.
Misaligned timing adjustments waste energy. Set the delay to 30–60 seconds to prevent rapid toggling from transient light changes. Use a screwdrive–never fingers–to adjust sensitivity dials; oils from skin can interfere with calibration over time.
Using low-quality connectors invites loose connections. Crimp terminals with ratcheted tools, then insulate with heat-shrink tubing. Avoid wire nuts outdoors; they absorb moisture and fail under thermal cycling. Twist wires clockwise before screwing down terminal blocks to prevent loosening.
Neglecting voltage drop calculations dims distant fixtures. Measure wire runs–every 100 feet of 14-gauge wire loses ~1.6V at 120V. Use thicker wire (12-gauge or 10-gauge) for long spans to maintain brightness. Test with a voltmeter at the fixture after installation to confirm minimum 115V at 120V systems.
