Install a split electrical socket by first cutting power at the circuit breaker. Verify the circuit is dead using a non-contact voltage tester before touching any wires. For a 120-volt household setup, connect the black (hot) wire to the brass terminal screw, the white (neutral) wire to the silver terminal, and the bare or green grounding wire to the green screw. Tighten each screw securely–loose connections cause overheating.
Follow the color-coding standard: red wires indicate a secondary hot wire in multi-wire branch circuits (MWBCs), which share a neutral. If working with an MWBC, confirm the red and black wires are on separate breakers tied together for safety. Failure to do so risks overloading the neutral wire. Label wires with their circuit origin for future troubleshooting.
For GFCI-protected outlets, attach line-side wires to the “LINE” terminals and load-side wires (if extending protection downstream) to the “LOAD” terminals. Incorrect placement disables ground-fault protection. Test GFCIs after installation–press the “Test” button followed by “Reset” to confirm proper operation. Replace damaged outlet housings; cracks compromise safety.
Use 12-gauge wire for 20-amp circuits and 14-gauge for 15-amp circuits. Mismatched wire gauge creates fire hazards. Strip wires to 5/8 inch of exposed copper–longer strands may short, shorter ones weaken connections. Bundle wires neatly inside the electrical box, avoiding tight bends that stress conductors.
Secure outlets with box mounting screws, not drywall anchors. Outlets installed flush with the wall plate reduce fire risk; protruding faceplates indicate improper mounting depth. Avoid overfilling junction boxes–they should contain no more than 4 wires per cubic inch of box volume. Check local codes for box fill limits if adding wires.
How to Connect a Dual-Outlet Electrical Socket Safely

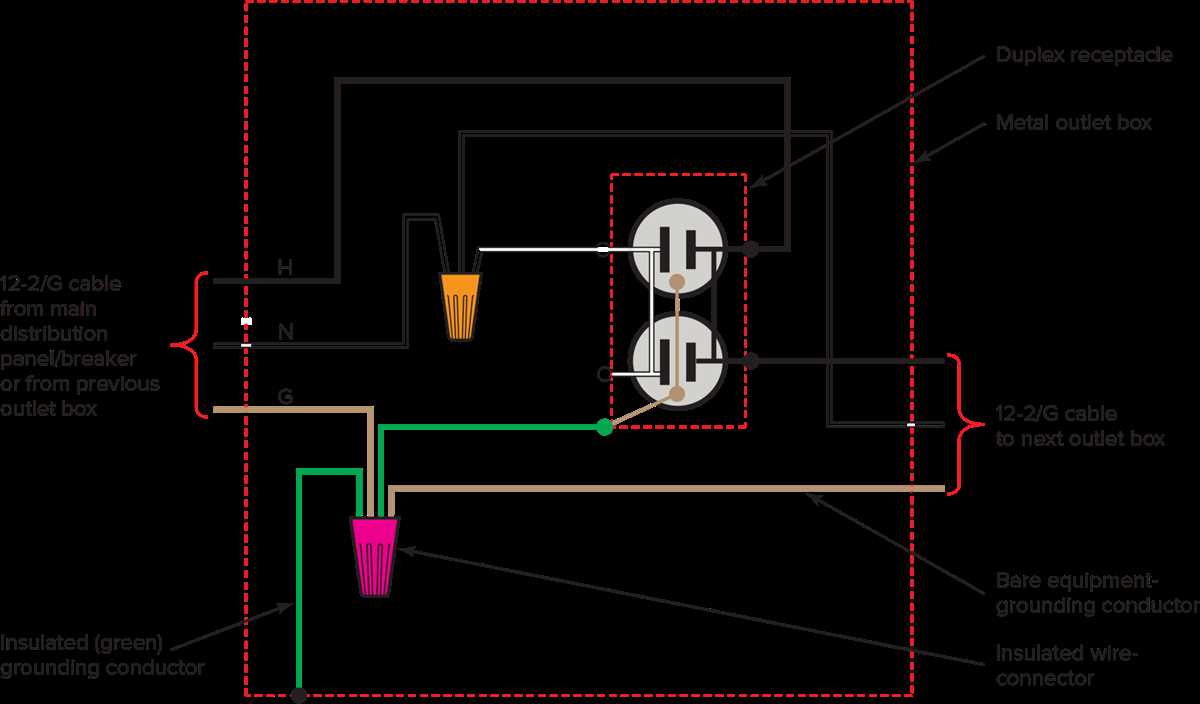

First, verify the circuit breaker is off before handling any wires. Use a non-contact voltage tester to confirm no live current remains. Strip 5/8 inch of insulation from each conductor–black (hot), white (neutral), and bare/green (ground). For a standard installation, attach the black wire to the brass screw, the white to the silver screw, and the ground to the green screw. If splitting the outlet for separate control, break the connecting tab on the hot side and link each half to a dedicated switch or circuit.
Key Steps for Correct Installation
- Match wire gauges: 14 AWG for 15-amp circuits, 12 AWG for 20-amp.
- Secure screws tightly; loose connections cause overheating.
- Fold wires neatly into the box to avoid pinching.
- Test polarity with a plug-in tester before finalizing the cover plate.
- For GFCI protection, connect line and load terminals as labeled–mixing them voids safety features.
If integrating into an existing setup, note whether the outlet operates in series (daisy-chain) or parallel (home-run). Series connections share power across multiple points, while parallel setups deliver full voltage to each. Label wires during disassembly to prevent confusion later.
Essential Equipment and Supplies for Installing an Outlet
Begin by securing a voltage tester with dual-range detection (12–600V AC/DC) to confirm circuits are dead before handling conductors. A non-contact model speeds up verification, but a contact probe ensures accuracy in concealed boxes where insulation may interfere. Select one with a built-in flashlight for dim workspaces–residential service panels often lack nearby lighting.
Use lineman’s pliers with insulated handles rated for 1000V; cheaper models risk dielectric failure during wire stripping. A quality pair includes hardened cutting edges to slice 12 AWG copper without deforming strands. Keep a separate needle-nose set for bending loops into terminal screws–pliers not designed for this task will mar the conductor, reducing current capacity over time.
Wire strippers calibrated for 14–10 AWG solid or stranded copper prevent nicking, which can create hotspots. Manual strippers work fine, but self-adjusting models save time when switching between common residential gauges. Include a crimping tool if attaching push-in connectors–twist-on caps should never be relied upon for permanent splices in junction boxes.
Safety and Specialty Gear
Rubber insulated gloves compliant with ASTM D120 Class 0 (1 kV) provide critical protection during service panel work. Pair them with arc-rated face shields and flame-resistant long sleeves–faulty breakers can explode shrapnel. A fiberglass fish tape (⅛” diameter) is essential for routing conductors through finished walls; flexible steel tapes jam in older plaster-and-lathe construction.
Outlet-Specific Components
Opt for tamper-resistant outlets meeting NEC 406.12 where minors or pets are present–the shutters prevent foreign objects from entering slots. For AFCI protection on 15- or 20-amp circuits, use combination breakers in the panel rather than standalone devices; the latter add failure points. Grounding pigtails must be green (14 AWG solid copper) and secured with irreversible crimps–soldered connections violate code in accessible junction boxes.
How to Install a Double Outlet: Clear Steps
First, ensure the circuit breaker is off before handling any electrical components. Strip 1/2 inch of insulation from the ends of the neutral (white), hot (black), and ground (bare or green) wires. Connect the incoming neutral wire to the silver screw terminal on the outlet, wrapping it clockwise around the screw before tightening. Repeat with the hot wire on the brass screw and the ground wire on the green grounding terminal. For split-circuit setups, pigtail neutral wires to maintain continuity.
Secure the outlet in the electrical box by aligning the mounting screws with the box’s tabs. Gently fold wires back into the box to avoid pinching. Attach the cover plate once the outlet is flush against the wall. Restore power at the breaker and test each socket with a voltage tester–probes should read 120V between hot and neutral, and continuity between neutral and ground.
For two separate circuits sharing a single outlet, connect the second hot wire to the break-off fin on the opposite side. Verify polarity: reversed wires create shock hazards. Grounding is non-negotiable–omit it only in knob-and-tube rewiring scenarios, but consult local codes first. Miswiring risks arcing, so double-check connections before finalizing.
How to Distinguish Hot, Switched, Return, and Safety Conductors in an Outlet Installation
Begin by shutting off power at the breaker panel and verifying absence of voltage with a non-contact tester on all conductors. Hot (line) conductors–typically black or red in 120V North American setups–carry current from the source; attach them to brass terminals. Switched (load) wires, if present, feed downstream devices and connect to the remaining brass screws. Check continuity between suspected line and load wires with a multimeter set to ohms; infinite resistance confirms isolation when the switch is off.
Neutral (return) conductors–white or light gray–complete the circuit back to the panel’s neutral bus and must connect exclusively to silver terminals. Miswiring neutrals risks parallel paths and overheating. Ground (safety) wires–bare, green, or green-yellow striped–bond to the outlet’s green screw and upstream metal enclosure. Use a dedicated ground bus; never splice grounds to neutrals elsewhere in the box. Label each conductor with masking tape during disassembly to prevent cross-connection.
Visual and Tester-Based Identification Methods
| Conductor Type | Color Codes (NEC) | Terminal Color (Outlet) | Multimeter Test (Power Off) |
|---|---|---|---|
| Hot (line) | Black, red (other colors rare) | Brass | 0V to neutral/ground; continuity to breaker |
| Switched (load) | Same as line | Brass | Infinite ohms to line when switch open |
| Neutral (return) | White, light gray | Silver | 0V to ground; continuity to neutral bus |
| Ground (safety) | Bare, green, green-yellow stripe | Green | 0V to all conductors; continuity to box/enclosure |
For mixed-color installations, trace wires backward to their origin. Neutrals bundled with grounds in older aluminum wiring require separation; pigtail neutrals with wire nuts rated for 600V. Measure voltage between each brass terminal and neutral with power restored; ~120V indicates a live line, ~0V suggests load. Safety conductors should never register voltage above millivolts; high readings signal a bootleg ground or neutral-ground fault.
Handling Edge Cases

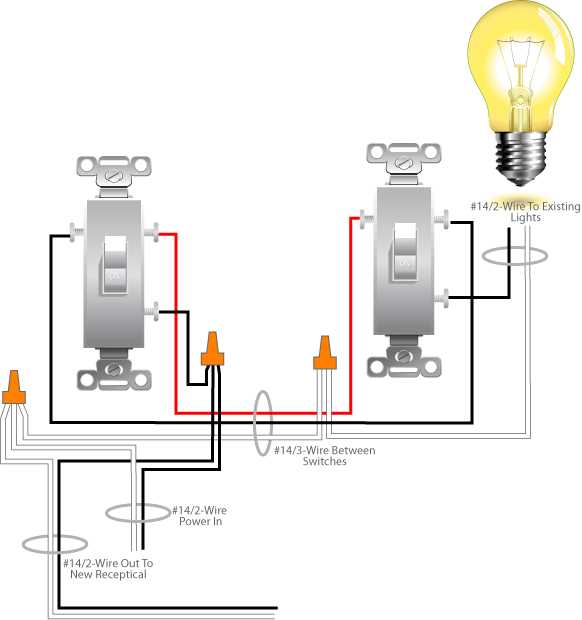

Split-circuit setups use tab removal on the brass side; the top brass terminal likely powers a switched load, while the bottom remains live. Three-way switches introduce red travelers; tag these before disconnecting. Backstab connections risk loose contacts–prefer side-terminal or lugged splices. If wires enter from conduit without color consistency, meter all permutations: line will source voltage, load will float when the switch is toggled, neutral shows minimal resistance to ground, and true ground terminates at the panel’s grounding electrode.
Controlling Outlets Independently with Split-Terminal Connection
To wire a double outlet for separate breaker switches, start by removing the brass tab linking the two brass screws on the side you’re modifying–this cuts the bridge between the pair, allowing isolated power delivery. Use 12-gauge THHN copper for 20-amp circuits and 14-gauge for 15-amp, ensuring each conductor terminates cleanly on its own screw without overlapping. Label the hot wires before attaching: the top terminal typically feeds from the first breaker, the bottom from the second. Secure neutral wires under a single silver screw–do not break the tab here–unless handling a multi-wire branch circuit with separate neutrals under a double-pole switch.
Safety and Compliance Checks Before Energizing
Verify torque specifications–18 in-lbs for 15-amp outlets, 24 in-lbs for 20-amp–using an insulated screwdriver with torque-limiting features. Confirm the ground wire clamps tightly to the green screw and pigtail connects to the box if metallic. Test continuity with a multimeter after securing all connections: probe each hot terminal to neutral; readings should match the breaker’s voltage (120V for single-pole, 240V for double-pole setups). If installing GFCI protection, wire the load side correctly or omit the split–GFCIs won’t function with broken tabs. Affix the wall plate only after confirming zero-voltage between terminals and ground with the breakers off.
